Uni Block 26 CS (Set)

Información sobre el producto "Uni Block 26 CS (Set)"

Color:
Negro

Países de Entrega:
En todo el mundo

Description:

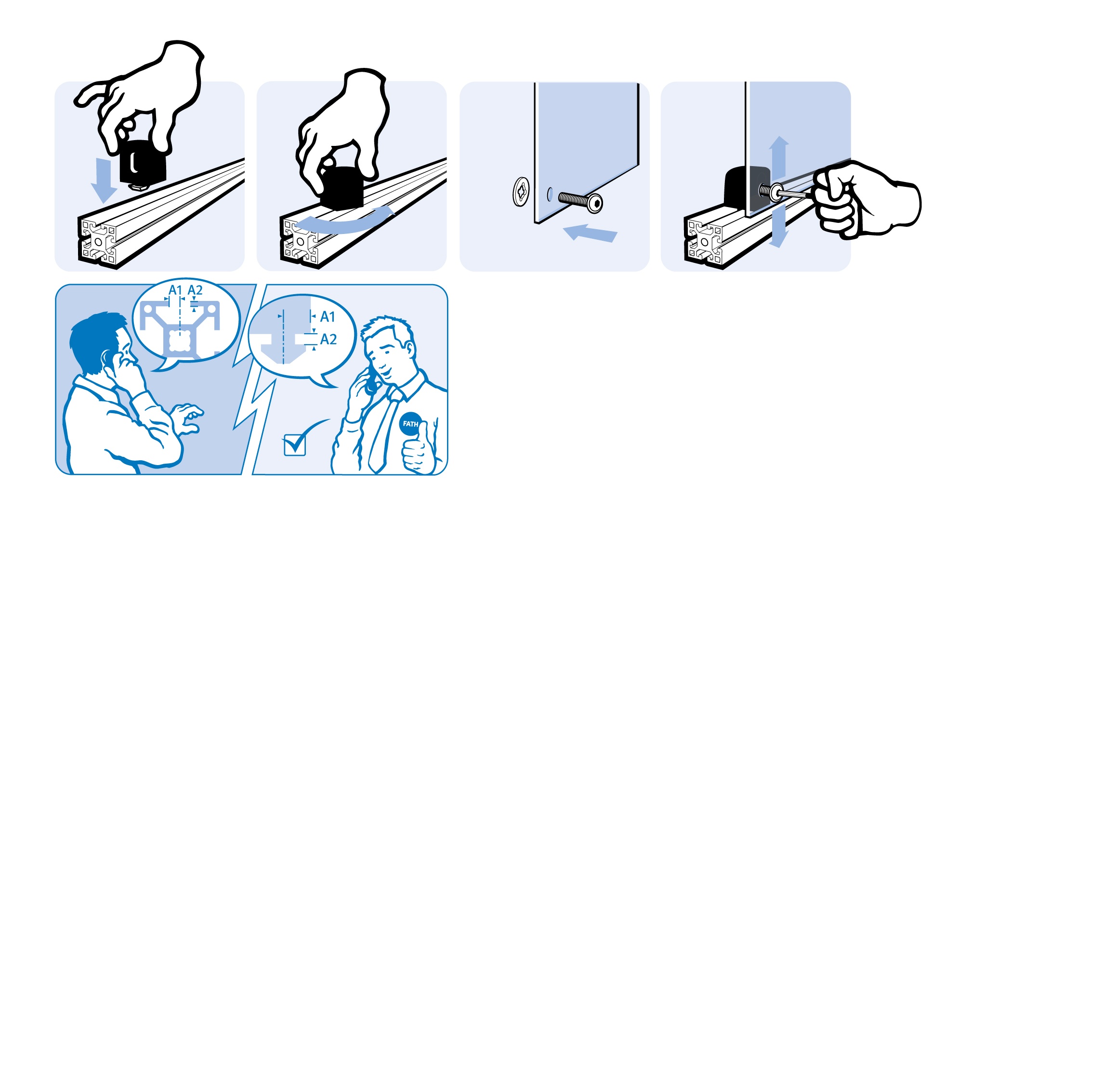

To attach panels with a thickness of 2 - 8 mm safely to aluminum profiles; with screw retainer to comply withMachinery Directive 2006/42/EC

Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel

Specials:
Customized hammer, other colors on request
Cantidad por Paquete: 100 piezas
Model: With screw retainer
Peso (g): 21.0
ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360492
ECLASS 12.0: 23360492
ECLASS 13.0: 23360492
Zolltarifnummer: 39269097900
Número de Arancel Aduanero de Exportación: 39269097
Numero de ERP: 120735

Variantes

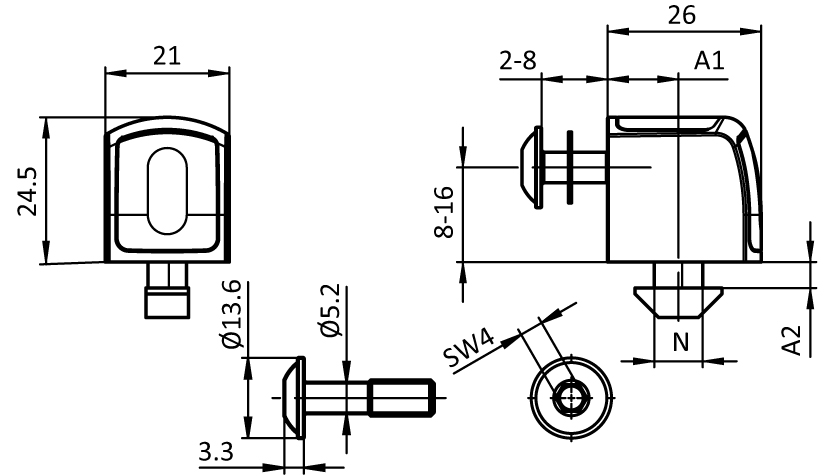

Número de producto Profile Ranura N (mm) A2 (Profile) (mm) A1 (mm)
094605CSS02 B 10 6.3 (6.0) 14.0
094620CSS02 I 8 4.4 (4.5) 12.0

Descargas CAD

Certificados
