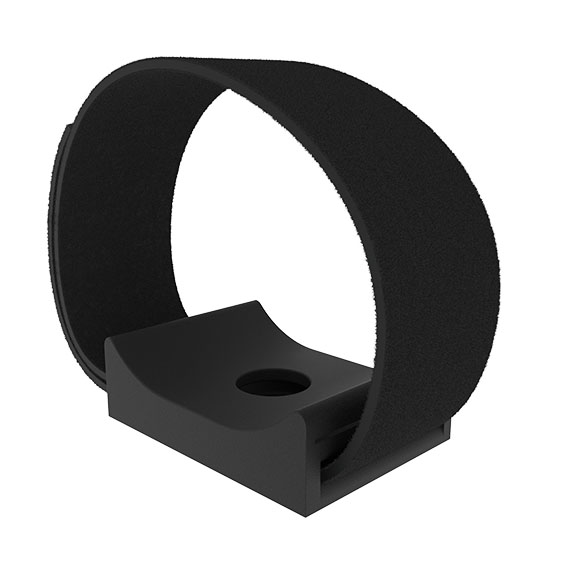

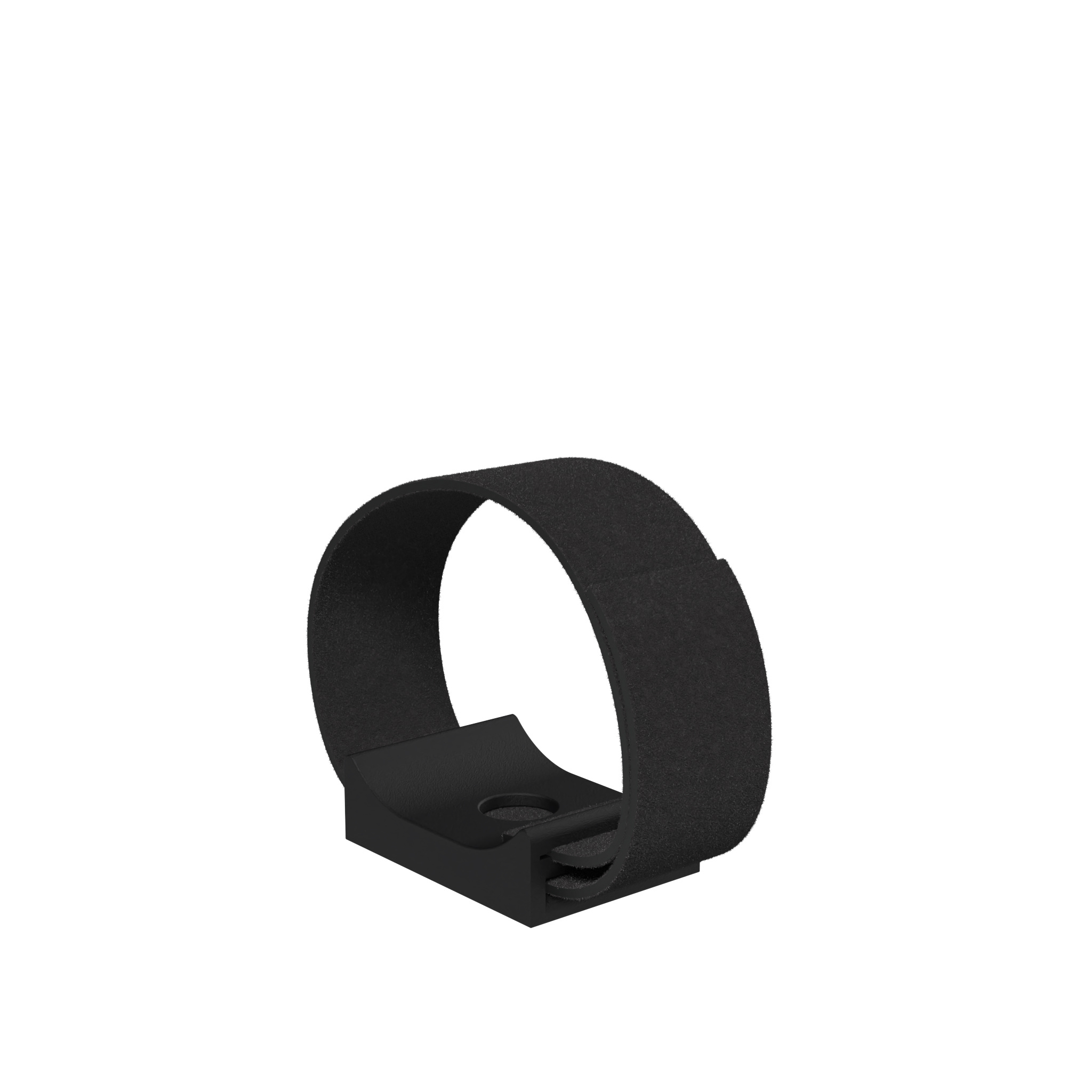

Universal Hook-and-loop Block

Información sobre el producto "Universal Hook-and-loop Block"

Color:
Cable binding block: Black
Hook-and-loop strap: Black

Países de Entrega:
En todo el mundo

Description:

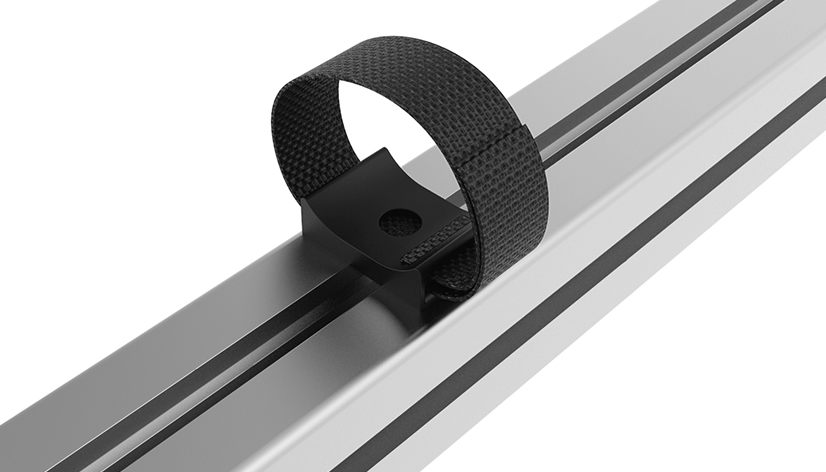

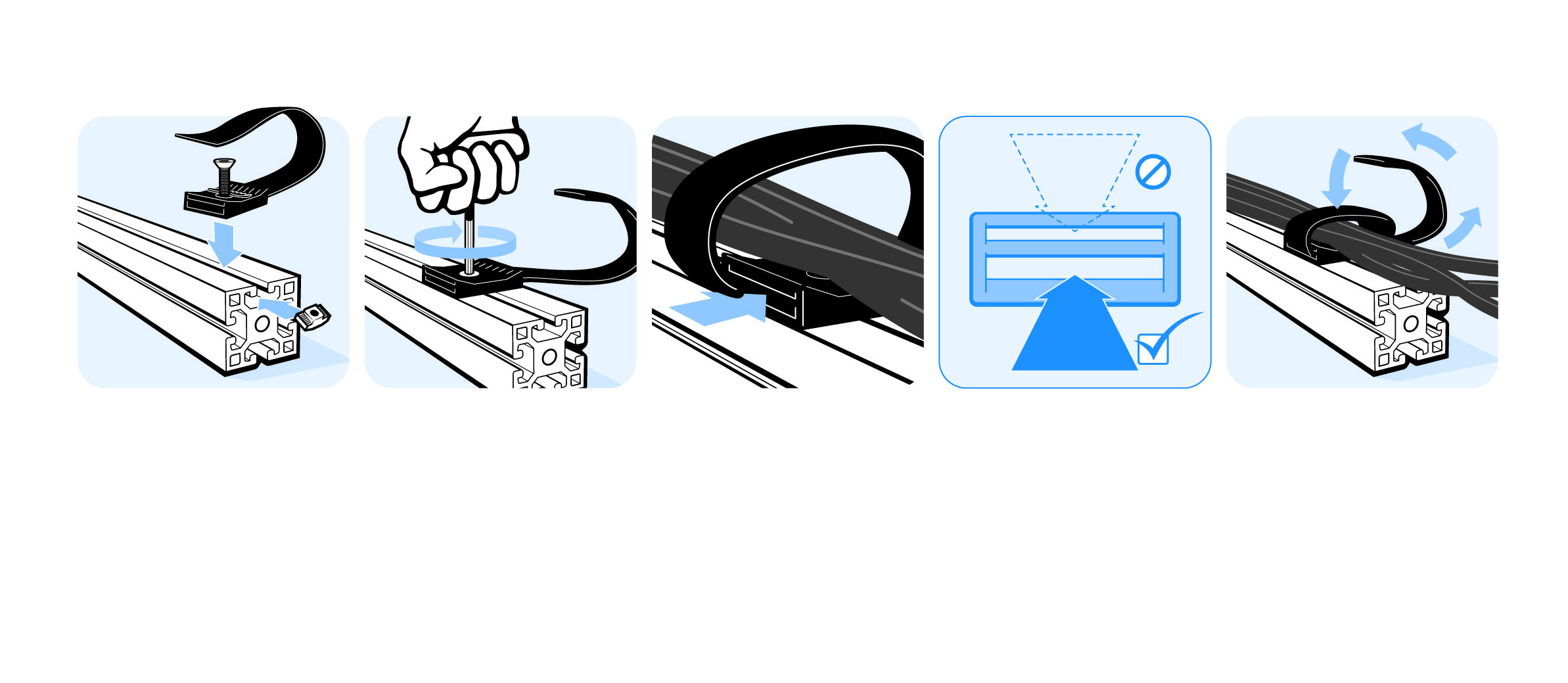

To fix cables to aluminum profiles; to be mounted with a hammer nut

Material:
Cable binding block: Plastic PA, glass fiber reinforced
Hook-and-loop strap: Plastic PP (UL94-V2)

Tip:
Compatible Hammer Nuts see 096H0610 et seq.

Zolltarifnummer:
39269097900
(ECLASS 6.0): 27140701
(ECLASS 7.0): 27140701
(ECLASS 8.0): 27140701
(ECLASS 9.0): 27140701
(ECLASS 10.0): 27140701
(ECLASS 11.0): 27140701
(ECLASS 12.0): 27140701
(ECLASS 13.0): 27140701
Cantidad por Paquete: 10 piezas
Fastening: Por delante, con tornillos avellanados M4 o M5
Model: Plastic PA, slot 5-12
Peso (g): 8.6

Variantes

ID de producto
093815M45S01

Descargas CAD

Certificados
