Vario Clamping Block 25 CS
0,00 €
Número de producto:
094522M6CS
Cantidad por Paquete:
100 piezas
Información sobre el producto "Vario Clamping Block 25 CS"
Color:
Bloque: Negro
Países de Entrega:
En todo el mundo
Description:

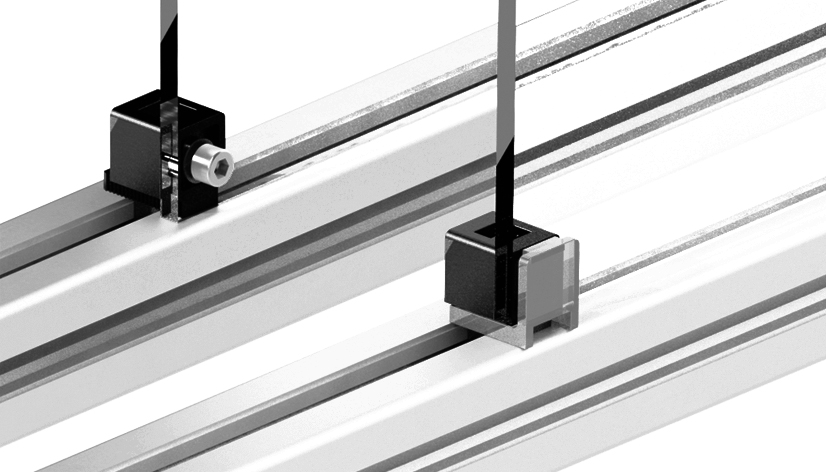

To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/EC; optional screwless mounting with clip clamp
Material:
Block: Plastic PA, glass fiber reinforced
Nut: Steel
Especiales:
Otros colores bajo pedido
Surface:
Nut: Zinc plated
Tip:
Compatible Clip clamp see 09452RA20
Bloque: Negro
Países de Entrega:
En todo el mundo
Description:
To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/EC; optional screwless mounting with clip clamp
Material:
Block: Plastic PA, glass fiber reinforced
Nut: Steel
Especiales:
Otros colores bajo pedido
Surface:
Nut: Zinc plated
Tip:
Compatible Clip clamp see 09452RA20
| Model: | Plastic PA, Slot 10 |
|---|---|
| Cantidad por Paquete: | 100 piezas |
| Número de Arancel Aduanero de Exportación: | 39269097 |
| Fixation Span: | With clip clamp from 0 to 13 mm |
| Peso (g): | 8.8 |
| (ECLASS 6.0): | 23369290 |
| (ECLASS 7.0): | 23369290 |
| (ECLASS 8.0): | 23369290 |
| (ECLASS 9.0): | 23369290 |
| (ECLASS 10.0): | 23369290 |
| (ECLASS 11.0): | 23360492 |
| (ECLASS 12.0): | 23360492 |
| (ECLASS 13.0): | 23360492 |
| Numero de ERP: | 129317 |
| Zolltarifnummer: | 39269097900 |
