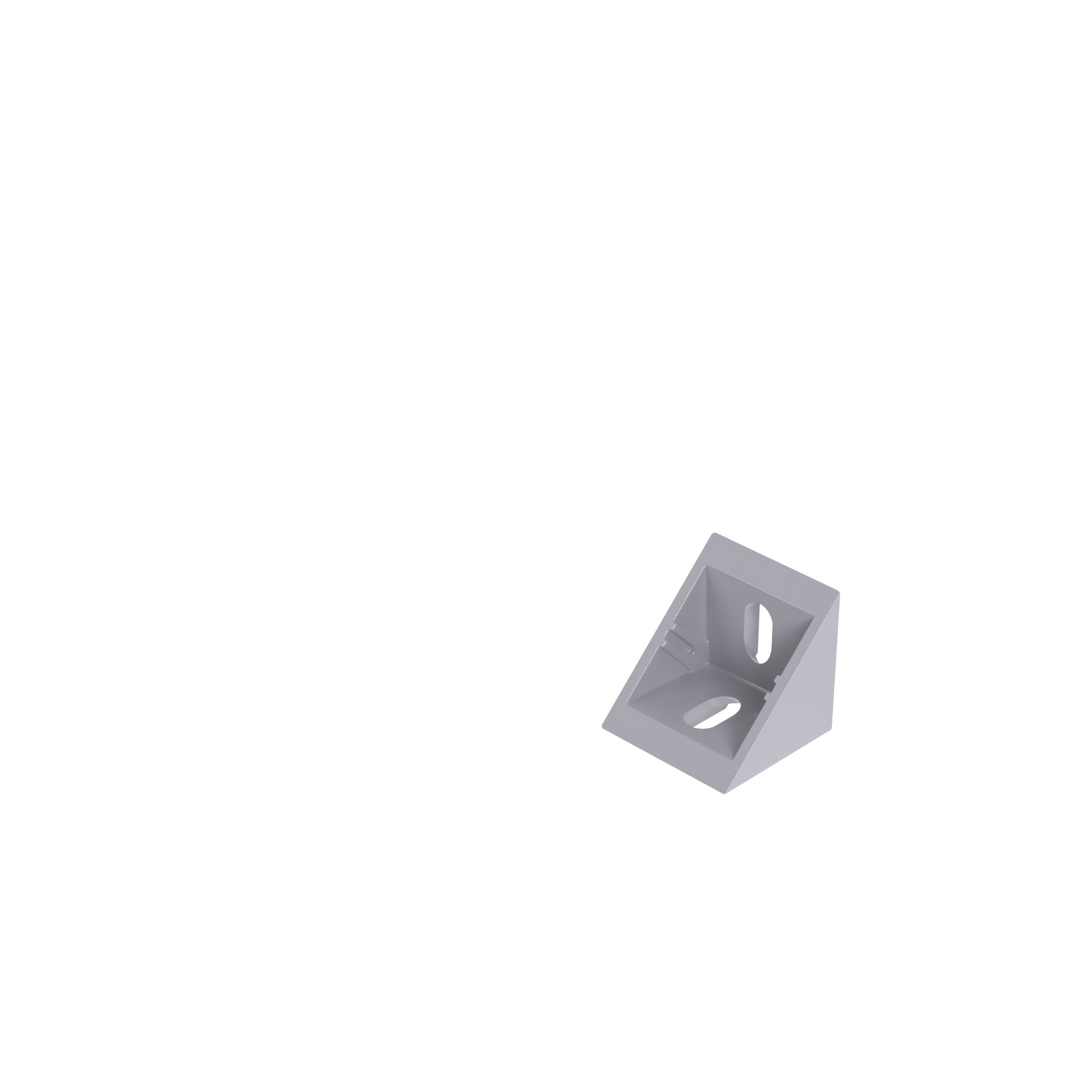

Zinc Connection Angle 40 flat
Número de producto:
093W401N10
Información sobre el producto "Zinc Connection Angle 40 flat"
Assembly Set:
1 Cover cap - Plastic PA - black,
2 T-slot nuts - slot 8 - M8,
2 Screws ISO 7380 - M8 x 16
Color:
Angle: - / alu color
Cover cap: Black
Países de Entrega:
En todo el mundo
Description:

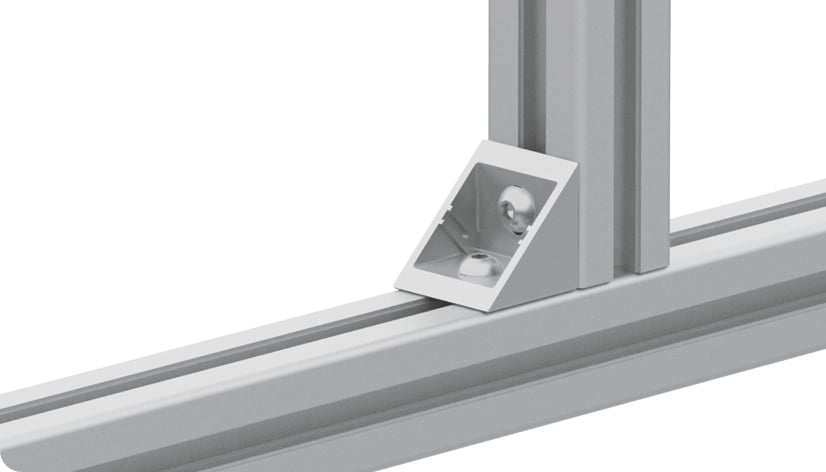

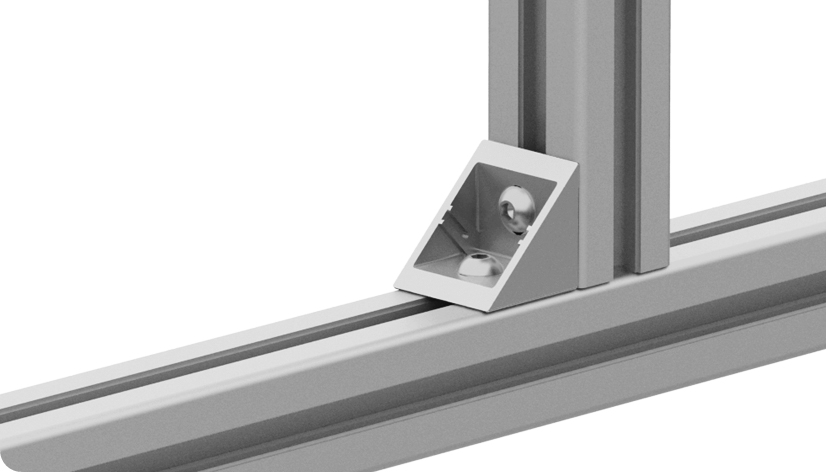

To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Material:
Angle: Zinc die-cast
Cover cap: Plastic PA, glass fiber reinforced
Assembly set: Steel
Especiales:
Otras superficies, otros colores bajo pedido
Surface:
Angle: Plain / Powder coated
Assembly set: Zinc plated
Tip:
Compatible Cover Cap see 093WA401
1 Cover cap - Plastic PA - black,
2 T-slot nuts - slot 8 - M8,
2 Screws ISO 7380 - M8 x 16
Color:
Angle: - / alu color
Cover cap: Black
Países de Entrega:
En todo el mundo
Description:
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Material:
Angle: Zinc die-cast
Cover cap: Plastic PA, glass fiber reinforced
Assembly set: Steel
Especiales:
Otras superficies, otros colores bajo pedido
Surface:
Angle: Plain / Powder coated
Assembly set: Zinc plated
Tip:
Compatible Cover Cap see 093WA401
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Cantidad por Paquete: | 10 piezas / 10 jconjuntos |
| Cantidad por Paquete (1): | 10 |
| Model: | Fundición a presión de zinc |
| Numero de PA: | 100964 |
| Número de Arancel Aduanero de Exportación: | 79070000 |
| Peso (g): | 90.0 |
| Zolltarifnummer: | 79070000900 |
