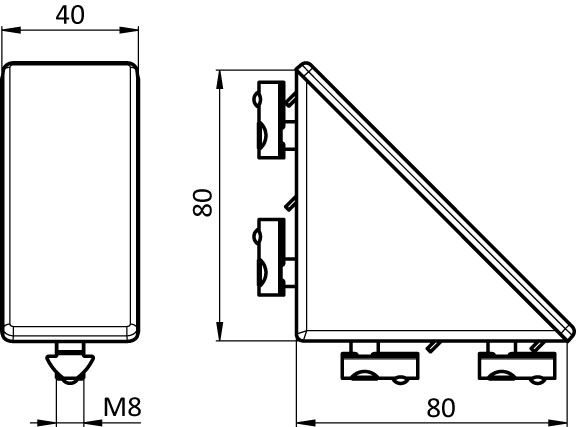

Zinc Connection Angle I 40 x 80 flat (Set)

Información sobre el producto "Zinc Connection Angle I 40 x 80 flat (Set)"

Color:
Angle: Alu color
Cover cap: Black

Países de Entrega:
En todo el mundo

Description:

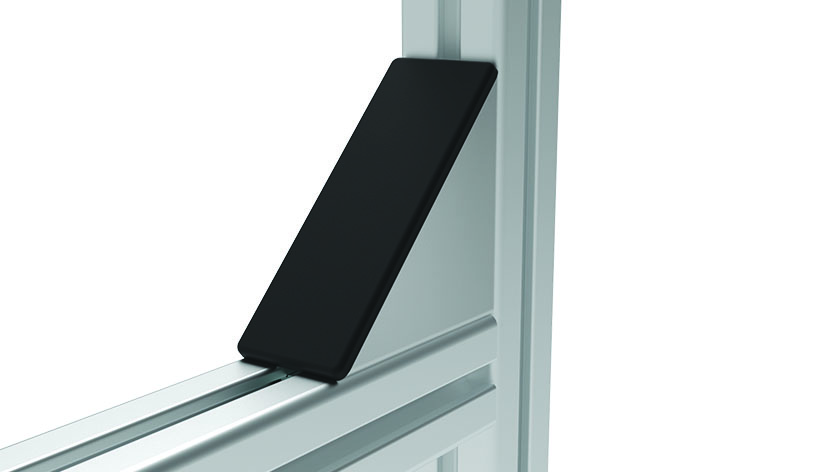

To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap

Material:
Angle: Zinc die-cast
Cover cap: Plastic PA, glass fiber reinforced
Assembly set: Steel

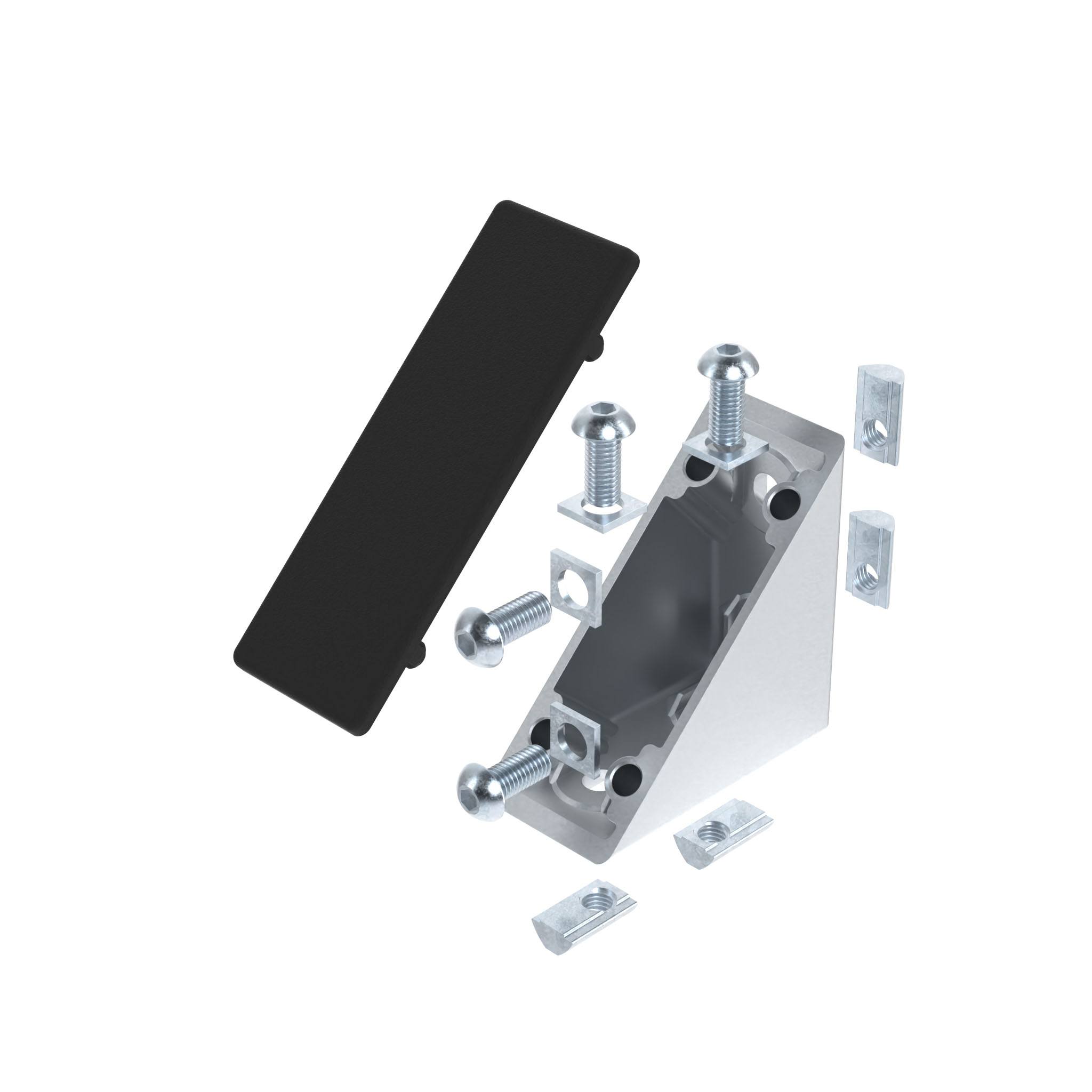

Set:
1 connection angle
1 cover cap
4 T-slot nut - slot 8 - M8
4 screws ISO 7380 - M8 x 18
4 washer

Especiales:
Otros tamaños, otras superficies bajo pedido

Surface:
Angle: Powder coated
Screws: Zinc plated
T-slot nuts: Zinc plated

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Cantidad por Paquete: 10 conjuntos
Model: Fundición a presión de zinc
Peso (g): 399.2

Variantes

ID de producto Profile
093W8010N08S01 I

Descargas CAD

Certificados
