Zinc Connection Angle V 40 (Set)

Información sobre el producto "Zinc Connection Angle V 40 (Set)"

Color:
Color aluminio

Países de Entrega:
En todo el mundo

Description:

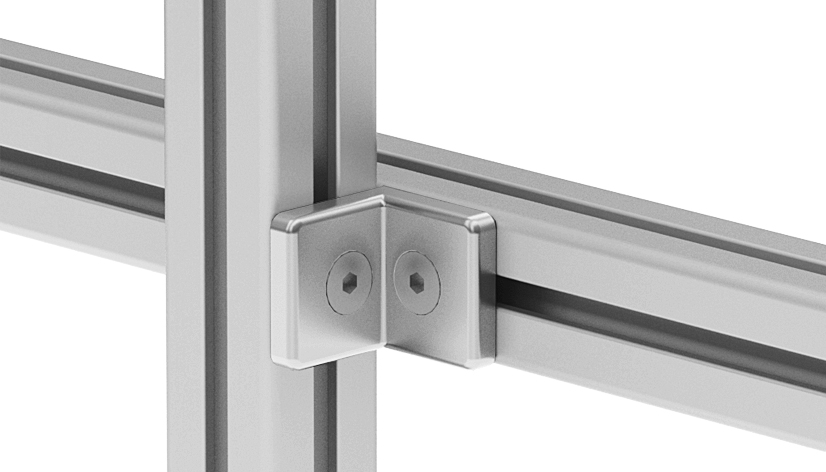

To connect two aluminum profiles or panels at right angles; particularly suitable for fixing horizontal profiles between upright profiles or for attaching other components to profiles; with turn-lock slot 8 on one of the rear sides

Material:
Connection angle: Zinc die-cast
Screws and T-slot nuts: Steel

Set:
1 connection angle V40 - slot 8,
2 screws DIN 7991 - M8 x 18,
2 T-slot nuts - slot 8 - M8

Especiales:
Otras superficies, otros colores bajo pedido

Surface:
Connection Angle: Powder coated
Screws and T-solt nuts: Zinc plated

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Cantidad por Paquete: 10 conjuntos
Model: Zinc die-cast, slot 8
Peso (g): 164.7

Variantes

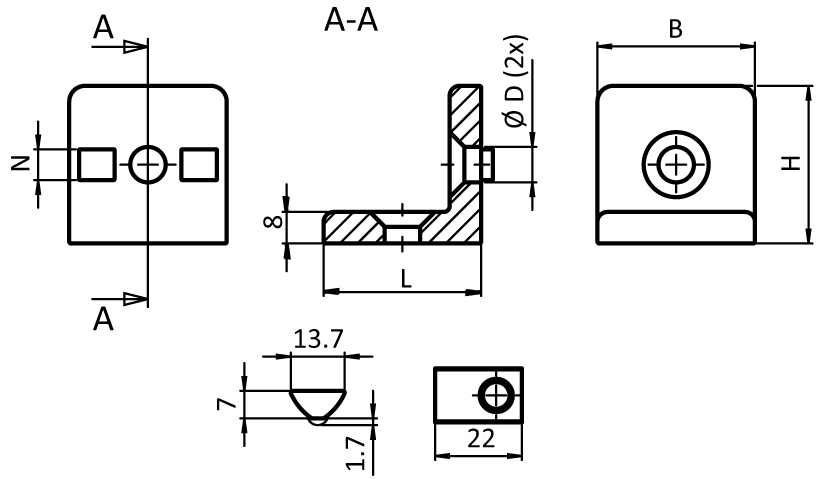

ID de producto Profile Dimensions L x B x H (mm) Ranura N (mm) D (mm)
093WI40N08S01 I 40 x 40 x 40 8 9.0
