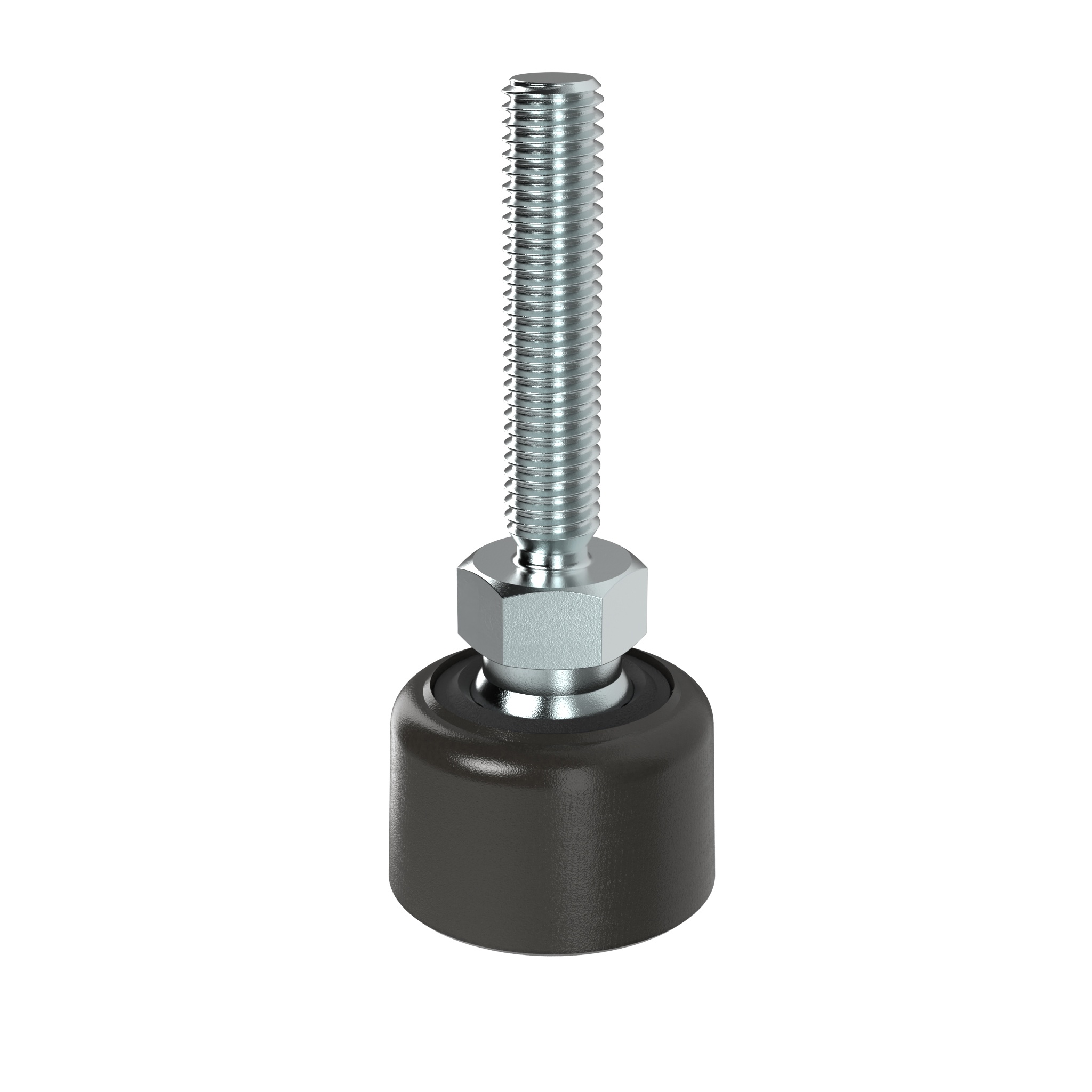

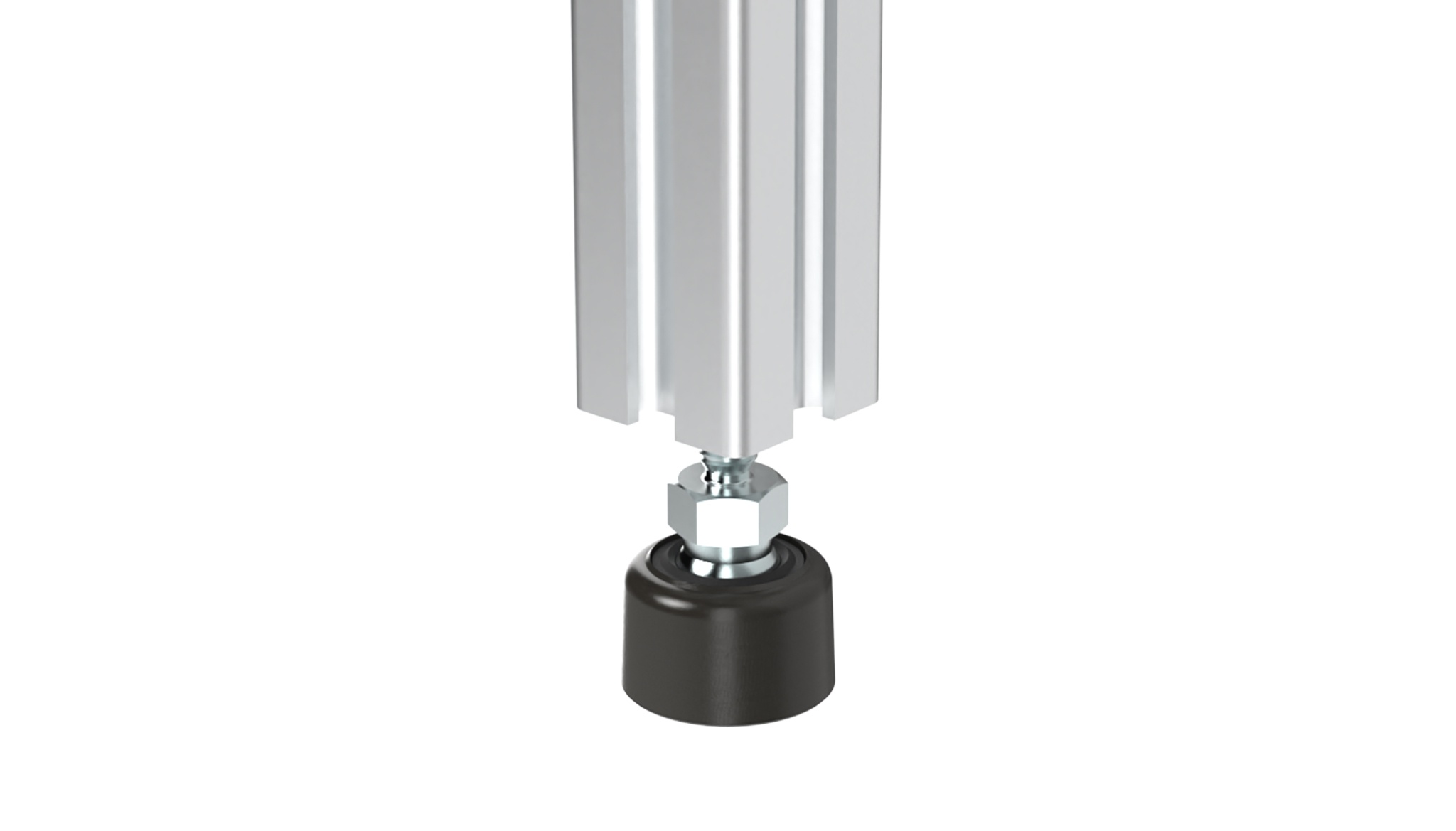

Gelenkstellfuß, ZN / ST - Kugel 15

Produktinformationen "Gelenkstellfuß, ZN / ST - Kugel 15"

Farbe:
Teller: schwarz

Lieferländer:
weltweit

Beschreibung:
schwenkbarer, nivellierbarer Stellfuß zum Ausgleich von Bodenunebenheiten

Material:
Teller: Zinkdruckguss
Gewindestange: Stahl

Extras:
ESD elektrostatisch entladend, weitere Größen, weitere Farben, geklebte Anti-Slip-Platte auf Anfrage
Edelstahl, weitere Längen und Größen auf Anfrage

Oberfläche:
Teller: pulverbeschichtet
Gewindestange: verzinkt

Hinweis:
passende Mutter siehe 4DIN439BM5M f. und 4DIN934M5M f.,
passende Anti-Slip-Platte siehe 098DG30 f.

Zolltarifnummer:
73269098900
Gewicht (g): 743.0
Kugelgelenk: Schwenkbereich ±20°
Liefereinheit: 1 Stück
Modell: Zinkdruckguss / Stahl, ohne Anschraubbohrungen

Varianten

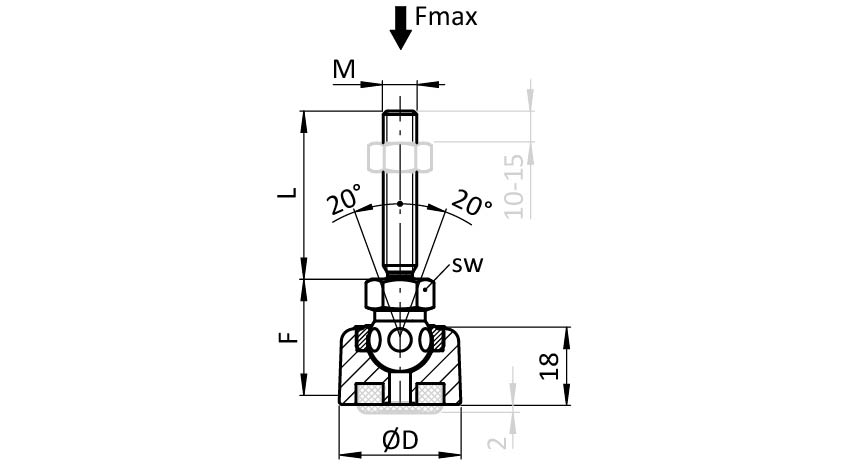

Produkt ID Ausführung Teller Fmax (N) D (mm) F (mm) M x L (mm) SW (mm)
9D030ZS08040M ohne Anti-Slip-Platte 30 3430 29 29.5 M8 x 40 14
9D040ZS08040M ohne Anti-Slip-Platte 40 3430 39 29.5 M8 x 40 14
9D040ZS12066M ohne Anti-Slip-Platte 40 7550 39 29.5 M12 x 66 14
9D040ZS12100M ohne Anti-Slip-Platte 40 7550 39 29.5 M12 x 100 14
9D040ZS12150M ohne Anti-Slip-Platte 40 7550 39 29.5 M12 x 150 14
9D045ZS12066M ohne Anti-Slip-Platte 45 7550 44 29.5 M12 x 66 14
9D045ZS12150M ohne Anti-Slip-Platte 45 7550 44 29.5 M12 x 150 14
9D060ZS10070M ohne Anti-Slip-Platte 60 4600 59 29.5 M10 x 70 14
9D060ZS10125M ohne Anti-Slip-Platte 60 4600 59 29.5 M10 x 125 14
9D060ZS12066M ohne Anti-Slip-Platte 60 7550 59 29.5 M12 x 66 14
9D060ZS12125M ohne Anti-Slip-Platte 60 7550 59 29.5 M12 x 125 14
9D060ZS16100M ohne Anti-Slip-Platte 60 14200 59 29.5 M16 x 100 17
9D060ZS16150M ohne Anti-Slip-Platte 60 14200 59 29.5 M16 x 150 17
9D060ZS24150M ohne Anti-Slip-Platte 60 29400 59 32.5 M24 x 150 24
9D080ZS10070M ohne Anti-Slip-Platte 80 4600 79 29.5 M10 x 70 14
9D080ZS12100M ohne Anti-Slip-Platte 80 7550 79 29.5 M12 x 100 14
9D080ZS12150M ohne Anti-Slip-Platte 80 7550 79 29.5 M12 x 150 14
9D080ZS16100M ohne Anti-Slip-Platte 80 14200 79 29.5 M16 x 100 17
9D080ZS16125M ohne Anti-Slip-Platte 80 14200 79 29.5 M16 x 125 17

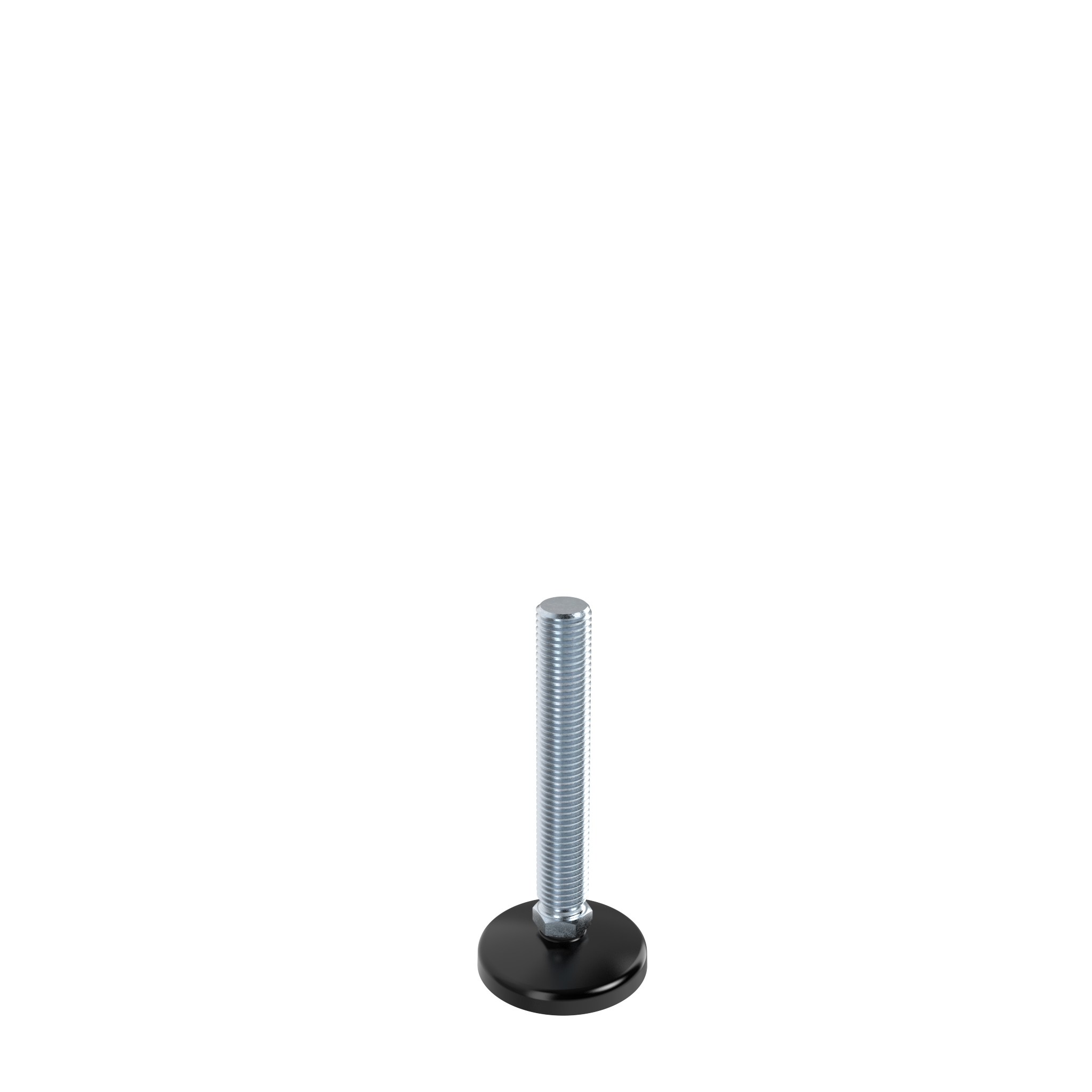

9D080ZS24150M ohne Anti-Slip-Platte 80 29400 79 32.5 M24 x 150 24
9D080ZS24250M ohne Anti-Slip-Platte 80 29400 79 32.5 M24 x 250 24
9D100ZS16100M ohne Anti-Slip-Platte 100 14200 99 29.5 M16 x 100 17
9D100ZS20100M ohne Anti-Slip-Platte 100 23800 99 32.5 M20 x 100 22
9D100ZS20125M ohne Anti-Slip-Platte 100 23800 99 32.5 M20 x 125 22
