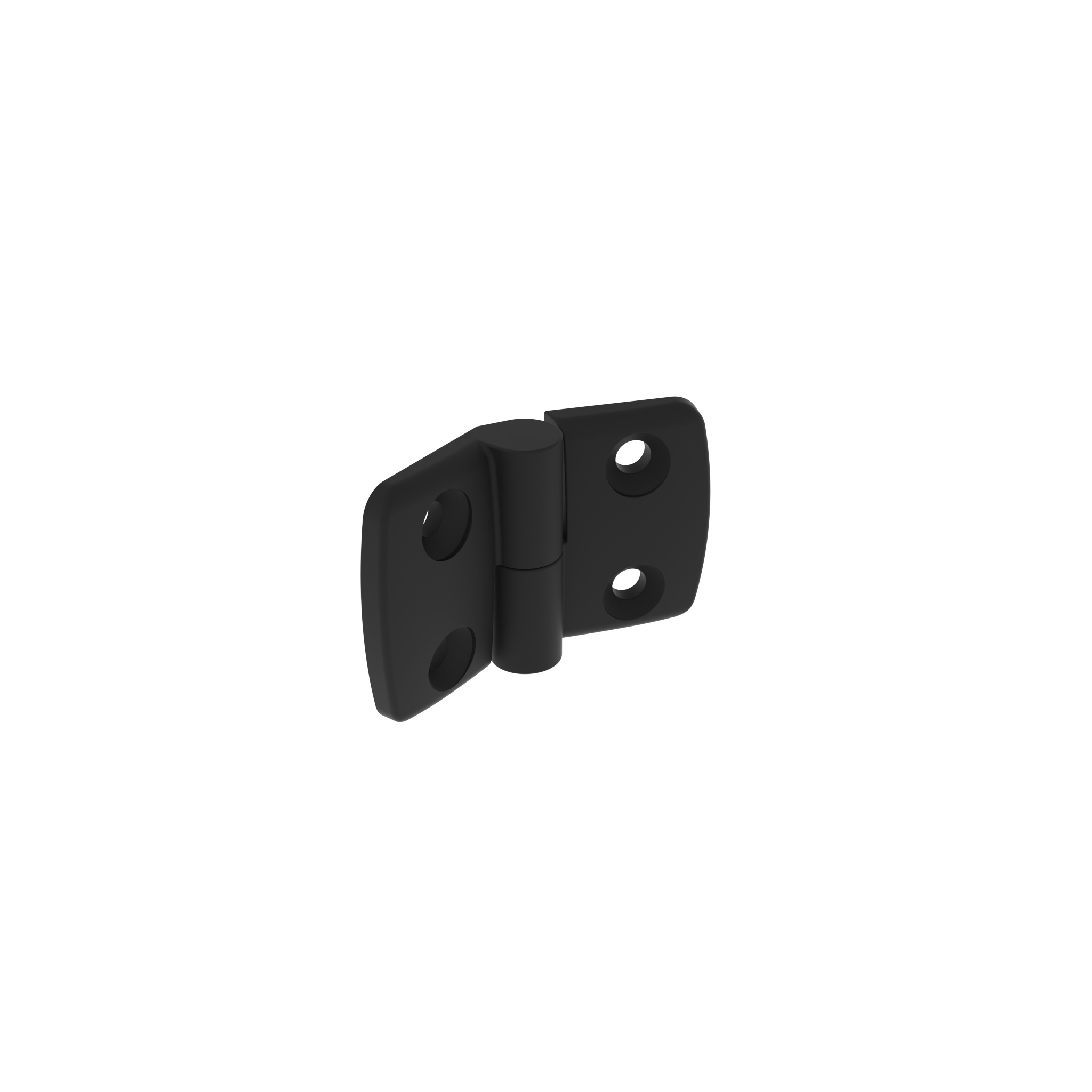

Kunststoff-Kombischarnier 40, aushängbar, schwarz

Produktinformationen "Kunststoff-Kombischarnier 40, aushängbar, schwarz"

Farbe:
schwarz

Lieferländer:
weltweit

Beschreibung:
für Flächenelemente und Aluminiumprofile

Material:
Flügel: Kunststoff PA, glasfaserverstärkt;
Achse: Edelstahl

Extras:
ESD elektrostatisch entladend, weitere Farben, Führungsnasen zur Montage auf Aluminiumprofilen auf Anfrage

Zolltarifnummer:
39263000900
Befestigung: vorderseitig mit Senkschraube M6
Gewicht (g): 40.0
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Liefereinheit: 10 Stück
Modell: aushängbar

Varianten

Produkt ID Ausführung Kombination FAmax (N) FRmax (N) A1 (mm) A2 (mm) B1 (mm) B2 (mm) Nut N (mm)
095K4025L00 L: links 40 / 25 425 650 22.5 15.0 38.5 26.0 -
095K4025R00 R: rechts 40 / 25 425 650 15.0 22.5 26.0 38.5 -
095K4030L00 L: links 40 / 30 - 750 22.5 17.5 38.5 29.5 -
095K4030R00 R: rechts 40 / 30 - 750 17.5 22.5 29.5 38.5 -
095K4035L00 L: links 40 / 35 400 750 22.5 20.0 38.5 36.0 -
095K4035R00 R: rechts 40 / 35 400 750 20.0 22.5 36.0 38.5 -
095K4040L00 L: links 40 / 40 400 - 22.5 22.5 38.5 38.5 -
095K4040L08 L: links 40 / 40 400 - 22.5 22.5 38.5 38.5 8
095K4040L10 L: links 40 / 40 400 - 22.5 22.5 38.5 38.5 10
095K4040R00 R: rechts 40 / 40 350 - 22.5 22.5 38.5 38.5 -
095K4040R08 R: rechts 40 / 40 350 - 22.5 22.5 38.5 38.5 8
095K4040R10 R: rechts 40 / 40 350 - 22.5 22.5 38.5 38.5 10
095K4060L00 L: links 40 / 60 - - 22.5 32.5 38.5 57.5 -
095K4060R00 R: rechts 40 / 60 - - 32.5 22.5 57.5 38.5 -
