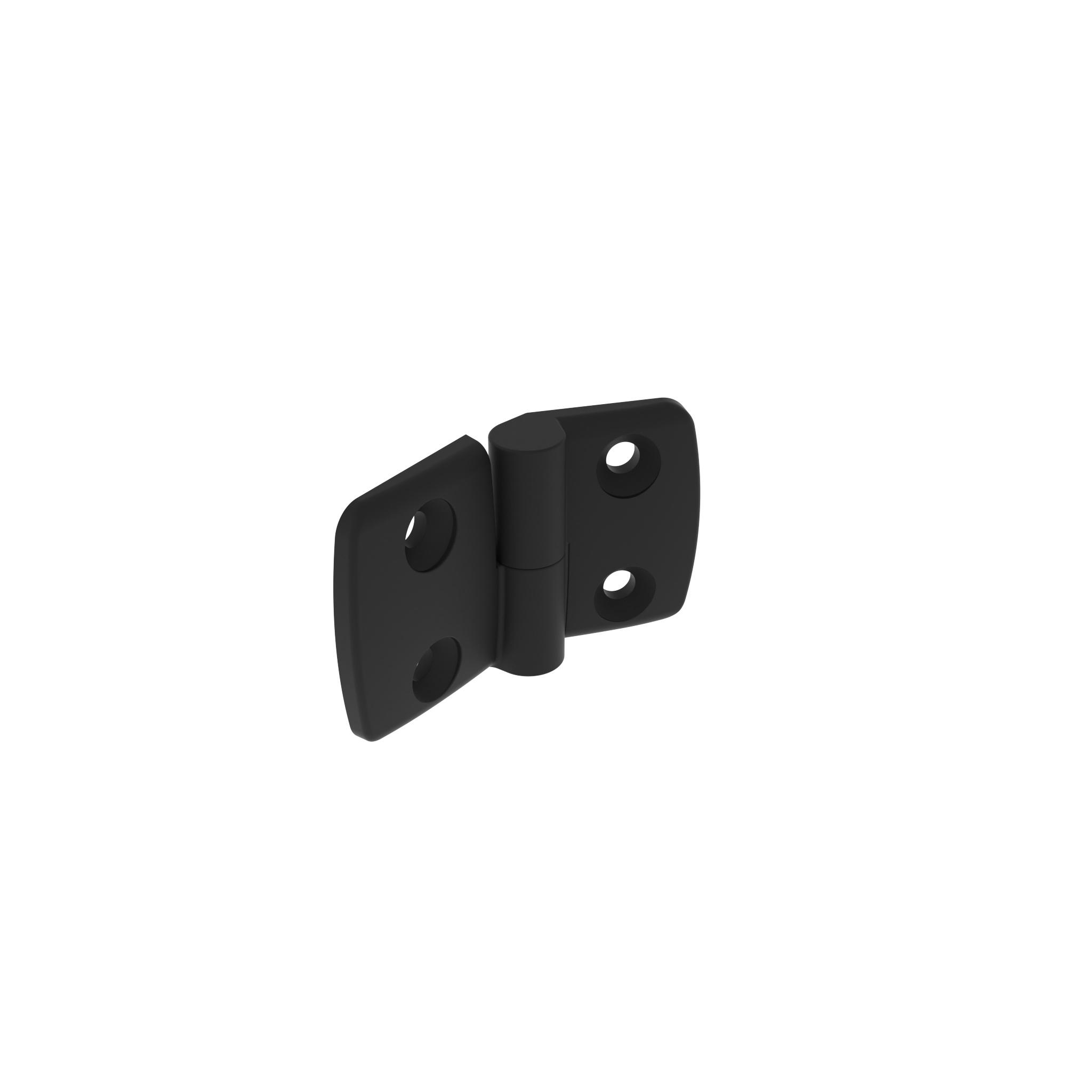

Kunststoff-Kombischarnier 45, aushängbar, schwarz

Produktinformationen "Kunststoff-Kombischarnier 45, aushängbar, schwarz"

Farbe:
schwarz

Lieferländer:
weltweit

Beschreibung:
für Flächenelemente und Aluminiumprofile

Material:
Flügel: Kunststoff PA, glasfaserverstärkt
Achse: Edelstahl

Extras:
ESD elektrostatisch entladend, weitere Farben, Führungsnasen zur Montage auf Aluminiumprofilen auf Anfrage

Zolltarifnummer:
39263000900
Befestigung: vorderseitig mit Senkschraube M6
Liefereinheit (1): 10
Gewicht (g): 42.0
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Liefereinheit: 10 Stück
Modell: aushängbar

Varianten

Produkt ID Ausführung Kombination FAmax (N) FRmax (N) A1 (mm) A2 (mm) B1 (mm) B2 (mm) Nut N (mm)
095K4525L00 L: links 45 / 25 425 650 25.0 15.0 43.5 26.0 -
095K4530R00 R: rechts 45 / 30 - 750 17.5 25.0 29.5 43.5 -
095K4535L00 L: links 45 / 35 400 - 25.0 20.0 43.5 36.0 -
095K4535R00 R: rechts 45 / 35 325 - 20.0 25.0 36.0 43.5 -
095K4540L00 L: links 45 / 40 350 - 25.0 22.5 43.5 38.5 -
095K4540R00 R: rechts 45 / 40 350 - 22.5 25.0 38.5 43.5 -
095K4545L00 L: links 45 / 45 325 - 25.0 25.0 43.5 43.5 -
095K4545L08 L: links 45 / 45 325 - 25.0 25.0 43.5 43.5 8
095K4545L10 L: links 45 / 45 325 - 25.0 25.0 43.5 43.5 10
095K4545R00 R: rechts 45 / 45 325 - 25.0 25.0 43.5 43.5 -
095K4545R08 R: rechts 45 / 45 325 - 25.0 25.0 43.5 43.5 8
095K4545R10 R: rechts 45 / 45 325 - 25.0 25.0 43.5 43.5 10
095K4560L00 L: links 45 / 60 - - 25.0 32.5 43.5 57.5 -
095K4560R00 R: rechts 45 / 60 - - 32.5 25.0 57.5 43.5 -
