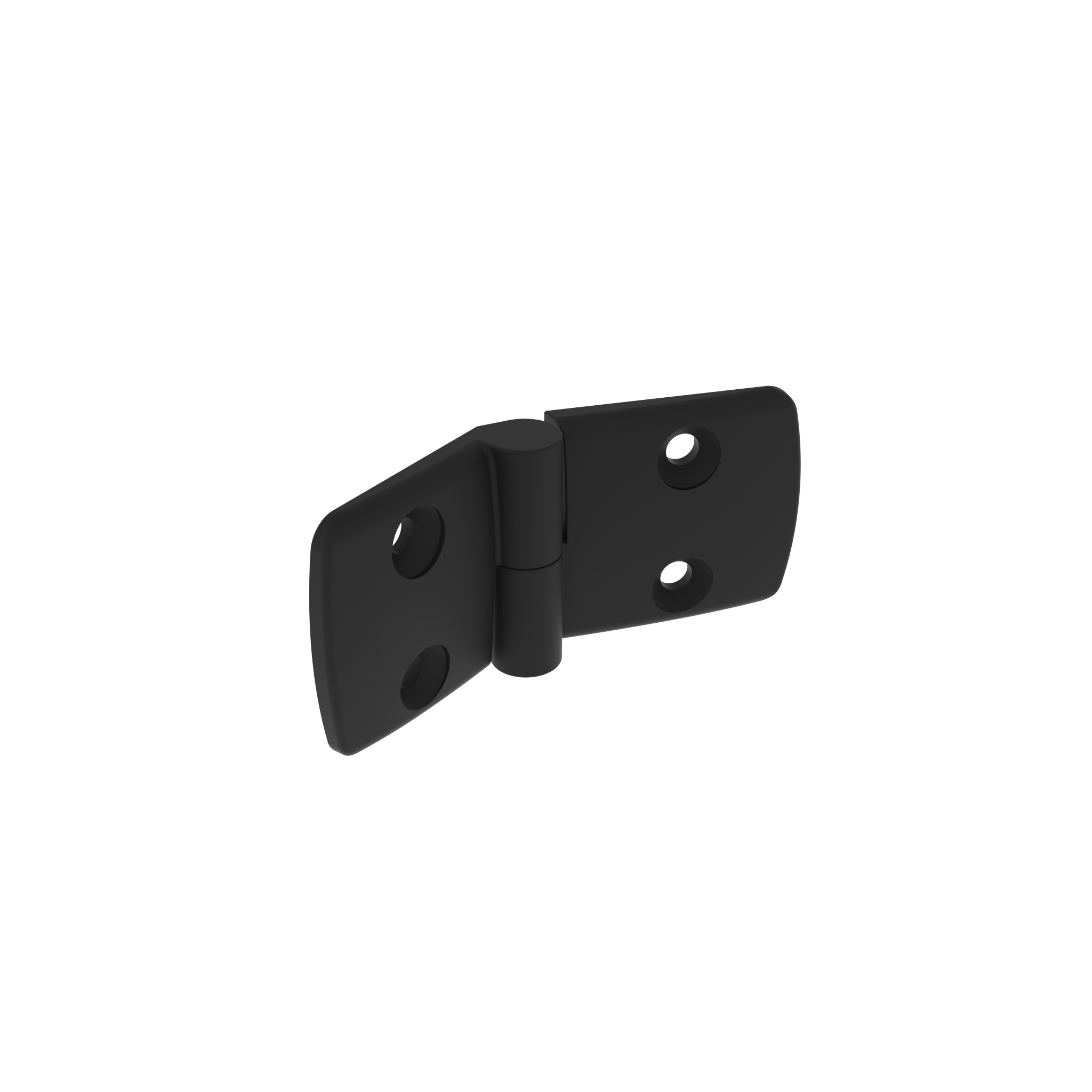

Kunststoff-Kombischarnier 60, aushängbar, schwarz

Produktinformationen "Kunststoff-Kombischarnier 60, aushängbar, schwarz"

Farbe:
schwarz

Lieferländer:
weltweit

Beschreibung:
für Flächenelemente und Aluminiumprofile

Material:
Flügel: Kunststoff PA, glasfaserverstärkt
Achse: Edelstahl

Extras:
ESD elektrostatisch entladend, weitere Farben, Führungsnasen zur Montage auf Aluminiumprofilen auf Anfrage

Zolltarifnummer:
39263000900
Befestigung: vorderseitig mit Senkschraube M6
Gewicht (g): 52.0
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Liefereinheit: 10 Stück
Modell: aushängbar

Varianten

Produkt ID Ausführung Kombination FAmax (N) FRmax (N) A1 (mm) A2 (mm) B1 (mm) B2 (mm) Nut N (mm)
095K6025R00 R: rechts 60 / 25 425 650 15.0 32.5 26.0 57.5 -
095K6030L00 L: links 60 / 30 - 750 32.5 17.5 57.5 29.5 -
095K6030R00 R: rechts 60 / 30 - 750 17.5 32.5 29.5 57.5 -
095K6035L00 L: links 60 / 35 400 - 32.5 20.0 57.5 36.0 -
095K6035R00 R: rechts 60 / 35 400 - 20.0 32.5 36.0 57.5 -
095K6040L00 L: links 60 / 40 350 - 32.5 22.5 57.5 38.5 -
095K6040R00 R: rechts 60 / 40 350 - 22.5 32.5 38.5 57.5 -
095K6050L00 L: links 60 / 50 320 900 32.5 27.5 57.5 48.5 -
095K6050R00 R: rechts 60 / 50 320 900 27.5 32.5 48.5 57.5 -
095K6060L00 L: links 60 / 60 - 900 32.5 32.5 57.5 57.5 -
095K6060L08 L: links 60 / 60 - 900 32.5 32.5 57.5 57.5 8
095K6060L10 L: links 60 / 60 - 900 32.5 32.5 57.5 57.5 10
095K6060R00 R: rechts 60 / 60 - 900 32.5 32.5 57.5 57.5 -
095K6060R10 R: rechts 60 / 60 - 900 32.5 32.5 57.5 57.5 10
