Machine Lights

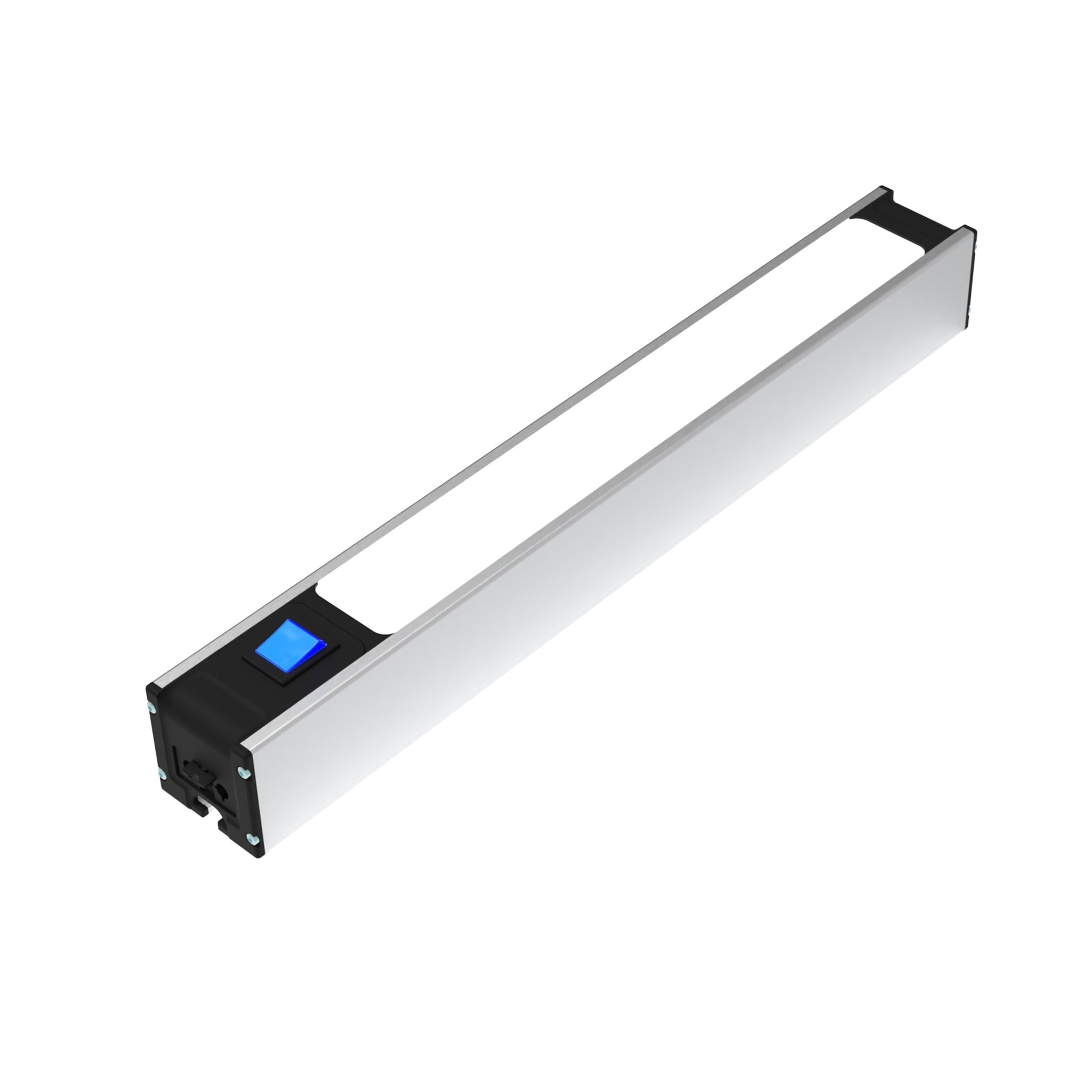

LED Lamp Module F Line 476 Dimmable
Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Diffusing screen: Transparent (colorless) Dimmer button standard version: Blue Dimmer button ESD electrostatical discharging version: OrangeDelivery Countries:WorldwideDescription:Remote dimmable LED Lamp for power and light supply at work stations; Input side only compatible with power strip Modul F Line with dimmable exit; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Diffusing screen: Polycarbonate Dimmer button: Plastic ABS / PASpecials:Other lengths, other colors on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible Power Strip Module F Line 370 4x, with Switch and Dimmer Button, for Series Connection see 6SBEU24DI.370 Compatible Connection Cable GST15i5 for 5-pole input connector see 6SACP5J516B.2000 Compatible Connection Cable GST18i3 for 3-pole output connector see 6SACP3J316B.2000 Compatible Connection Coupling GST18i3 for 3-pole output connector see 6SAKP3J316BS01 Compatible Cover Cap GST18i3 for 3-pole output connector see 063SGF3S01 Compatible Direct Connector I, slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

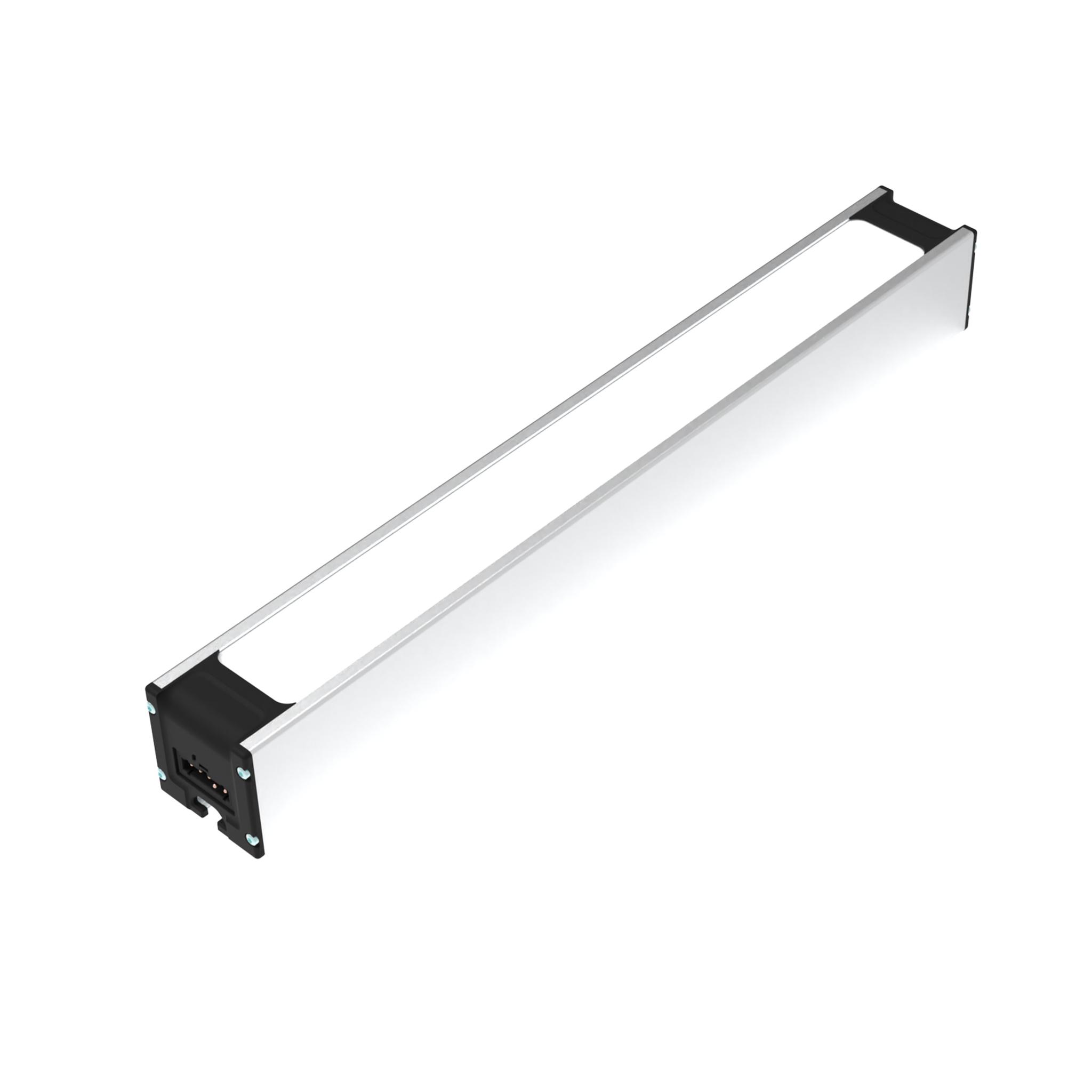

LED Lamp Module F Line 476 Dimmable, for Series Connection
Color:Housing: - End caps: Black Diffusing screen: Transparent (colorless)Delivery Countries:WorldwideDescription:Remotely dimmable LED Lamp for power and light supply at work stations; On the backside with slot 8 for mounting on aluminum profiles; Can be dimmed in series if the upstream Power Strip or LED Lamp for Series Connection has a dimmer switchMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Diffusing screen: PolycarbonateSpecials:Other lengths, other colors on requestSurface:Housing standard version: AnodizedTip:Compatible LED Lamp Module F Line 476 Dimmable, with Button, for Series Connection see 6SL1040RDI.476 Compatible Power Strip Module F Line 370 4xEU with Switch and Dimmer Button, for Series Connection see 6SBEU24DI.370 Compatible Connection Cable GST15i5 for 5-pole output connector see 6SACP5J516B.2000 Compatible Connection Coupling GST15i5 for 5-pole output connector see 6SAKP5J516BS01 Compatible Direct Connector I, slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts
LED Lamp Module F Line 476 Dimmable, with Button, for Series Connection
Color:Housing standard version: - End caps: Black Diffusing screen: Transparent (colorless) Dimmer button standard version: BlueDelivery Countries:WorldwideDescription:LED Lamp with dimmer button for power and light supply at work stations; On the backside with slot 8 for mounting on aluminum profiles; Can be dimmed in series if the downstream LED Lamp for Series Connection is dimmableMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Diffusing screen: Polycarbonate Dimmer button: Plastic ABS / PASpecials:Other lengths, other colors on requestSurface:Housing standard version: AnodizedTip:Compatible LED Lamp Module F Line 476 Dimmable, for Series Connection see 6SL0040RI.476 Compatible Power Strip Module F Line 264 4xEU see 6SBEU04I.264 Compatible Main Power Cable GST18i3 for 3-pole input connector see 6SAME4J316B.2000 Compatible Connection Cable GST18i3 for 3-pole output connector see 6SACP3J316B.2000 Compatible Connection Cable GST15i5 for 5-pole output connector see 6SACP5J516B.2000 Compatible Connection Coupling GST18i3 for 3-pole output connector see 6SAKP3J316BS01 Compatible Connection Coupling GST15i5 for 5-pole output connector see 6SAKP5J516BS01 Compatible Direct Connector I, slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

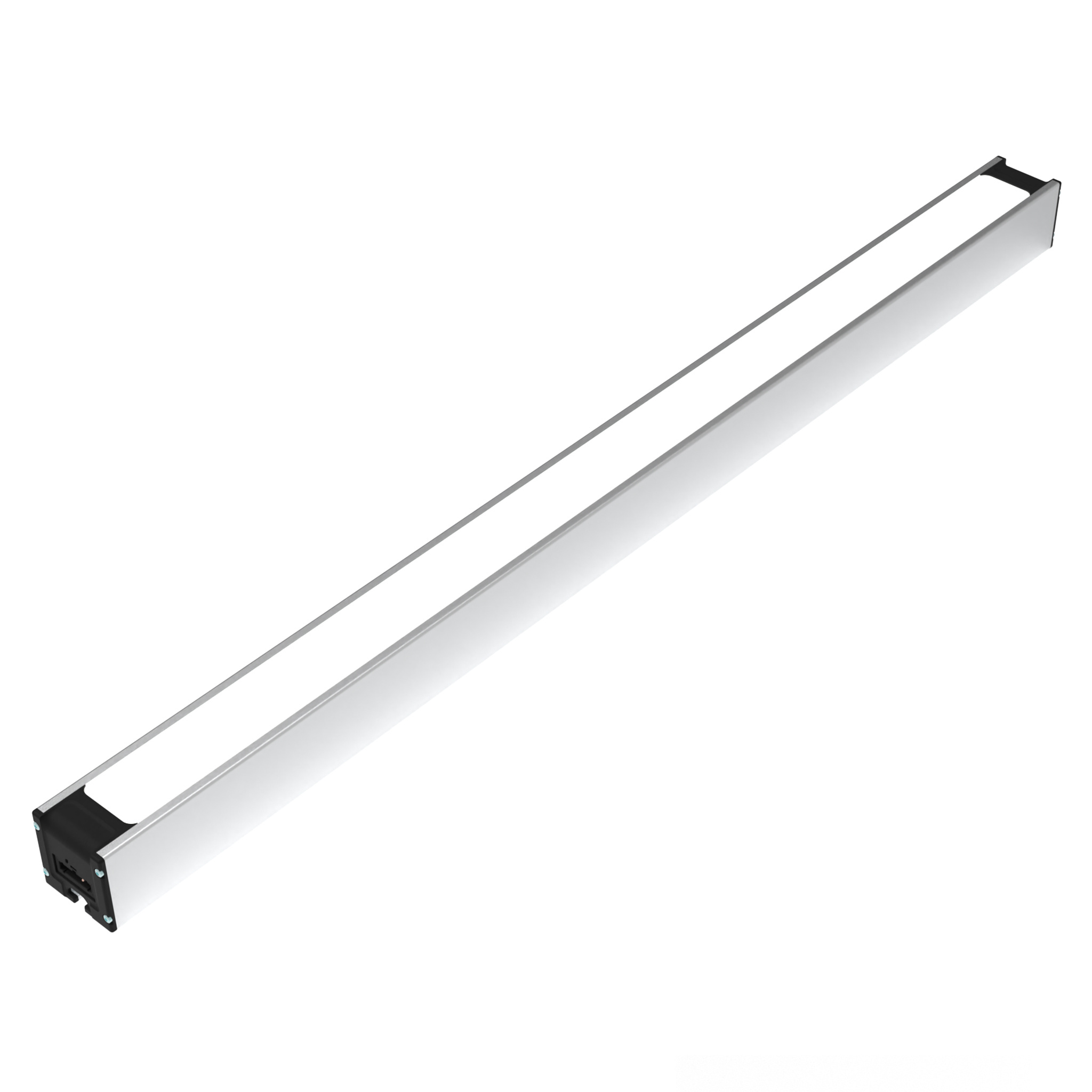

LED Lamp Module F Line 953 Dimmable, for Series Connection
Color:Housing: - End caps: Black Diffusing screen: Transparent (colorless)Delivery Countries:WorldwideDescription:Remotely dimmable LED Lamp for power and light supply at work stations; On the backside with slot 8 for mounting on aluminum profiles; Can be dimmed in series if the upstream Power Strip or LED Lamp for Series Connection has a dimmer switchMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Diffusing screen: PolycarbonateSpecials:Other lengths, other colors on requestSurface:Housing standard version: AnodizedTip:Compatible LED Lamp Module F Line 953 Dimmable, with Button, for Series Connection see 6SL1040RDI.953 Compatible Power Strip Module F Line 370 4xEU with Switch and Dimmer Button, for Series Connection see 6SBEU24DI.370 Compatible Connection Cable GST15i5 for 5-pole output connector see 6SACP5J516B.2000 Compatible Connection Coupling GST15i5 for 5-pole output connector see 6SAKP5J516BS01 Compatible Direct Connector I, slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

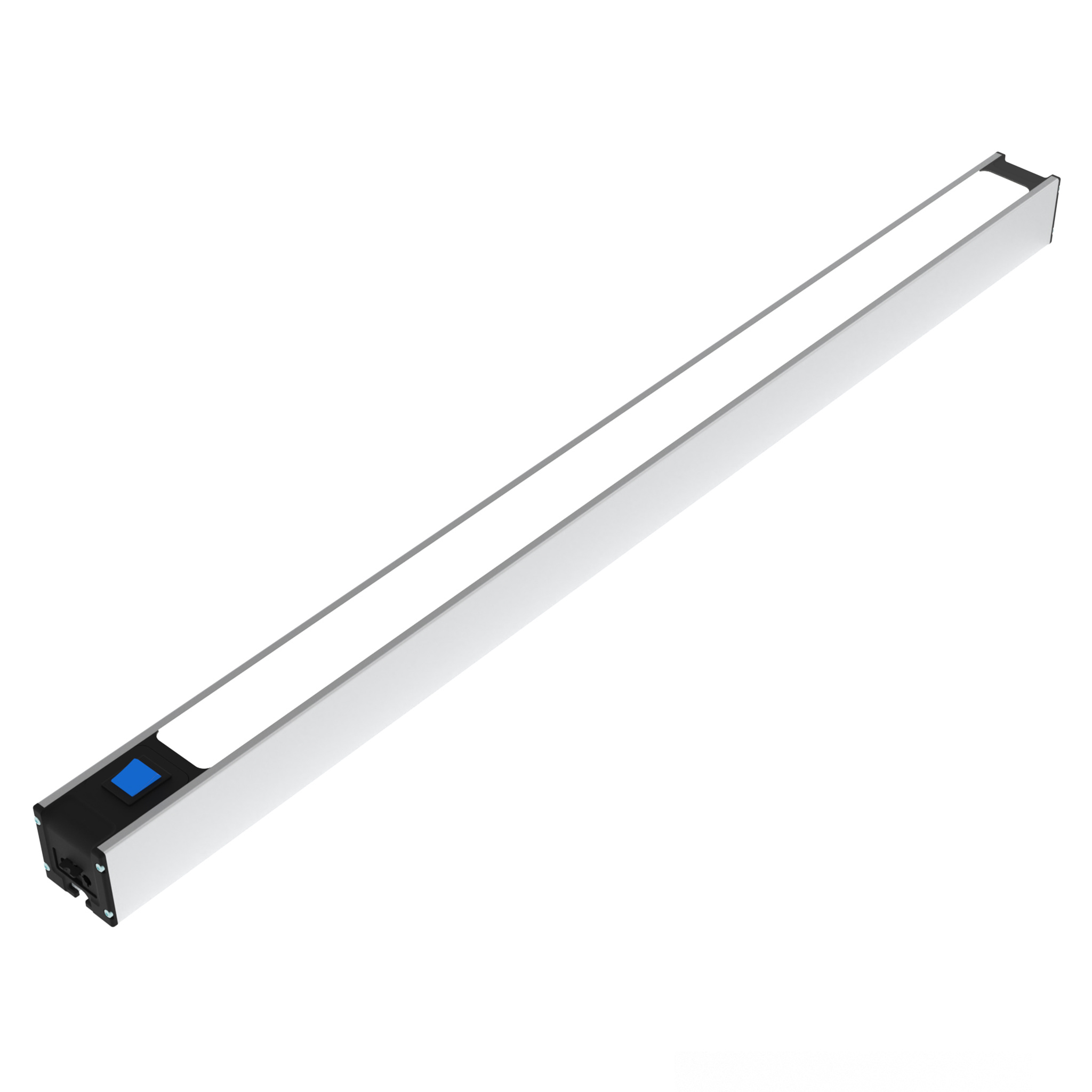

LED Lamp Module F Line 953 Dimmable, with Button, for Series Connection
Color:Housing standard version: - End caps: Black Diffusing screen: Transparent (colorless) Dimmer button standard version: BlueDelivery Countries:WorldwideDescription:LED Lamp with dimmer button for power and light supply at work stations; On the backside with slot 8 for mounting on aluminum profiles; Can be dimmed in series if the downstream LED Lamp for Series Connection is dimmableMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Diffusing screen: Polycarbonate Dimmer button: Plastic ABS / PASpecials:Other lengths, other colors on requestSurface:Housing standard version: AnodizedTip:Compatible LED Lamp Module F Line 953 Dimmable, for Series Connection see 6SL0040RI.953 Compatible Power Strip Module F Line 264 4xEU see 6SBEU04I.264 Compatible Main Power Cable GST18i3 for 3-pole input connector see 6SAME4J316B.2000 Compatible Connection Cable GST18i3 for 3-pole output connector see 6SACP3J316B.2000 Compatible Connection Cable GST15i5 for 5-pole output connector see 6SACP5J516B.2000 Compatible Connection Coupling GST18i3 for 3-pole output connector see 6SAKP3J316BS01 Compatible Connection Coupling GST15i5 for 5-pole output connector see 6SAKP5J516BS01 Compatible Direct Connector I, slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts
