2-sides Open Magnetic Label Envelope 37 - 1.5"

Fig.: ① Color: Yellow ≈ RAL 1018

Color:Yellow, red, blue, green, black, whiteDelivery Countries:WorldwideDescription:To hold labels; For magnetic mounting on metallic surfaces, e.g. shelves; Top and right side open for quick label change, tear-resistant and stretchable transparent foil with restoring capacity, scanner-compatibleMaterial:Label envelope: Plastic, PVC Magnetic strip

€0.00

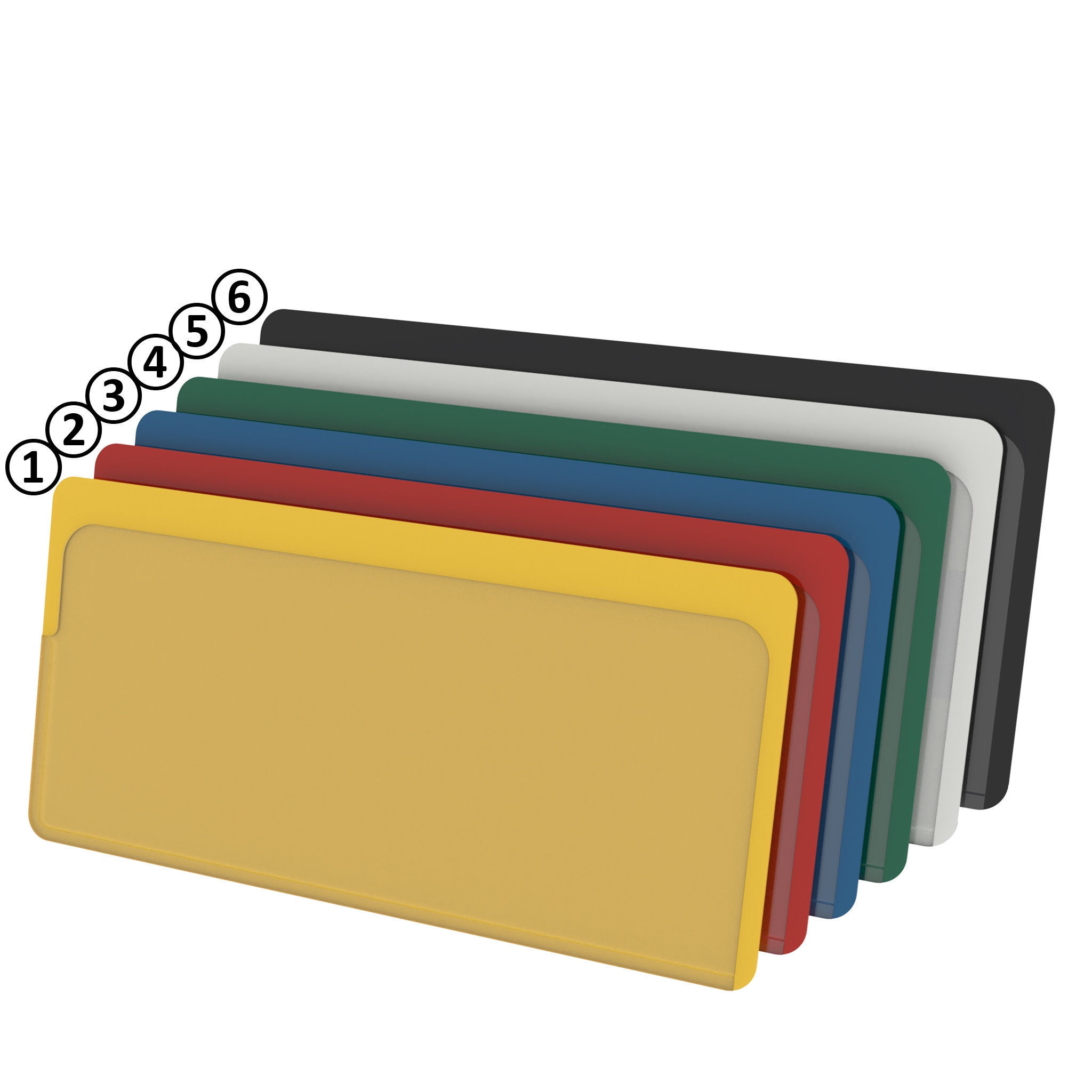

2-sides Open Magnetic Label Envelope 50 - 2"

Fig.: ① Color: Yellow ≈ RAL 1018

€0.00

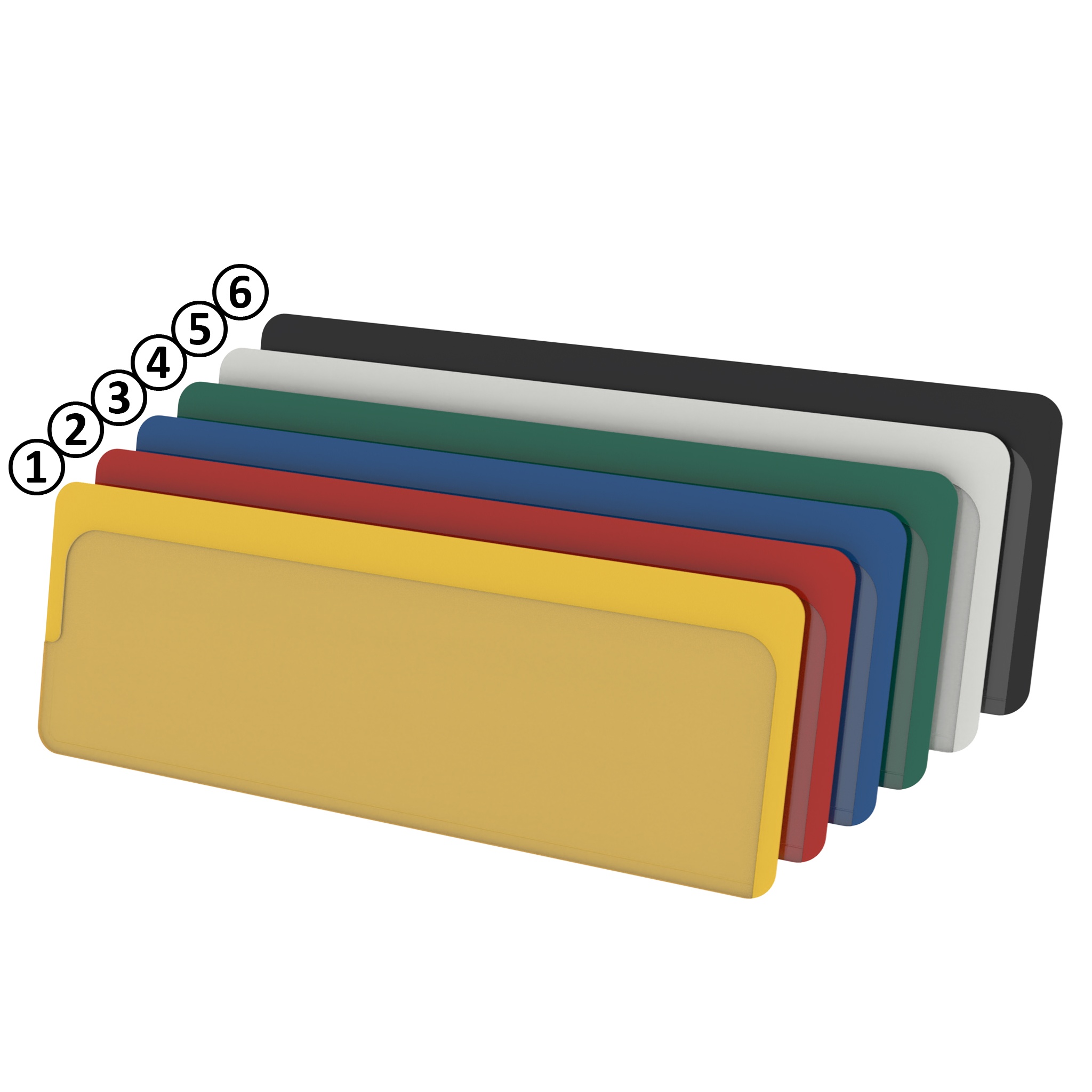

2-sides Open Self-adhesive Label Envelope 37 - 1.5"

Fig.: ④ Color: Green ≈ RAL 6016

Color:Yellow, red, blue, green, black, whiteDelivery Countries:WorldwideDescription:To hold labels; For flexible adhesion on shelves even on uneven surfaces, removable without leaving any residue, reusable on supporting surfaces thanks to multi-use properties; Top and right side open for quick label change, tear-resistant and stretchable transparent foil with restoring capacity, scanner-compatibleMaterial:Label envelope: Plastic, PVC Adhesive strip: PE foam, reusable

€0.00

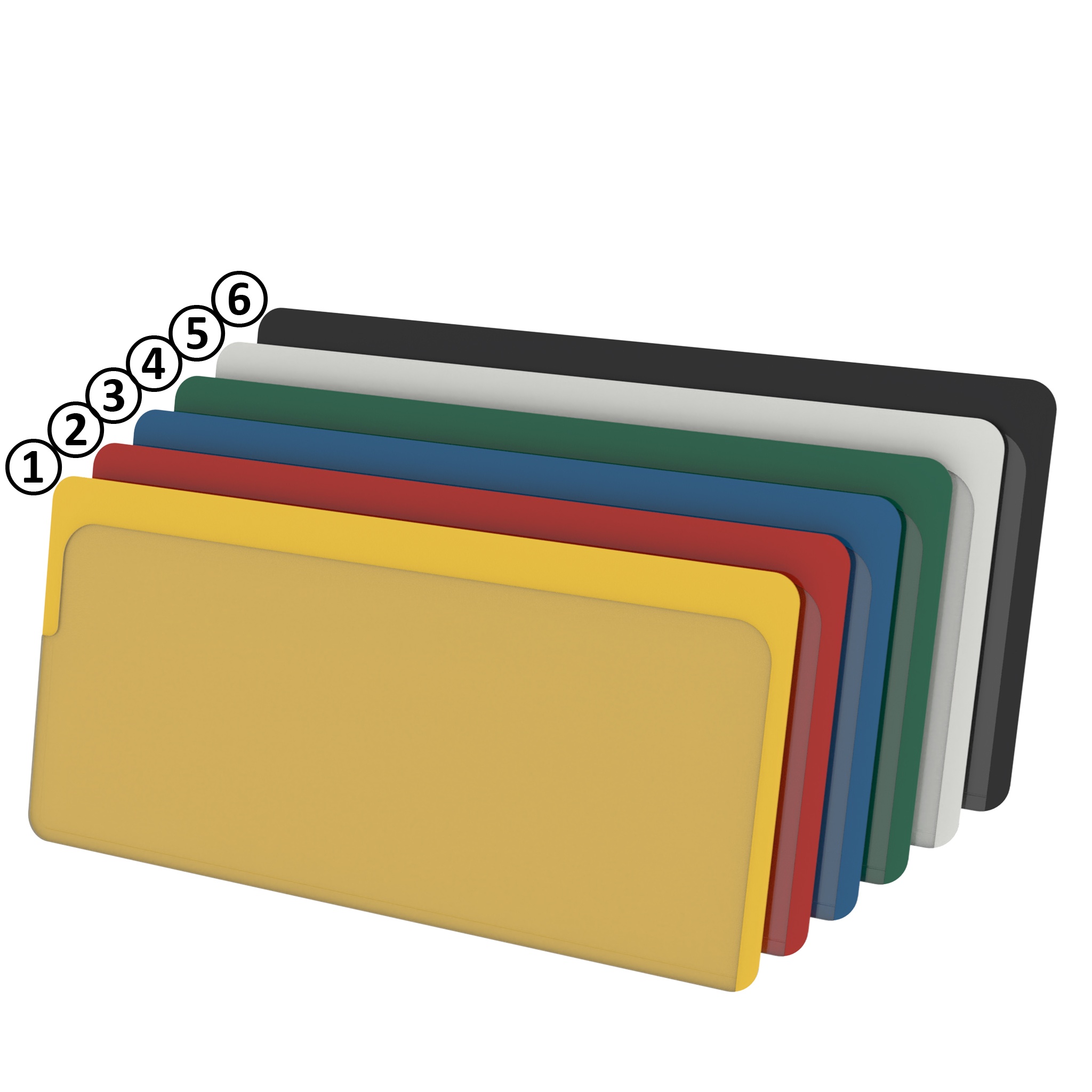

2-sides Open Self-adhesive Label Envelope 50 - 2"

Fig.: ⑤ Color: White ≈ RAL 9003

€0.00

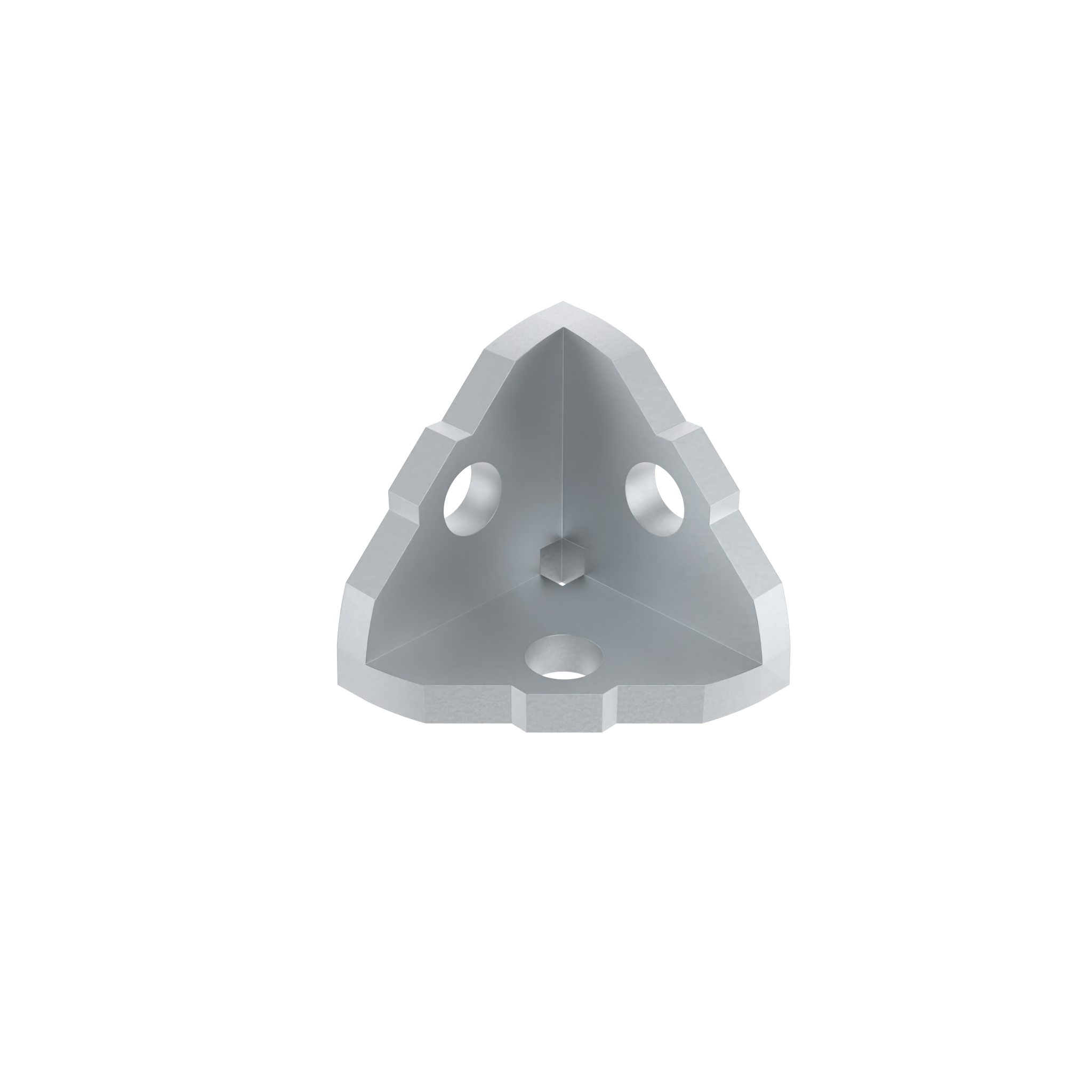

3-way Connection Angle 38 - 1.5"

for Screw: M8 Slot N (mm): 8

Delivery Countries:WorldwideDescription:To connect up to three aluminum profiles at right anglesMaterial:Zinc die-castSurface:Plain

€0.00

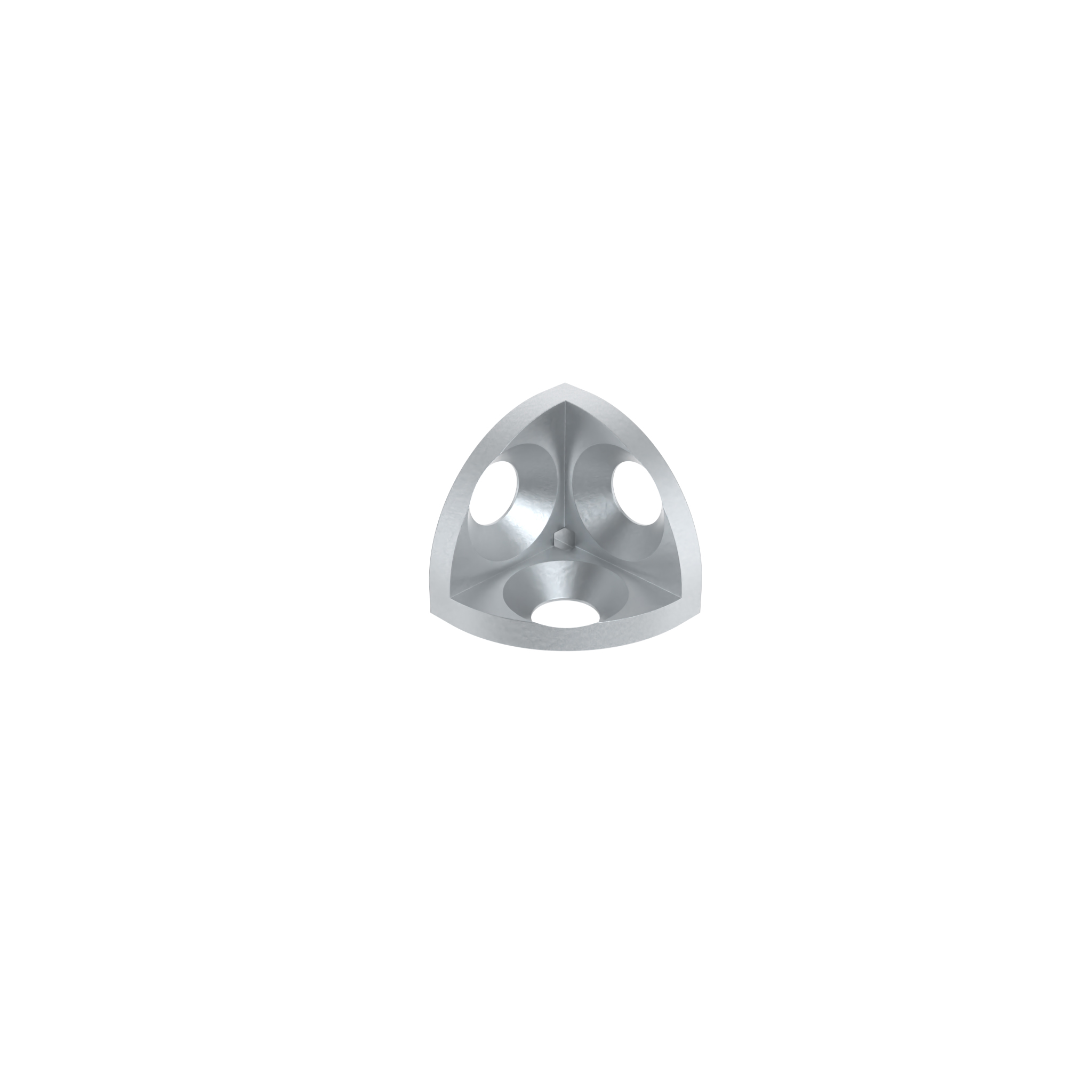

3-way Connection Angle B 20

for Screw: M6 / S6 Slot N (mm): 6 Profile: B

Delivery Countries:WorldwideDescription:To connect up to three aluminum profiles at right anglesFastening:Countersunk screws M6 and S6Material:Zinc die-castSurface:Plain

€0.00

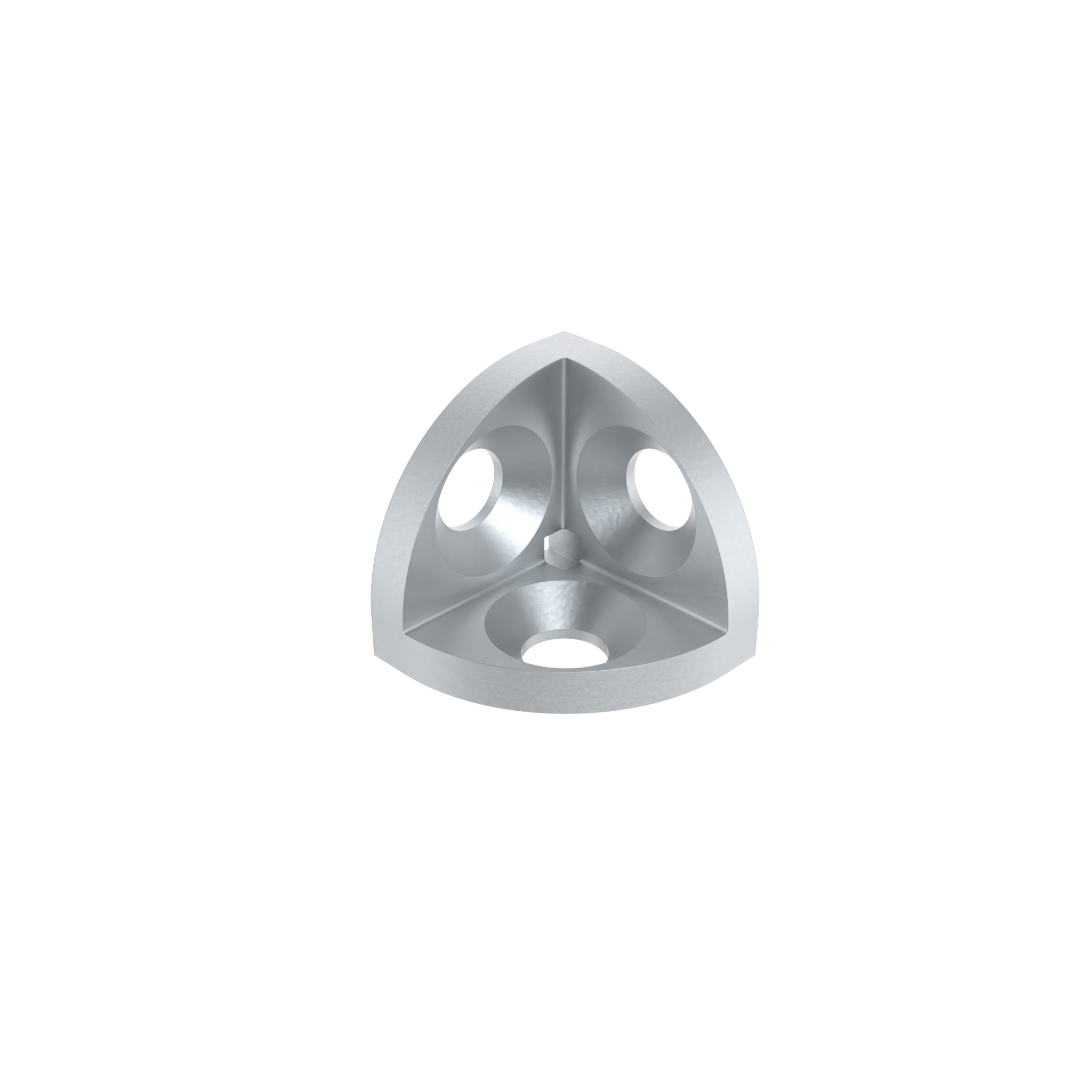

3-way Connection Angle B 30

for Screw: M8 Slot N (mm): 8 Profile: B

Delivery Countries:WorldwideDescription:To connect up to three aluminum profiles at right anglesFastening:Countersunk screws M8Material:Zinc die-castSurface:PlainTip:Compatible Countersunk Screw see 093S0825C

€0.00

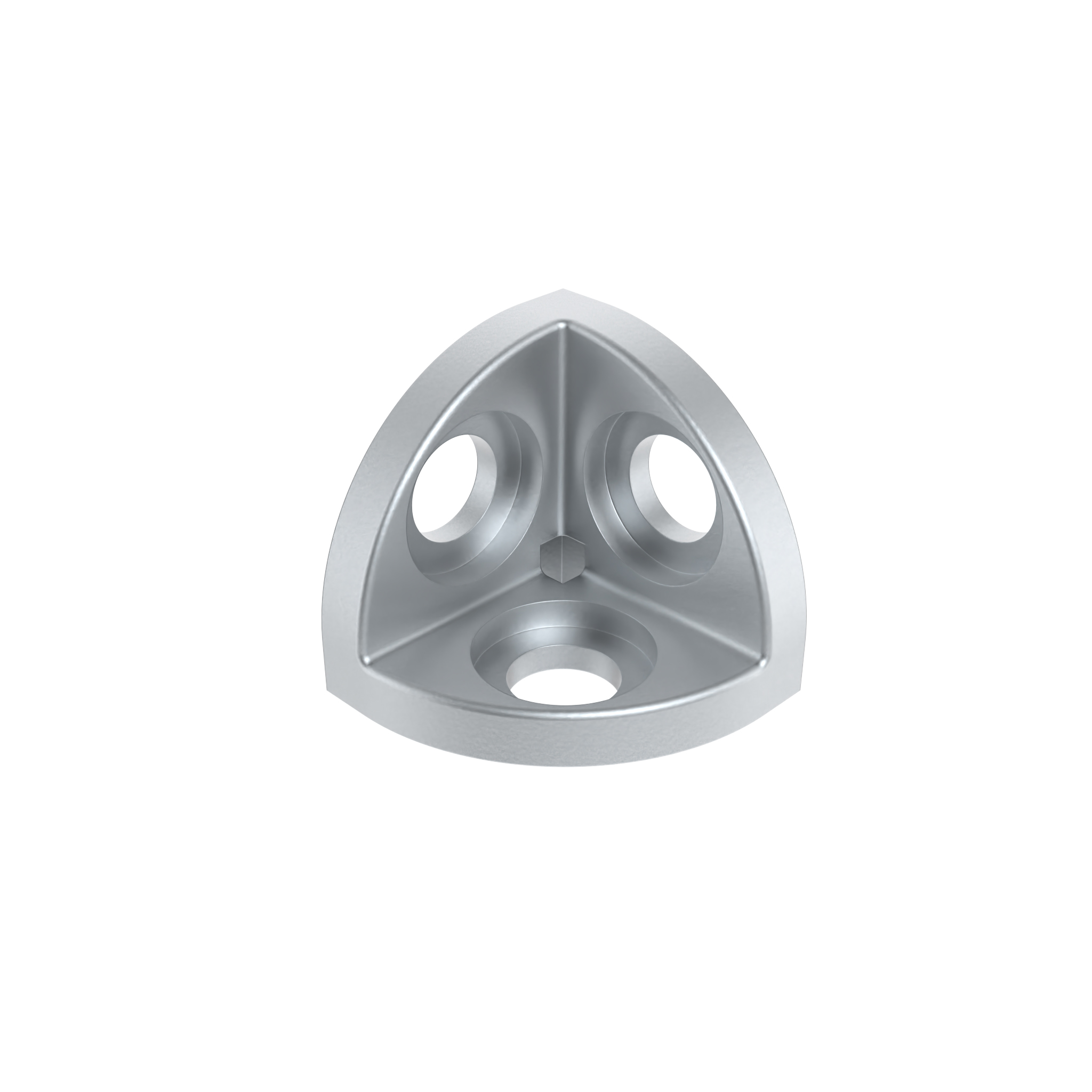

3-way Connection Angle B 40

for Screw: M12 / S12 Slot N (mm): 10 Profile: B

Delivery Countries:WorldwideDescription:To connect up to three aluminum profiles at right anglesFastening:Flat head screw M12 or S12Material:Zinc die-castSurface:Plain

€0.00

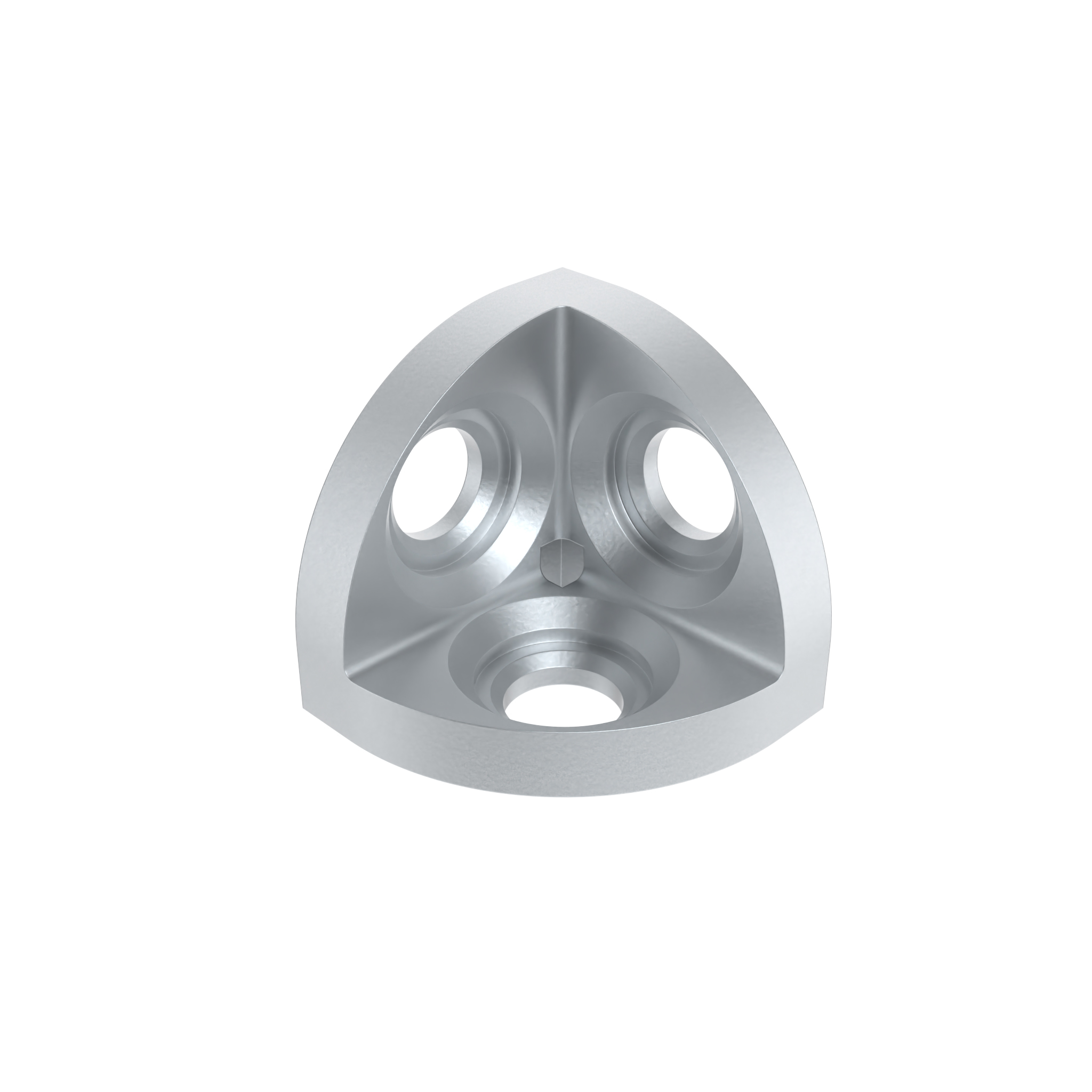

3-way Connection Angle B 45

for Screw: M12 Slot N (mm): 10 Profile: B

Delivery Countries:WorldwideDescription:To connect up to three aluminum profiles at right anglesFastening:Countersunk screws M12Material:Zinc die-castSurface:Plain

€0.00

3-way Connection Angle I 20

for Screw: M5 Slot N (mm): 5 Profile: I

Delivery Countries:WorldwideDescription:To connect up to three aluminum profiles at right anglesFastening:Countersunk screws M5Material:Zinc die-castSurface:Plain

€0.00

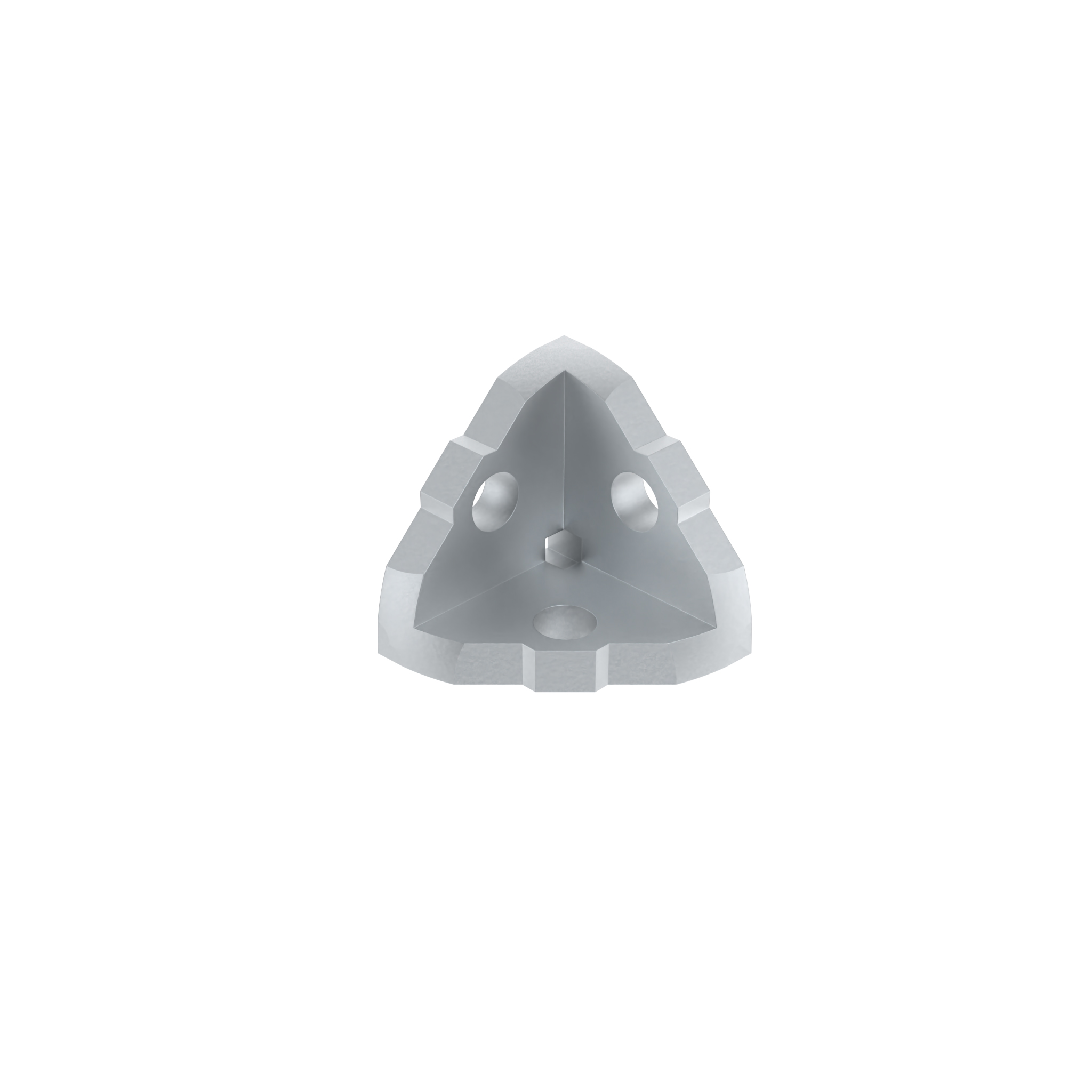

3-way Connection Angle I 30

for Screw: M6 Slot N (mm): 6 Profile: I

Delivery Countries:WorldwideDescription:To connect up to three aluminum profiles at right anglesMaterial:Zinc die-castSurface:Plain

€0.00

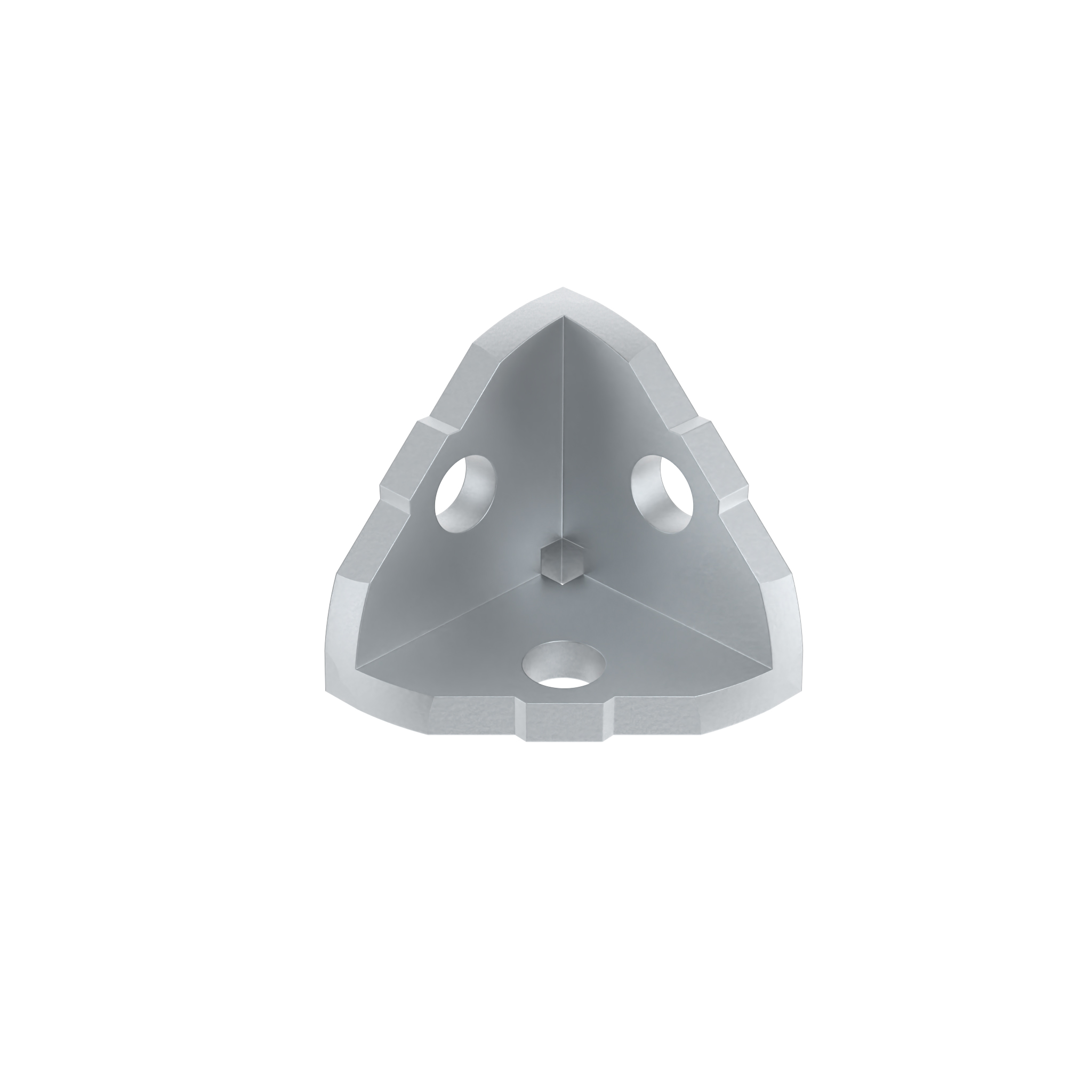

3-way Connection Angle I 40

for Screw: M8 Slot N (mm): 8 Profile: I

Delivery Countries:WorldwideDescription:To connect up to three aluminum profiles at right anglesMaterial:Zinc die-castSurface:Plain

€0.00

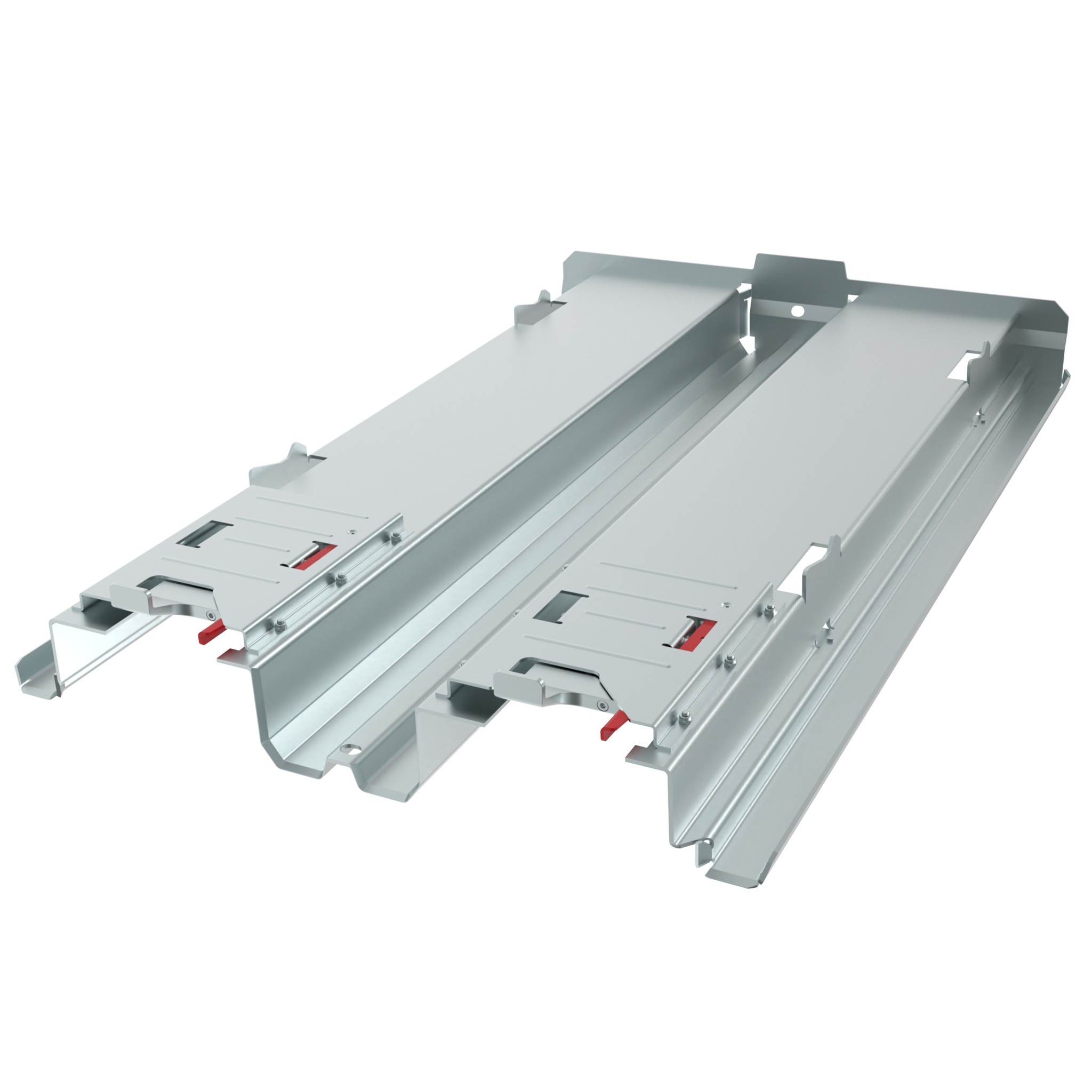

Adapter Pallet for Dollies

Version: For Dollies without lateral guide

Delivery Countries:WorldwideDescription:For efficient transport of dollies 600 x 400 (4 pieces on one level), 800 x 600 (2 pieces on one level), or 1200 x 800 (1 piece on one level); Dollies can be loaded or stacked with other dollies as empties; The adapter pallet is roller conveyor, forklift and AGV compatible (AGV = automated guided vehicles) and locks the dollies automatically by lifting them from the forklift or AGVMaterial:SteelSurface:Zinc plated / plain

€0.00

Adapter Piece D28 - 40 M8 (Set)

B (mm): 40 R (mm): 3.0 Slot N (mm): 10 Profile: B

Color:Adapter piece: Alu color Centering plate: Alu colorDelivery Countries:WorldwideDescription:To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile; Adapter piece can be attached lateral or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 20 mm deep)Material:Adapter piece: Alu die-cast Centering plate: Alu die-cast Screws: Steel Washer: Steel T-slot nut: SteelSet:1 adapter piece 1 centering plate 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut) 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole) 1 washer 8-FSt 1 T-slot nut - slot 10 - M8Surface:Adapter piece: Laquered Centering plate: Laquered Screws: Zinc plated Washer: Zinc plated T-slot nut: Zinc platedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801

€0.00

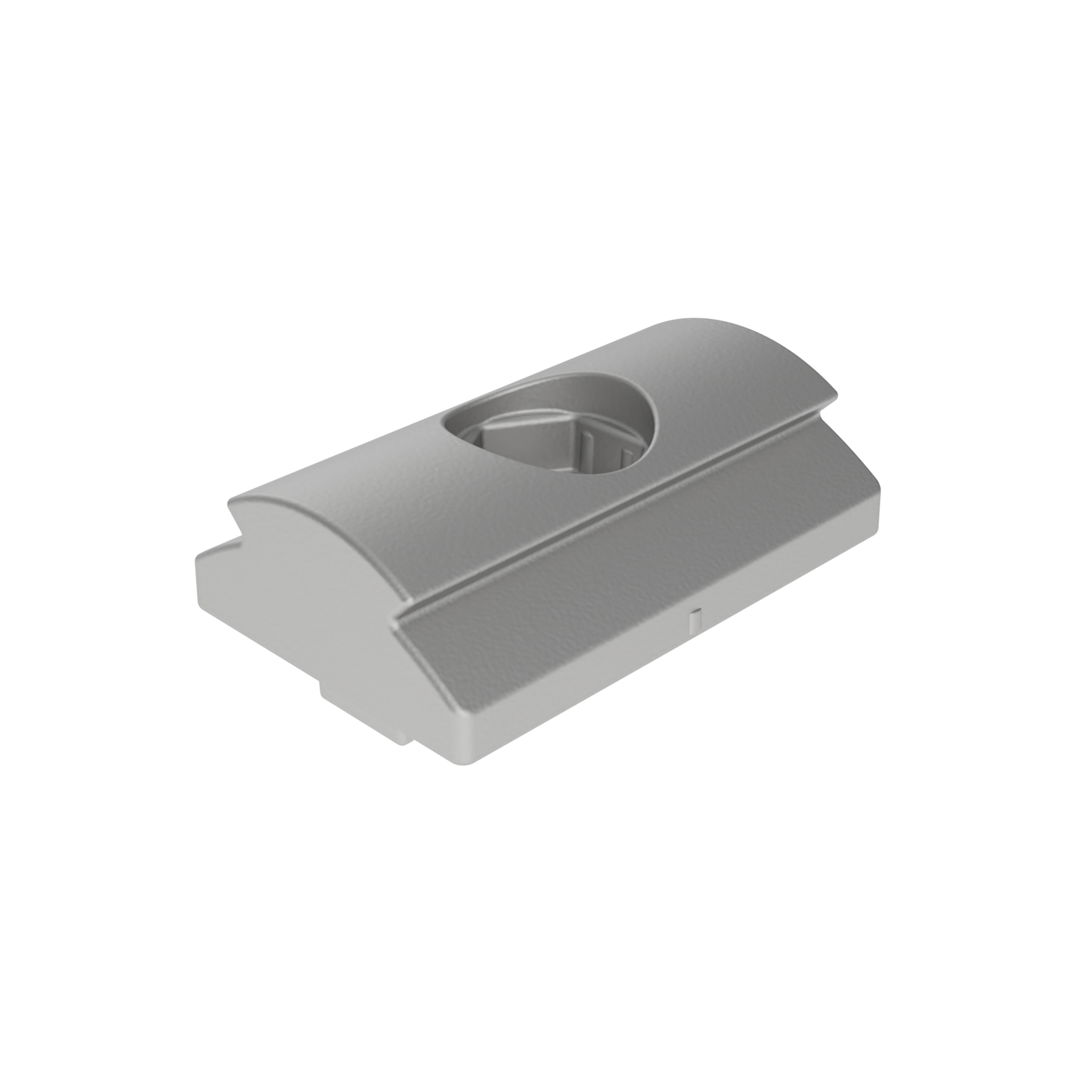

Adapter Piece D30, Slot 8

Profile: I

Color:V_PlainDelivery Countries:WorldwideDescription:To connect tubular frame profiles with slot 8 aluminum profilesMaterial:Aluminum die-castTip:Compatible Outer Ball Connector D30 (Set) see 099RV30KS01 Compatible Outer T-Connector D30 (Set) see 099RV3090LS01 Compatible Cross Ball Connector D30 (Set) see 099RV30KS04 Compatible Cross Connector D30 (Set) see 099RV30XS01 Compatible Parallel Connector D30 (Set) see 099RV30PS02 Compatible Angle Connector 2D30 (Set) see 099RV3090QS01 Compatible Angle Connector D30, 45° (Set) see 099RV3045S01 Compatible T-slot Nut see 096006

€0.00

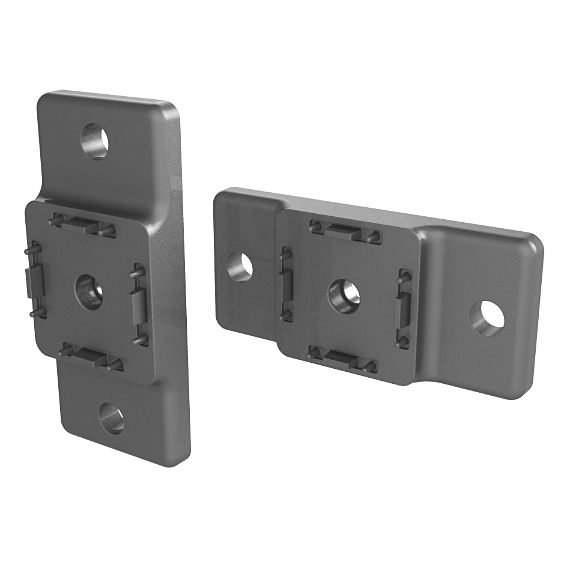

Adapter Plate 40 Height Adjustable

Slot N (mm): 8 Profile: I

Color:Alu colorDelivery Countries:WorldwideDescription:To connect a monitor mount or an aluminum profile at right angles, as well to tee connect two aluminum profiles; accessible mounting holes allow to adjust the position laterMaterial:Adapter plate: Die cast aluminum Pressed nut: SteelSurface:Adapter plate: Powder coated Pressed nut: Zinc platedTip:Compatible Monitor Mount see 061SM7510040

€0.00

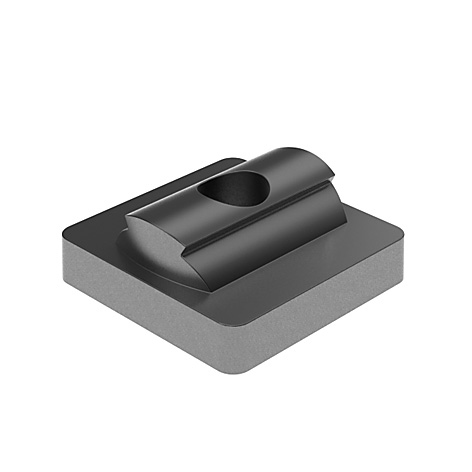

Adapter Plate D28 (Set)

ESD: ESD electrostatical discharging A (mm): 45.0 R (mm): 3.0 Slot N (mm): 8 / 10

Delivery Countries:WorldwideDescription:To connect tubular frame profiles with slot 8 or 10 aluminum profilesFastening:With pan-head-screw DIN EN ISO 7380 (DIN 34805) - M8Material:Adapter plates: Aluminum die-cast Centering piece: Zinc die-castSet:1 adapter plate, 2 locating pins for slot 8 and 10Surface:PlainTip:Compatible Connector see 099RV2890LS01, 099RV28KS01, 099RV2845S01 - 099RV2890QS01 *Compatible Cutting Bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801

€0.00

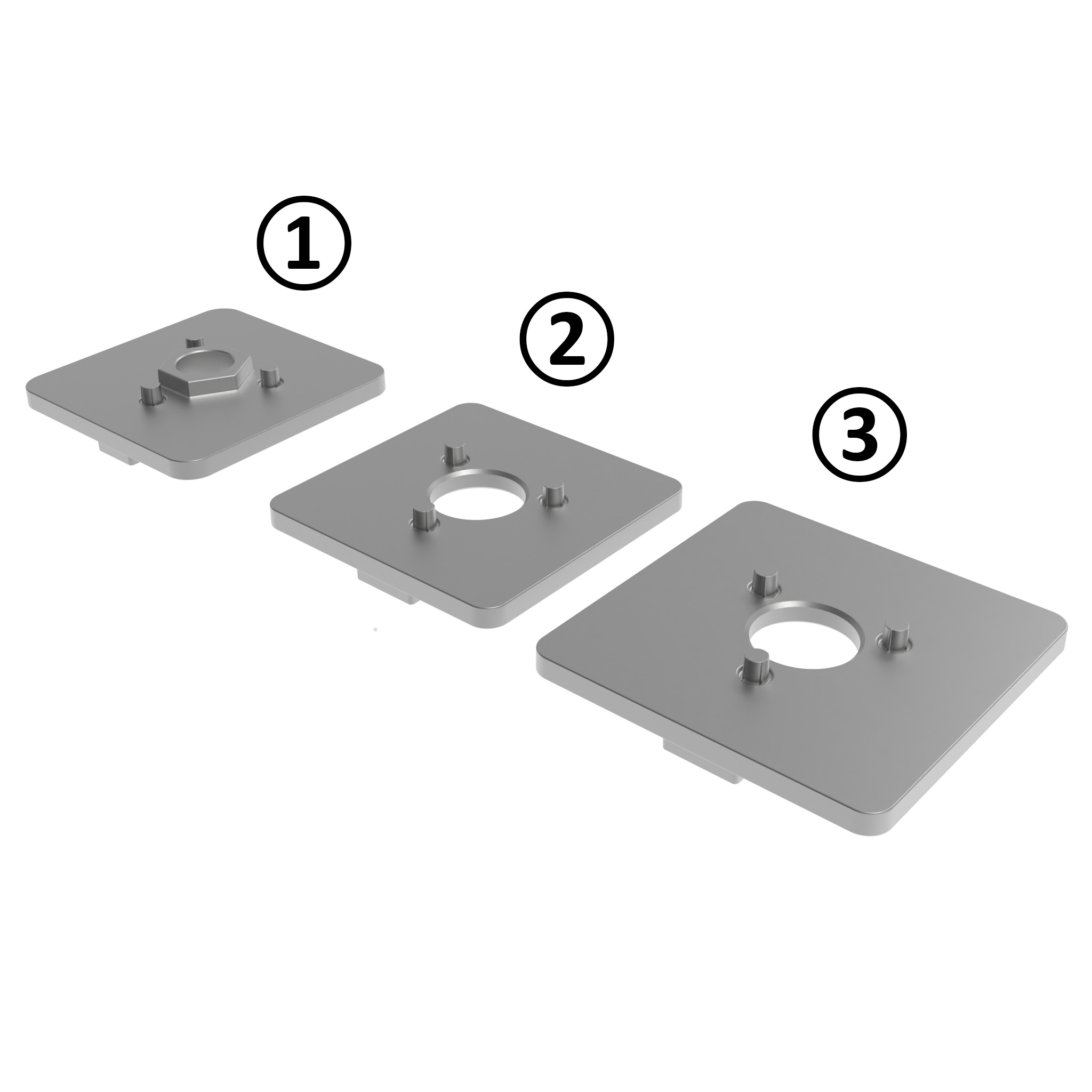

Adapter Plate for Fixed Casters Ø 80 / 100 / 125

Fig.: ③ Slot N (mm): 10 Profile Width: 45

Color:Alu colorDelivery Countries:WorldwideDescription:For positive-locking and anti-twist installation of fixed casters to aluminum profilesMaterial:Zinc die-castSurface:Powder coatedTip:Compatible Fixed Caster Ø 80 / 100 / 125 see 098F080TN

€0.00

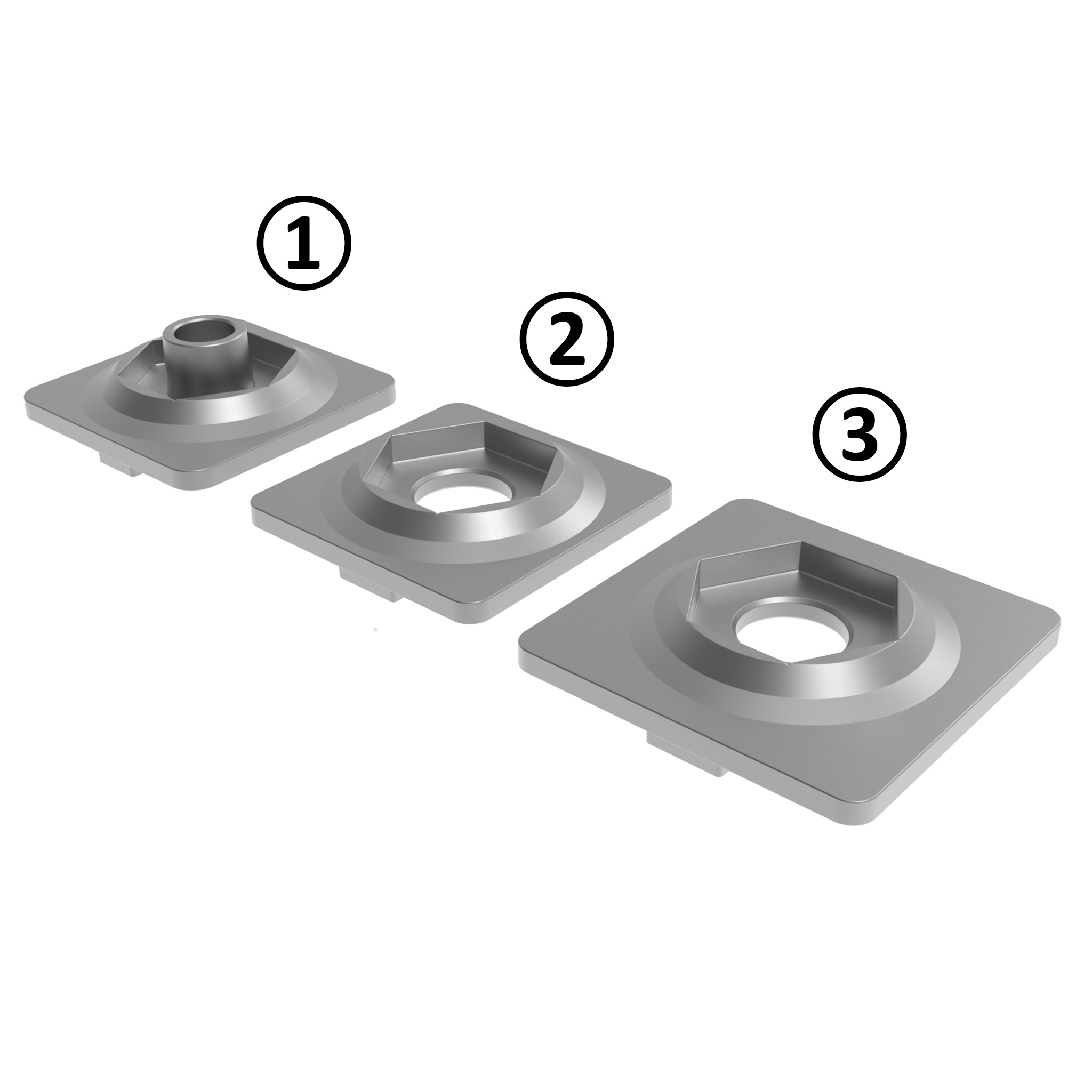

Adapter Plate for Swivel Casters Ø 80 / 100 / 125

Fig.: ③ Slot N (mm): 10 Profile Width: 45

Color:Alu colorDelivery Countries:WorldwideDescription:For positive-locking and anti-twist installation of swivel casters to aluminum profilesMaterial:Zinc die-castSurface:Powder coatedTip:Compatible Swivel Caster Ø 80 / 100 / 125 see 098S080TN, 098S080TDN

€0.00

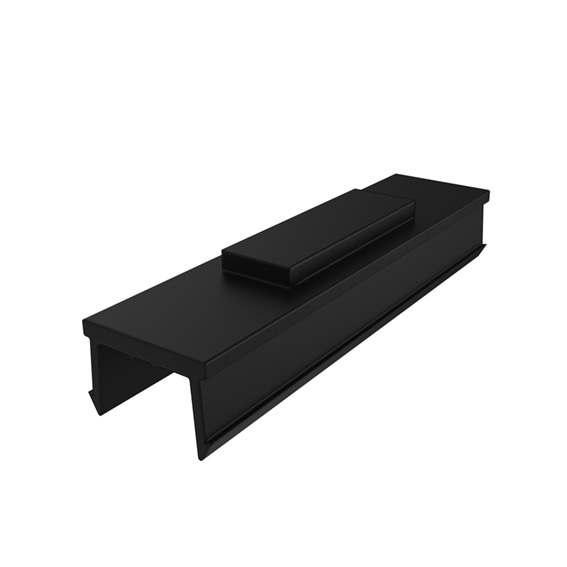

Adhesive Clip Slot 10 - 6.0

L (mm): 50.0 Slot N (mm): 10 Profile: B

Color:BlackDelivery Countries:WorldwideDescription:For attaching magnetic signs, labels, office supplies etc. in slot 10Material:Plastic PPSpecials:Other colors on request

€0.00

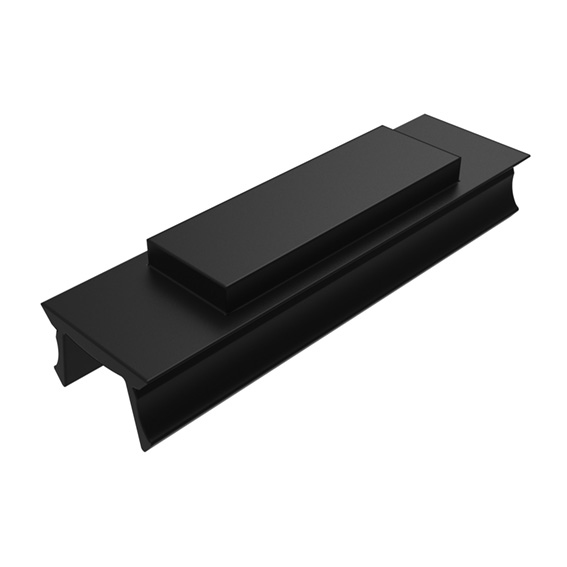

Adhesive Clip Slot 8 - 4.5

L (mm): 25.0 Slot N (mm): 8 Profile: I

Color:BlackDelivery Countries:WorldwideDescription:For attaching magnetic signs, labels, office supplies etc. in slot 8 Material:Plastic PPSpecials:Other colors on request

€0.00

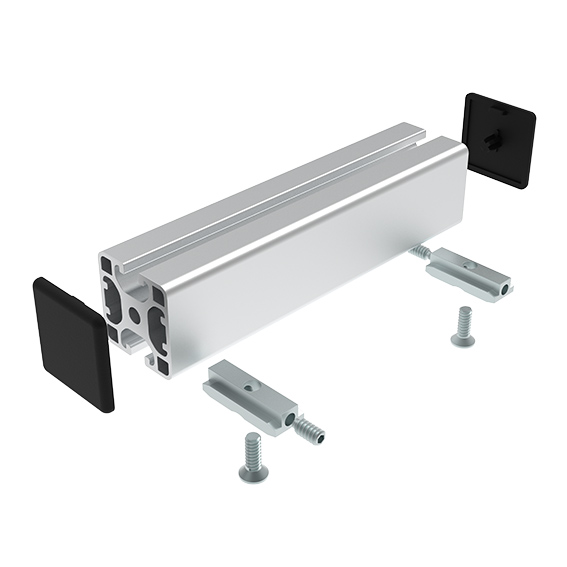

Adjustable Caster End Stop for Guiding Rail FIFO (Set)

L (mm): 178.0 Profile: I

Color:Cover caps: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To stop dollies in guiding rails FIFO; Easy installation with enclosed connectorsMaterial:Profile: Aluminum Cover Cap: Plastic PA Connector: SteelSet:1 profile piece 2 cover caps 2 connectorsSurface:Profile: Anodized Connector: Zinc platedTip:Compatible Guiding Rail FIFO see 02082P.1200

€0.00

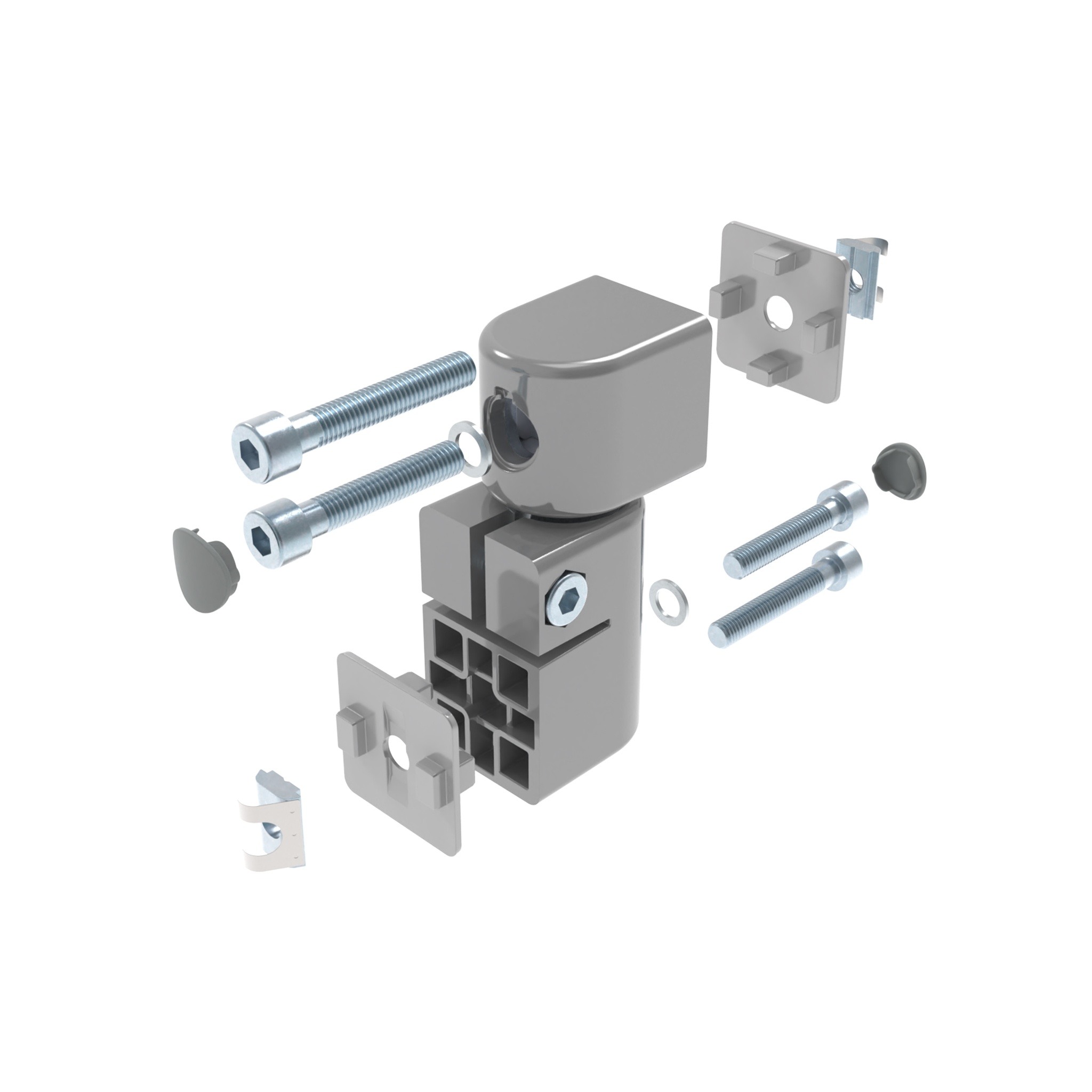

Adjustable Friction Joint B40L for System Arm (Set)

B (mm): 40.0 R (mm): 3.0 MAmax (Nm): 45.0 Slot N (mm): 10 Profile: B

Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°, friction is continuously adjustable via clamping screw (or optional locking lever); End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 35 (for clamping 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 10 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801Tip 2:Compatible Locking Lever for Adjustable Friction Joint see 041LL065K91M840M1-

€0.00

Adjustable Friction Joint I40L for System Arm (Set)

B (mm): 40.0 R (mm): 4.0 MAmax (Nm): 45.0 Slot N (mm): 8 Profile: I

Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°, friction is continuously adjustable via clamping screw (or optional locking lever); End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 35 (for clamping 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 10 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Compatible Locking Lever for Adjustable Friction Joint see 041LL065K91M840M1-

€0.00
