Hinges

FATH's line of hinge products is designed to meet the requirements of modern aluminum profile structures: Hinges used in engineering applications must be robust and precise. To meet this need, FATH offers industrial hinges in various sizes  made of aluminum, steel, stainless steel, die-cast zinc, and plastic. There is a suitable version for every application.

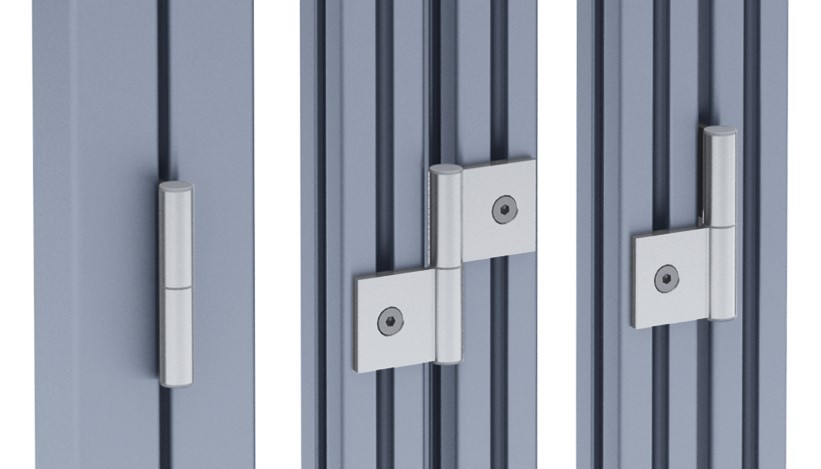

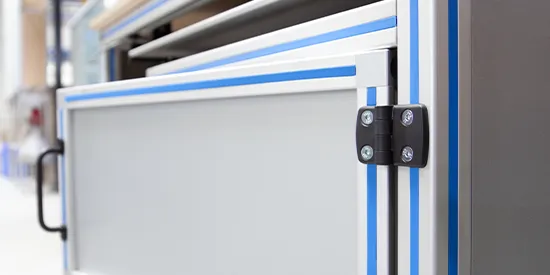

Combi Hinges

FATH Combi hinges, made from plastics, stainless steel, and die-cast aluminum, form a visually homogeneous family within which you can freely combine all the different hinge leaves 25, 30, 35, 40, 45, 50 and 60, to your application.

To Product Portrait

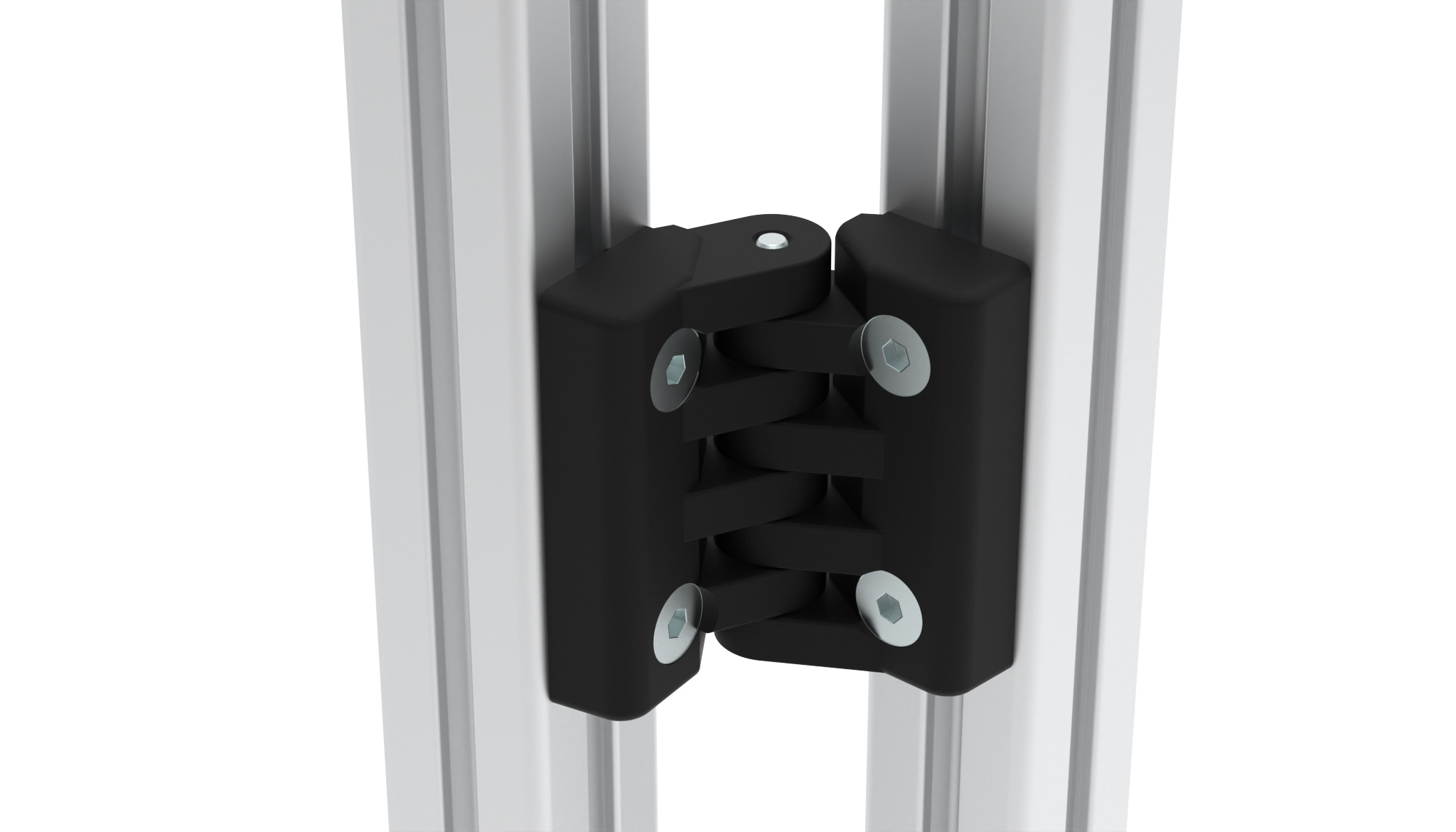

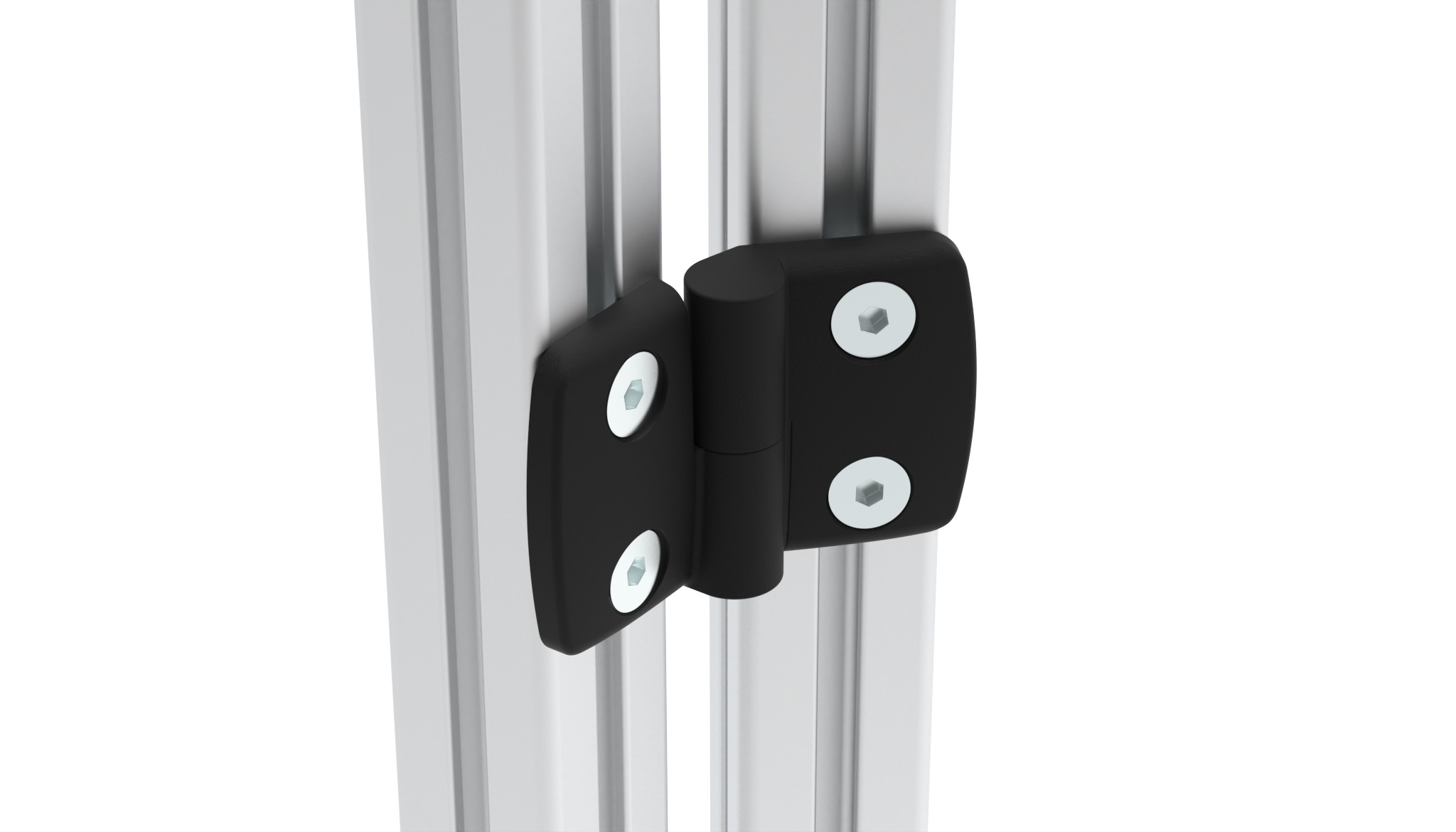

Plastic Hinges

Plastic Hinges

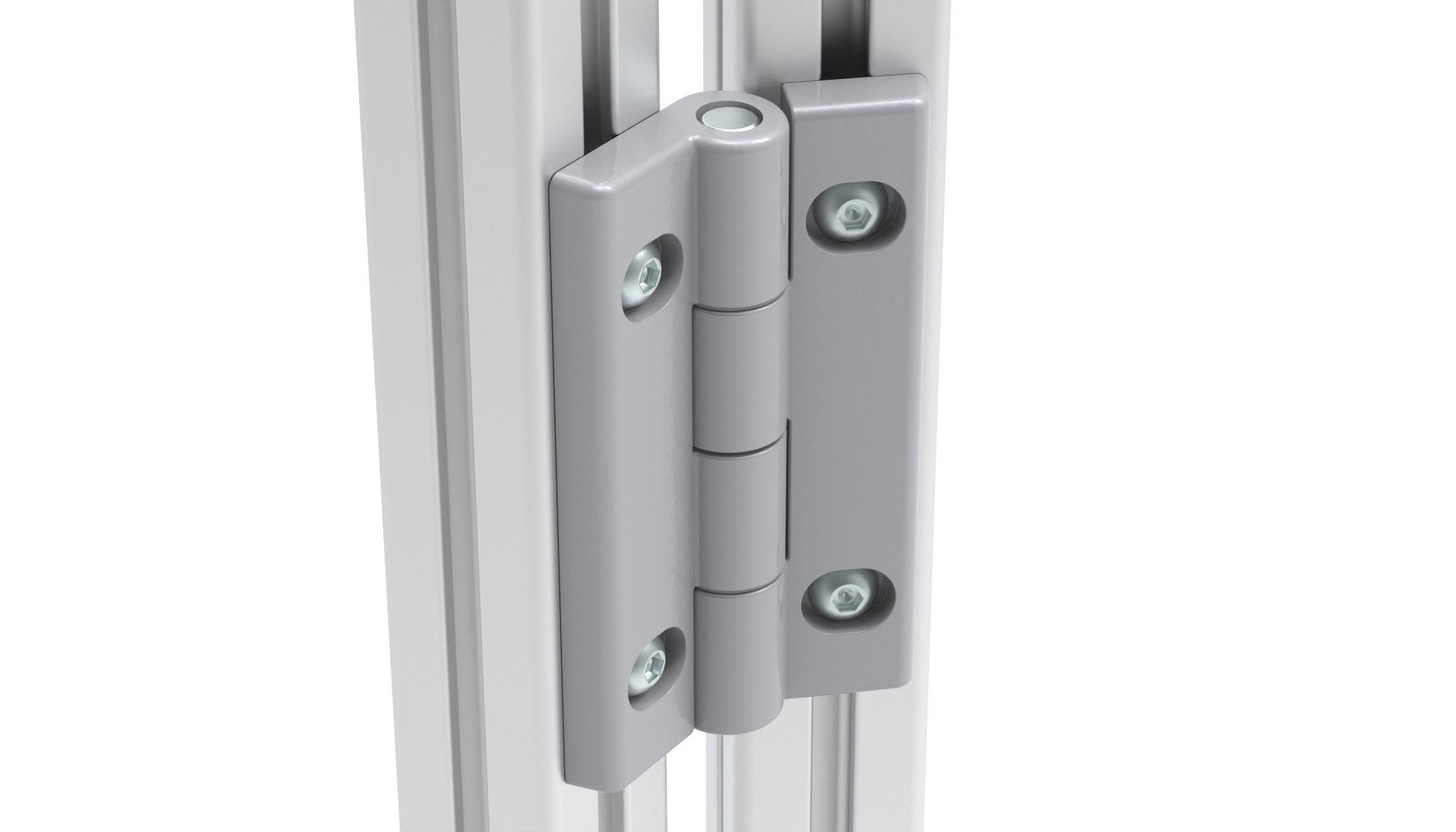

Aluminum Die-cast Hinges

Aluminum Die-cast Hinges

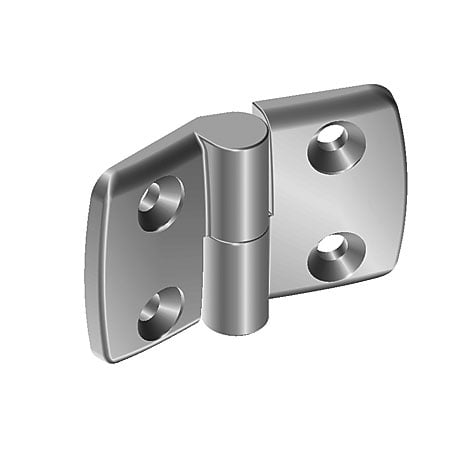

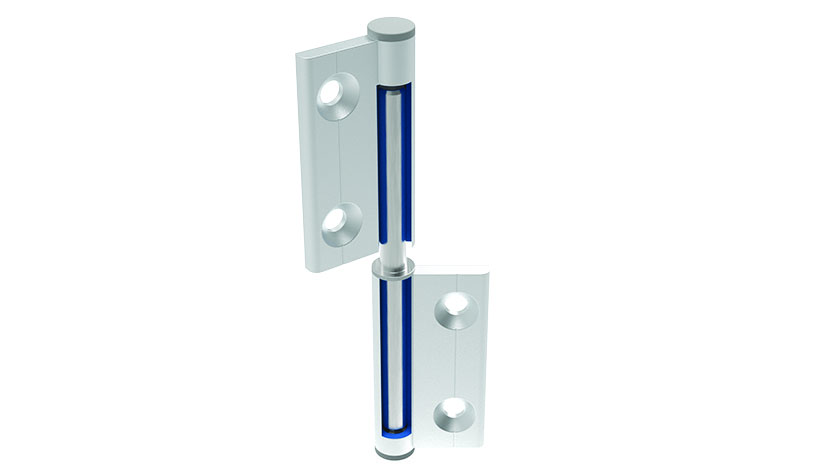

Aluminum Hinges

Aluminum Hinges

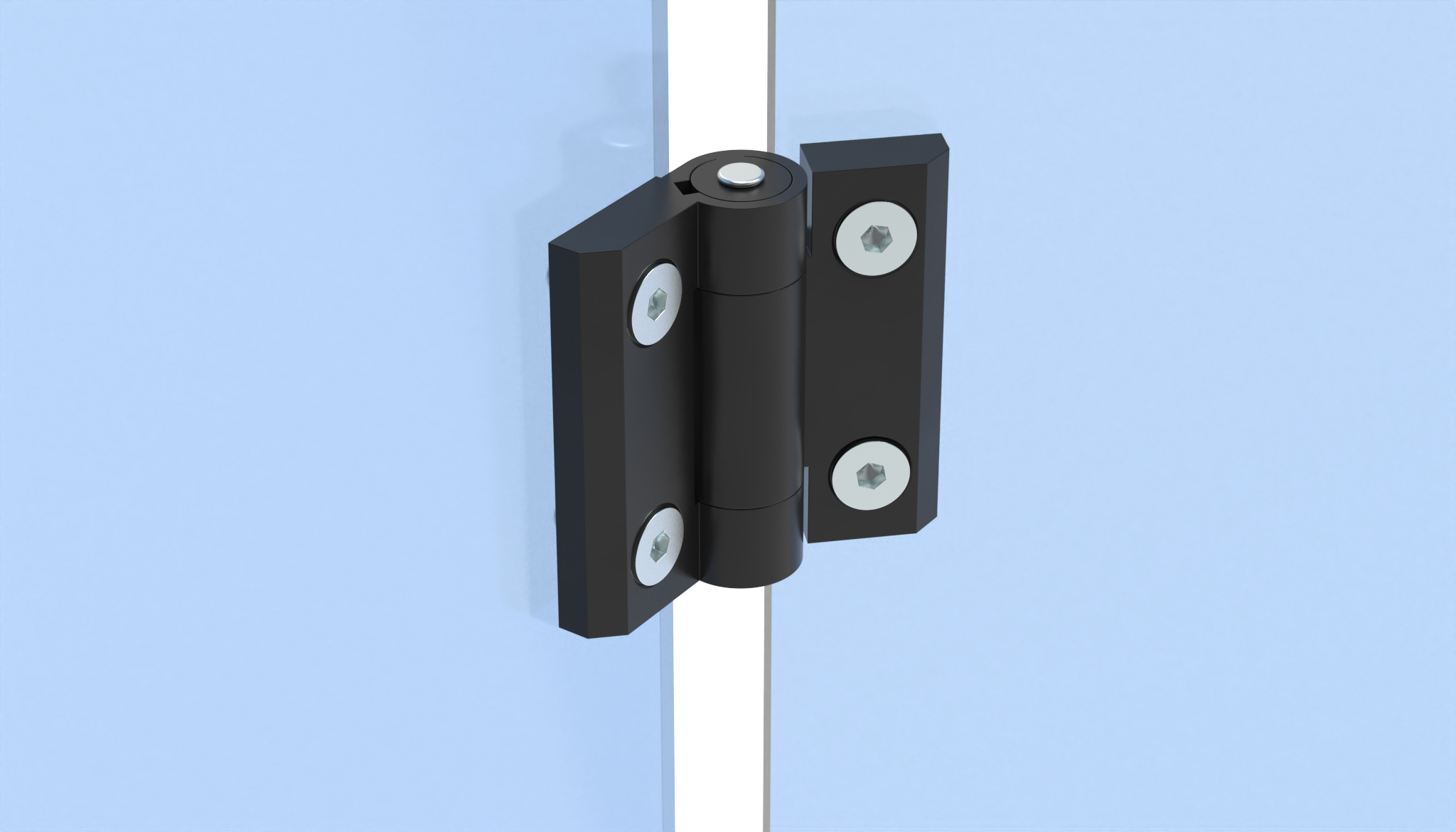

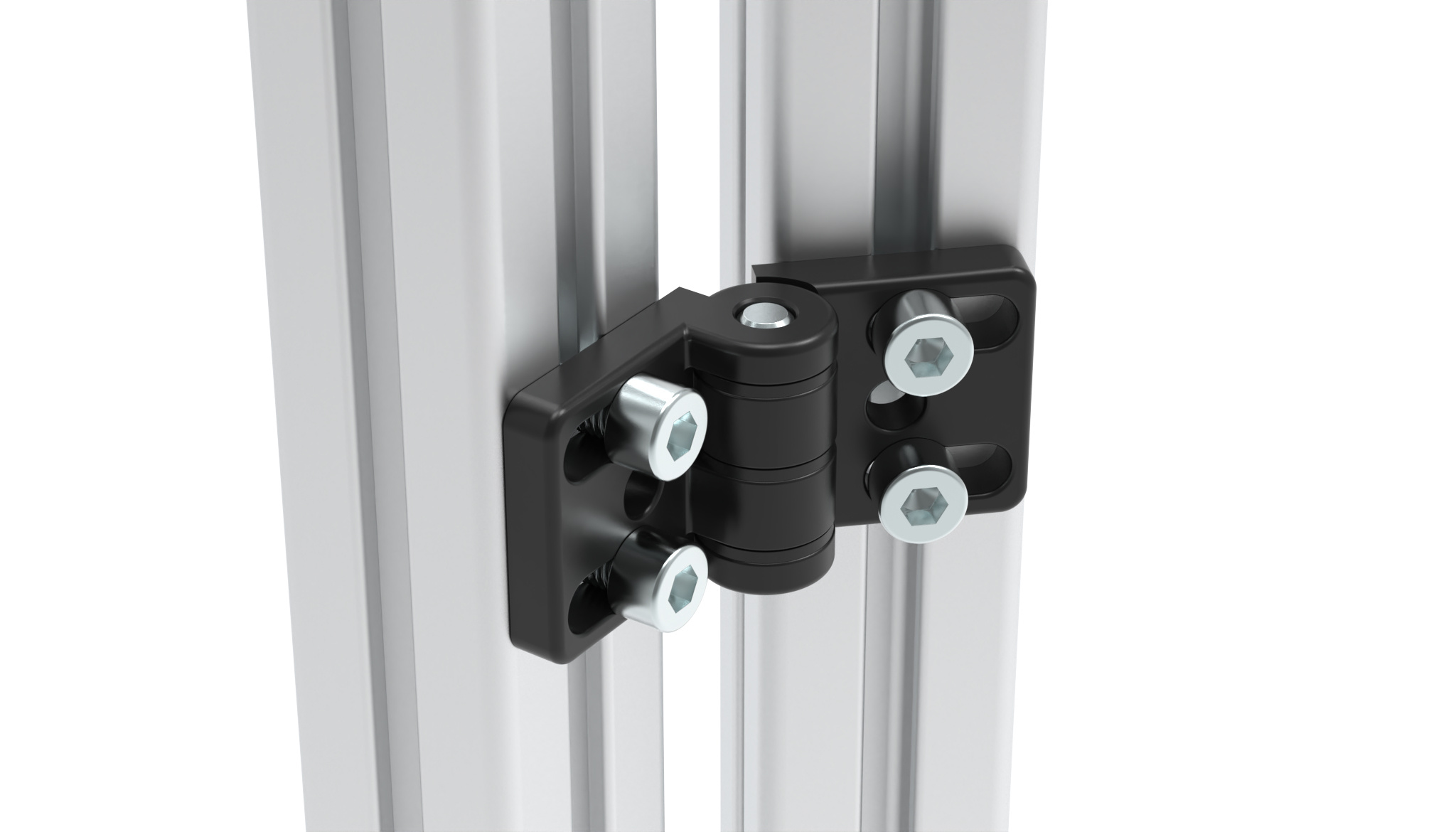

Zinc Die-Cast Hinges

Zinc Die-Cast Hinges

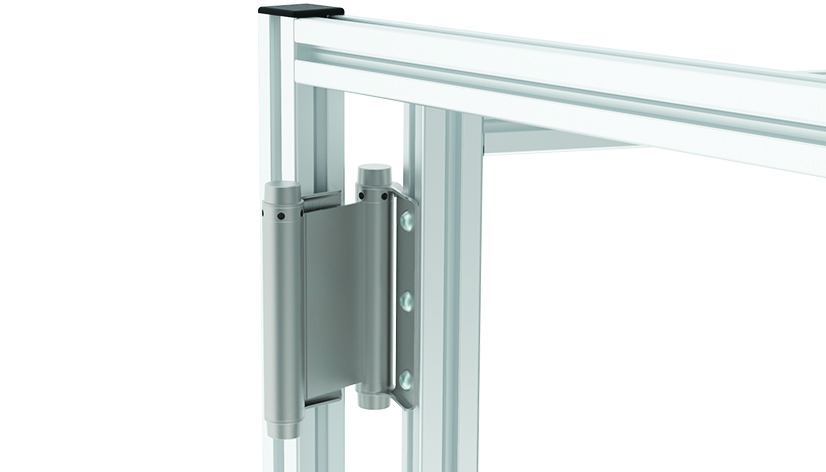

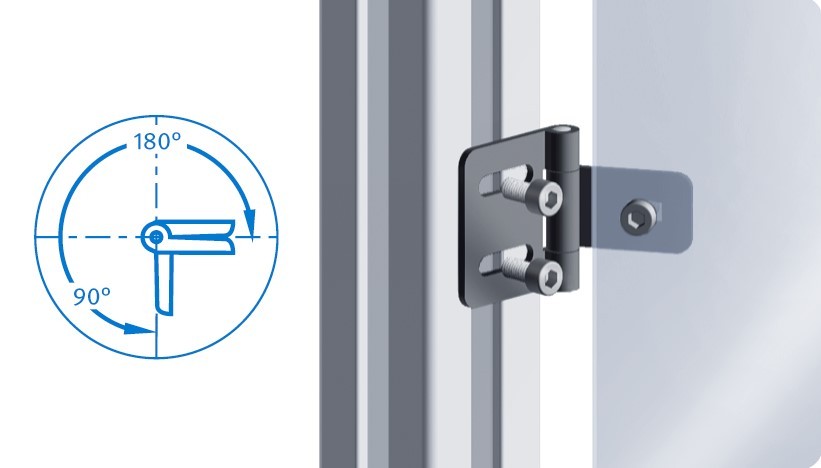

Steel Hinges

Steel Hinges

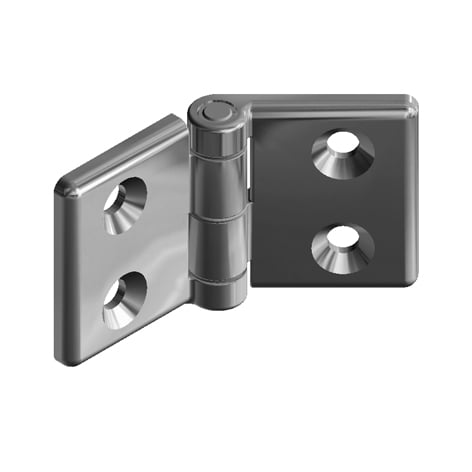

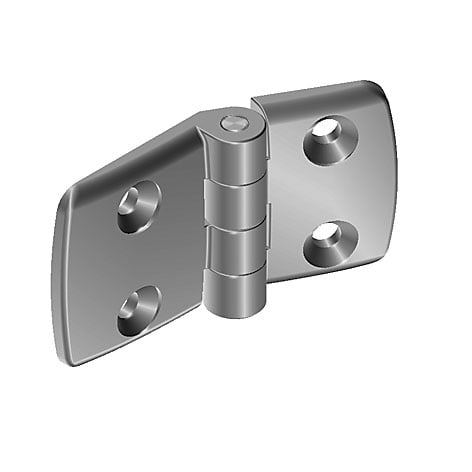

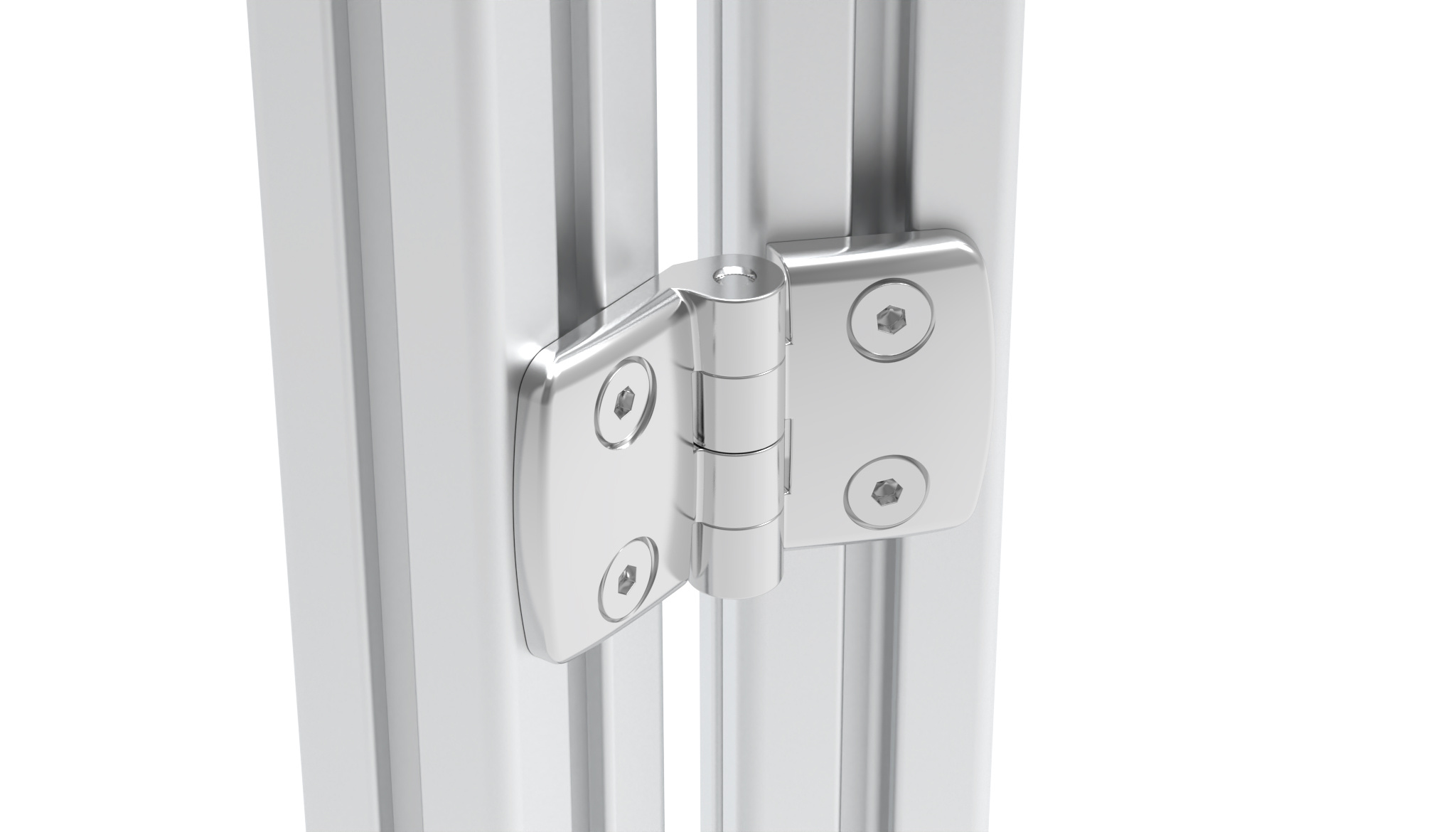

Stainless Steel Hinges

Stainless Steel Hinges

Filter products

Plastic Combi Hinge 20 MINI, Detachable – product image of all versions

Plastic Combi Hinge 20 MINI, Detachable

Version: L: Left Combination: 20 / 20 FAmax (N): 50 FRmax (N): 100

Description:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelColor:BlackFastening:From the front, using M4 countersunk screwsSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestDelivery Countries:Worldwide

€0.00
Plastic Combi Hinge 20 MINI, Non-detachable – product image

Plastic Combi Hinge 20 MINI, Non-detachable

Version: Non-detachable Combination: 20 / 20 FAmax (N): 200 FRmax (N): 400

Description:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelColor:BlackFastening:From the front, using M4 countersunk screwsSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestDelivery Countries:Worldwide

€0.00
Plastic Combi Hinge 25, Detachable, Black – product image of all versions

Plastic Combi Hinge 25, Detachable, Black

Version: L: Left Slot N (mm): - B1 (mm): 26.0 B2 (mm): 26.0 Combination: 25 / 25 FAmax (N): 425 FRmax (N): 625 A1 (mm): 15.0 A2 (mm): 15.0

Description:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelColor:BlackFastening:From the front, using M6 countersunk screwsSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestDelivery Countries:Worldwide

€0.00
System Hinge 30 – product image of all versions

System Hinge 30

Slot N (mm): - FAmax (N): 350 FRmax (N): 400

Description:To hinge panels or aluminum profiles, with cover capsMaterial:Plastic PA, glass fiber reinforcedColor:BlackFastening:From the front using M6 screws, from the back using hexagon nuts and boltsTip:Combinations of different wing sizes are available on requestSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
System Hinge 40 – product image of all versions

System Hinge 40

Slot N (mm): - FAmax (N): 425 FRmax (N): 600

Description:To hinge panels or aluminum profiles; with cover capsMaterial:Plastic PA, glass fiber reinforcedColor:BlackFastening:From the front using M6 screws, from the back using hexagon nuts and boltsTip:Combinations of different wing sizes are available on requestSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
System Hinge 30 with Positioning Function – product image of all versions

System Hinge 30 with Positioning Function

Slot N (mm): - FAmax (N): 350 FRmax (N): 400

Description:To hinge panels or aluminum profiles, with cover caps; to hold a door open at an angle at 85° or 175° or to keep it securely closedMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelColor:BlackFastening:From the front using M6 screws, from the back using hexagon nuts and boltsTip:Combinations of different wing sizes are available on request *+/- 25% of the setting valueSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
System Hinge 40 with Positioning Function – product image of all versions

System Hinge 40 with Positioning Function

Slot N (mm): - FAmax (N): 425 FRmax (N): 600

Description:To hinge panels or aluminum profiles, with cover caps; to hold a door open at an angle at 85° or 175° or to keep it securely closedMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelColor:BlackFastening:From the front using M6 screws, from the back using hexagon nuts and boltsTip:Combinations of different wing sizes are available on request *+/- 25% of the setting valueSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
System Hinge 30 with Adjustable Friction – product image of all versions

System Hinge 30 with Adjustable Friction

Slot N (mm): - FAmax (N): 325 FRmax (N): 400 Friction Torque (Nm): 0-5

Description:To hinge panels or aluminum profiles; to hold a door open at an angle at any angle; infinitely variable from 0 - 5 Nm hinge moment; also supports lightweight doorsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelColor:BlackFastening:From the front using M6 screws, from the back using hexagon nuts and boltsTip:Combinations of different wing sizes are available on requestSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
System Hinge 40 with Adjustable Friction – product image of all versions

System Hinge 40 with Adjustable Friction

Slot N (mm): - FAmax (N): 425 FRmax (N): 600 Friction Torque (Nm): 0-5

Description:To hinge panels or aluminum profiles; to hold a door open at an angle at any angle; infinitely variable from 0 - 5 Nm hinge moment; also supports lightweight doorsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelColor:BlackFastening:From the front using M6 screws, from the back using hexagon nuts and boltsTip:Combinations of different wing sizes are available on requestSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Light Plastic Hinge 35 - 40, Black – product image

Light Plastic Hinge 35 - 40, Black

FAmax (N): 300 FRmax (N): 500

Description:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelColor:BlackFastening:From the front, using M6 lens or socket head screwsSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Plastic Hinge 32 x 60, Black – product image of all versions

Plastic Hinge 32 x 60, Black

Version: L: Left Slot N (mm): 8 FAmax (N): 100 FRmax (N): 200

Description:To connect aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelColor:BlackFastening:From the front, using M6 countersunk screwsSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Plastic Hinge 32 x 60, Gray – product image

Plastic Hinge 32 x 60, Gray

Version: L: Left Slot N (mm): 8 FAmax (N): 100 FRmax (N): 200

Description:To connect aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelColor:Gray ≈ RAL 7042Specials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Plastic Hinge 32 x 100, Double, Black – product image

Plastic Hinge 32 x 100, Double, Black

Slot N (mm): 8 FAmax (N): 100 FRmax (N): 200

Description:To connect aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelColor:BlackFastening:From the front, using M6 countersunk screwsSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Heavy-duty Plastic Hinge 30, Black – product image of all versions

Heavy-duty Plastic Hinge 30, Black

Version: - Slot N (mm): - B1 (mm): 30.0 B2 (mm): 30.0 Combination: 30 / 30 FAmax (N): 150.0 FRmax (N): 280.0 A1 (mm): 17.5 A2 (mm): 17.5

Description:To hinge panels or aluminum profiles; each side has two holes for centering boltsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steel Assembly set: SteelSurface:Bolt: Plain Assembly set: Zinc platedColor:Wings: BlackFastening:From the front, using M6 countersunk screwsAssembly Set 1:2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 16, 2 hammer nuts slot 8 - M6Assembly Set 2:1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 16, 1 hammer nut slot 8 - M6, 1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 18, 1 hammer nut slot 10 - M6Specials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Heavy-duty Plastic Hinge 40, Black – product image of all versions

Heavy-duty Plastic Hinge 40, Black

Version: - Slot N (mm): - B1 (mm): 39.0 B2 (mm): 39.0 Combination: 40 / 40 FAmax (N): 150.0 FRmax (N): 280.0 A1 (mm): 22.5 A2 (mm): 22.5

Description:To hinge panels or aluminum profiles; each side has two holes for centering boltsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steel Assembly set: SteelSurface:Bolt: Plain Assembly set: Zinc platedColor:Wings: BlackFastening:From the front, using M6 countersunk screwsAssembly Set:2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 18, 2 hammer nuts slot 10 - M6Specials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Heavy-duty Plastic Hinge 30, Black – product image of all versions

Heavy-duty Plastic Hinge 45

Version: - Slot N (mm): - B1 (mm): 45.0 B2 (mm): 45.0 Combination: 45 / 45 FAmax (N): 150.0 FRmax (N): 280.0 A1 (mm): 25.0 A2 (mm): 25.0

Description:To hinge panels or aluminum profiles; each side has two holes for centering boltsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steel Assembly set: SteelSurface:Bolt: Plain Assembly set: Zinc platedColor:Wings: BlackFastening:From the front, using M6 countersunk screwsAssembly Set:2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 18, 2 hammer nuts slot 10 - M6Specials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Heavy-duty Plastic Hinge 30, Black – product image of all versions

Heavy-duty Plastic Hinge 60

Version: 60 / 60 Slot N (mm): 10 B1 (mm): 60.0 B2 (mm): 60.0 FAmax (N): 130.0 FRmax (N): 280.0 A1 (mm): 32.5 A2 (mm): 32.5

Description:To hinge panels or aluminum profiles; each side has two holes for centering boltsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steel Assembly set: SteelSurface:Bolt: Plain Assembly set: Zinc platedColor:Wings: BlackFastening:From the front, using M6 countersunk screwsAssembly Set:2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 18, 2 hammer nuts slot 10 - M6Specials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Aluminum Die-Cast Combi Hinge 20 MINI, Non-detachable, Alu color – product image

Aluminum Die-Cast Combi Hinge 20 MINI, Non-detachable, Alu color

Version: Non-detachable Combination: 20 / 20 FAmax (N): 215 FRmax (N): 275

Description:To hinge panels or aluminum profilesMaterial:Wings: Aluminum die-cast Pin: Stainless steelSurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M4 countersunk screwsDelivery Countries:Worldwide

€0.00
Aluminum Die-cast Combi Hinge 25, Detachable, Alu Color – product image of all versions

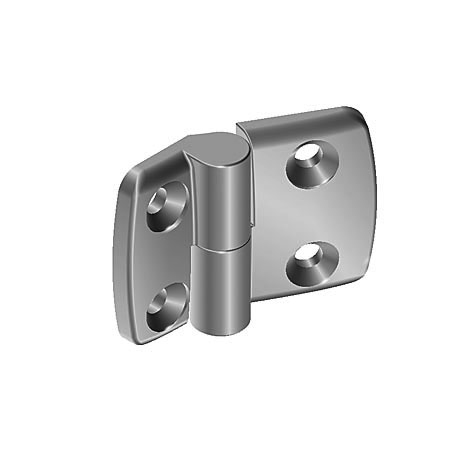

Aluminum Die-cast Combi Hinge 25, Detachable, Alu Color

Version: L: Left B1 (mm): 26.0 B2 (mm): 26.0 Combination: 25 / 25 FAmax (N): 250 FRmax (N): 410 A1 (mm): 15.0 A2 (mm): 15.0

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsTip:Compatible Central Bolts see 095AN05Delivery Countries:Worldwide

€0.00
Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color – product image of all versions

Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color

Version: Non-detachable B1 (mm): 26.0 B2 (mm): 26.0 Combination: 25 / 25 FAmax (N): 215 FRmax (N): 275 A1 (mm): 15.0 A2 (mm): 15.0

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsTip:Compatible Central Bolts see 095AN05Delivery Countries:Worldwide

€0.00
Aluminum Die-cast Combi Hinge 30, Detachable, Alu Color – product image of all versions

Aluminum Die-cast Combi Hinge 30, Detachable, Alu Color

Version: L: Left B1 (mm): 29.5 B2 (mm): 29.5 Combination: 30 / 30 FAmax (N): 280 FRmax (N): 450 A1 (mm): 17.5 A2 (mm): 17.5

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsTip:Compatible Central Bolts see 095AN05Delivery Countries:Worldwide

€0.00
Aluminum Die-cast Combi Hinge 30, Non-detachable, Alu Color – product image of all versions

Aluminum Die-cast Combi Hinge 30, Non-detachable, Alu Color

Version: Non-detachable B1 (mm): 29.5 B2 (mm): 29.5 Combination: 30 / 30 FAmax (N): 225 FRmax (N): 325 A1 (mm): 17.5 A2 (mm): 17.5

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsTip:Compatible Central Bolts see 095AN05Delivery Countries:Worldwide

€0.00
Aluminum Die-cast Combi Hinge 35, Detachable, Alu Color – product image of all versions

Aluminum Die-cast Combi Hinge 35, Detachable, Alu Color

Version: L: Left B1 (mm): 36.0 B2 (mm): 36.0 Combination: 35 / 35 FAmax (N): 250 FRmax (N): 500 A1 (mm): 20.0 A2 (mm): 20.0

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsTip:Compatible Central Bolts see 095AN05Delivery Countries:Worldwide

€0.00
Aluminum Die-cast Combi Hinge 35, Non-detachable, Alu Color – product image of all versions

Aluminum Die-cast Combi Hinge 35, Non-detachable, Alu Color

Version: Non-detachable B1 (mm): 36.0 B2 (mm): 36.0 Combination: 35 / 35 FAmax (N): 225 FRmax (N): 325 A1 (mm): 20.0 A2 (mm): 20.0

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsTip:Compatible Central Bolts see 095AN05Delivery Countries:Worldwide

€0.00
