Handles and Latches

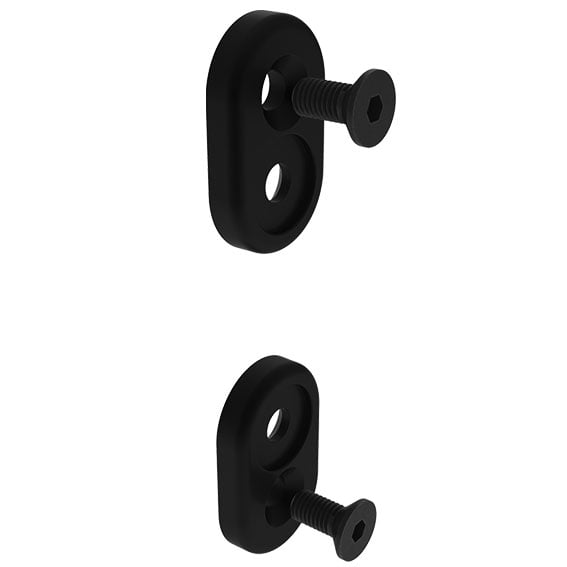

Fastening Set for Handle AL 120
Color:Black, alu colourDelivery Countries:WorldwideDescription:For front mounting of the handles AL 120Material:Zinc die-castSet:2 fastenings 2 screws DIN EN ISO 10642 (DIN 7991) - M5 x 10Surface:Powder coatedTip:Compatible handles AL 120 see 092326 and 092327

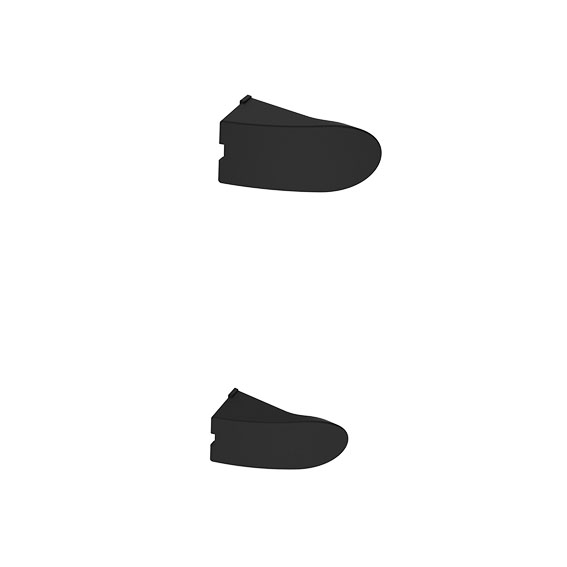

Cover Cap for Comfort and System Handle (Set)
Color:BlackDelivery Countries:WorldwideDescription:To cover the end of the handle By inserting a nut into the cover cap, mounting the handle from the back is possibleMaterial:Plastic PA, glass ball reinforcedSpecials:Other colors on requestTip:Please note: 1 set = 2 piecesTip 2:Compatible Comfort Handle see 092300 Compatible System Handle see 092013
Comfort Handle
Color:BlackDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesFastening:From the front with hexagon screws, from the back with screws and with nuts inserted into the cover capsMaterial:Plastic PA, glass ball reinforcedSpecials:Other colors on requestTip:Compatible Cover Cap for Comfort and System Handle (Set) see 092301

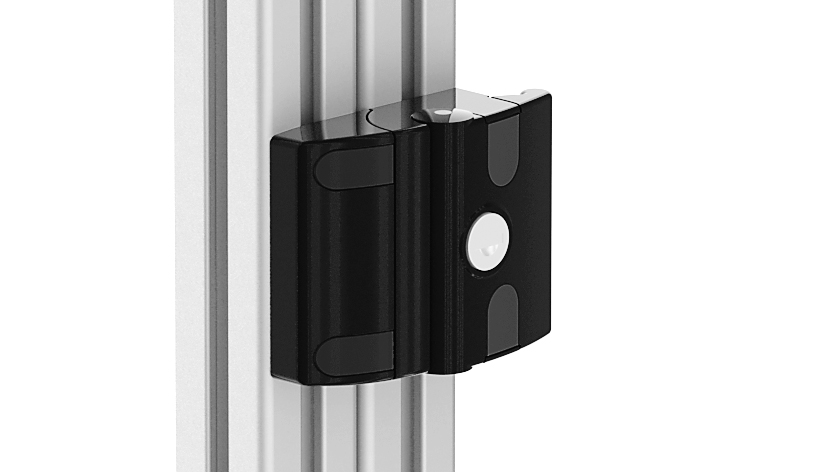

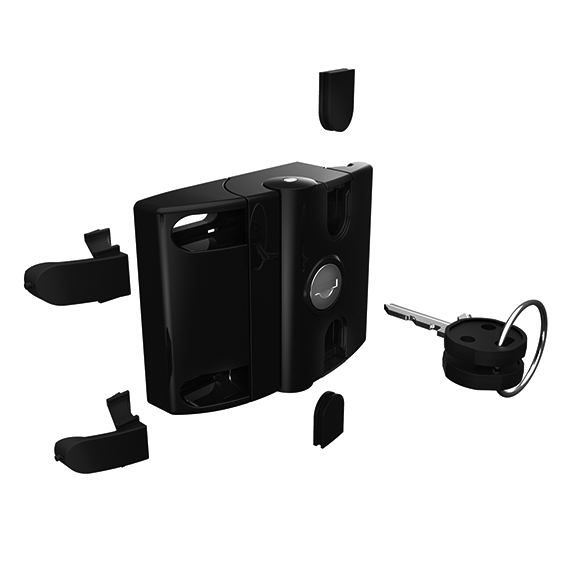

Slam Latch COMPACT
Color:Black, alu colourDelivery Countries:WorldwideDescription:For an easy and secure latching and locking of doors and flaps, no mechanical preparation needed for the assembly; safe against disassembling in the locked positionFastening:From the front, using M6 socket head or pan head screwsMaterial:Aluminum die-castSurface:Powder coatedTip:*Universal: One key fits all slam latches Unique: Each slam latch has a different key; **With double-bitted key Compatible Emergency Opener for Slam Latch see 0957409 et sq.Tip 2:Compatible Replacement Cover Cap (Set) see 0957408RS01

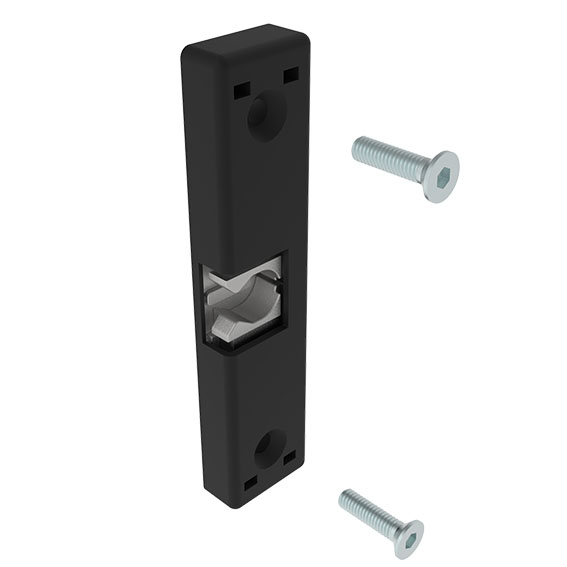

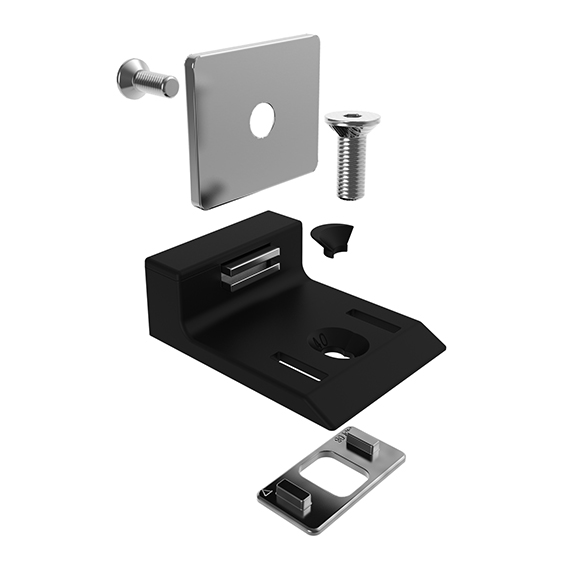

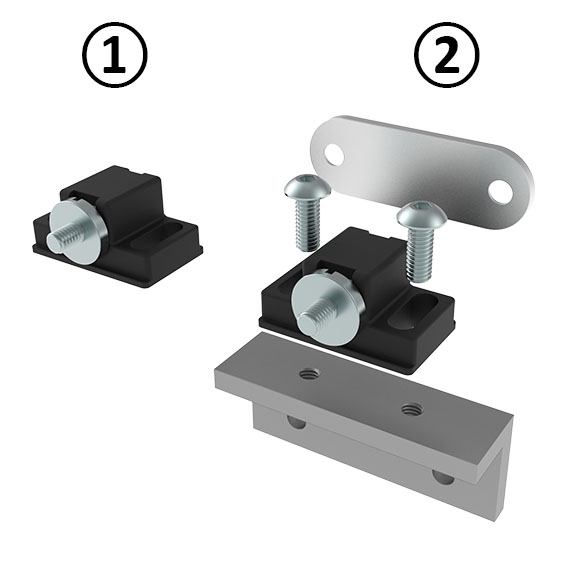

Magnetic Catch 20 (Set)
Color:Magnetic catch: BlackDelivery Countries:WorldwideDescription:A quick locking device for doors, adaptable to the thickness of the panel unitsFastening:Using screws M4Material:Magnetic catch: Plastic PA, glass fiber reinforced Assembly set: Steel Angle bracket: AluminumSet 1:1 magentic catch 20, 1 pan head screw DIN 921 - M4 x 5Set 2:1 magentic catch 20, 1 counter plate 14 x 41 x 2 mm, 2 screws DIN EN ISO 7380 (DIN 34805) - M4 x 10, 1 angle bracketSpecials:ESD electrostatical discharging, other sizes, other colors on request
Emergency Opener for Slam Latch
Color:Base part: Black Push button: Red ≈ RAL 3020Delivery Countries:WorldwideDescription:Inside emergency release for slam latches PRO and Compact; with or without safety catchFastening:From the front, using two socket head screws DIN EN ISO 4762 (DIN 912) M6 x 20Material:Base part: Plastic PA, glass fiber reinforced Push button: Plastic PA, glass fiber reinforced Unlocking plate: SteelSurface:Unlocking plate: Zinc platedTip:Recommendation for slide door latch Compact 0957415 et sq.: Emergency opener for slam latch with safety catch and an inside mounted handle; Not compatible with slam latch 0957101 et sq.

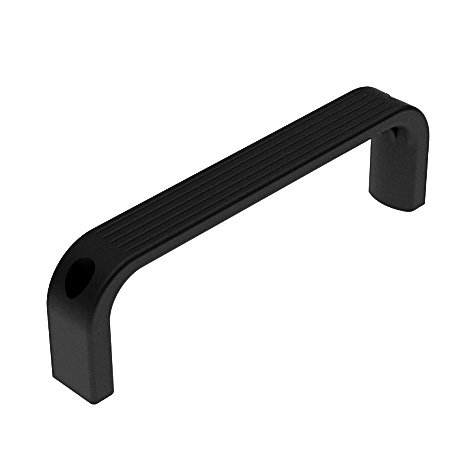

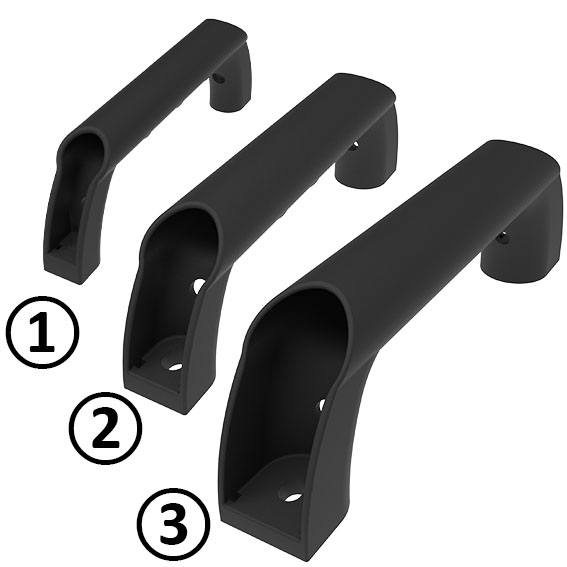

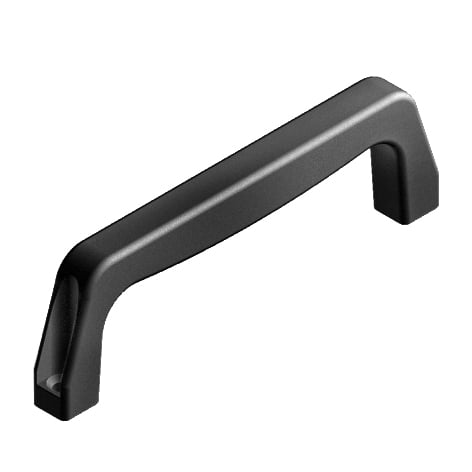

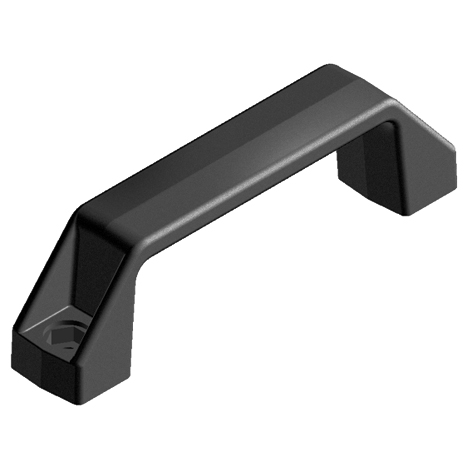

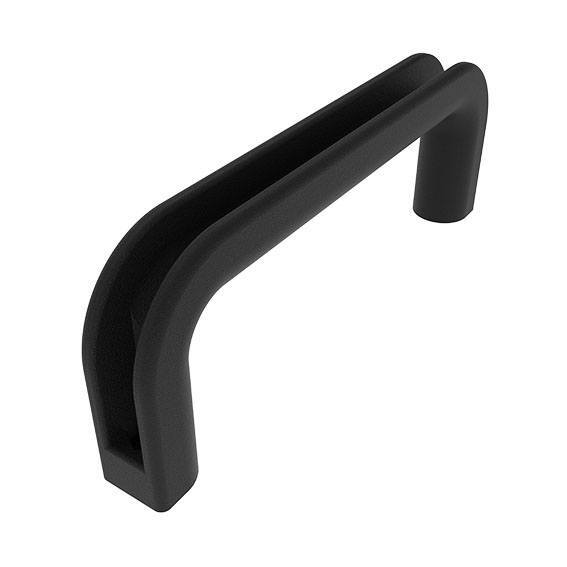

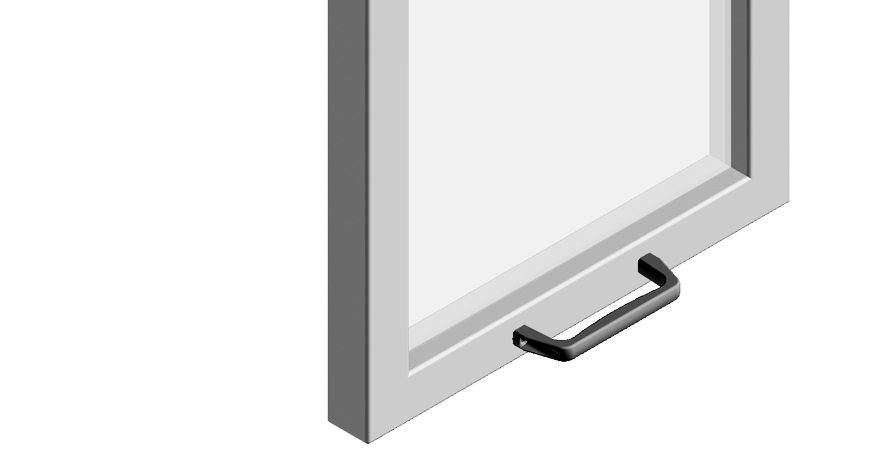

Handle
Color:Black, yellow, red, blue, grayDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesFastening:From the front with hexagon cap screws or socket head screws, or from the back using M8 hexagon nuts and boltsMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on request

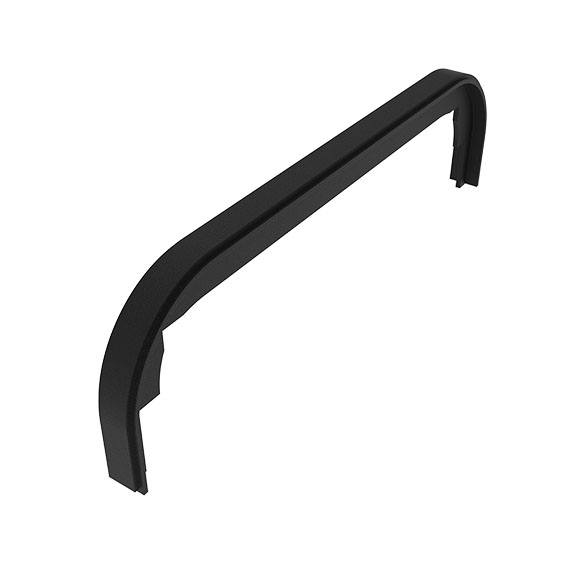

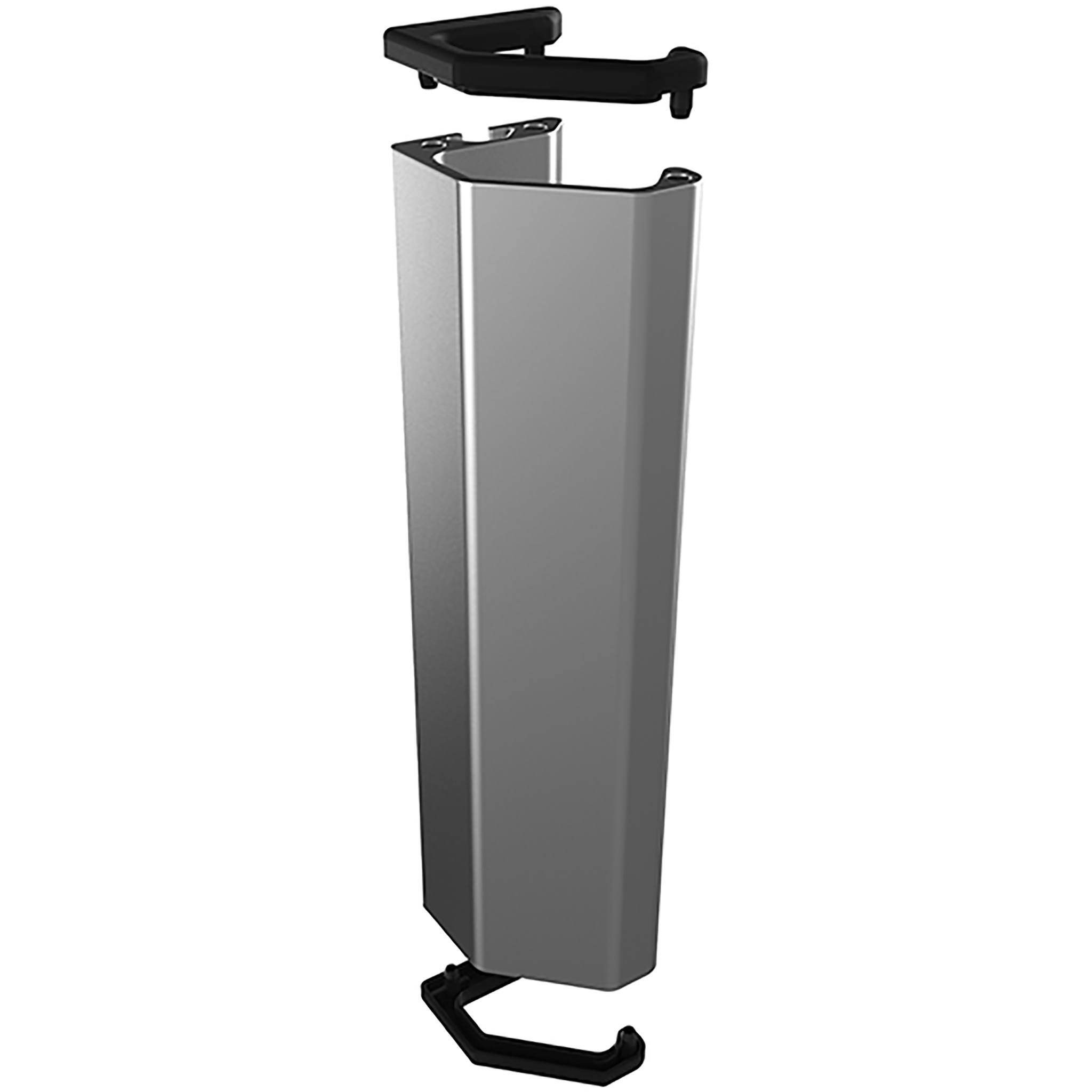

Strip Handle (Set)
Color:Cover caps: BlackDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesFastening:From the front with holes drilled into the slot base, from the back with T-slot nuts in the strip handleMaterial:Strip handle: Aluminum Cover caps: Plastic PA, glass fiber reinforcedSet:1 strip handle in length L [mm], 1 cover cap left, 1 cover cap rightSpecials:Other lengths on requestSurface:Strip handle: AnodizedTip:Compatible Cover Cap (Set) see 092021Tip 2:*Please note: You are ordering in meters!

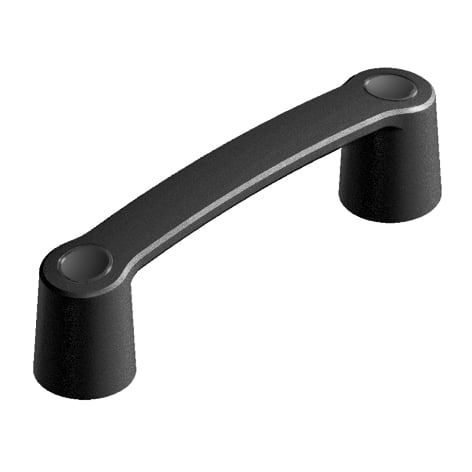

Bridge Handle B
Color:Black, grayDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesFastening:From the front, using socket head screwsMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on request

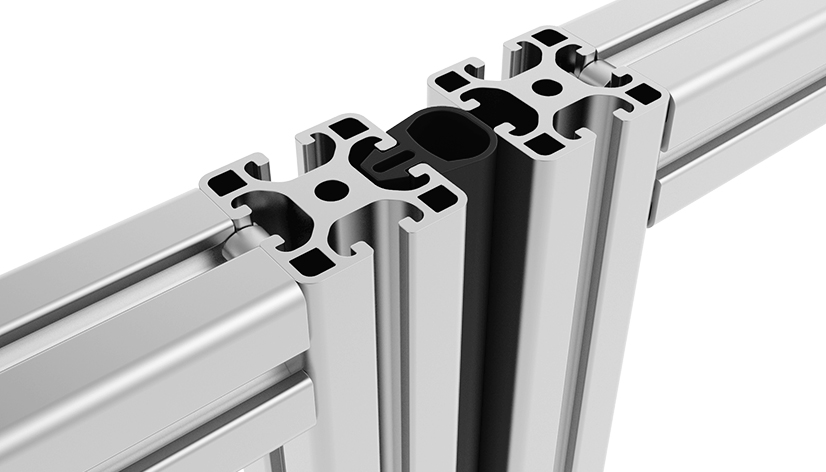

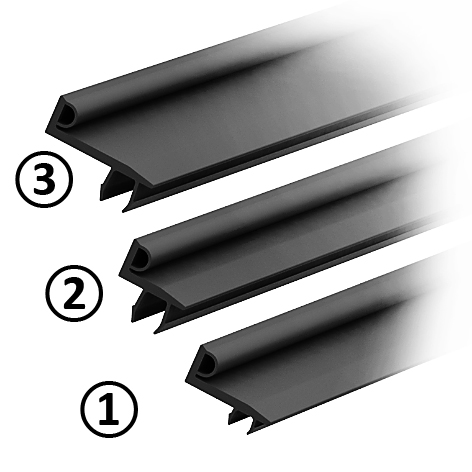

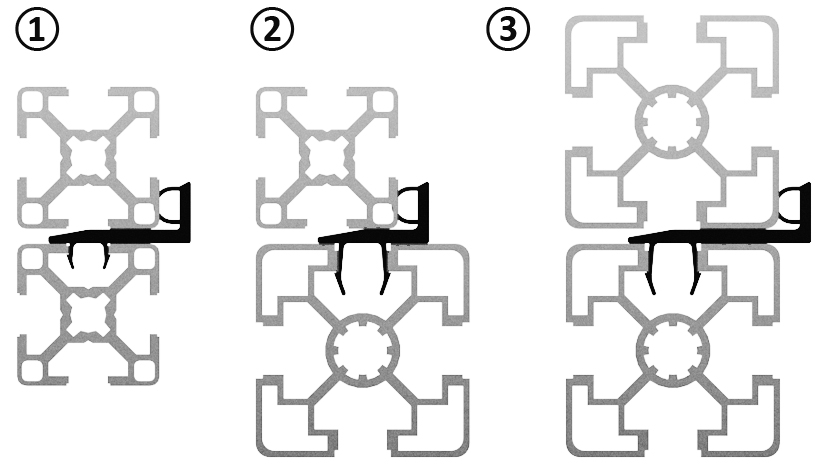

Sealing Strip B
Color:Gray ≈ RAL 7004Delivery Countries:WorldwideDescription:To close doors sealed, flush, and non see through; with elastic sealing lip, covers the door gapMaterial:Plastic PVC + TPE
Handle AL 120
Color:Black, alu colourDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesFastening:From the back, using M5 screws; From the front with optional fastening setMaterial:AluminumSurface:Powder coated / anodizedTip:Compatible Fastening Set see 092330
Tubes for System Handle
Delivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesFastening:End pieces for system handleMaterial:Carbon fiber, aluminum, stainless steel, steelSpecials:Other surfaces, other colors on requestSurface:Glossy finish, anodized, plain, plastic coveredTip:*For cut to length For the steel tube, please remove the plastic cover at the ends for installation in the end pieces

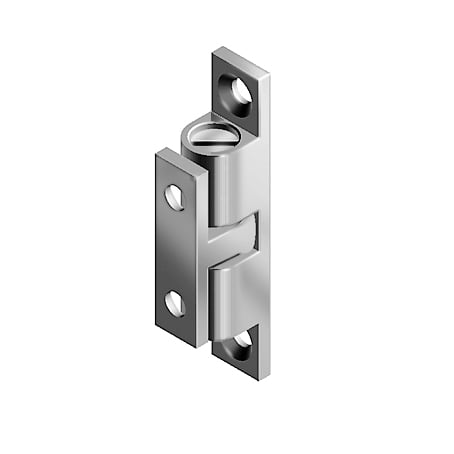

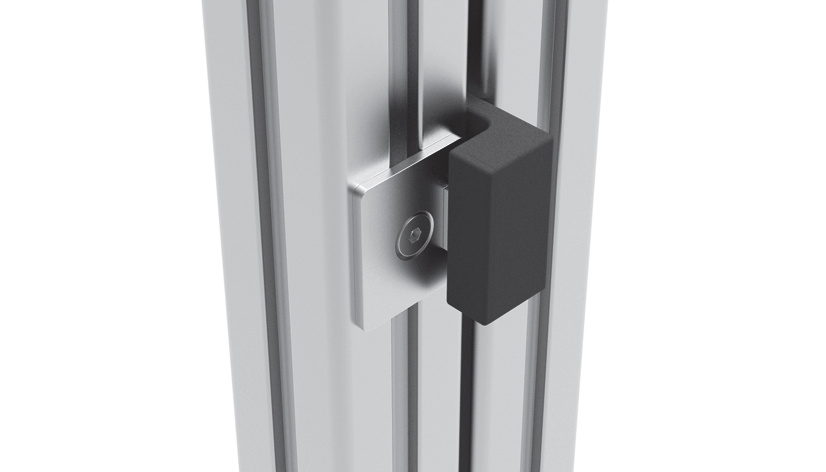

Double Ball Catch MS
Color:ChromeDelivery Countries:WorldwideDescription:Quick catch for doors, adjustable clamping force, 2 possible positions (sideways / from the front)Fastening:From the front, using countersunk screwsMaterial:Body: Brass Threaded pin: Steel Spring: Stainless steel Ball: Stainless steelSurface:Chrome plated

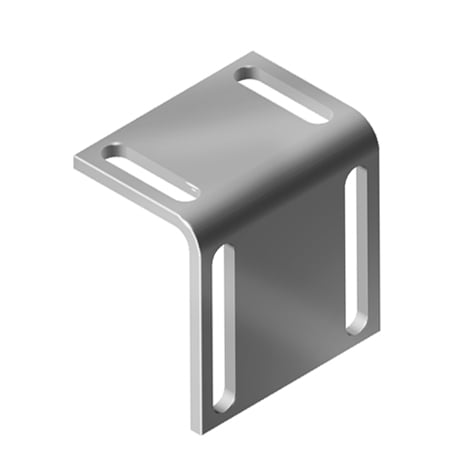

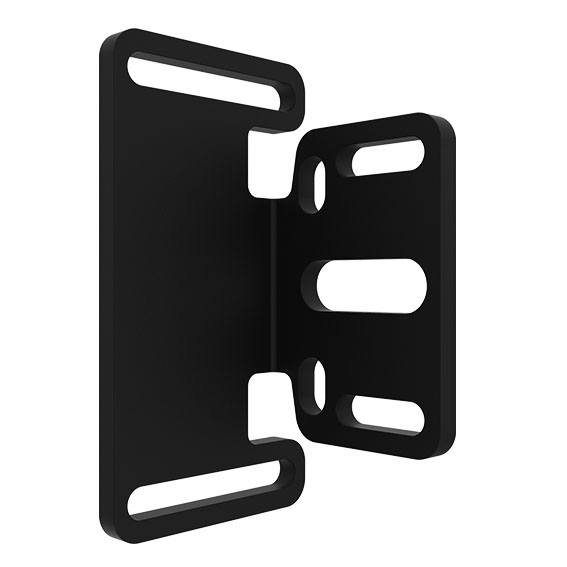

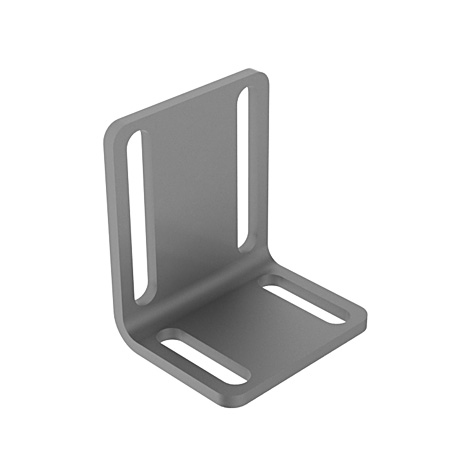

Angle Bracket for Ball Catch 30 / Safety Switch AZ 16
Color:BlackDelivery Countries:WorldwideDescription:To flexibly position the housing or ball pin of the ball catch 30 or a safety switch Schmersal AZ 16Material:SteelSpecials:Other sizes, other surfaces on requestSurface:Powder coatedTip:Compatible Ball Catch 093043, 093043S02, 093045, 093045S03

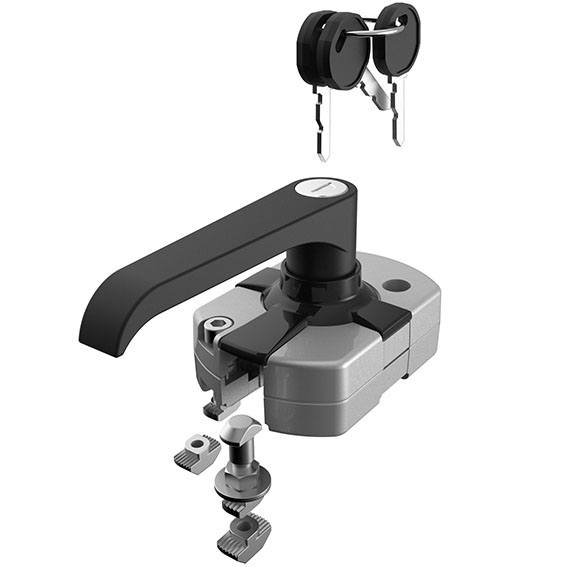

Door Lock (Set)
Color:Housing: Alu color Cross: Lack Handle: BlackDelivery Countries:WorldwideDescription:For an easy and secure latching and locking of swing and sliding doors, no mechanical preparation needed for the assemblyMaterial:Housing: Aluminum die-cast Cross: Aluminum die-cast Handle: Zinc die-cast Fastening material: SteelSet:1 door lock, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 30, 1 washer 6-FSt, 1 anchor - M6, 1 nut DIN EN ISO 4032 (DIN 934) - M6, 1 washer DIN EN ISO 7093 (DIN 9021) - 6.4, 3 hammer nut - slot 8 - M6, 3 hammer nut - slot 10 - M6Surface:Housing: Lacquered Cross: Powder coated Handle: Plastic coated Fastening material: Zinc platedTip:*Universal: One key fits all slam latches Unique: Each door lock has a different key **With double-bitted key
Machine Handle 135
Color:BlackDelivery Countries:WorldwideDescription:Machine handle with ergonomic design and finger protection; to mount on doors, flaps and aluminum profiles; optional with cover capsFastening:With hexagon cap screws or socket head screwsMaterial:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestTip:Compatible Cover Cap for Machine Handle 135 (Set) see 092010

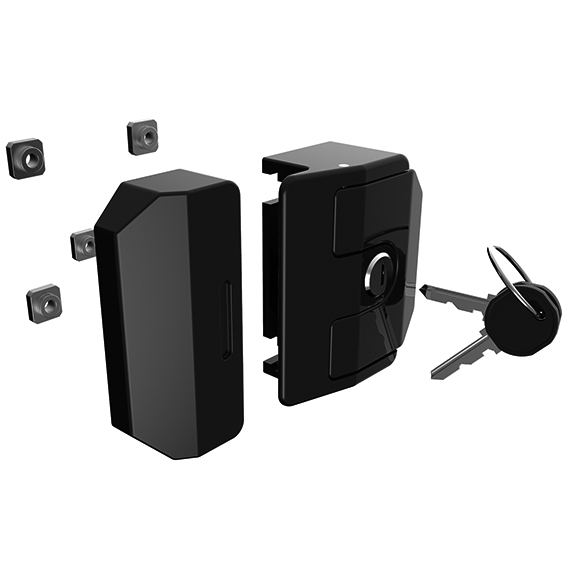

Slam Latch ZN
Color:BlackDelivery Countries:WorldwideDescription:For an easy and secure latching and locking of doors and flapsFastening: From the back, using M6 screws Material:Zinc die-castSurface:Powder coatedTip:*Universal: One key fits all slam latches Unique: Each slam latch has a different key

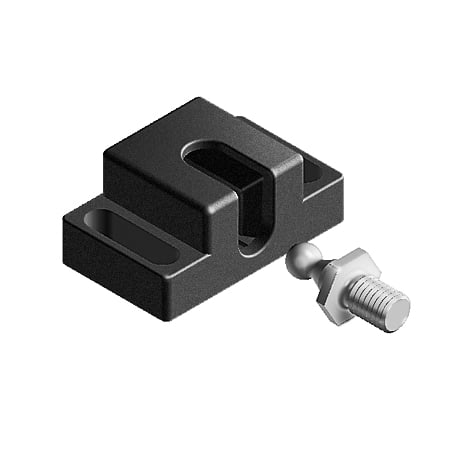

Ball Catch 30
Color:Black, grayCounter Screw:M8 x 12, zinc plated steel / stainless steel SS 304Delivery Countries:WorldwideDescription:A quick locking device for doors, adaptable to the thickness of the panel unitsFastening:Using screwsMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on request

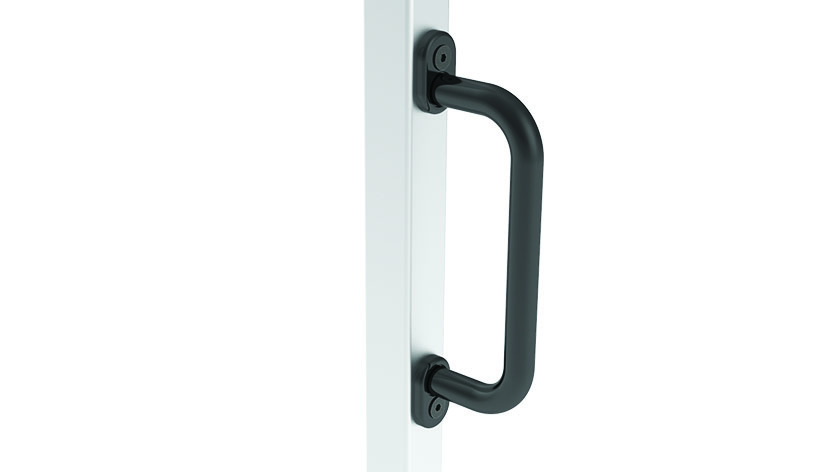

System Handle
Color:BlackDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesFastening:From the front with hexagon screws, from the back with screws and with M8 nuts inserted into the cover capsMaterial:Plastic PA, glass ball reinforcedSpecials:Other colors on requestTip:Please note: 1 set = 2 piecesTip 2:Compatible Cover Cap for Comfort and System Handle (Set) see 092305

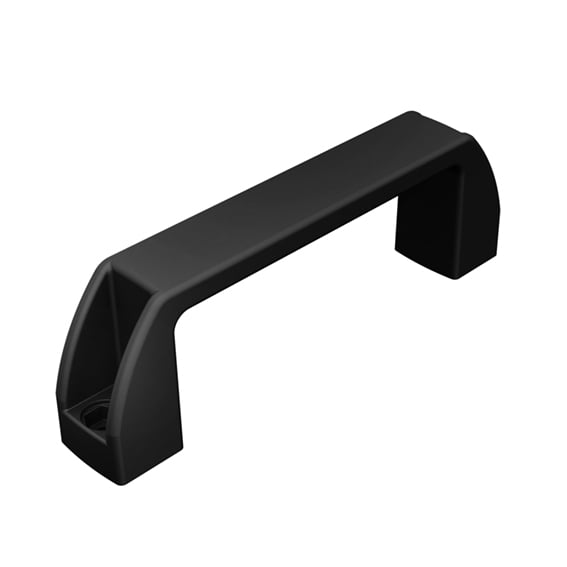

Bridge Handle with Cover Cap
Color:BlackDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesFastening:From the front, using socket head screwsMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on requestTip:Dimensions in brakets apply when assembled
System Handle Bent
Color:BlackDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profiles, can be used as an end or middle pieceFastening:From the front, using M6 screwsMaterial:Plastic PA, glass fiber reinforcedSet:2 system handle legs 2 cover caps for screw-on point 2 cover caps for open hole in system handle leg as end pieceTip:Please note: 1 set = 2 pieces

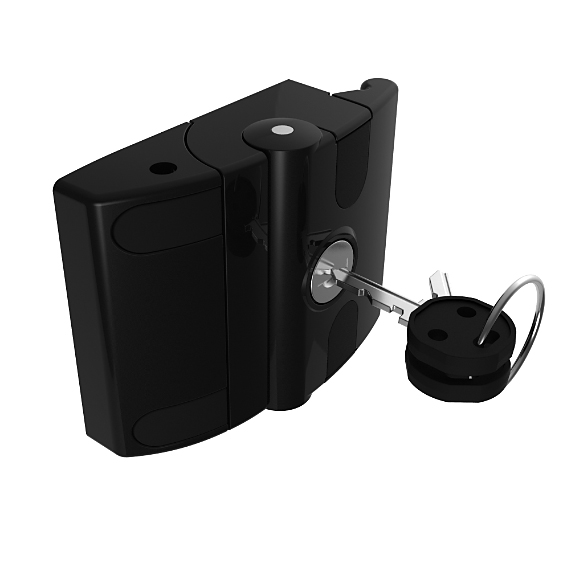

Slide Door Latch COMPACT
Color:BlackDelivery Countries:WorldwideDescription:For an easy and secure latching and locking of sliding doors, no mechanical preparation needed for the assembly; safe against disassembling in the locked positionFastening:From the front, using M6 socket head or pan head screwsMaterial:Aluminum die-castSurface:Powder coatedTip:*Universal: One key fits all slam latches Unique: Each slam latch has a different key Compatible Emergency Opener for Slam Latch with Safety Catch see 0957409S02, additional inside mounted handle recommended Compatible Replacement Cover Cap (Set) see 0957408RS01

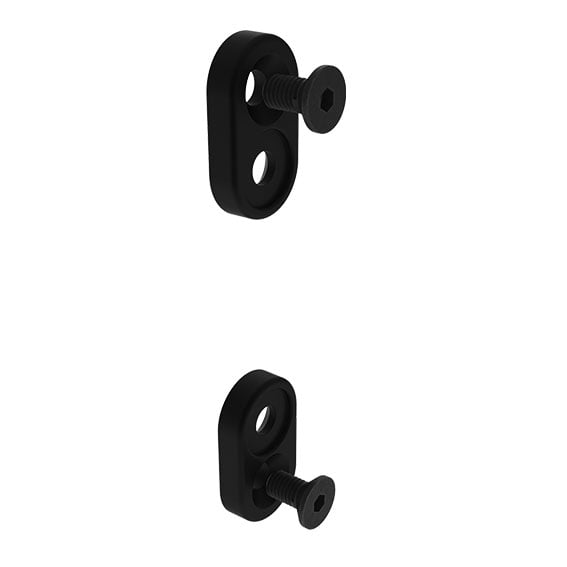

Fastening Set for Handle AL 200
Color:Black, alu colourDelivery Countries:WorldwideDescription:For front mounting of the handles AL 200Material:Zinc die-castSet:2 fastenings, 2 screws DIN EN ISO 10642 (DIN 7991) - M8 x 18Surface:Powder coatedTip:Compatible Handles AL 200 see 092328 and 092329

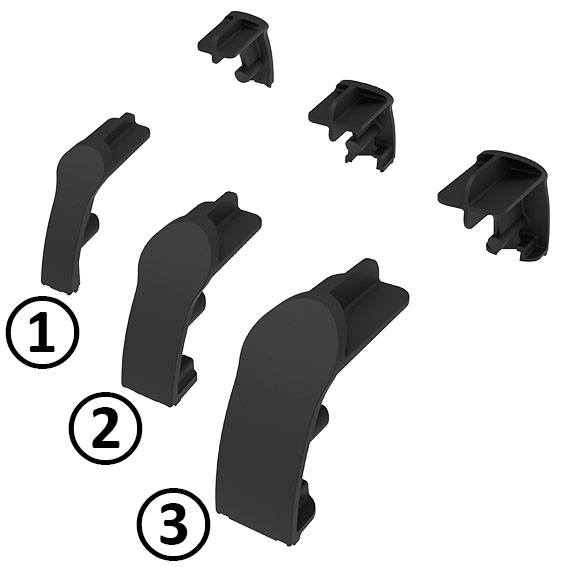

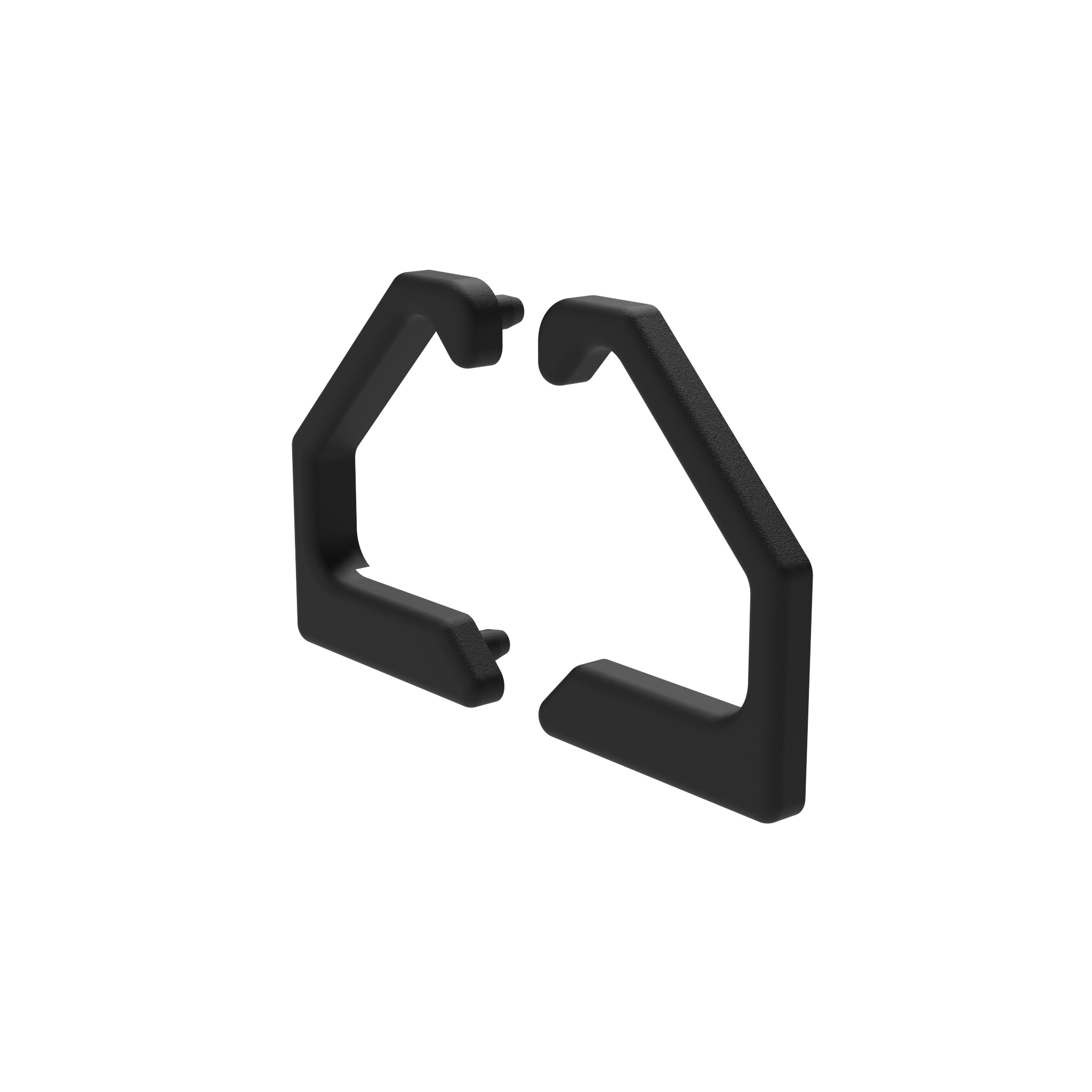

Cover Cap for Handle
Color:Black, yellow, red, blue, grayDelivery Countries:WorldwideDescription:To cover the open side of the handleMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on requestTip:Compatible Handle see 092012
