Door Latch

Product information "Door Latch"

Color:
Housing: Alu color
Handle: Black

Delivery Countries:
Worldwide

Description:

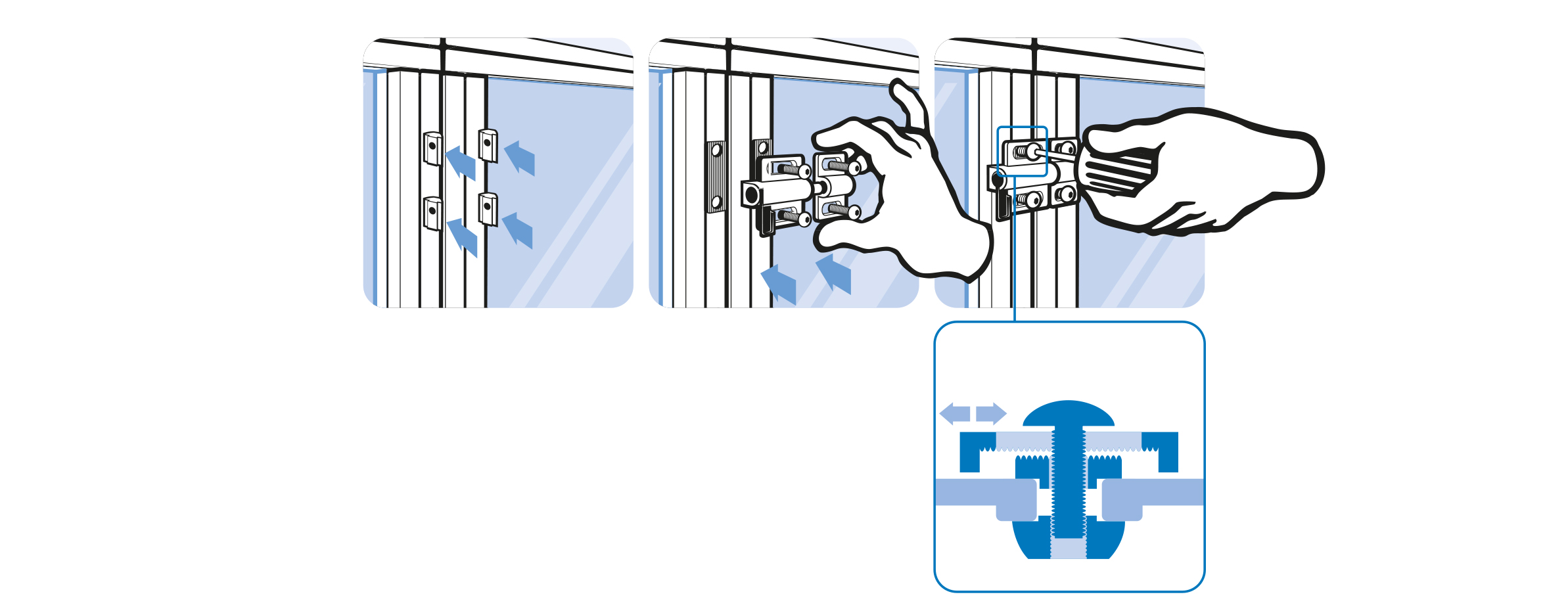

For easy closing of doors and flaps, with spring-loaded clamp;
including separate slot fixation strips

Material:
Housing: Zinc die-cast
Pull handle: Plastic PA,
Bolt: Stainless steel

Surface:
Powder coated
Pack Quantity: 10 pieces
Model: Zinc die-cast
Weight (g): 120.0
ERP Number: 100410

Variants

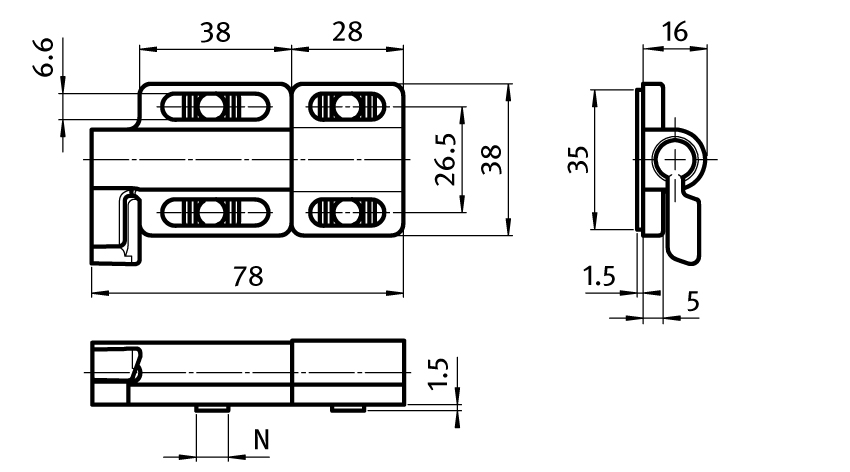

Part # Slot N (mm) CAD
8 / 10

CAD Downloads

Classifications

ECLASS 6.0
23199090
ECLASS 7.0
23199090
ECLASS 8.0
23199090
ECLASS 9.0
23199090
ECLASS 10.0
23199090
ECLASS 11.0
23199090
ECLASS 12.0
23199090
ECLASS 13.0
23199090
Zolltarifnummer
79070000900
Customs Tariff Number Export
79070000

Certificates

Tags

Profile Type Profile Type B, Profile Type I
Slot Size Slot 8, Slot 10
Application Area Machinery & Plant Engineering
