New Products

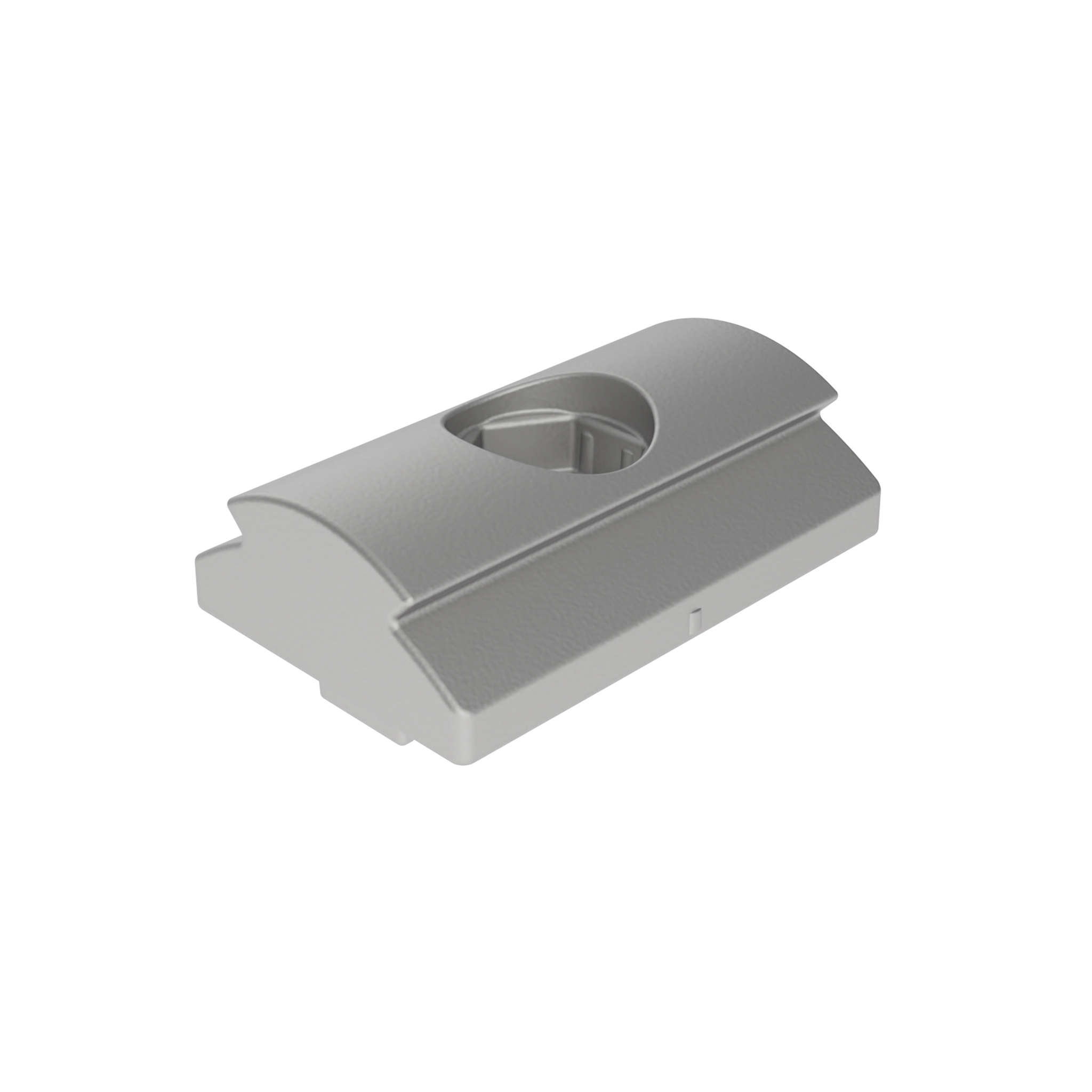

Adapter Piece D30, Slot 8
Color:V_PlainDelivery Countries:WorldwideDescription:To connect tubular frame profiles with slot 8 aluminum profilesMaterial:Aluminum die-castTip:Compatible Outer Ball Connector D30 (Set) see 099RV30KS01 Compatible Outer T-Connector D30 (Set) see 099RV3090LS01 Compatible Cross Ball Connector D30 (Set) see 099RV30KS04 Compatible Cross Connector D30 (Set) see 099RV30XS01 Compatible Parallel Connector D30 (Set) see 099RV30PS02 Compatible Angle Connector 2D30 (Set) see 099RV3090QS01 Compatible Angle Connector D30, 45° (Set) see 099RV3045S01 Compatible T-slot Nut see 096006

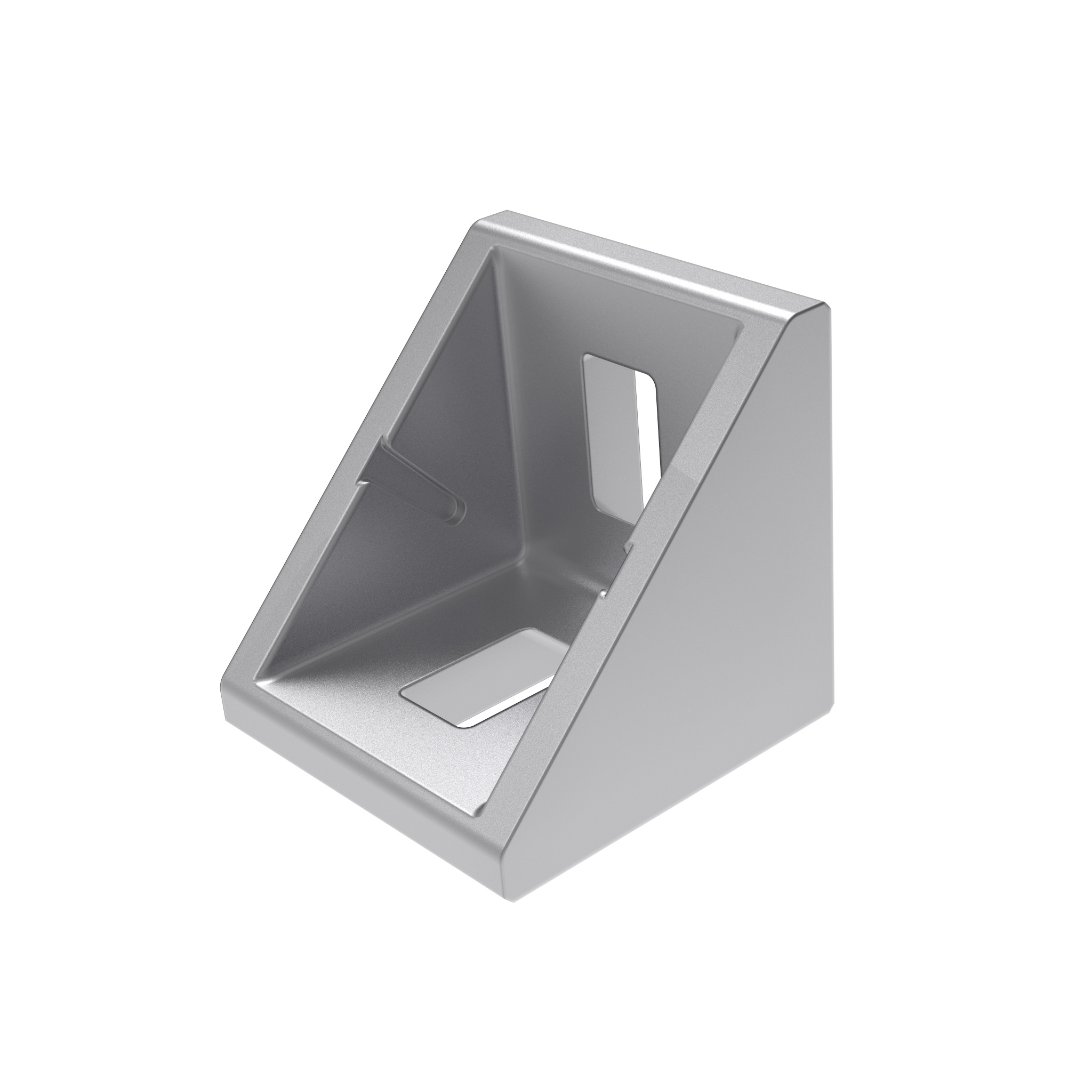

Alu Connection Angle 20
Assembly Set 1:2 hammer nuts - slot 6 - M4, 2 screws DIN 7984 - M4 x 8Assembly Set 2:4 hammer nuts - slot 6 - M4, 4 screws DIN EN ISO 7380-1 (DIN 34805-1) - M4 x 8Color:Angle: Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Cover Cap see 093WA203

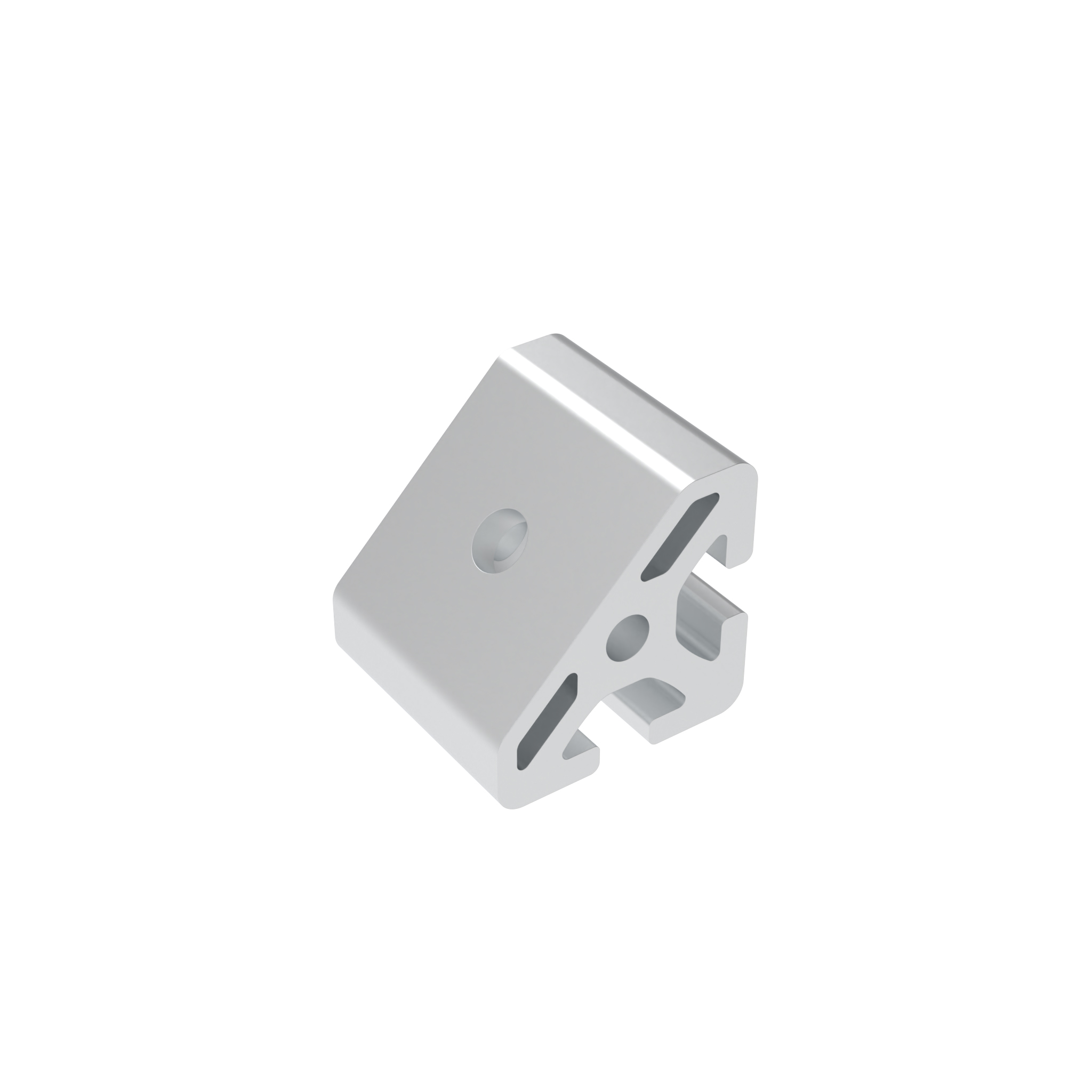

Angle Element T1 40, 45°
Color:Alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:AluminumSurface:AnodizedTip:Compatible Cover Cap 40 x 40 45° see 091048 (black) / 091048S01 (gray)
Angle Element T1 80 x 40, 45°
Color:Alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:AluminumSurface:AnodizedTip:Compatible Cover Cap 40 x 40 45° see 091048 (black) / 091048S01 (gray)

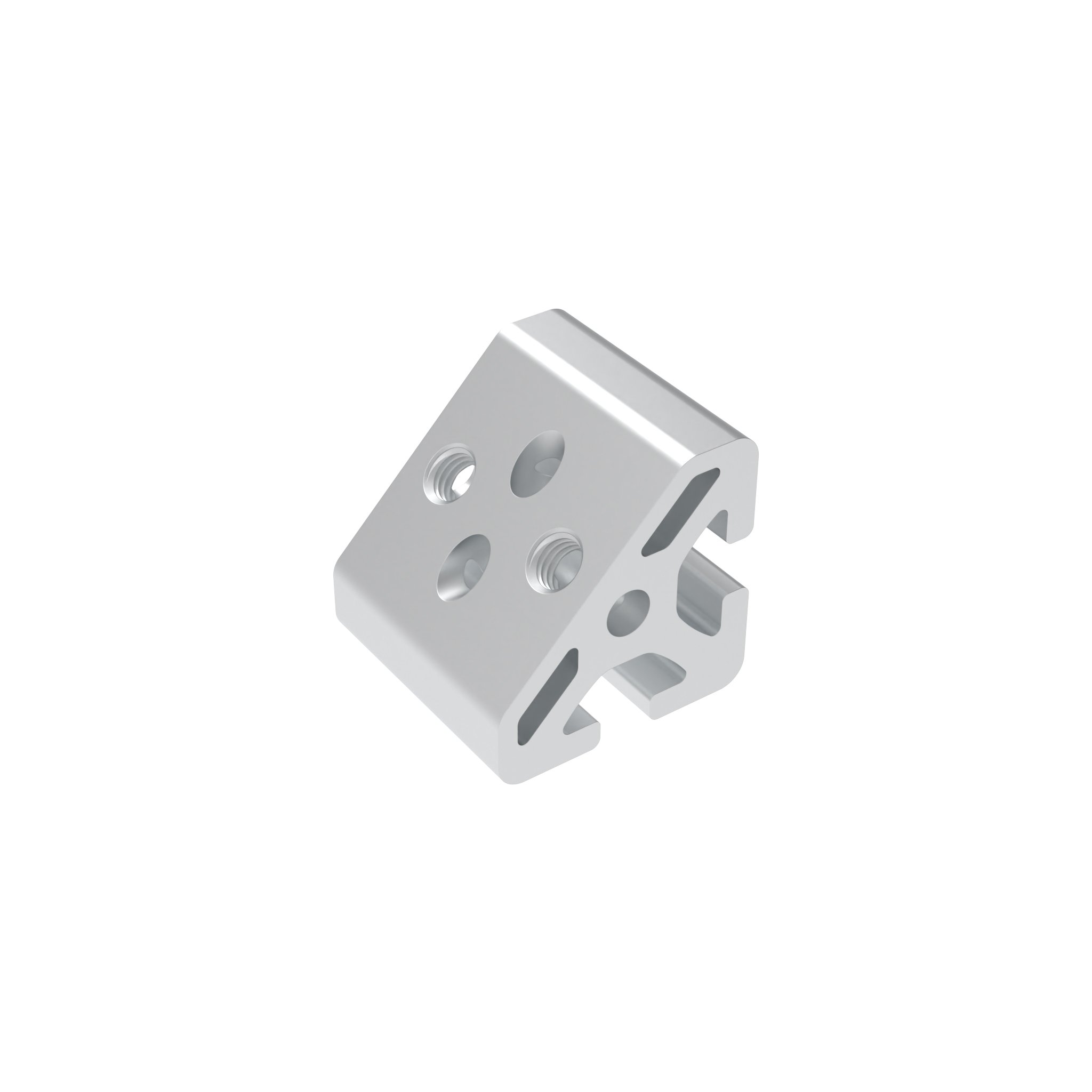

Angle Element T2 40, 45°
Color:Alu colorDelivery Countries:WorldwideDescription:To mount two profiles as bracing at a 45° angle without miter cutMaterial:AluminumSurface:AnodizedTip:Compatible Cover Cap 40 x 40 45° see 091048 (black) / 091048S01 (gray)

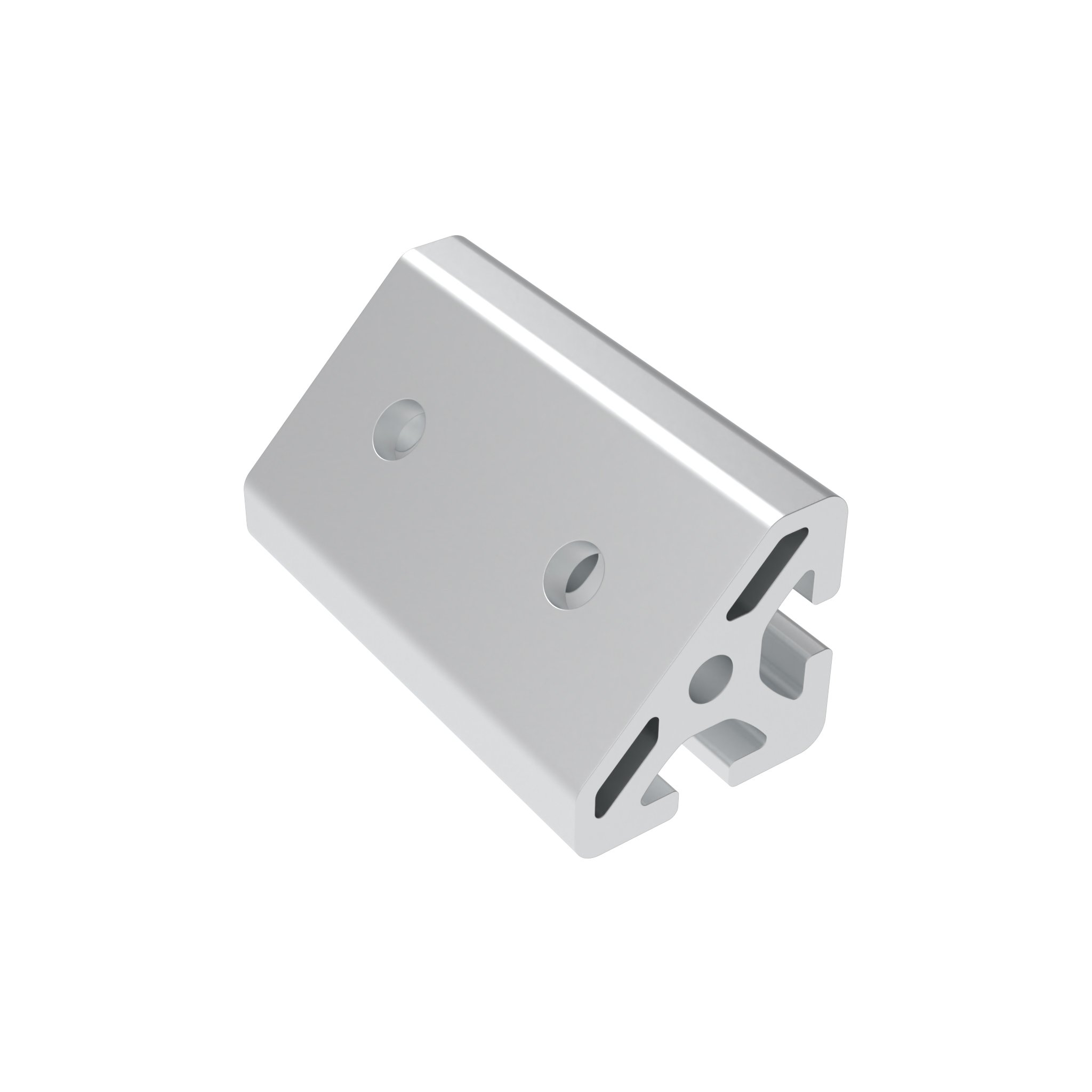

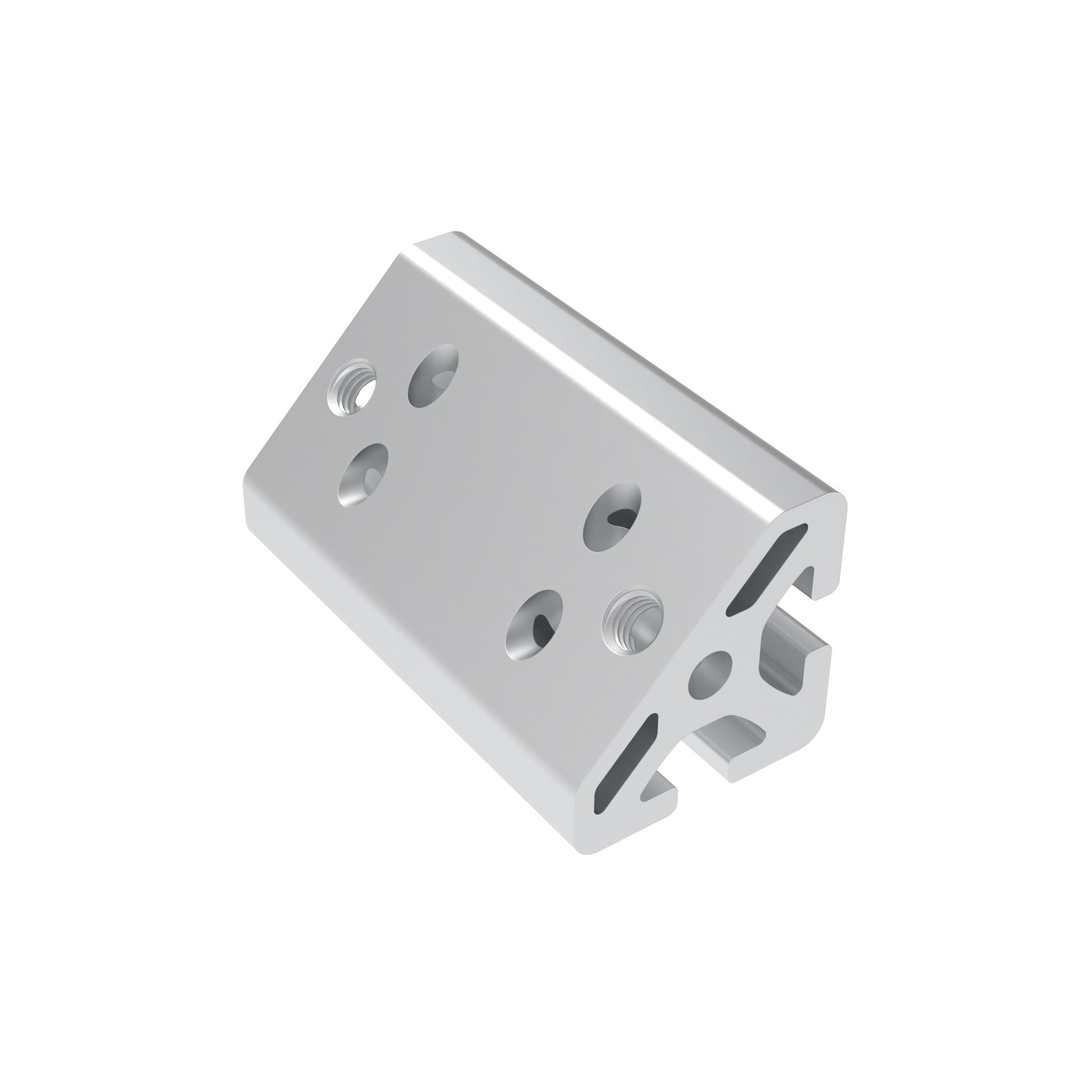

Angle Element T2 80 x 40, 45°
Color:Alu colorDelivery Countries:WorldwideDescription:To mount two profiles as bracing at a 45° angle without miter cutMaterial:AluminumSurface:AnodizedTip:Compatible Cover Cap 40 x 40 45° see 091048 (black) / 091048S01 (gray)

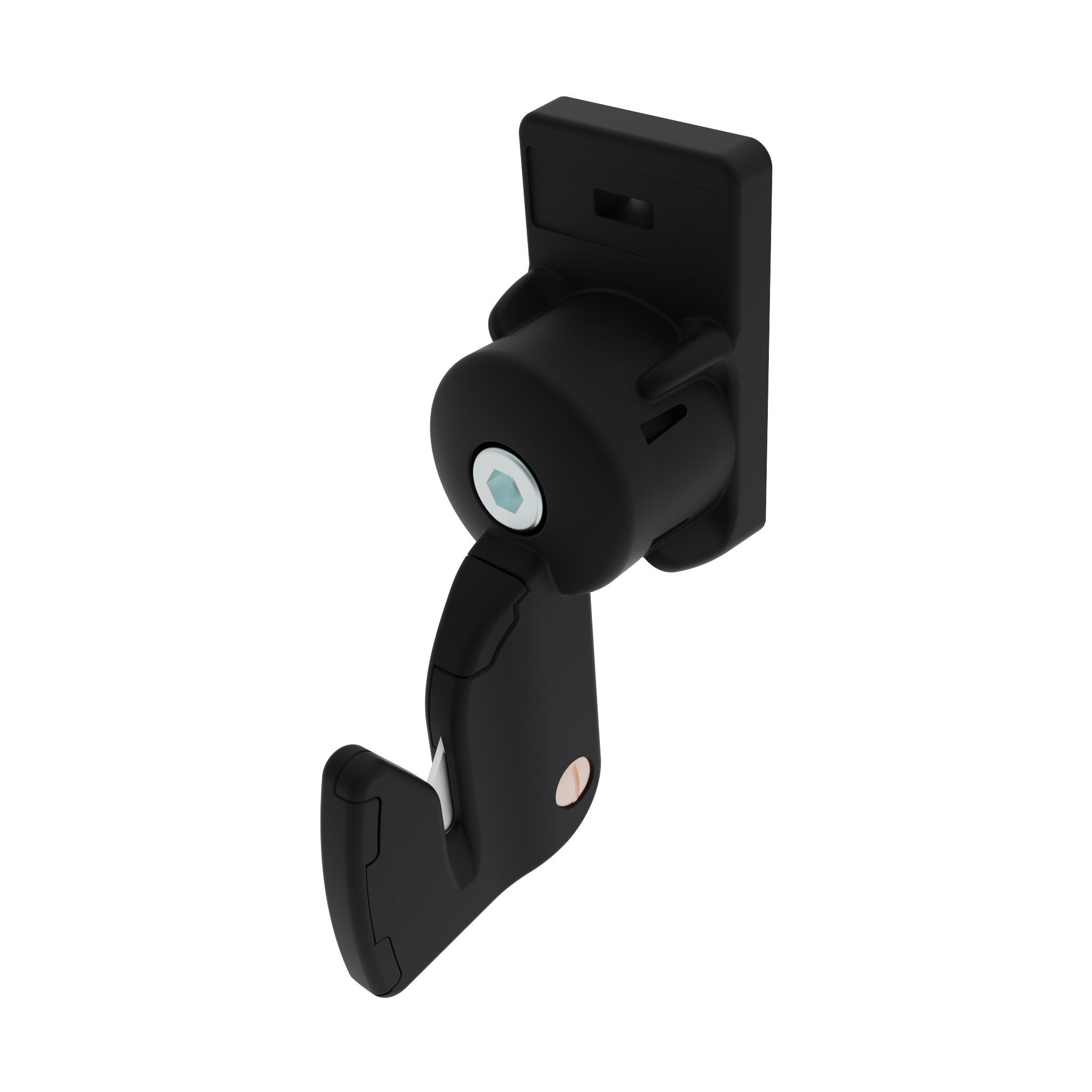

Bag Cutter FX for Square Holes 9 x 9 (8.7 x 8.7)
Color:Holder: Black Bag cutter: BlackDelivery Countries:WorldwideDescription:Ready to use bag cutter, changeable blade, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Holder ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Bag cutter ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Trapezoidal blade: Carbon steel Spring: Spring steel SS313 Countersunk screw: Brass Sleeve nut: Brass Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NF91S01 For round tubes D28 / D30 see 6TM8D283F91ESDS01

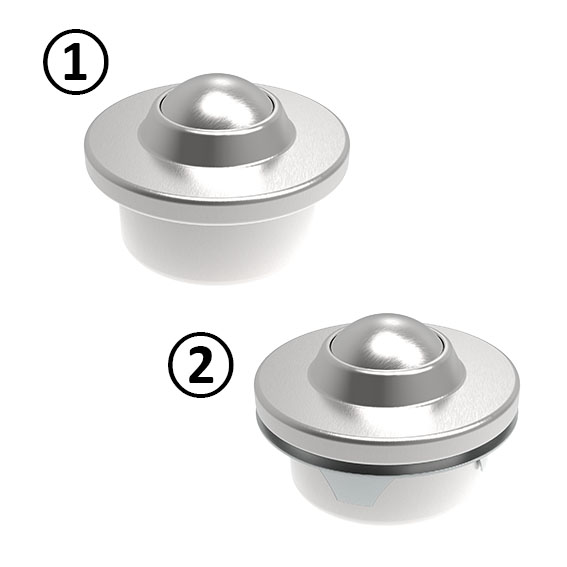

Ball Insert D24
Delivery Countries:WorldwideDescription:Low-wear, low friction ball caster for flexible movements in two directions, for example at track switches and material locks; for roller tracks AL, can also be used in panels, e.g. on table tops; version with attachement clip prevents rotation of the ball housingMaterial:Ball: Steel, stainless steel Ball housing: Steel Housing Attachment Clip: SteelSpecials:Other materials, other surfaces on requestSurface:Ball steel: Chrome plated / Ball stainless steel: Plain Ball housing: Chrome plated Housing Attachment Clip: Zinc platedTip:Compatible Cage for Ball / Bush Insert D24 see 062ACD2491ESD.50;

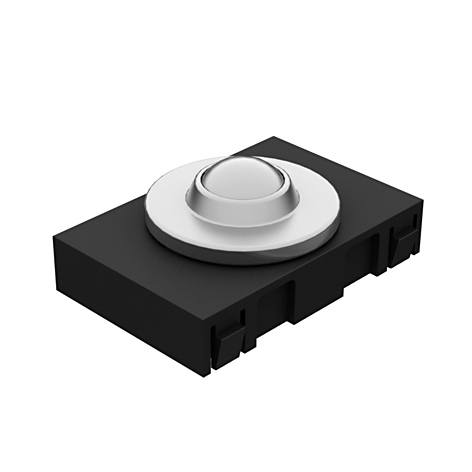

Ball Unit
Color:Cage: BlackDelivery Countries:WorldwideDescription:A preassembled ball unit for roller track profiles AL, with low-wear, low friction ball caster for flexible movements in two directions, for example at track switches and material locksMaterial:Ball: Steel, stainless steel Ball chassis: Steel Cage: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other surfaces on requestSurface:Ball steel: Chrome plated / Ball stainless steel: Plain Ball housing: Chrome plated Housing Attachment Clip: Zinc platedTip:Brush unit consisting of: – Ball insert, see 062AQ; – Cage for ball insert, see 062ACD2491ESD.50; Compatible Slide Rail AL see 062AS91ESD.2000

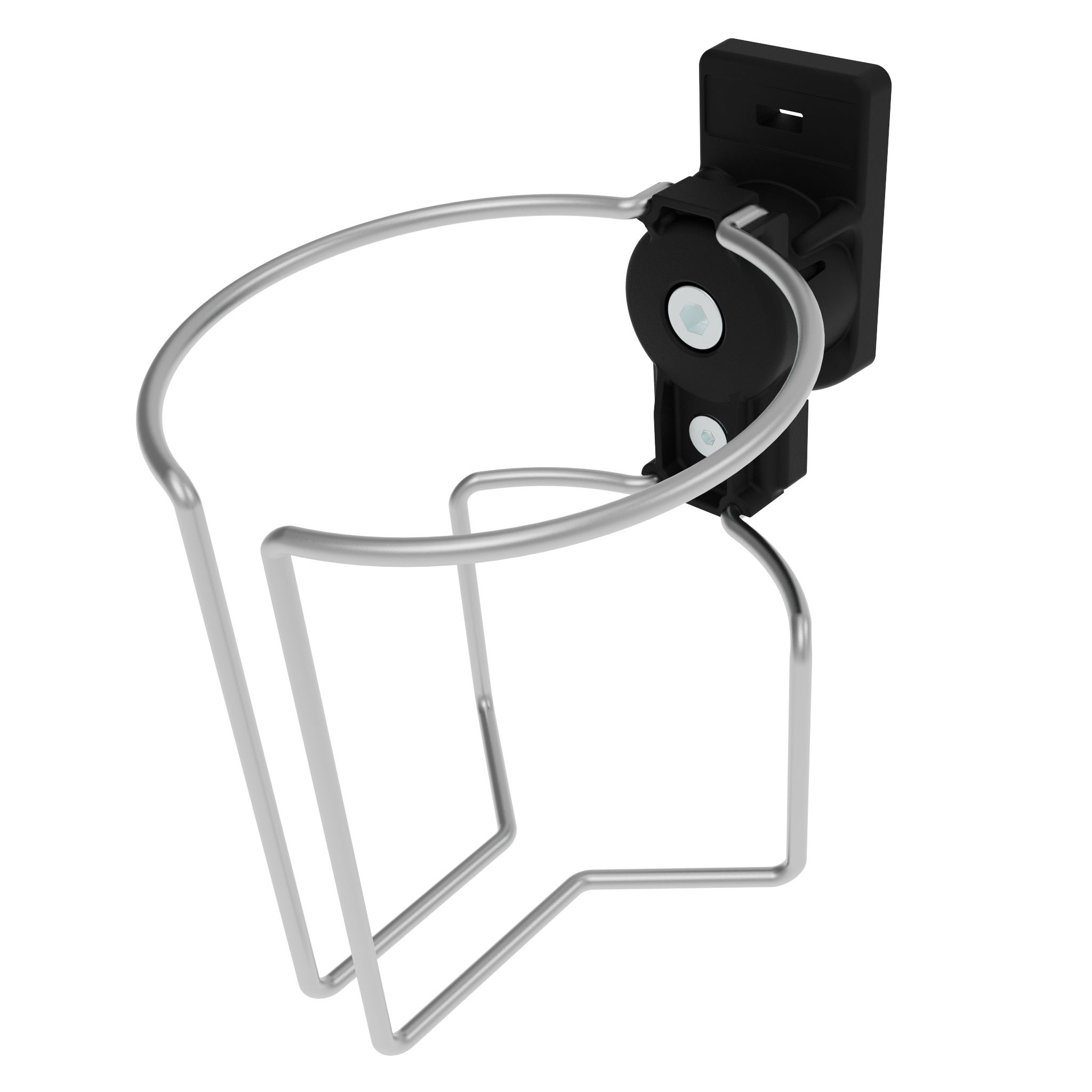

Bottle Holder FX for Square Holes 9 x 9 (8.7 x 8.7)
Color:Rear mounting holder: Black Front locking holder: BlackDelivery Countries:WorldwideDescription:Ready to use bottle holder, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder: Plastic PA, carbon fiber reinforced Front locking holder: Plastic PA, glass ball reinforced Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840ND100S01 For round tubes D28 / D30 see 6TM8D283D100S01

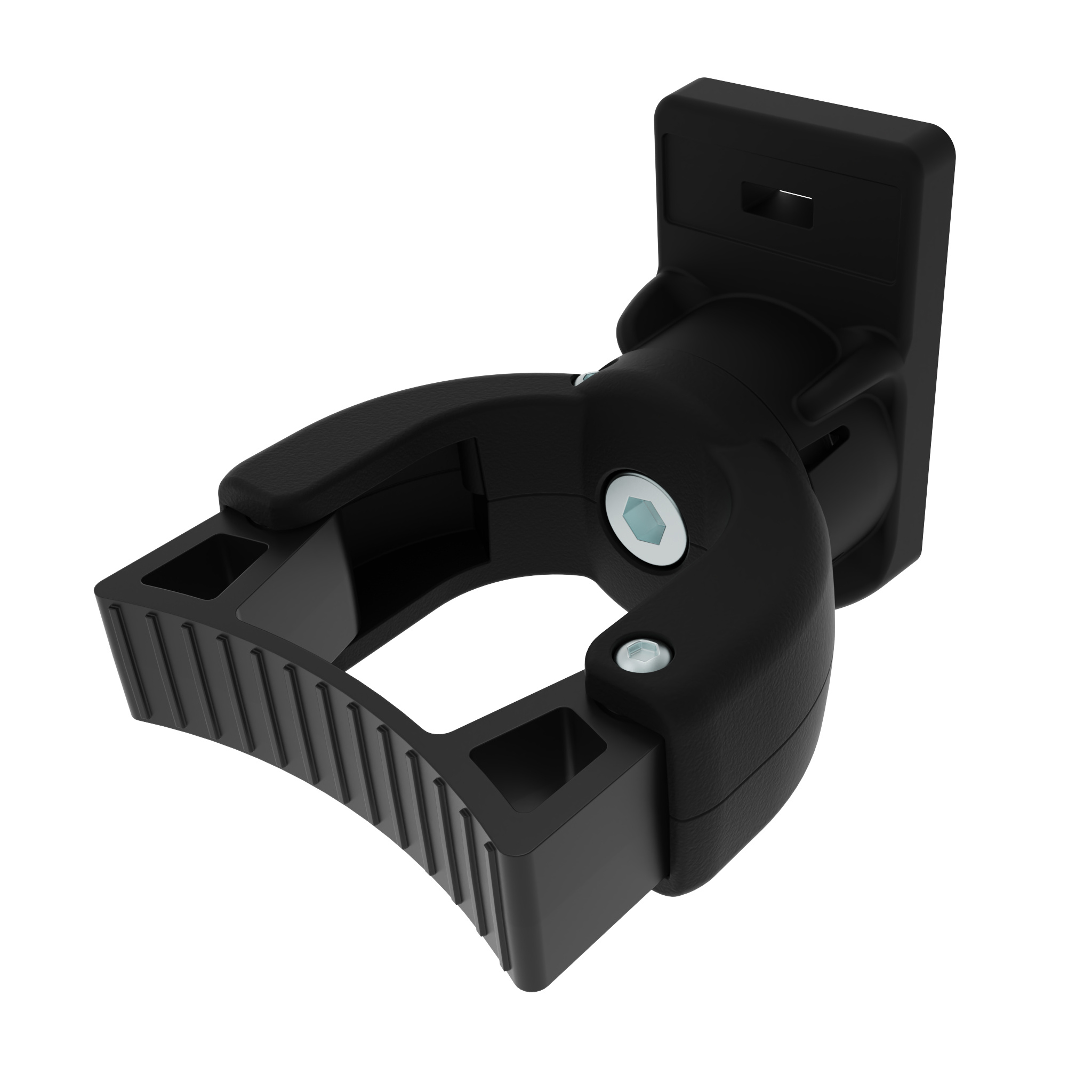

Broom Holder FLEX FX 20 - 30 for Square Holes 9 x 9 (8.7 x 8.7)
Color:Holder: Black Broom holder: Black Retaining strap: BlackDelivery Countries:WorldwideDescription:Ready to use broom holder to hang up tools with Ø 20 up to 30 mm diameter, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Holder: Plastic PA, carbon fiber reinforced Broom holder: Plastic PA, glass ball reinforced Retaining strap FLEX: Plastic TPE Bushings: Steel Screws for retaining strap: Steel Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NX2030S01 For round tubes D28 / D30 see 6TM8D283X2030S01

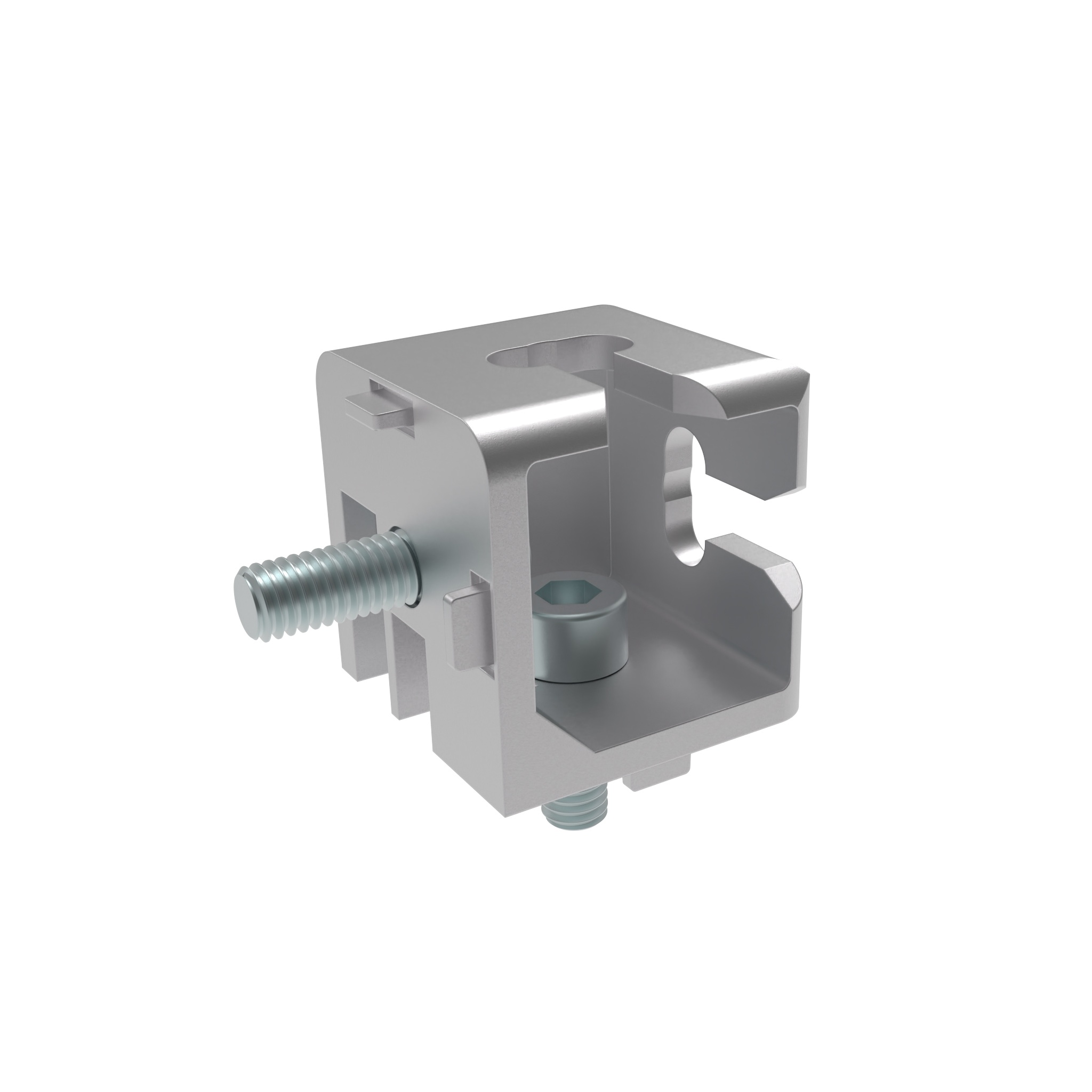

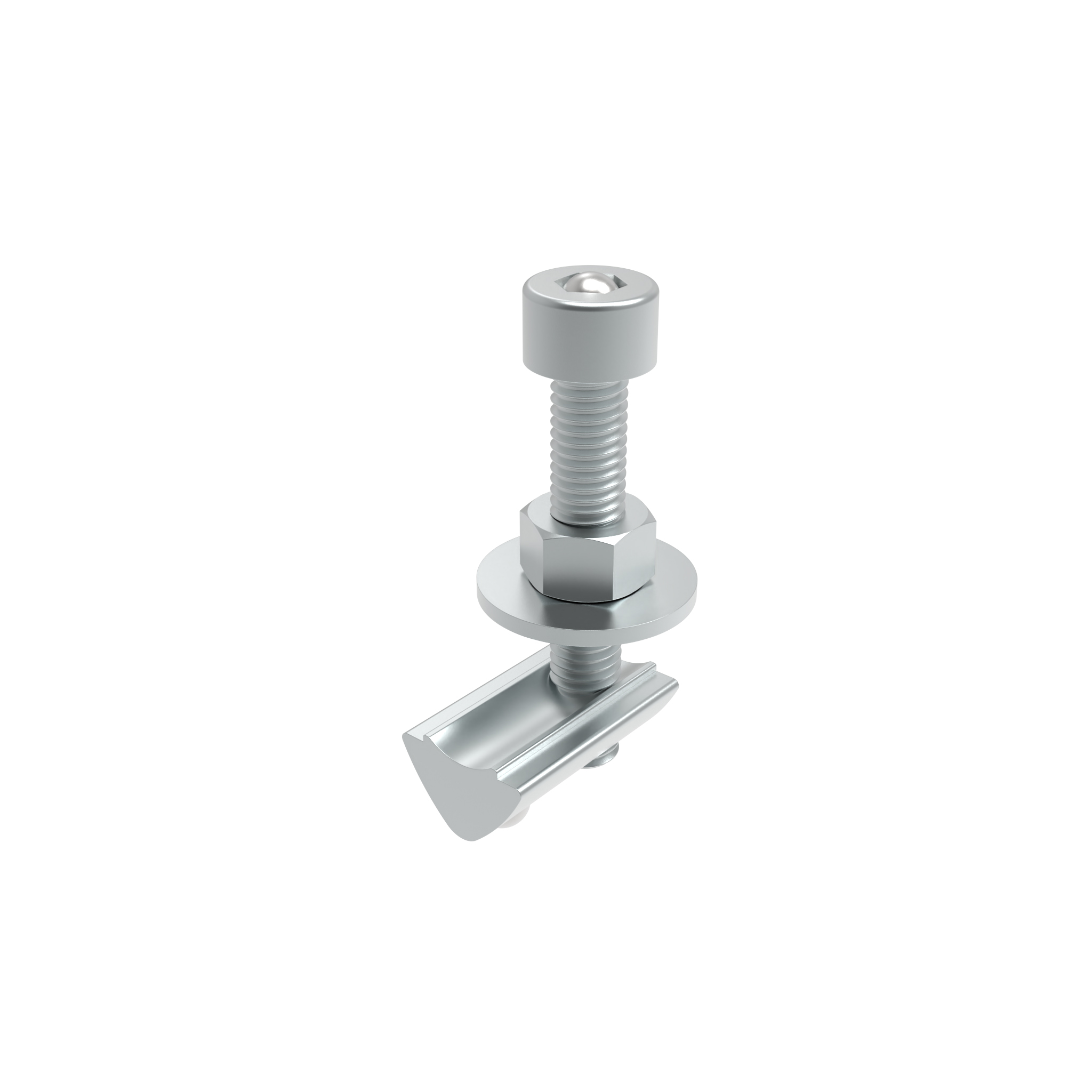

Clamp Profile Connector 30 (Set)
Color:Clamp profile connector: Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles and to attach a frame element to a frame structure by means of a suitable mounting; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and lockedMaterial:Clamp profile connector: Zinc die-cast Screws: SteelSet:1 clamp profile connector, 2 screws DIN EN ISO 7380 (DIN 34805) - M6 x 16Surface:Clamp profile connector: Powder coated Screws: Zinc platedTip:Compatible Mounting for Clamp Profile Connector 30 (Set) see 093XWWC301N06

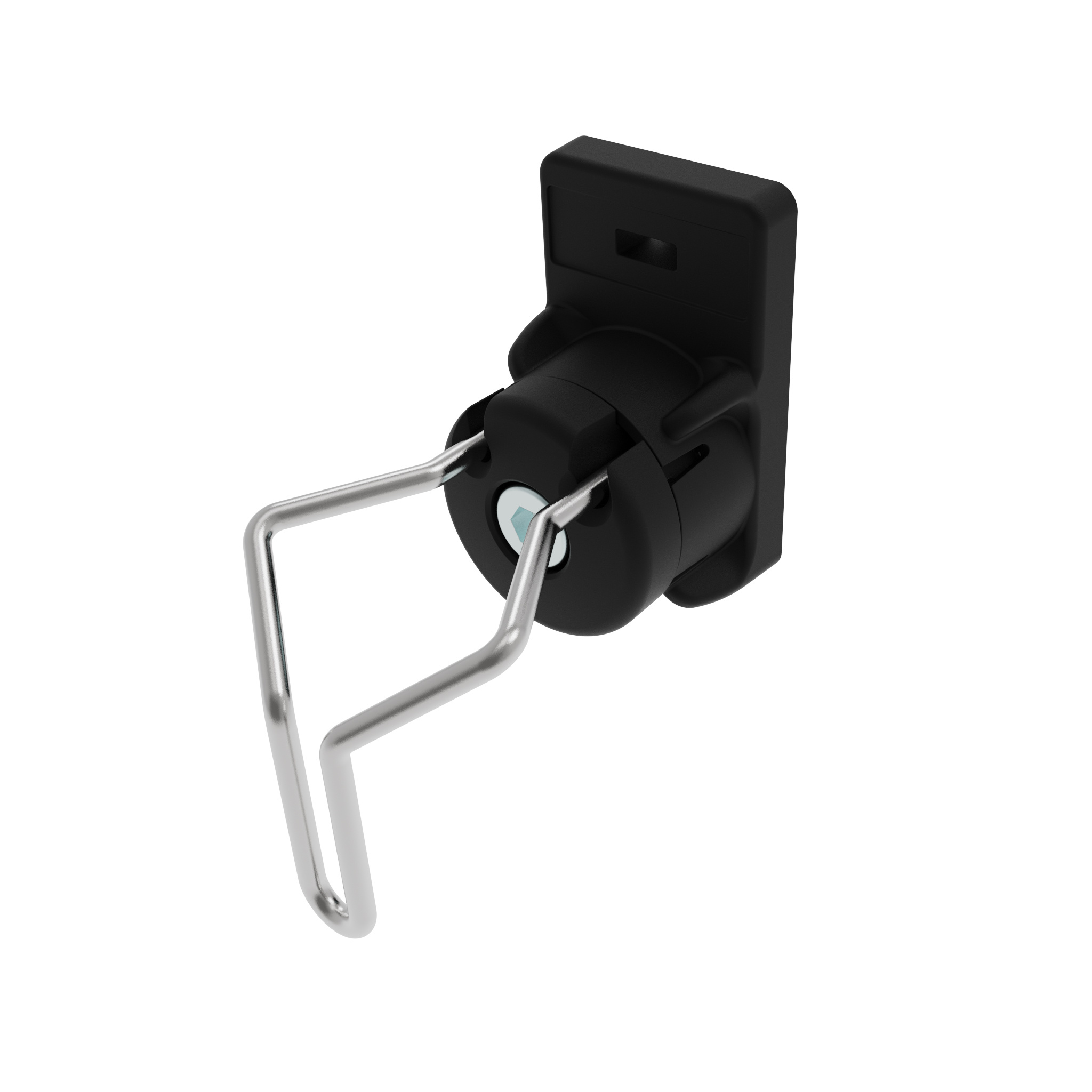

Cloth Clip FX for Square Holes 9 x 9 (8.7 x 8.7)
Color:Rear mounting holder: Black Front locking holder: BlackDelivery Countries:WorldwideDescription:Ready to use cloth clip, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Front locking holder ESD electrostatical discharging: Plastic PA, glass ball reinforced with carbon Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TH240NG5050S01 For round tubes D28 / D30 see 6TH2D283G5050EDS1-

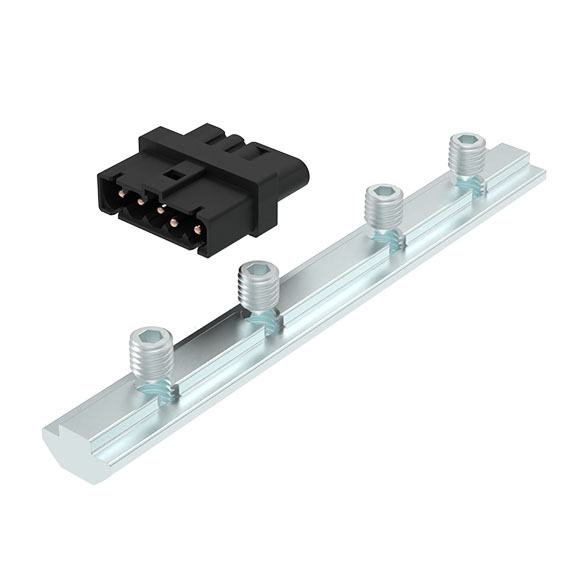

Connection Coupling GST15i5 for Module F Line (Set)
Color:Connection coupling: BlackDelivery Countries:WorldwideDescription:5 pole coupling piece to directly connect LED lamps and power strips Module F LineMaterial:Connection coupling: Plastic PA Connector T-slot nut: SteelSet:1 connection coupling 1 connector T-slot nut 4 grub screws M8 x 10 mmSurface:Connector T-slot nut: Zinc-platedTip:Compatible Power Strip see 6SBEU24DI.370 Compatible LED Lamp see 6SL0040RI.476Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

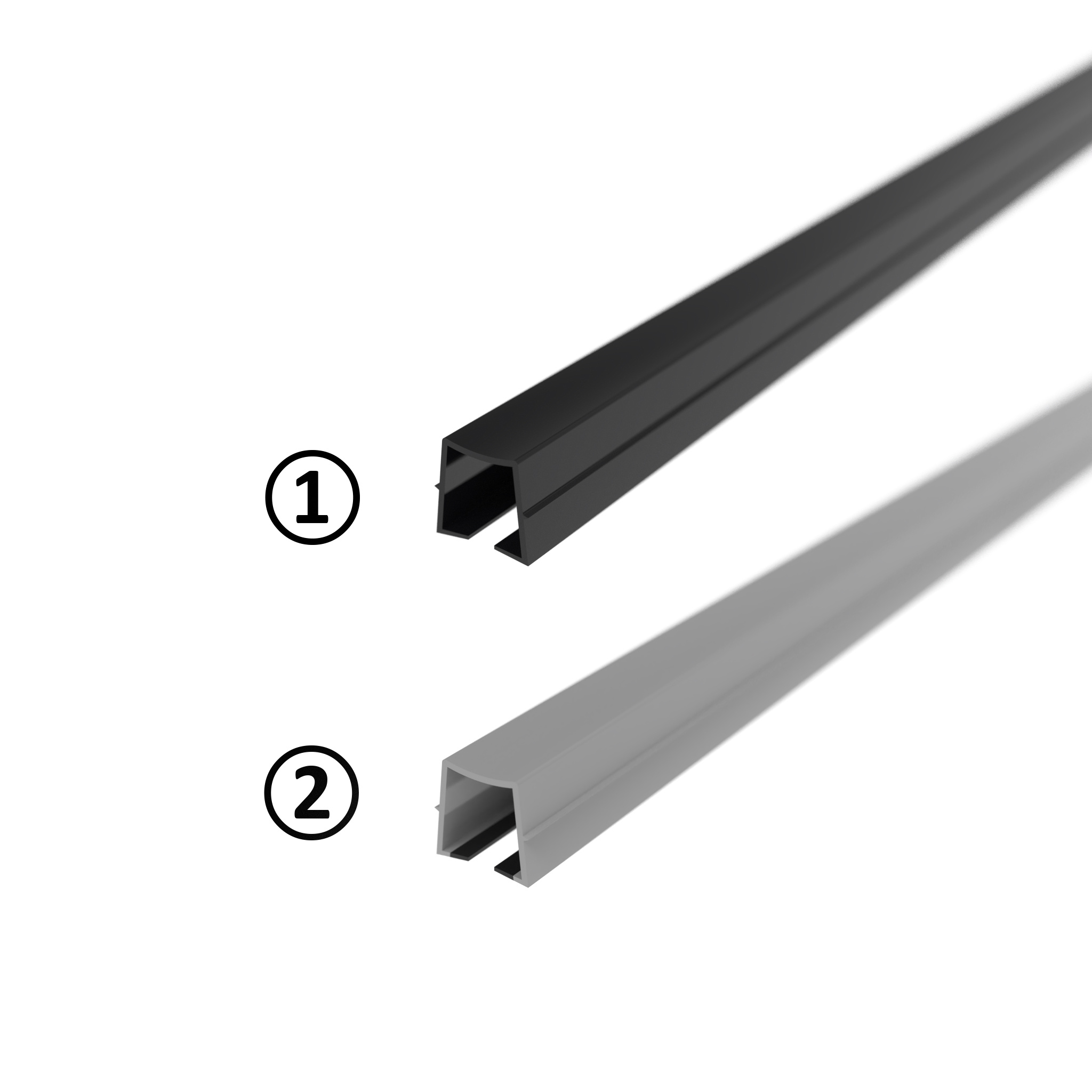

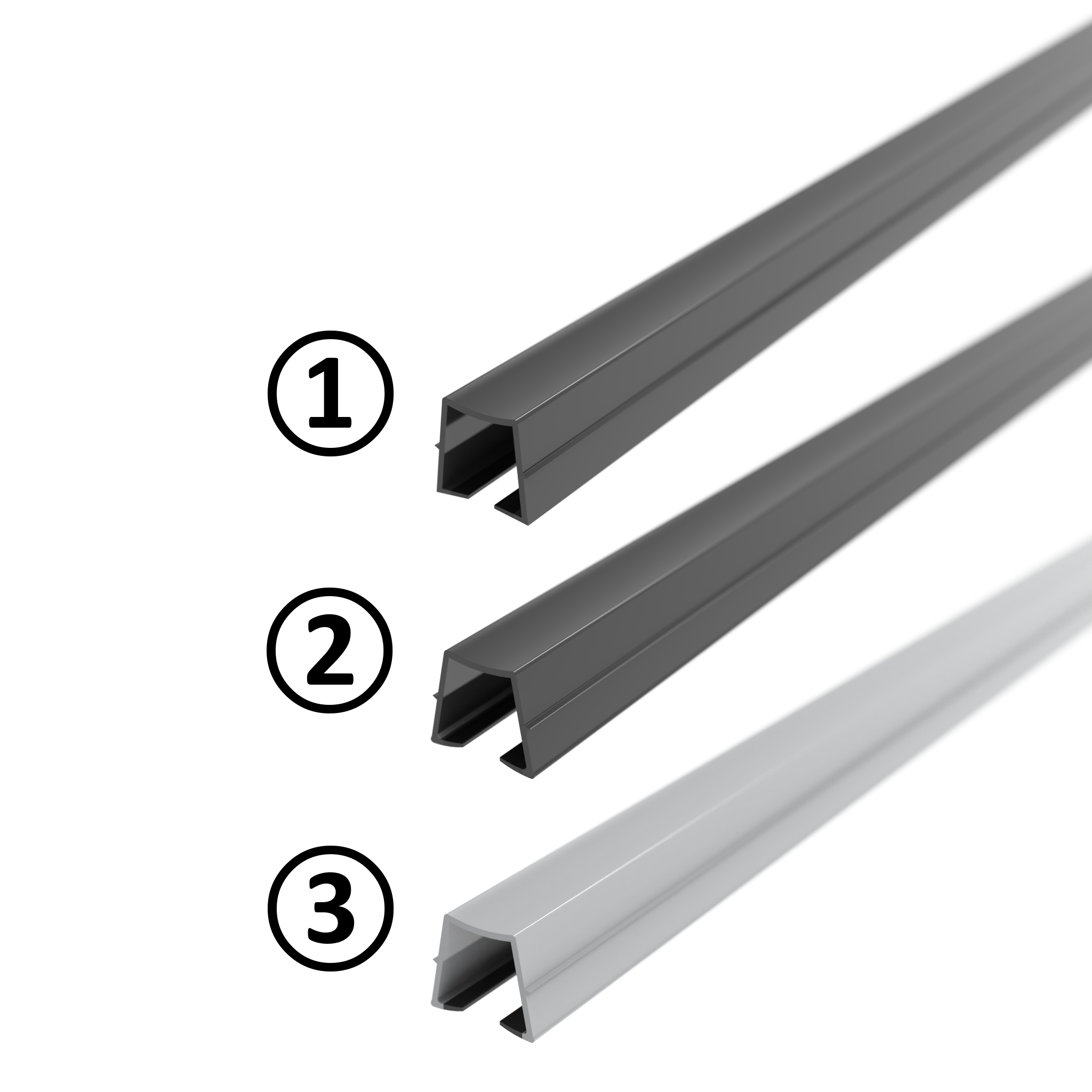

Cover and Reduction Profile B Slot 10 deep
Color:Profile: Black, gray Sealing lip: Black, grayDelivery Countries:WorldwideDescription:To cover size 10 profile slots or to secure panelsMaterial:Profile: Plastic PP Sealing lip: Plastic TPESpecials:Other colors on requestTip:Please note: You are ordering in meters!Tip 2:*Assembly only possible in a loose fit **Best wetted with soapy water prior to assembly

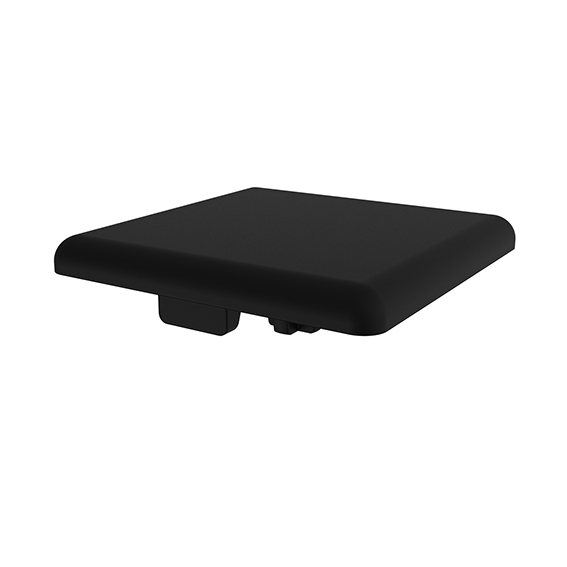

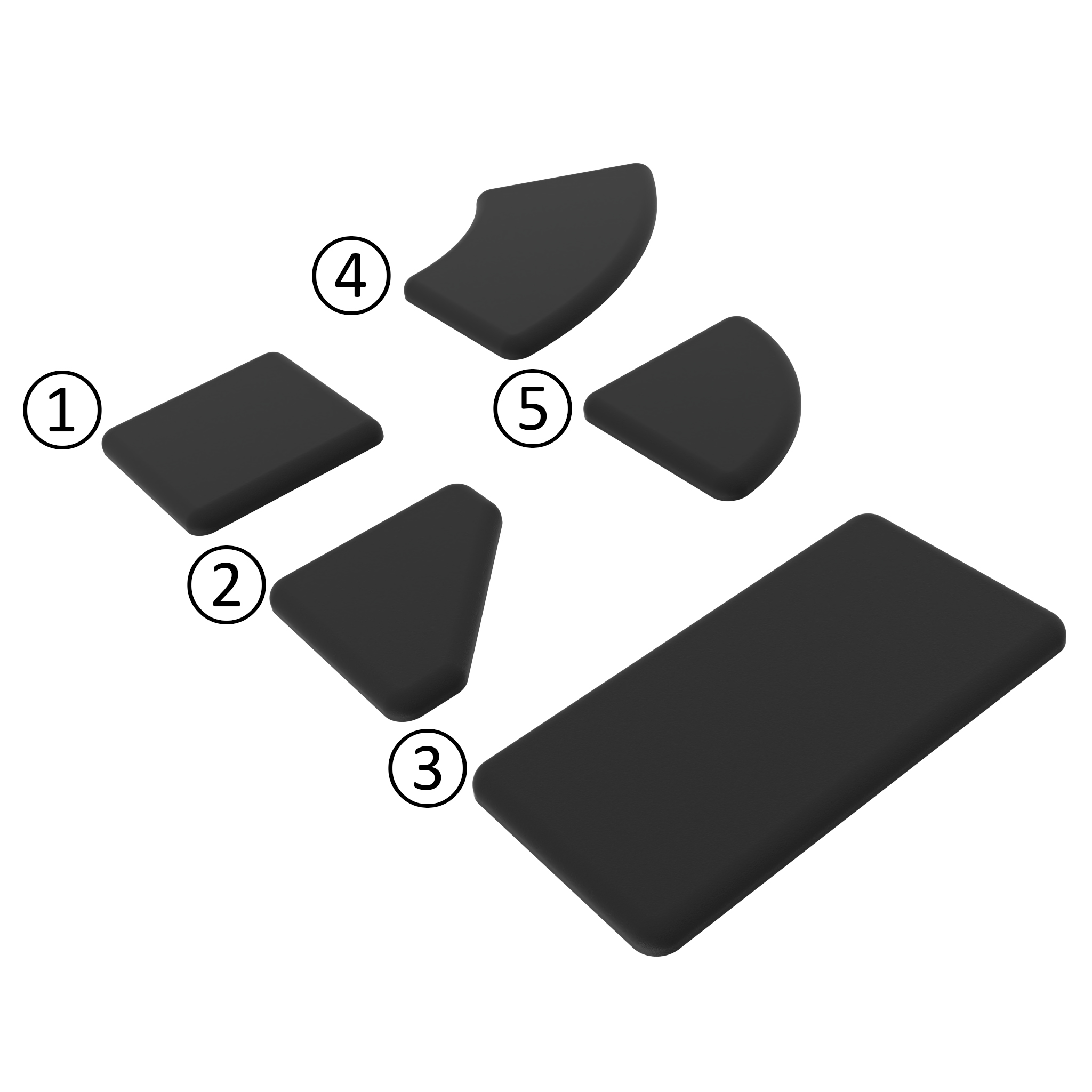

Cover Cap for 40 mm Modular Dimension
Color:Black, grayDelivery Countries:WorldwideDescription:To cover the end of the profileMaterial:Plastic PA, glass fiber reinforced, *glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on request

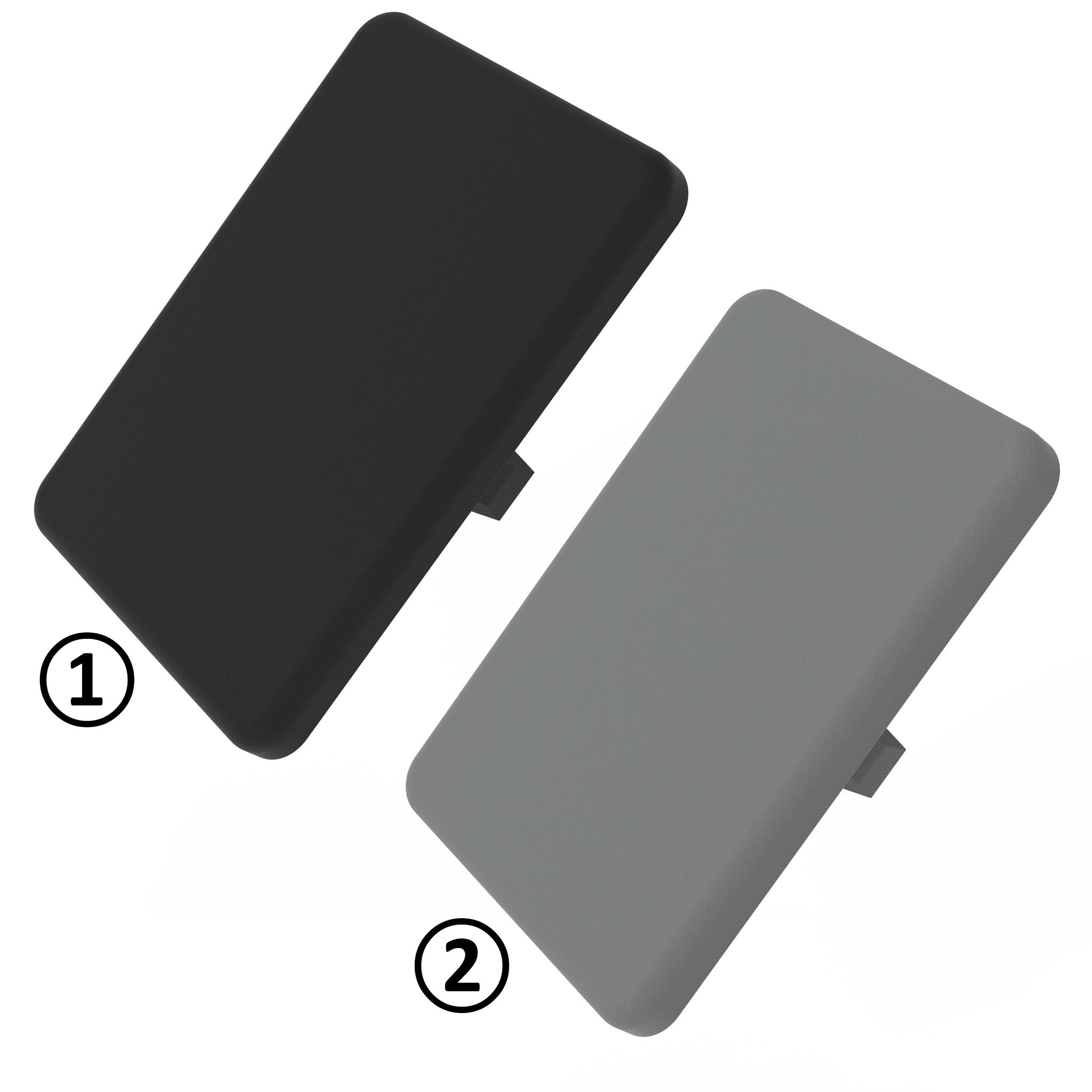

Cover Cap for Zinc Connection Angle I 40
Color:Black, grayDelivery Countries:WorldwideDescription:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedTip:Compatible Zinc Connection Angle I 40 see 093W407N08R

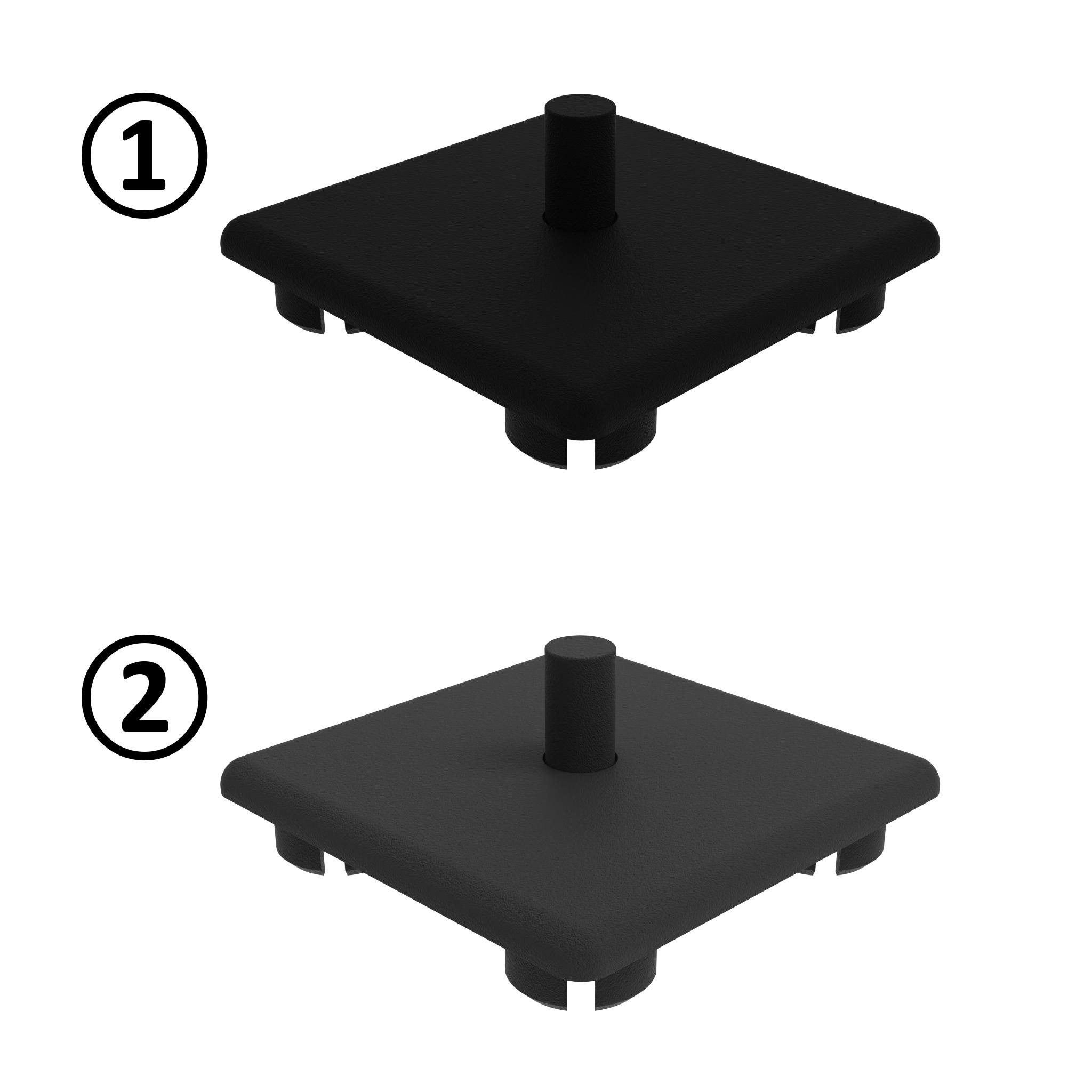

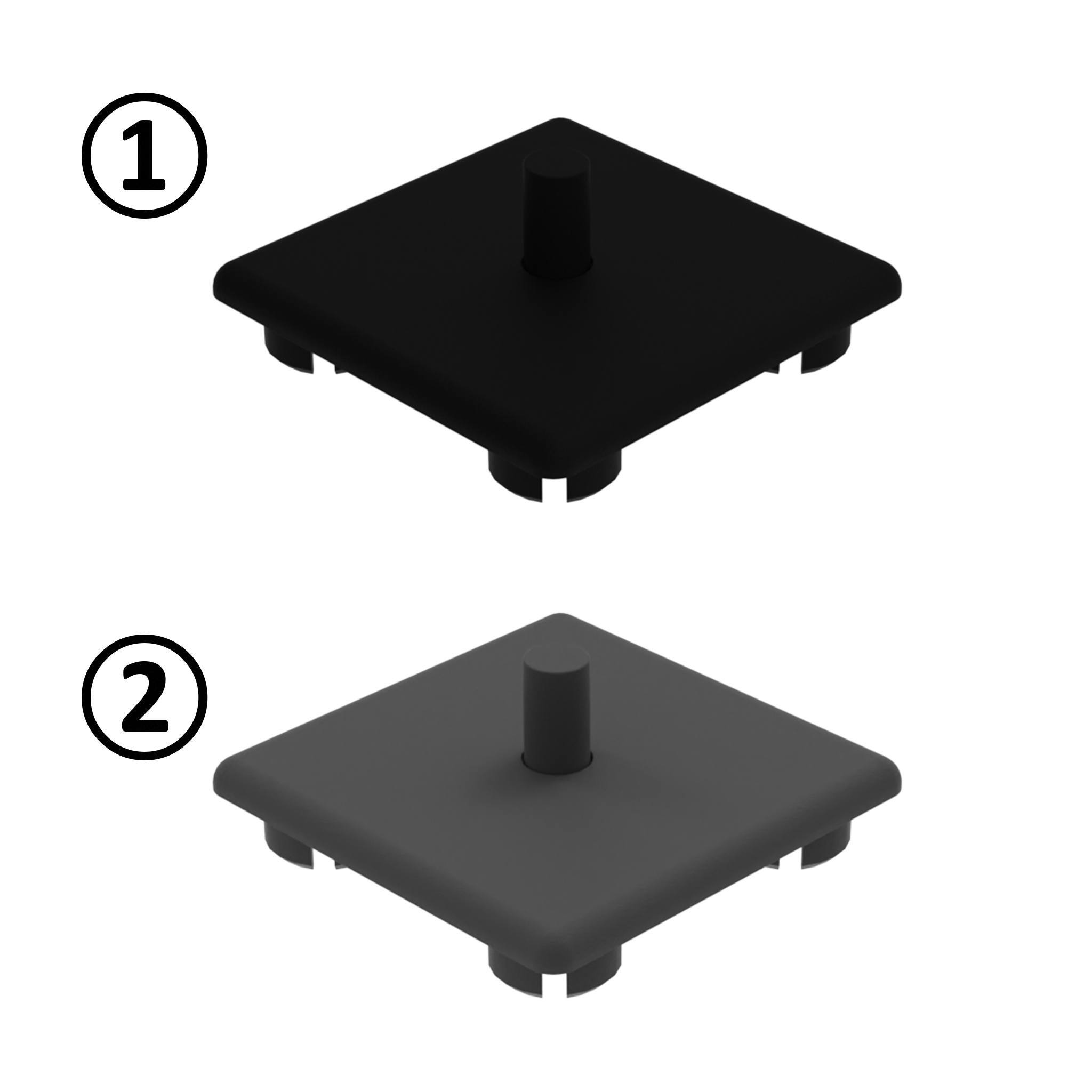

Cover Cap, with Locking Pin
Color:Black, grayDelivery Countries:WorldwideDescription:To cover the end of the profileFastening:Insert the locking pin flat into the profile using the plastic hammer. To remove the cover cap, punch through the locking pin with a 4 mm pin.Material:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on request

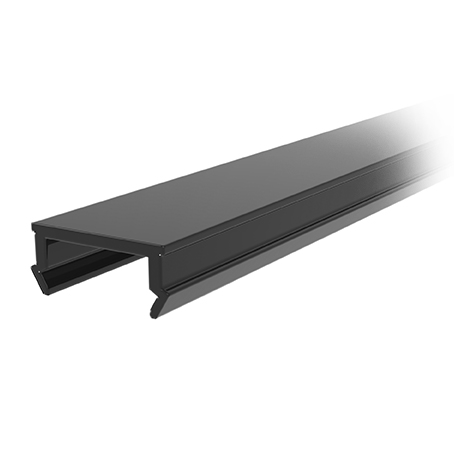

Cover Profile Slot 8 - 2.2
Color:Black, yellow, red, blue, gray, white, natural, alu colorDelivery Countries:WorldwideDescription:To cover T-Slots with 8 width and a 2.2 mm profile webMaterial:Plastic PPSpecials:Other colors on requestTip:ESD electrostatical discharging version: Notch at the bottom side

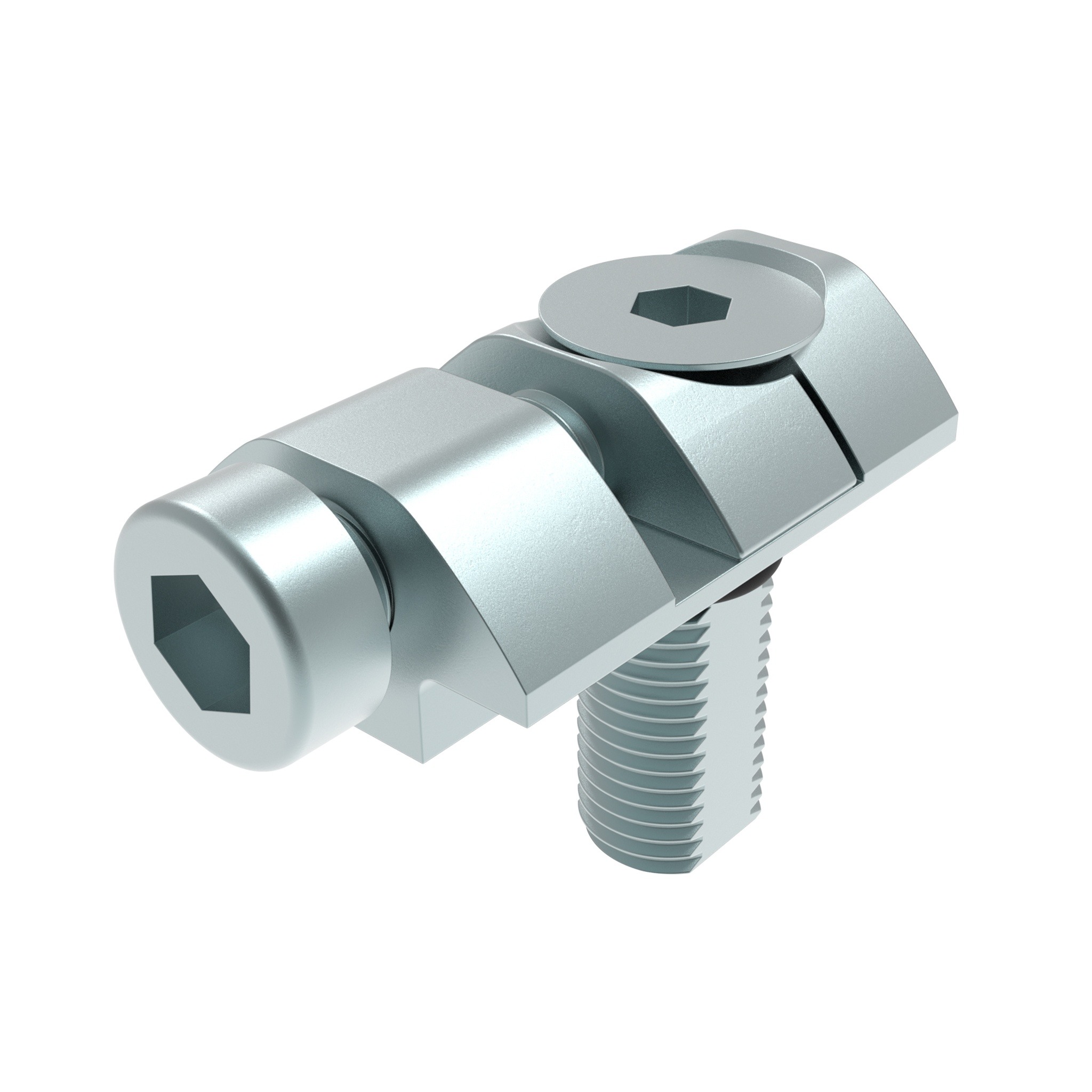

Direct Connector I 90°, Slot 8
Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles, before the application one core hole must be M8 threaded (min. 18 mm deep)Material:Stainless steel

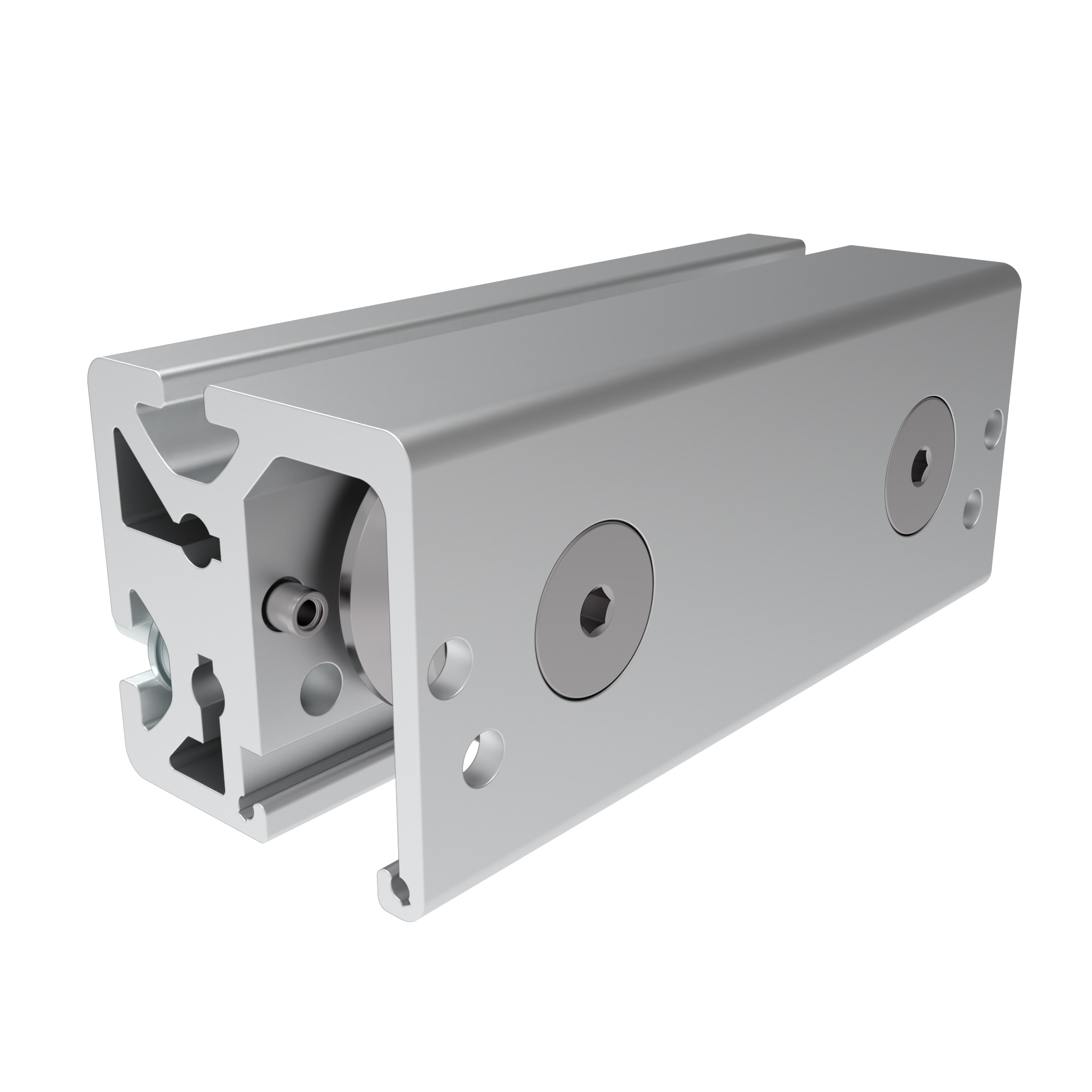

Double Bearing Unit 2 Rollers Centric Shaft Ø 14
Delivery Countries:WorldwideDescription:To build sliding carriages To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm Completely pre-assembled from roller profile I slot 8Material:Roller: Steel Screws: Steel Washers: Steel Tension pins: Steel Profile: AluminumSurface:Roller: Zinc plated Screws: Zinc plated Washers: Zinc plated Tension pins: Zinc plated Profile: AnodizedTip:Compatible Wiper and Lubricator Ø 14 for Roller Profile I Slot 8 (Set) see 091381S01
Double Bearing Unit 2 Rollers Eccentric Shaft Ø 14
Delivery Countries:WorldwideDescription:To build sliding carriages To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm Completely pre-assembled from roller profile I slot 8 To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washerMaterial:Roller: Steel Screws: Steel Excentric screw: Steel Adjusting washer: Steel Washers: Steel Tension pins: Steel Profile: AluminumSurface:Roller: Zinc plated Screws: Zinc plated Excentric screw: Zinc plated Adjusting washer: Zinc plated Washers: Zinc plated Tension pins: Zinc plated Profile: AnodizedTip:Compatible Wiper and Lubricator Ø 14 for Roller Profile I Slot 8 (Set) see 091381S01

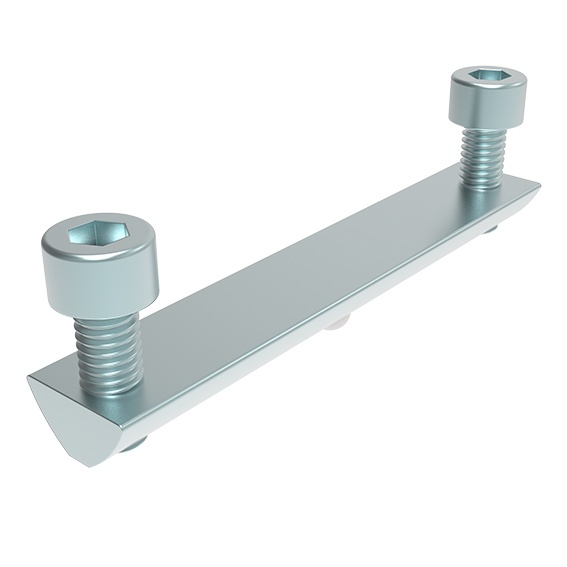

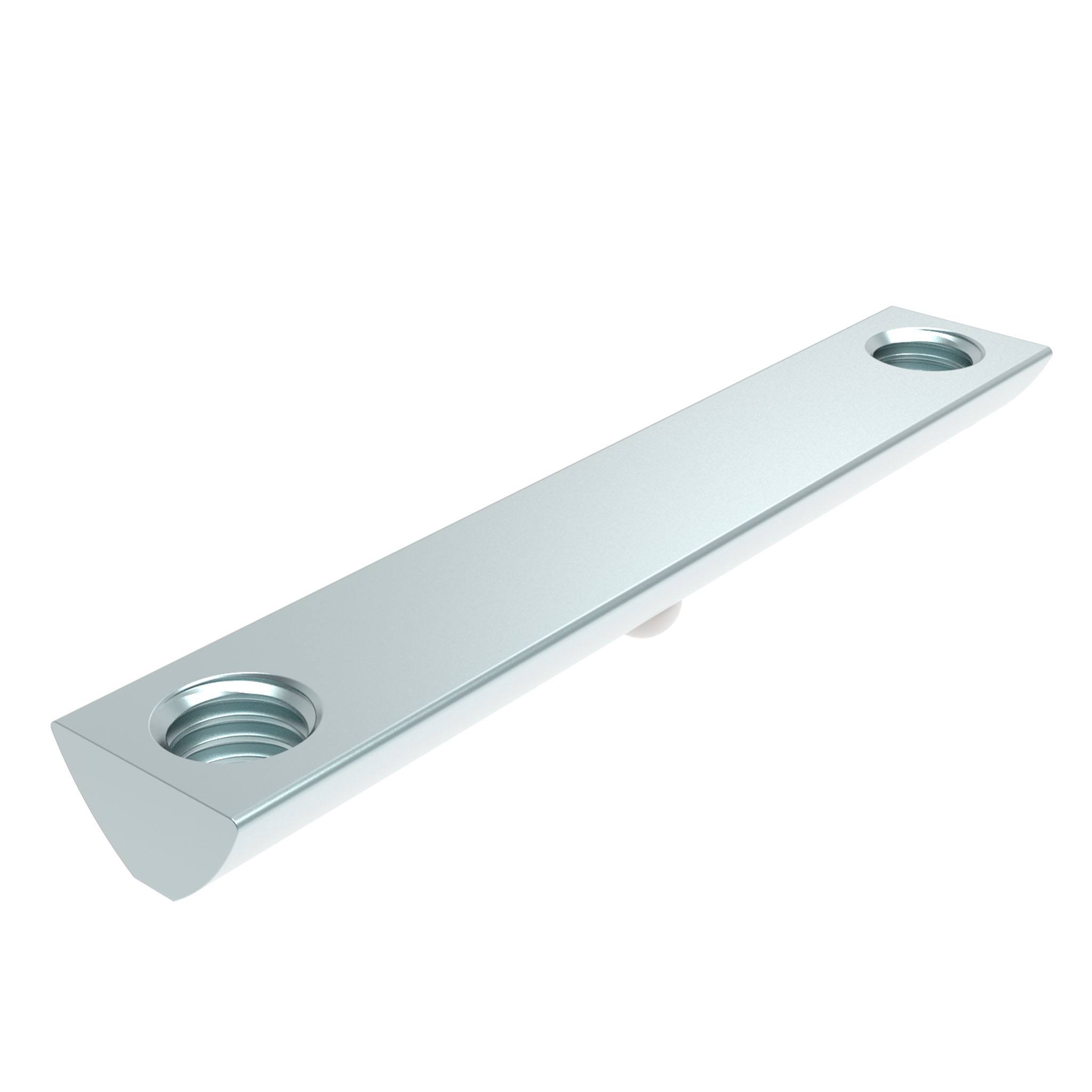

Double T-slot Nut I Slot 8 for Double Adapter D30 (Set)
Delivery Countries:WorldwideDescription:Roll-in double T-slot nutMaterial:Double T-slot nut: Steel Ball: Stainless steel Spring: Spring steel Screws: SteelSet:1 roll-in double T-slot nut I slot 8 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 16Surface:Double T-slot nut: Zinc-plated Ball: Plain Spring: Plain Screws: Zinc-plated

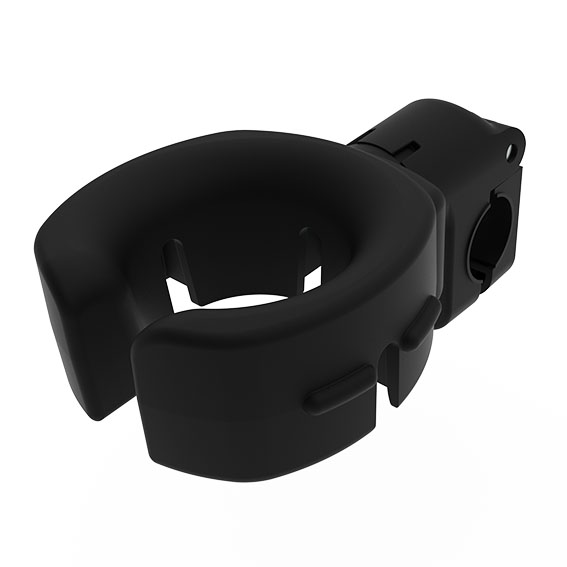

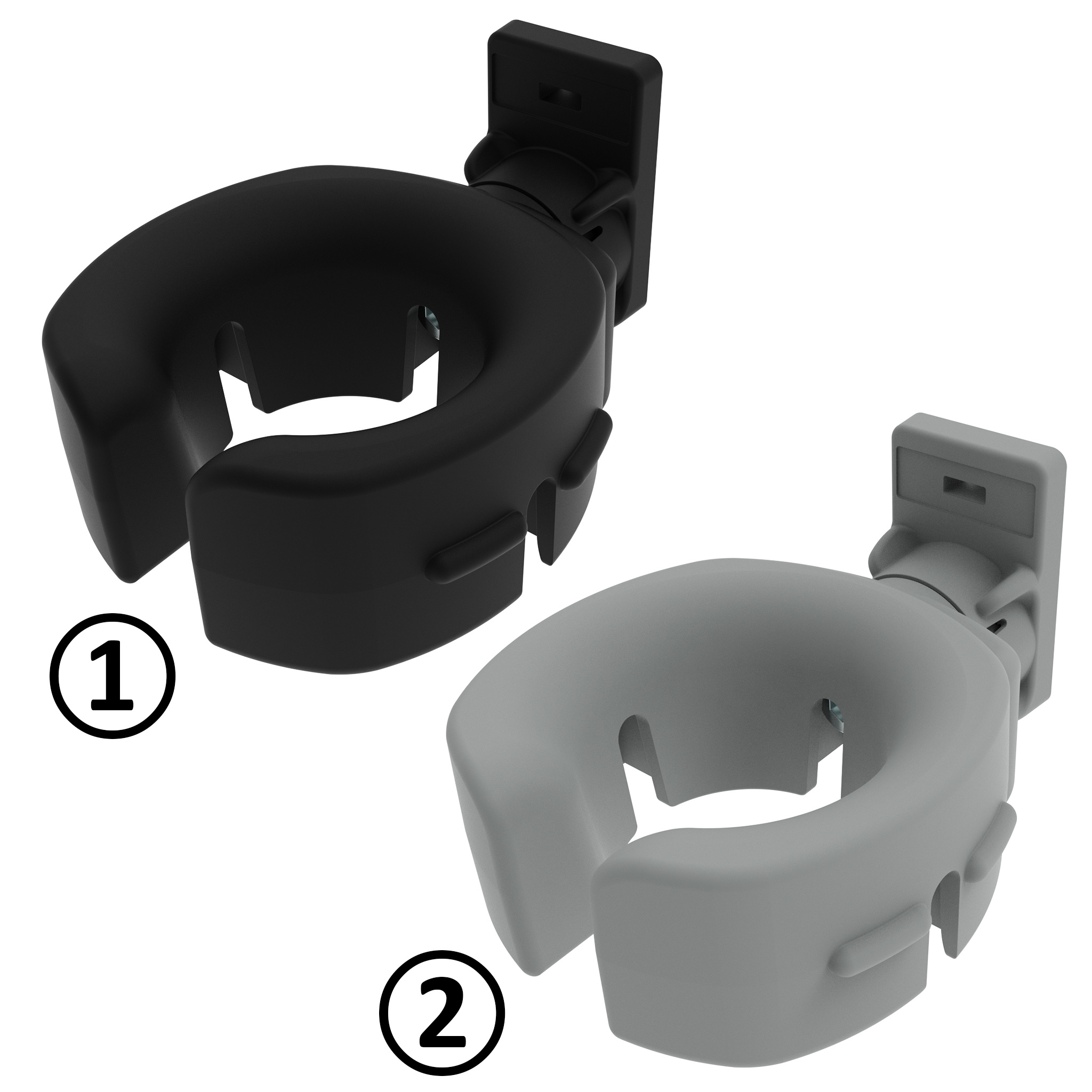

Drill / Driver Holder FX D50 for Square Holes 9 x 9 (8.7 x 8.7)
Color:Rear mounting holder: Black, gray Front locking adapter: Black, gray Drill / driver holder: Black, grayDelivery Countries:WorldwideDescription:Ready to use Tool Drill / Driver Holder for a wide range of standard cordless screwdrivers, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder black version: Plastic PA, carbon fiber reinforced Rear mounting holder gray version: Plastic PA, glass fiber reinforced Front locking adapter: Plastic PA, glass ball reinforced Drill / driver holder: Plastic PA, glass ball reinforced Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NL12591S01 For round tubes D28 / D30 see 6TM8D283L12591S01
