Conveyors

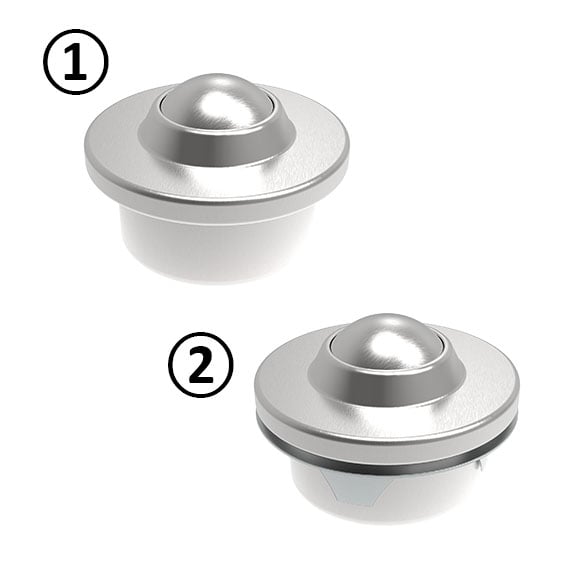

Ball Insert D24
Delivery Countries:WorldwideDescription:Low-wear, low friction ball caster for flexible movements in two directions, for example at track switches and material locks; for roller tracks AL, can also be used in panels, e.g. on table tops; version with attachement clip prevents rotation of the ball housingMaterial:Ball: Steel, stainless steel Ball housing: Steel Housing Attachment Clip: SteelSpecials:Other materials, other surfaces on requestSurface:Ball steel: Chrome plated / Ball stainless steel: Plain Ball housing: Chrome plated Housing Attachment Clip: Zinc platedTip:Compatible Cage for Ball / Bush Insert D24 see 062ACD2491ESD.50;

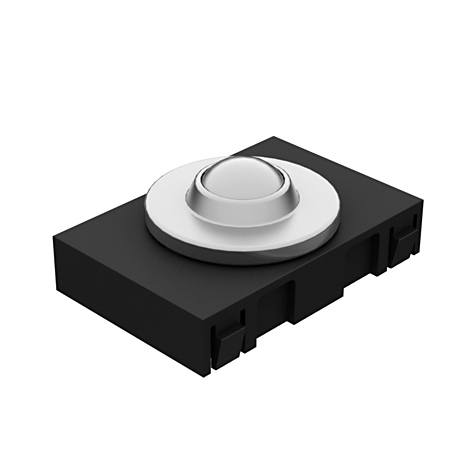

Ball Unit
Color:Cage: BlackDelivery Countries:WorldwideDescription:A preassembled ball unit for roller track profiles AL, with low-wear, low friction ball caster for flexible movements in two directions, for example at track switches and material locksMaterial:Ball: Steel, stainless steel Ball chassis: Steel Cage: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other surfaces on requestSurface:Ball steel: Chrome plated / Ball stainless steel: Plain Ball housing: Chrome plated Housing Attachment Clip: Zinc platedTip:Brush unit consisting of: – Ball insert, see 062AQ; – Cage for ball insert, see 062ACD2491ESD.50; Compatible Slide Rail AL see 062AS91ESD.2000

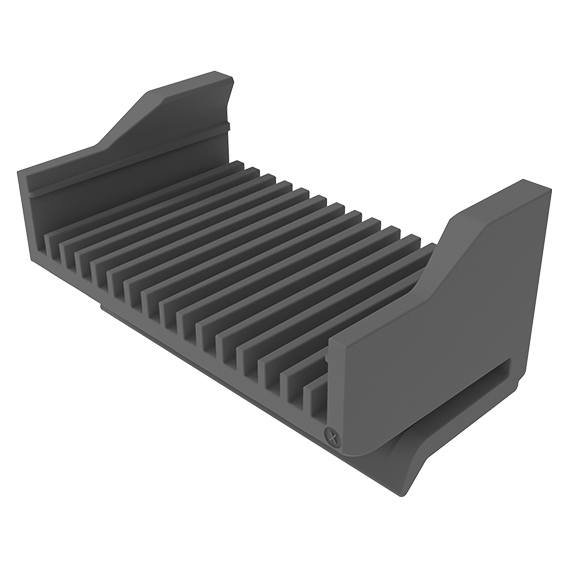

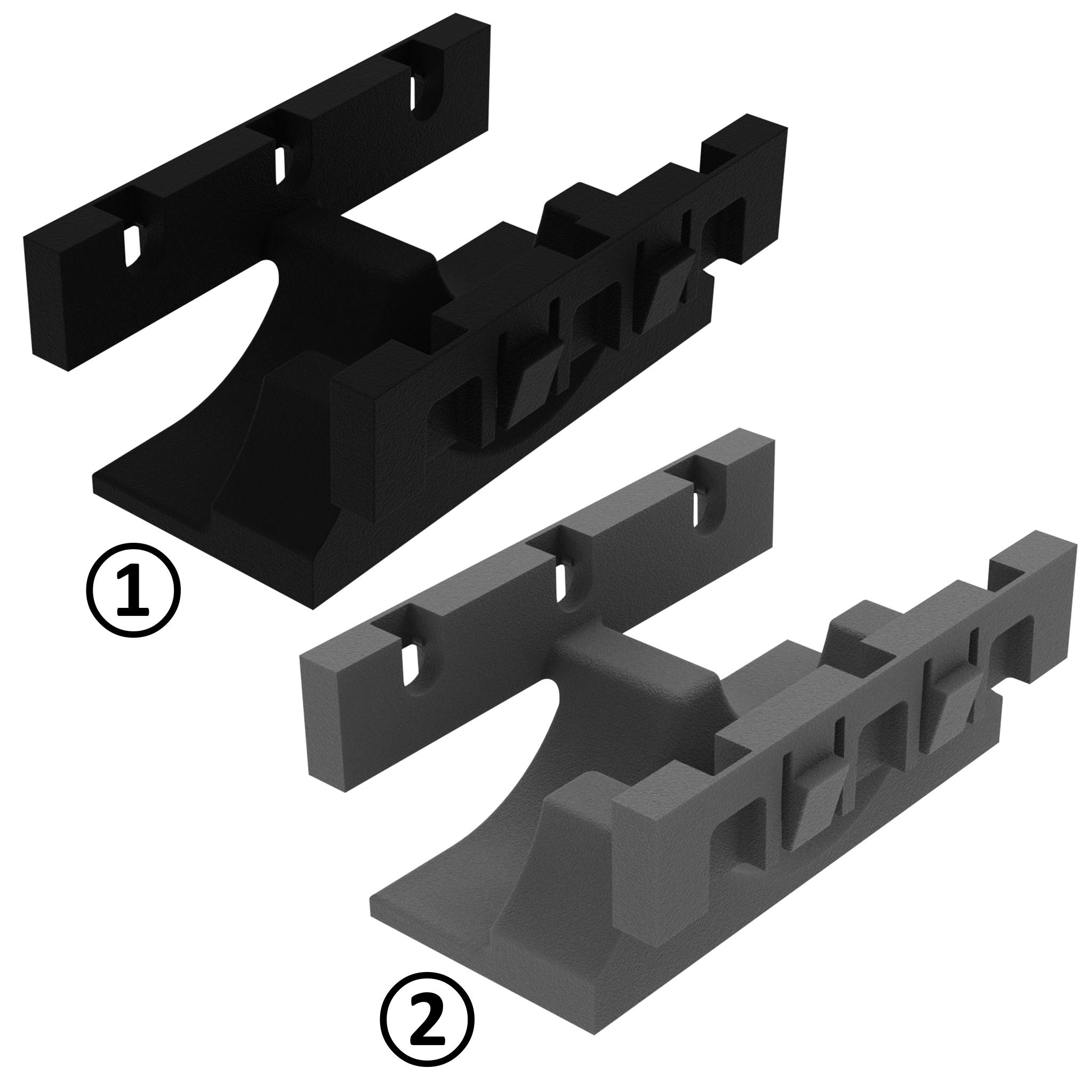

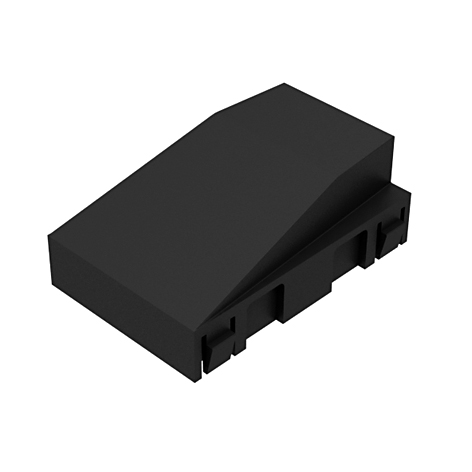

Transition Ramp AL
Color:BlackDelivery Countries:WorldwideDescription:Provides a smooth transition betweendifferent levels; compatible with the slide rail AL but also with roller units, brush unit,and ball unitMaterial:Standard transiton ramp: Plastic PA, glass fiber reinforced ESD electrostatical discharging transition ramp: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Slide Rail AL see 062AS91ESD.2000;

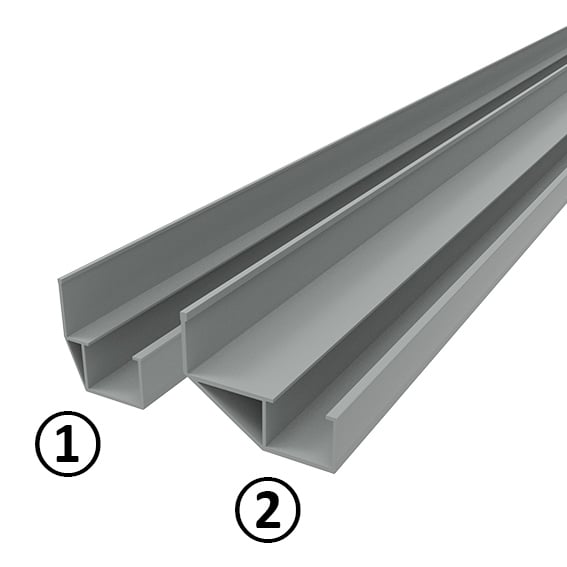

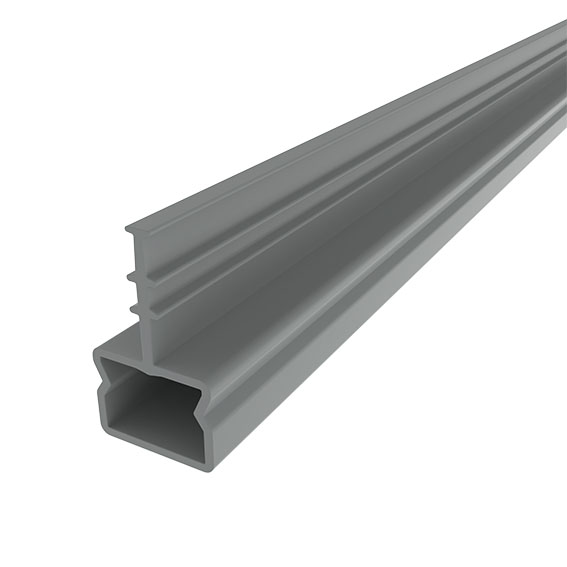

Central Guide XST
Color:Black, grayDelivery Countries:WorldwideDescription:For a safe guiding and positioning in flexible conveyor facilities, guiding rails provide for an adequate work height for the product supplyMaterial:Standard version: Plastic PVC ESD electrostatical discharging version: Plastic PVC, carbon fiber reinforcedSpecials:Other colors on requestTip:Compatible Brackets for XST Roller Tracks see 062MHD28M, 062MHD30M and 062XHD40M

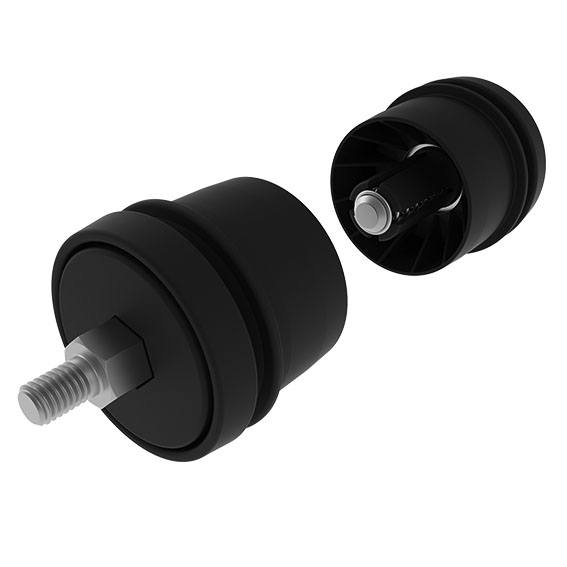

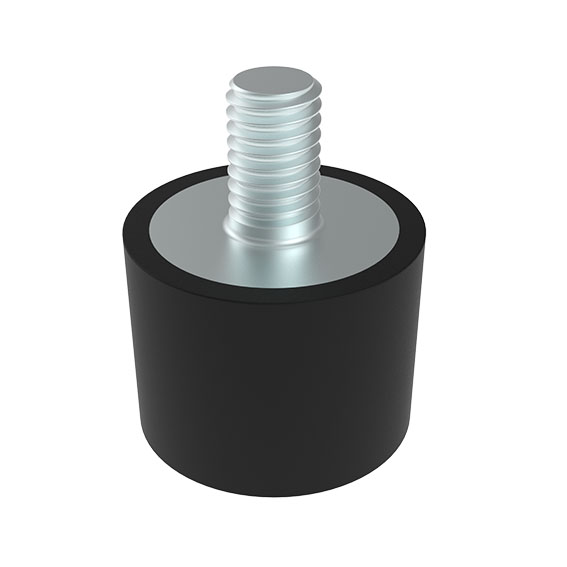

Stop Buffer Cylindrical M
Color:Buffer: BlackDelivery Countries:WorldwideDescription:End-position damping of doors, flaps and coversMaterial:Buffer: Natural rubber (NR), ≈ 55 Shore A Threaded bolt: SteelSurface:Threaded bolt: Zinc plated

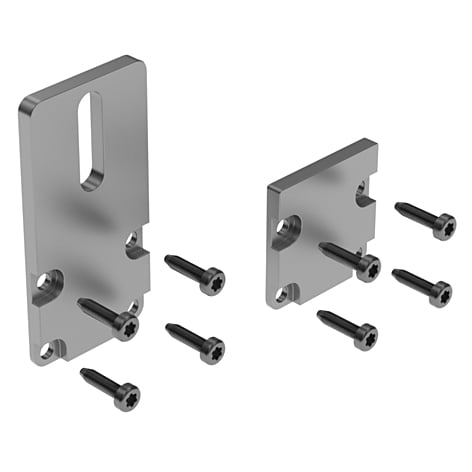

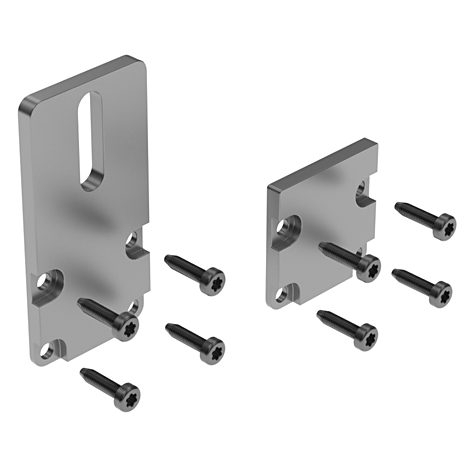

End Plate AL
Assembly Set:4 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3,9 x 16Delivery Countries:WorldwideDescription:To close the end face of AL roller track profiles, preventig inserts from slipping out, additionally the long version has an end stop (optionally, a buffer stop can be added)Material:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc platedTip:Compatible Buffer Stop see 051DC553030FM08;

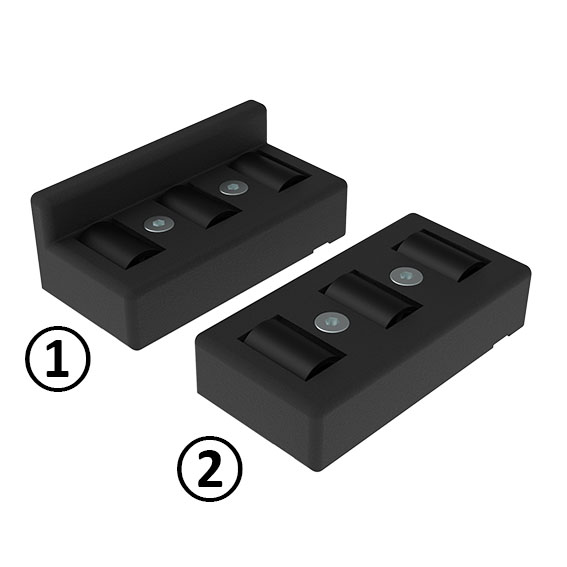

Roller Element, Screw-on Version
Assembly Set 1:2 hammer nuts slot 8 - M5Assembly Set 2:2 hammer nuts slot 10 - M5Color:BlackDelivery Countries:WorldwideDescription:For manufacturing roller conveyors in any width and length, incl. 2 Screws M5 x 25Fastening:With clamp hammer: To be fastened by screw-in or knock-in 2 screws M5 x 25 Without clamp hammer: Using 2 screws M5 x 25 and T-slot nuts or hammer nutsMaterial:Casing: Plastic PA, glass ball reinforced Rollers: Plastic POM Assembly set: SteelSurface:Assembly set: Zinc platedTip:*ESD delivery of electrostatical discharging version without clamp hammer, to fasten with ESD electrostatical discharging hammer nuts or T-slot nuts

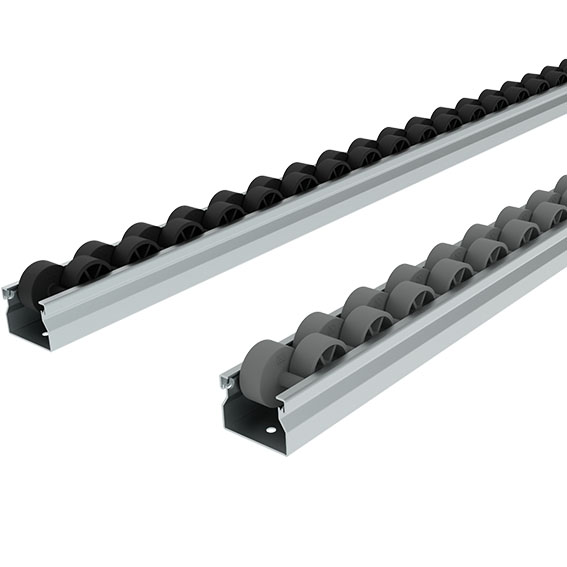

Roller Track XST H26
Color:Black, grayDelivery Countries:WorldwideDescription:Economical, resilent and smooth running roller track XST H26Material:Roller track profile XST: Steel Standard roller: Plastic PP ESD electrostatical discharging roller: Plastic PP, electrostatical discharging Axle: SteelSpecials:Other colors on request
Roller R9 for Roller Units
Color:Black, yellow, red, green, grayDelivery Countries:WorldwideDescription:A compact roller for roller tracks AL, very small center distance and maximum number of axles for minimum vibrations and reduced point load on the goods, quickly replaceableMaterial:Standard version: Plastic PA, glass fiber reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Axle see 062AXM; Compatible Cage see 062ACR991.50;
Roller Track XST R28
Color:Black, grayDelivery Countries:WorldwideDescription:Economical, resilent and smooth running roller track XST R28Material:Roller track profile XST: Steel Standard roller: Plastic PP ESD electrostatical discharging roller: Plastic PP, electrostatical discharging Axle: SteelSpecials:Other colors on request

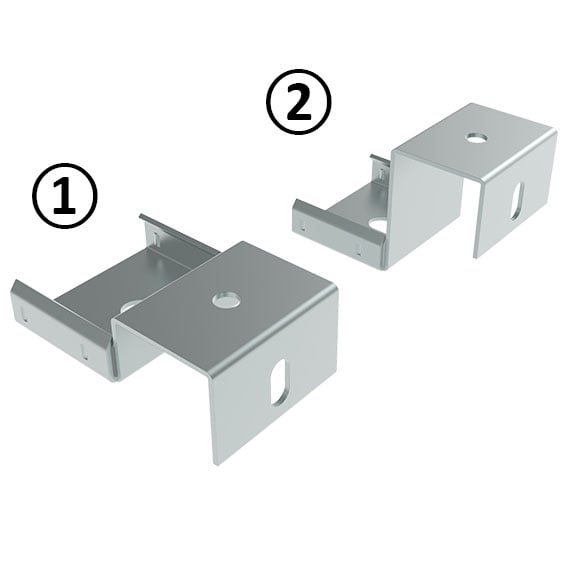

Holding Bracket I 60x24 40
Delivery Countries:WorldwideDescription:To mount roller tracks I 60x24 40 to profiles 40 mmMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated
Roller R28 for Roller Units
Color:Black, yellow, red, green, grayDelivery Countries:WorldwideDescription:A resilient and smooth running roller forAL roller tracks, optionally without or withflange as lateral guiding, quickly replaceableMaterial:Standard version: Plastic PA, glass fiber reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Axle see 062AXM; Compatible Cage see 062ACR2891.50; Compatible Brake R 28 see 062RBR28E;

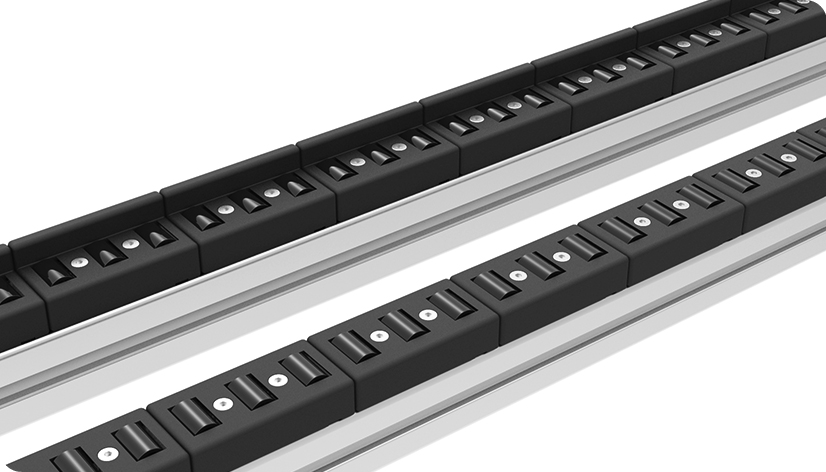

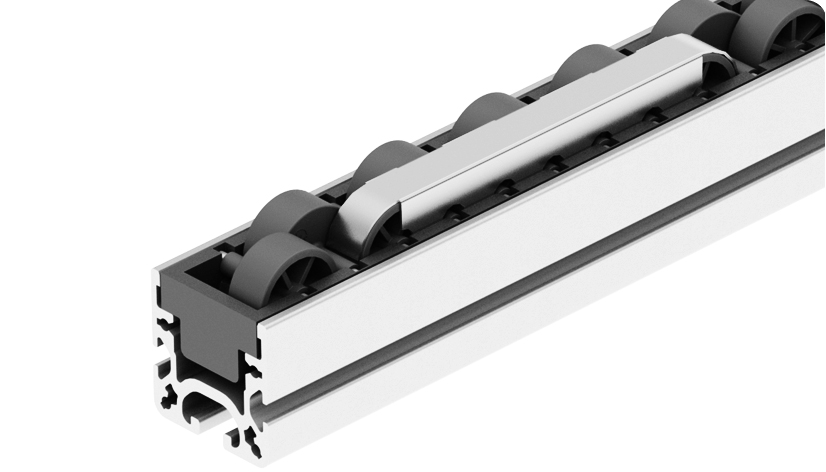

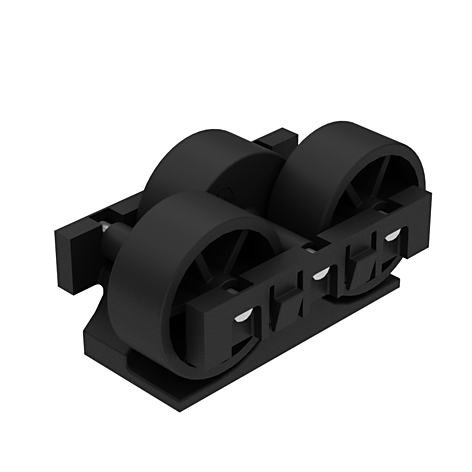

Roller Unit H26
Color:Roller: Black, yellow, red, green, gray Cage: Black, grayDelivery Countries:WorldwideDescription:A resilient and smooth roller unit R28 for roller tracks AL, short center distance due to staggered roller layout, completely preassembled;Material:Standard roller: Plastic PA, glass reinforced Standard cage: Plastic PA, glass fiber reinforced Electrostatical discharging roller and cage: Plastic PA, carbon fiber reinforced Axle: SteelSpecials:Colored rollers in gray cage, other materials, other colors on requestSurface:Axle: Zinc platedTip:Compatible Rollers H26 see 062RH2691; Compatible Axle see 062AXM; Compatible End Piece see 062ACEH2691.10

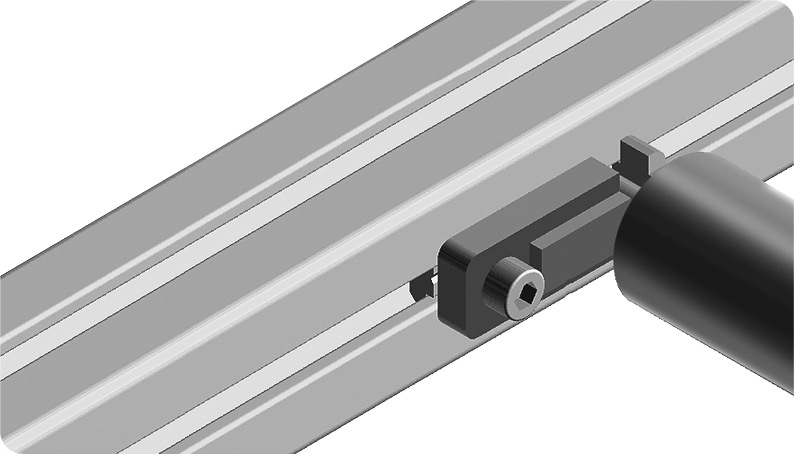

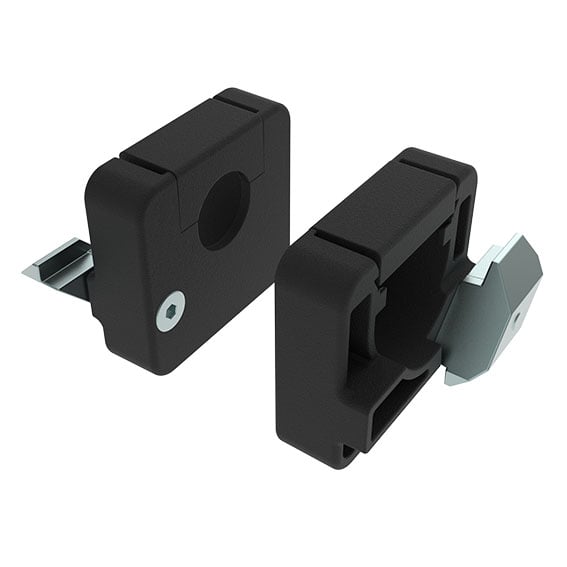

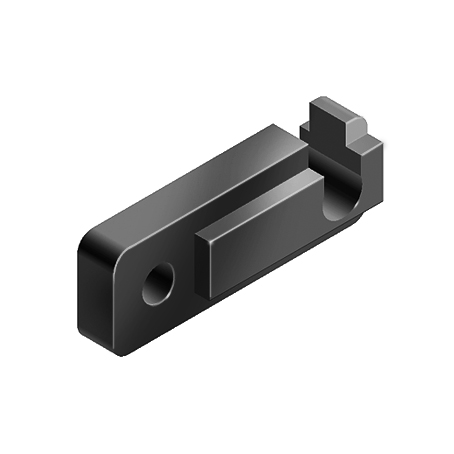

Roller Mounting Blocks
Assembly Set 1:1 screw DIN 7984 - M6 x 12, 1 hammer nut M6 - slot 8Assembly Set 2:1 screw DIN 7984 - M6 x 16, 1 hammer nut M6 - slot 10 Color:Roller Mounting Block: BlackDelivery Countries:WorldwideDescription:To mount track rollers on aluminum profiles; individual rollers can be replaced without dismantling the entire system; can be used for slot 8 and slot 10 by simply turning itMaterial:Standard version: Plastic PA, glass fiber reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other colors on requestSurface:Assembly set: Zinc plated
Roller H26
Color:Black, yellow, red, green, grayDelivery Countries:WorldwideDescription:A resilient and smooth running half roller for roller tracks AL, short center distancedue to staggered roller layout, quickly replaceableMaterial:Standard version: Plastic PA, glass ball reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Axle see 062AXM; Compatible Cage see 062ACH2691.50; Compatible Brake see 062RBH26E;

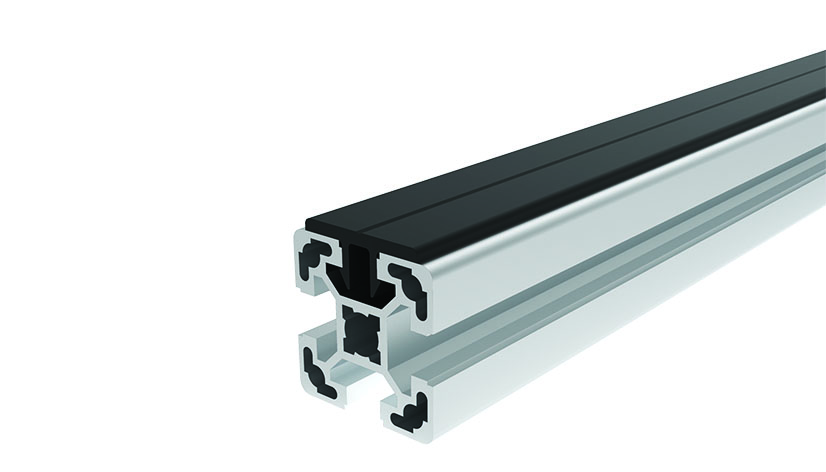

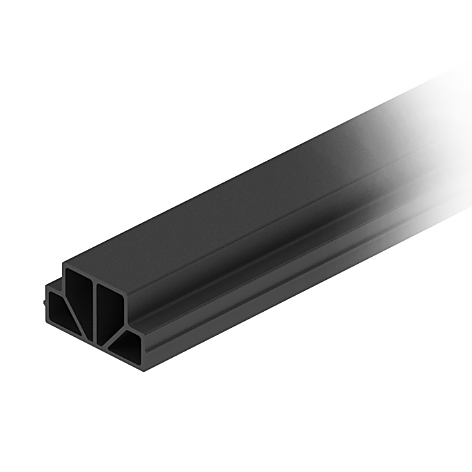

Slide Rail AL
Color:BlackDelivery Countries:WorldwideDescription:Can be installed in two positions to provide different levels; low-wear slide rail for simple transport or for use on steep slopes, also suitable as cover profile and spacer between two ball and brush unitsMaterial:Standard version: Plastics PE-HD ESD electrostatical discharging version: Plastics PE-HD, carbon fiber reinforcedSpecials:Other lengths, other colors on request
Track Connector for Roller Track XST (Set)
Delivery Countries:WorldwideDescription:To face-to-face connect two roller tracks XST for extensionMaterial:SteelSet:1 track connector for roller track XST, 4 self-tapping screws DIN 7500 form C - S5 x 8 - hexalobular socket T25Specials:Other surfaces, other colors on requestSurface:Zinc plated

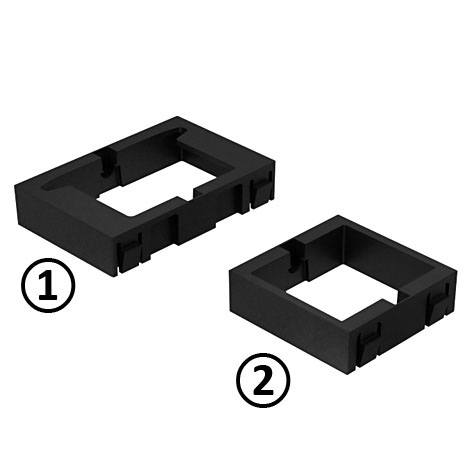

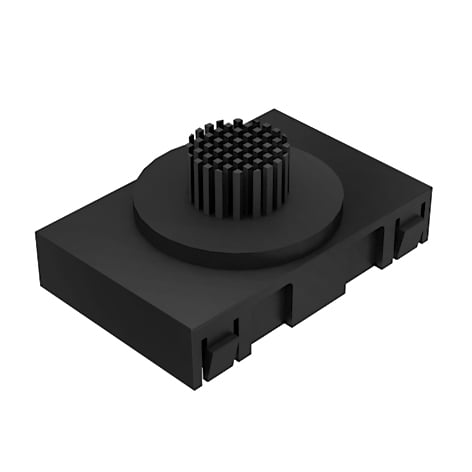

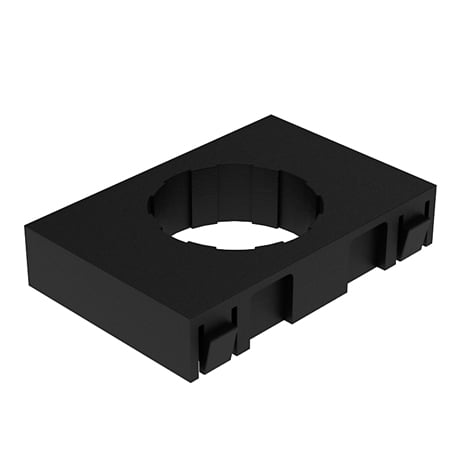

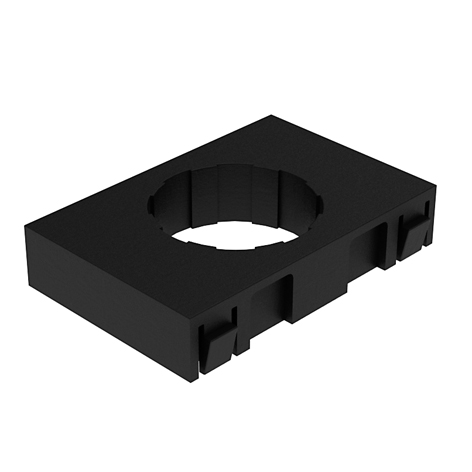

Cage for Ball / Brush Insert D24
Color:BlackDelivery Countries:WorldwideDescription:A sturdy cage for roller track profiles AL, to support a D24 ball or brush insertMaterial:Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Ball Insert see 062AQ; Compatible Brush Insert see 062ABKESD;

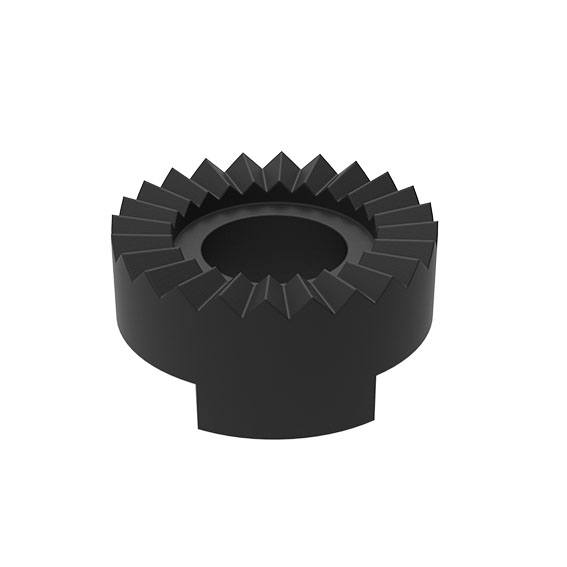

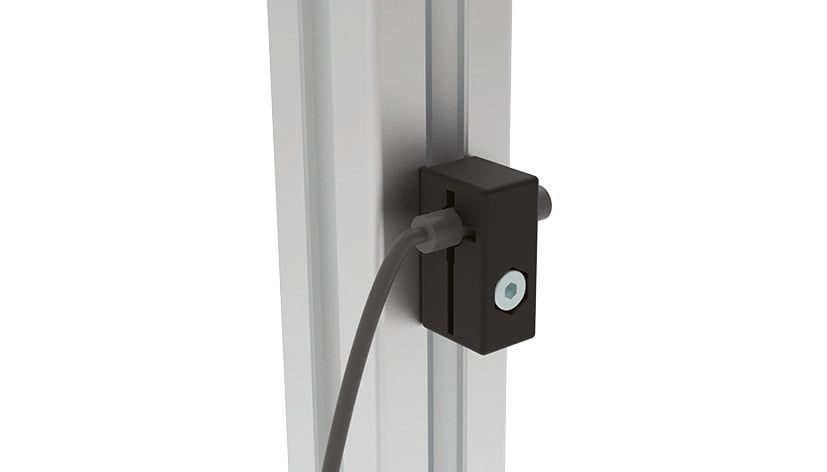

Fastener for Sensor Mounting Block
Color:BlackDelivery Countries:WorldwideDescription:For anti-twist installation of sensor mounting blocks to aluminum profiles with slotMaterial:Plastic PASpecials:ESD electrostatical discharging, other sizes, other colors on requestTip:When ordering, please mention the part # of the fastener as well as that of the sensor mounting block.Tip 2:Compatible Sensor Mounting Block see 093212 et sq.

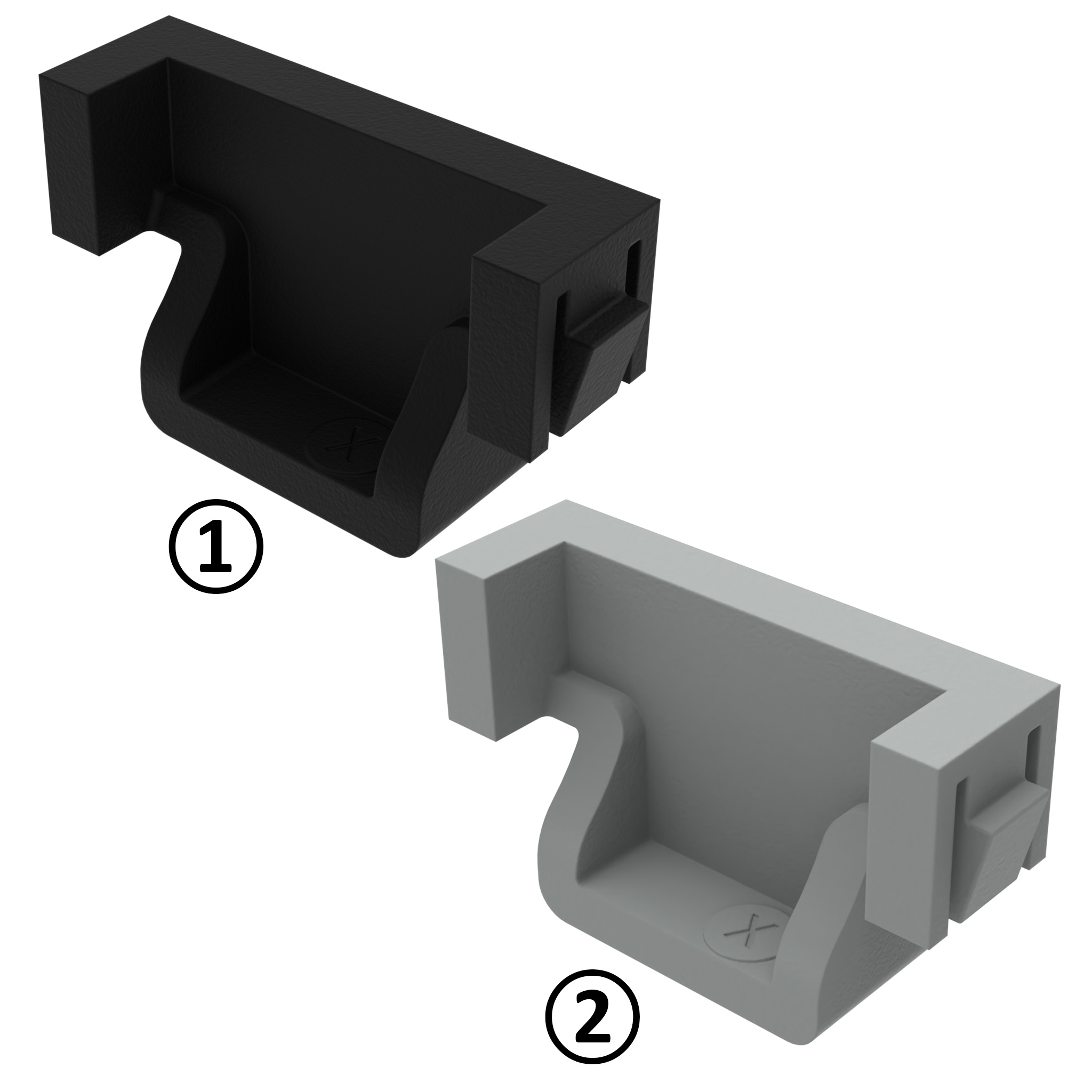

End Piece for Cage-Rollers H26
Color:Black, grayDelivery Countries:WorldwideDescription:Provides a neat finish at the end of the profileMaterial:Standard version: Plastic PA, glass fiber reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Cage for Rollers H26 see 062ACH2691.50 Compatible Roller Unit H26 see 062AEH2691.50

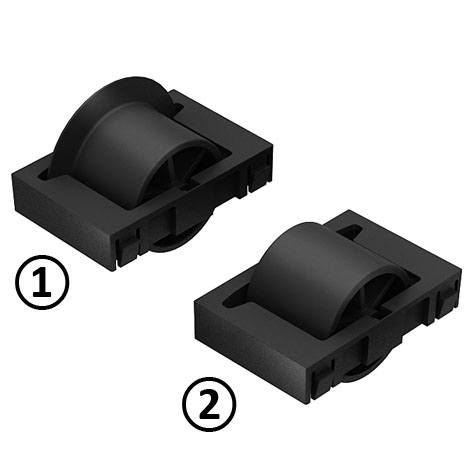

Roller Unit L50 R28
Color:Roller: Black, yellow, red, green, gray Cage: Black, grayDelivery Countries:WorldwideDescription:A resilient and smooth roller unit R28 for roller tracks AL, optionally withoutor with flange as lateral guiding, completely preassembledMaterial:Standard roller: Plastic PA, glass reinforced Standard cage: Plastic PA, glass fiber reinforced Electrostatical discharging roller and cage: Plastic PA, carbon fiber reinforced Axle: SteelSpecials:Colored rollers in gray cage, other materials, other colors on requestSurface:Axle: Zinc platedTip:Roller unit L50 R28 consisting of: - Roller R28, see 062RR2891: - Axle AL, see 62AXM; - Cage L50 for rollers R28, see 062ACR2891.50; - Compatible Brake R28 see 062RBR28E;

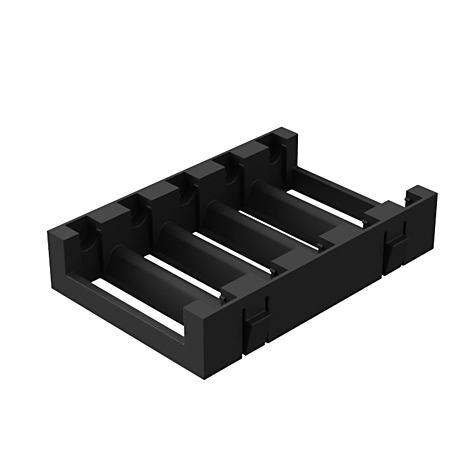

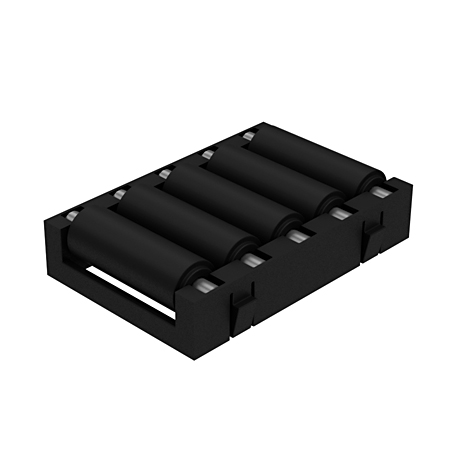

Roller Unit R9
Color:Roller: Black, yellow, red, green, gray Cage: Black, grayDelivery Countries:WorldwideDescription:A compact roller unit R9 for roller tracks AL, very small center distance and maximum number of axles for minimum vibrations and reduced point load on the goods; completely preassembledMaterial:Standard roller: Plastic PA, glass reinforced Standard cage: Plastic PA, glass fiber reinforced Electrostatical discharging roller and cage: Plastic PA, carbon fiber reinforced Axle: SteelSpecials:Colored rollers in gray cage, other materials, other colors on requestSurface:Axle: Zinc platedTip:Roller unit R9 consisting of: - Rollers R9, see 062RR991; - Axle AL, see 062AXM: - Cage for rollers R9, see 062ACR991.50
Holding Bracket XST 40
Delivery Countries:WorldwideDescription:To mount roller tracks XST and guiding rails XST central to profiles 40 mm, preventing inserts from slipping outMaterial:SteelSurface:Zinc plated

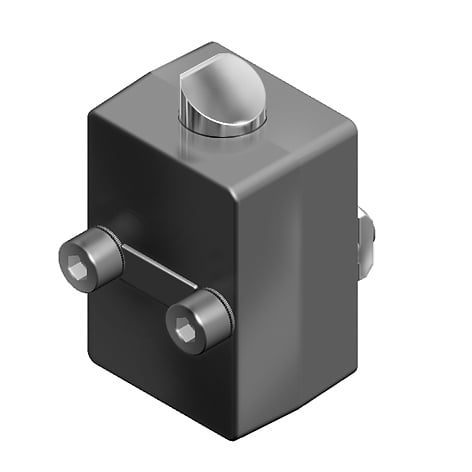

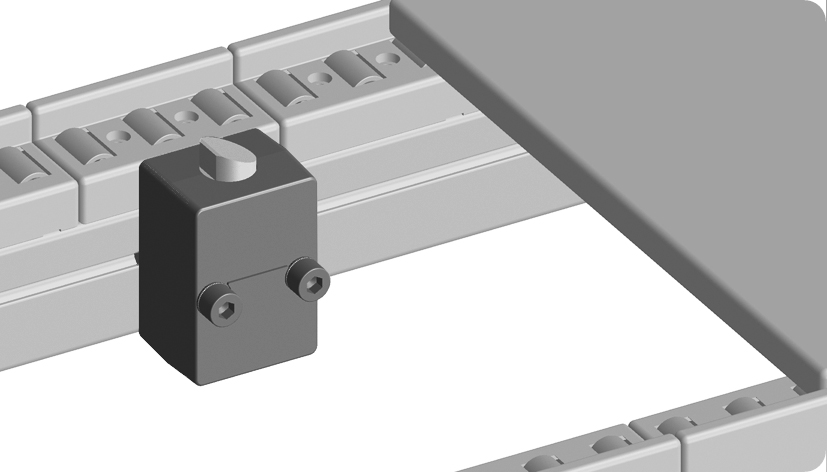

Return Stop (Set)
Delivery Countries:WorldwideDescription:For preventing backwards movement of tool carrierMaterial:Housing: Zinc die-cast Catch: Plastic PA / stainless steel / brassSet:1 backstop, 2 hammer nuts slot 10 - M8, zinc-plated steel, 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50, zincplated steel, 2 washers 8-FStSurface:Plain
