Stop Buffer Conic

Product information "Stop Buffer Conic"

Color:
Black

Delivery Countries:
Worldwide

Description:

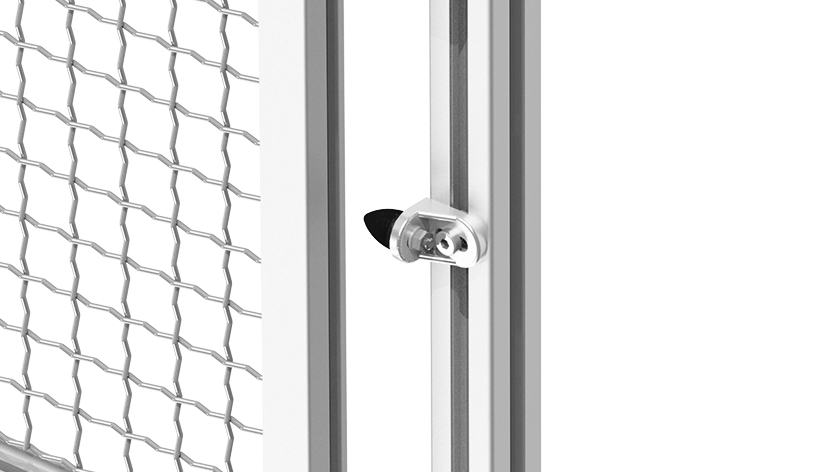

End-position damping of doors, flaps and covers

Material:
Buffer: Natural rubber (NR), ≈ 55 Shore A
Threaded bolt: Steel

Surface:
Threaded bolt: Zinc plated
(ECLASS 6.0): 23189090
(ECLASS 7.0): 23189090
(ECLASS 8.0): 23189090
(ECLASS 9.0): 23189090
(ECLASS 10.0): 23189090
(ECLASS 11.0): 23189090
(ECLASS 12.0): 23189090
(ECLASS 13.0): 23189090
Customs Tariff Number Export: 40169991
Model: With parabolic cross-section
Pack Quantity: 20 pieces
Weight (g): 12.5
Zolltarifnummer: 40169991900
pA Number: 129095

Variants

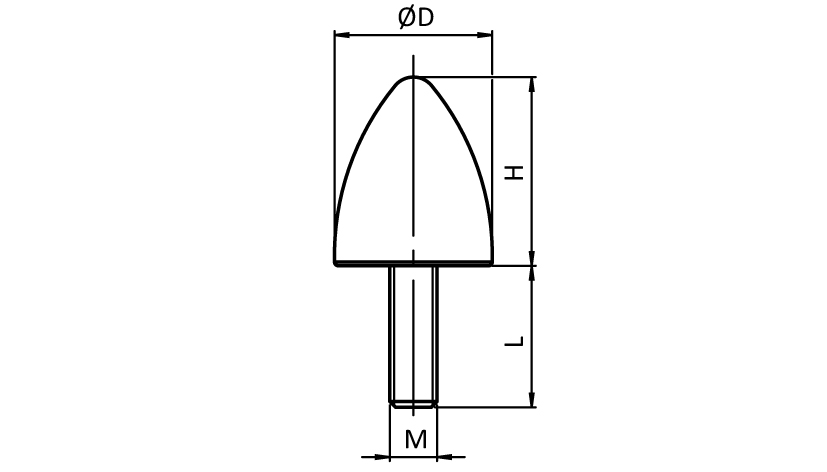

Product ID ØD (mm) Profile H (mm) L (mm) M
051DKP552420MM0618 20.0 I / B 24.0 18.0 M6
