Stop Buffer Cylindrical F

Product information "Stop Buffer Cylindrical F"

Color:
Buffer: Black

Delivery Countries:
Worldwide

Description:

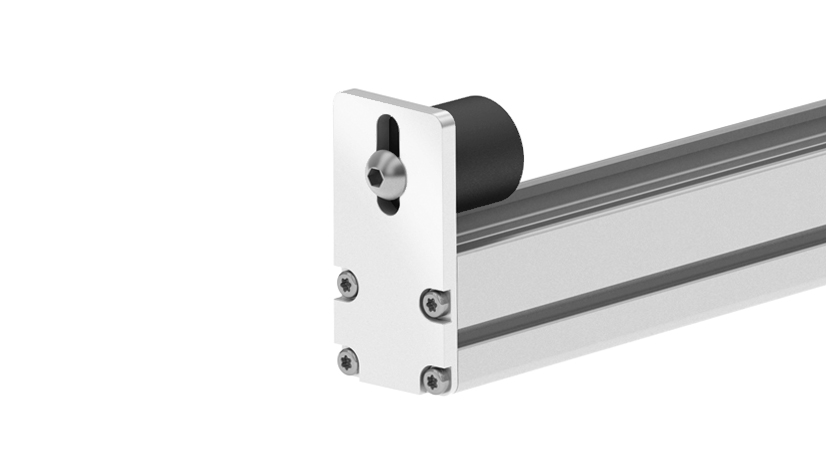

End-position damping of doors, flaps, covers working pieces and goods

Material:
Buffer: Rubber NBR, ≈ 55 Shore A
Threaded insert: Steel

Surface:
Threaded bolt: Zinc plated

Tip:
Compatible End Plate AL see 062AT4040;

Zolltarifnummer:
40169991900
(ECLASS 6.0): 23189090
(ECLASS 7.0): 23189090
(ECLASS 8.0): 23189090
(ECLASS 9.0): 23189090
(ECLASS 10.0): 23189090
(ECLASS 11.0): 23189090
(ECLASS 12.0): 23189090
(ECLASS 13.0): 23189090
Model: With cylindrical shape, with internal thread
Pack Quantity: 20 pieces
Weight (g): 38.0

Variants

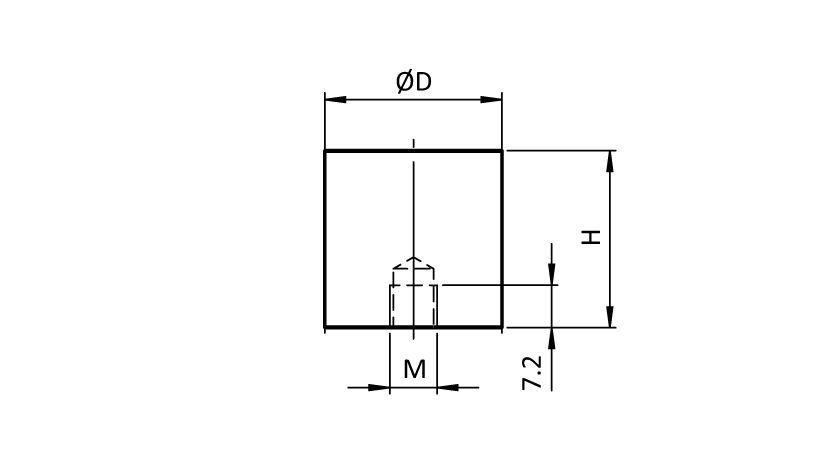

Product ID H (mm) Profile ØD (mm) M
051DC553030FM08 30.0 I / B 30.0 M8
