Form Butt Connector Steel

Product information "Form Butt Connector Steel"

Delivery Countries:
Worldwide

Description:

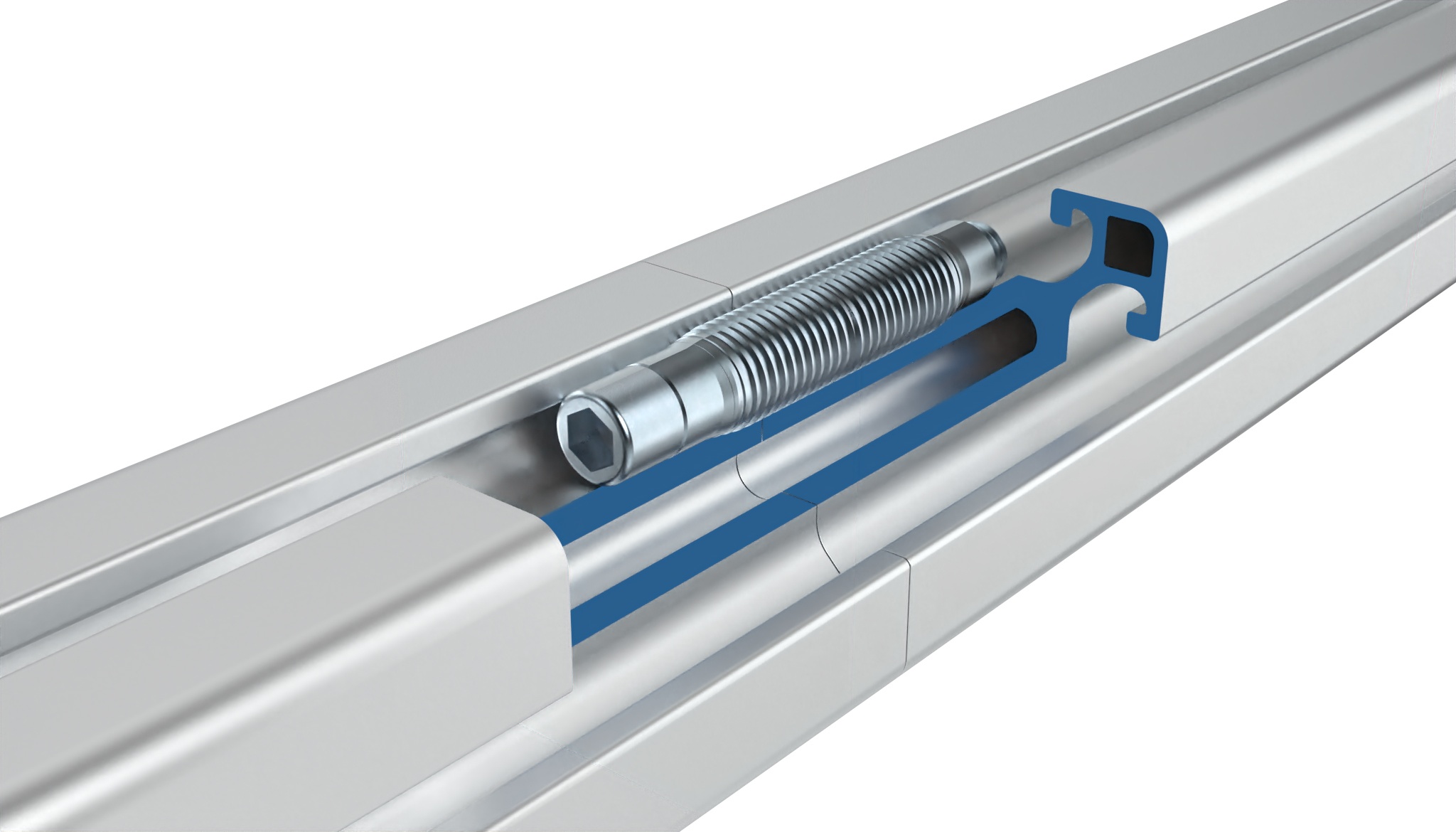

To face-to face connect two aluminum profiles fast and solid, assembly without machining;
Self-forming thread with captive, pre-assembled screw

Material:
Steel

Surface:
Zinc plated
Pack Quantity: 100 pieces
Model: Steel
Weight (g): 39.0
GTIN-EAN: 4066061096181
ERP Number: 172277

Variants

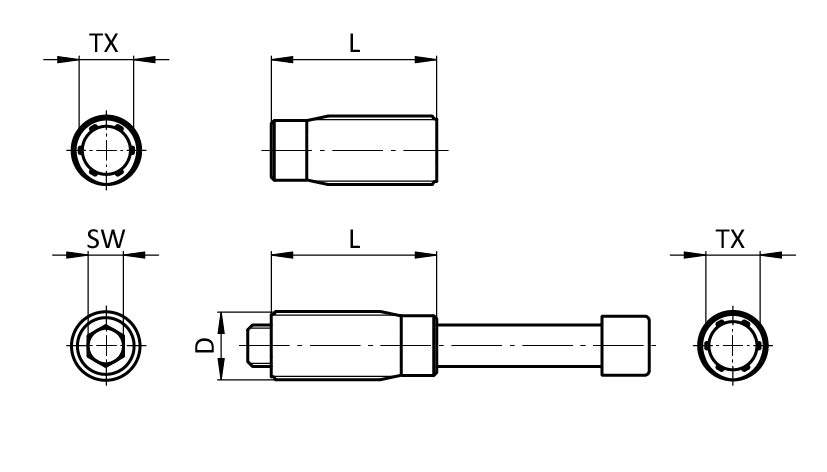

Part # D (mm) Profile L (mm) SW Slot N (mm) Modular Dimension (mm) Screw TX
12.0 I 28.0 6 8 40 M8 x 60 T50

Classifications

ECLASS 6.0
23360290
ECLASS 7.0
23360290
ECLASS 8.0
23360290
ECLASS 9.0
23360290
ECLASS 10.0
23360290
ECLASS 11.0
23360290
ECLASS 12.0
23360290
ECLASS 13.0
23360290
ECLASS 14.0
23360290
ECLASS 15.0
23360290
ECLASS 16.0
23360290
Zolltarifnummer
73181900900
Customs Tariff Number Export
73181900

Certificates

Tags

Slot Size Slot 8
Modular Dimension Modular Dimension 40
Profile Form T-slot Profiles
