Monitor Support 5-axis, Height Adjustable (Set)

Product information "Monitor Support 5-axis, Height Adjustable (Set)"

Color:
Mounting plate VESA, removable:
Alu color / black
Monitor mount: Alu color
Cable management cover: Black
Bearing shims and bushes: Black
Mounting flange: Alu color
Mounting adapter: alu color

Delivery Countries:
Worldwide

Description:

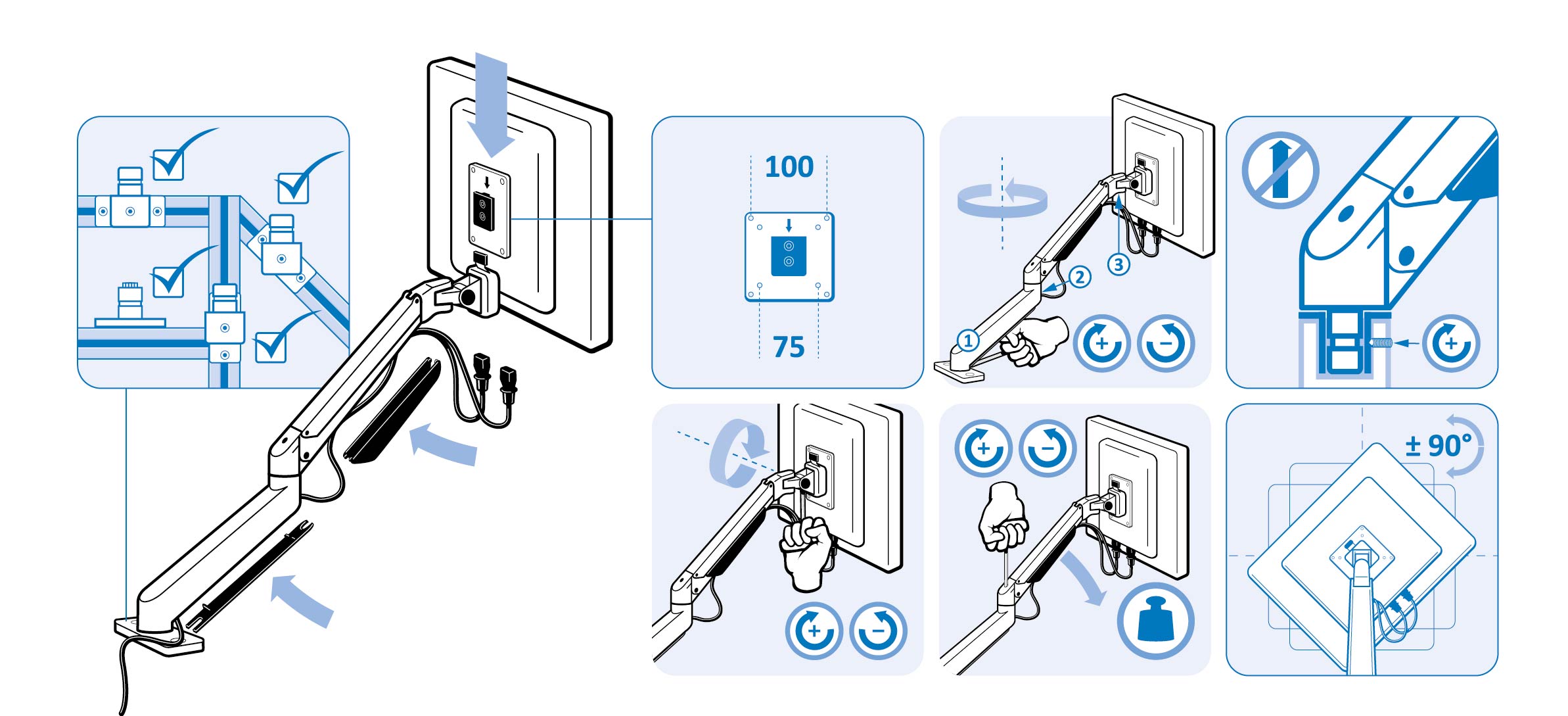

For removable mounting of monitors with 2 - 10 kg or 8 - 20 kg, mounting plate VESA MIS-D 75/100 compatible;
Adjustable viewing angle and height, screen rotatable by 90°;

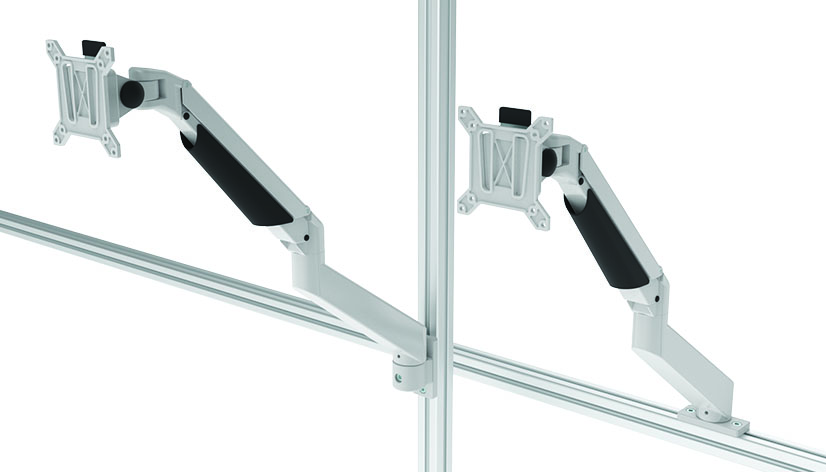

360° mounting flange for horizontal and vertical attachment with mounting adapter

Material:
Mounting plate VESA, removable:
Steel / Plastic
Monitor mount: Die-cast aluminum
Cable management cover: Plastic
Bearing shims and bushes: Plastic
Mounting flange: Die-cast aluminum
Mounting adapter: Die-cast aluminum
Screws: Steel

Set:
1 mounting plate VESA with 4 screws – M4 × 12, Phillips
1 monitor support 5-axis with cable management cover
1 mounting flange
1 mounting screw DIN 6912 – M8 × 25
1 mounting adapter
2 mounting screws DIN 6912 – M8 × 16
1 hexagon key, AF 3
1 hexagon key, AF 4

Surface:
Mounting plate VESA, removable: Lacquered
Monitor mount: Lacquered
Mounting flange: Lacquered
Mounting adapter: Lacquered
Screws: Zinc plated

Zolltarifnummer:
76169990990
Model: 5-axis
Pack Quantity: 1 set
Weight (g): 2930.0

Variants

Product ID Version Fmax (N)
6MHM75100D40 2 - 10 kg 98
6MHM75100D40S09 8 - 20 kg 196
