Keyboard Arm I40L 370 (Set)

New

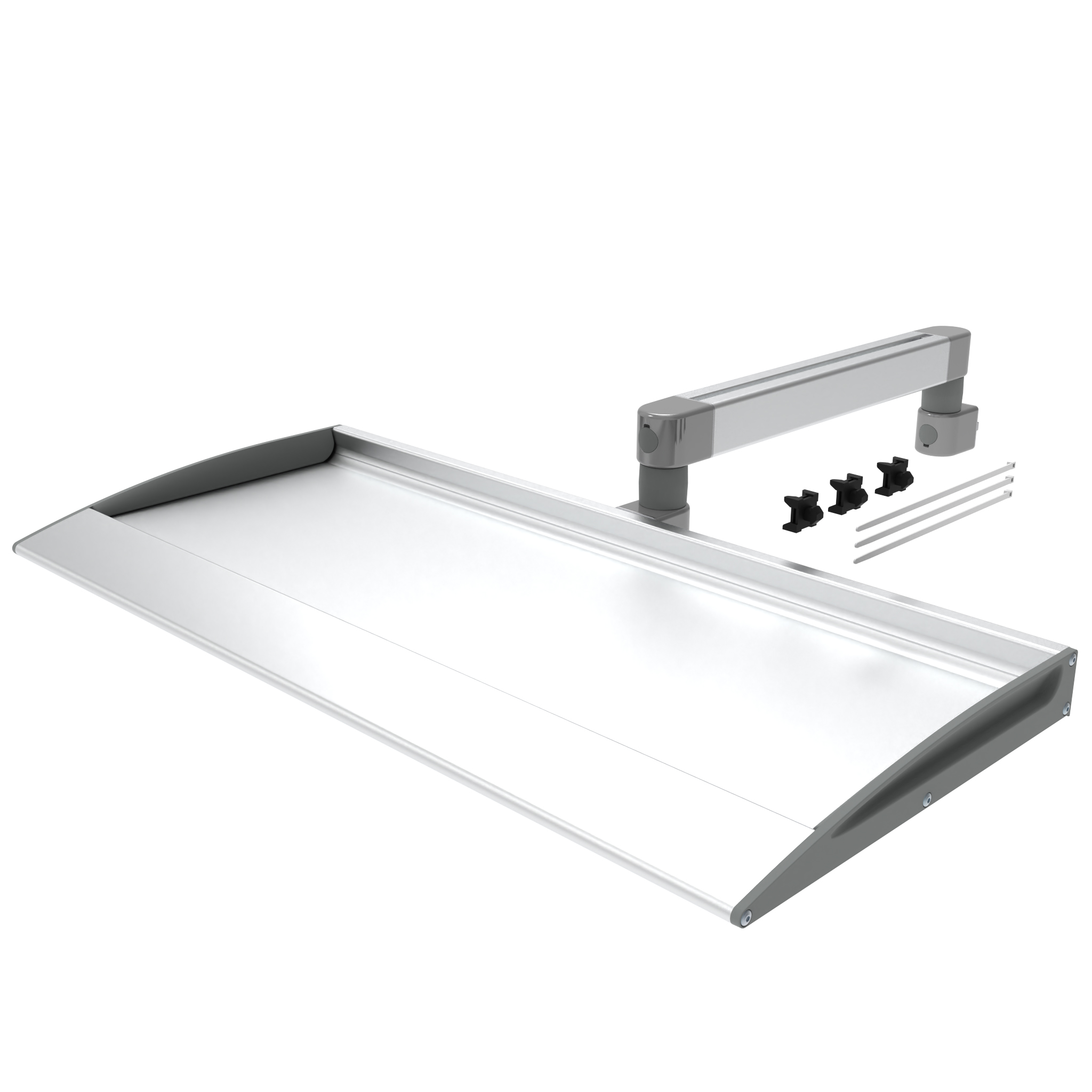

Keyboard Arm I40L 370 (Set) – product image

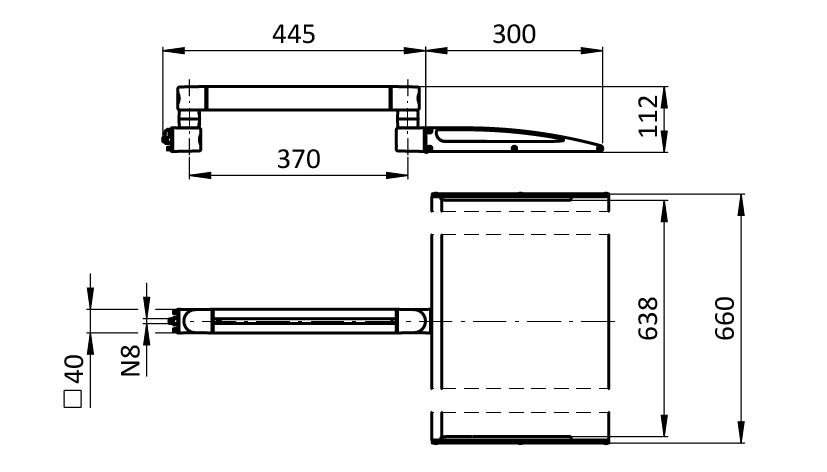

Keyboard Arm I40L 370 (Set) – technical drawing

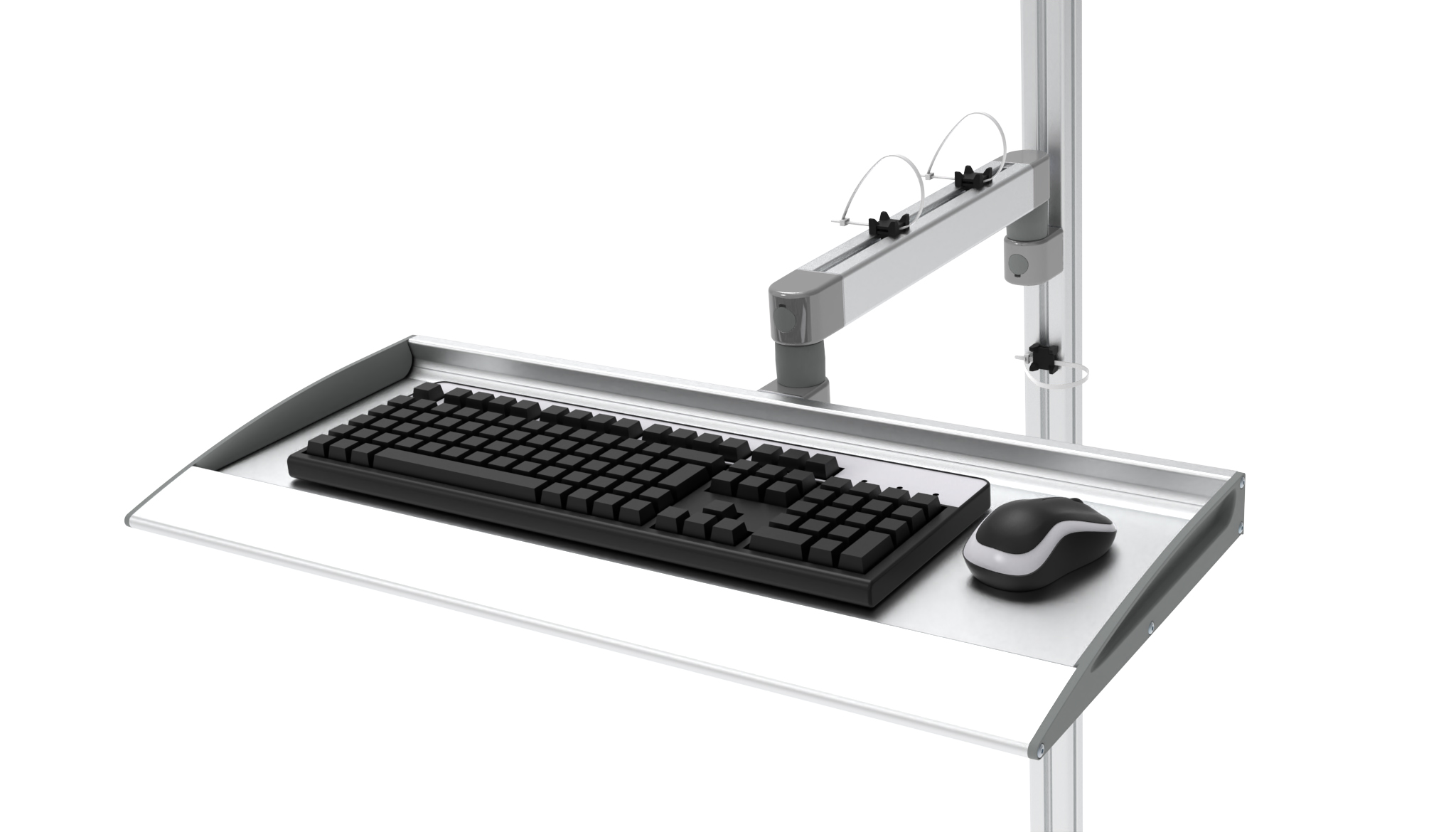

Keyboard Arm I40L 370 (Set) – application example

€0.00

Profile

I

Slot N (mm)

8

Part #: 6SKS40NLN08370

Pack Quantity: 1 piece

Description:
Stable keyboard arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled
For placing the keyboard and mouse, with wrist rest
Keyboard arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)

Material:
Keyboard holder: Aluminum
Arm: Aluminum
Housing: Aluminum die-cast
Cover ring: Plastic
Inserts: Steel
Friction shaft: Steel
Cover caps keyboard holder: Plastic PA, glass ball reinforced
Cover caps arm: Plastic
Screws: Steel
Washers: Steel
Centering plates: Aluminum die-cast
T-slot nuts: Steel
Cable binding blocks: Plastic PA, glass fiber reinforced

Surface:
Keyboard holder: Anodized
Arm: Anodized
Housing: Powder coated
Screws: Zinc plated
Washers: Zinc plated
Centering plates: Powder coated
T-slot nuts: Zinc plated

Color:
Keyboard holder: Alu color
Arm: Alu color
Housing: Alu color
Cover ring: Gray ≈ RAL 7042
Cover caps: Gray ≈ RAL 7042
Centering plates: Alu color
Cable binding blocks: Black

Set:
1 system arm I40L 370 (Set) with friction joint,
1 keyboard holder AL, slot 8,
3 cross cable binder blocks, slot 8
3 cable binder T40R

Delivery Countries:
Worldwide
