System Arms

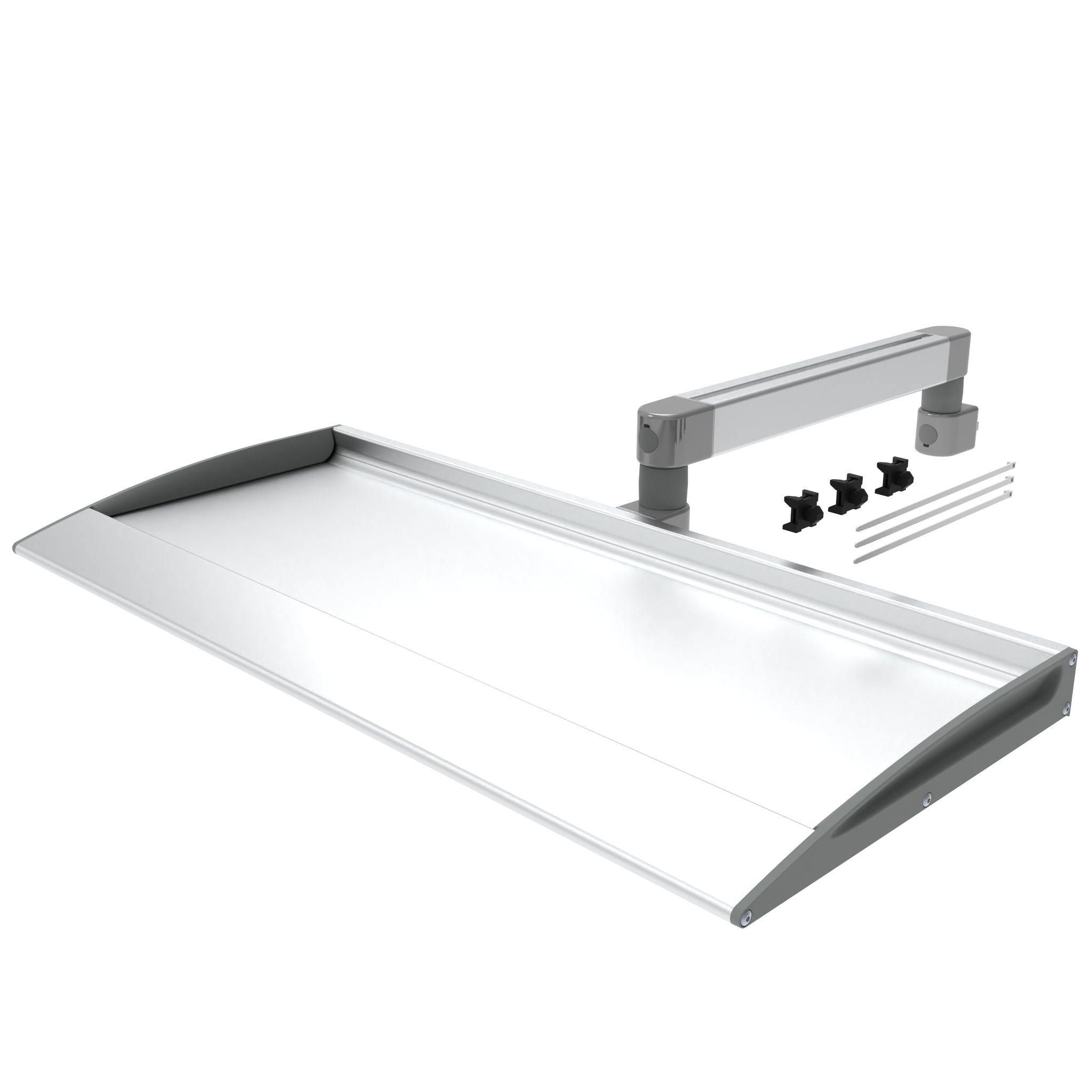

Keyboard Arm I40L 370 (Set)
Description:Stable keyboard arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled For placing the keyboard and mouse, with wrist rest Keyboard arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Keyboard holder: Aluminum Arm: Aluminum Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps keyboard holder: Plastic PA, glass ball reinforced Cover caps arm: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: Steel Cable binding blocks: Plastic PA, glass fiber reinforcedSurface:Keyboard holder: Anodized Arm: Anodized Housing: Powder coated Screws: Zinc plated Washers: Zinc plated Centering plates: Powder coated T-slot nuts: Zinc platedColor:Keyboard holder: Alu color Arm: Alu color Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu color Cable binding blocks: BlackSet:1 system arm I40L 370 (Set) with friction joint, 1 keyboard holder AL, slot 8, 3 cross cable binder blocks, slot 8 3 cable binder T40RDelivery Countries:Worldwide

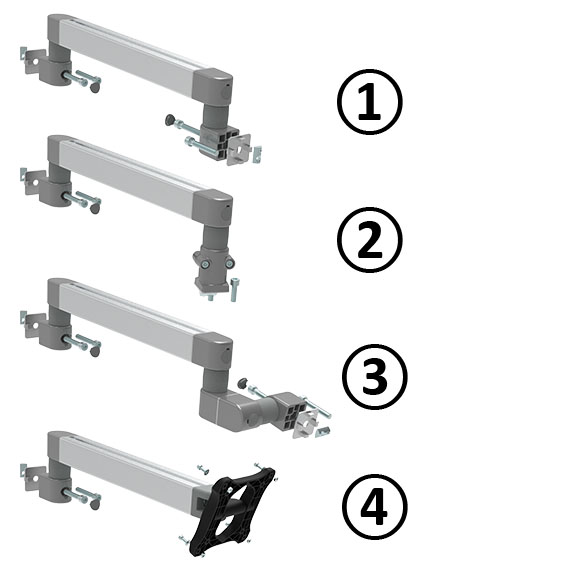

System Arm I40L 370 (Set)
Description:Stable pivot arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Aluminum Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: Steel Monitor mount: Plastic PA, glas fiber reinforcedSurface:Arm: Anodized Housing: Powder coated Screws: Zinc plated Washers: Zinc plated Centering plates: Powder coated T-slot nuts: Zinc platedColor:Arm: Alu color Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu color Monitor mount: BlackSet 1:1 system arm I40L 370 with end friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8Set 2:1 system arm I40L 370 with end friction joint 1 cover cap 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8Set 3:1 system arm I40L 370 with double friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8Set 4:1 system arm I40L 370 with monitor mount 1 cover cap 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 washer 8-FSt, 1 centering plate, 1 T-slot nut - slot 8 - M8 1 assembly set for monitor: 4 screws DIN EN ISO 4762 (DIN 912) - M4 x 12, 4 washersDelivery Countries:Worldwide

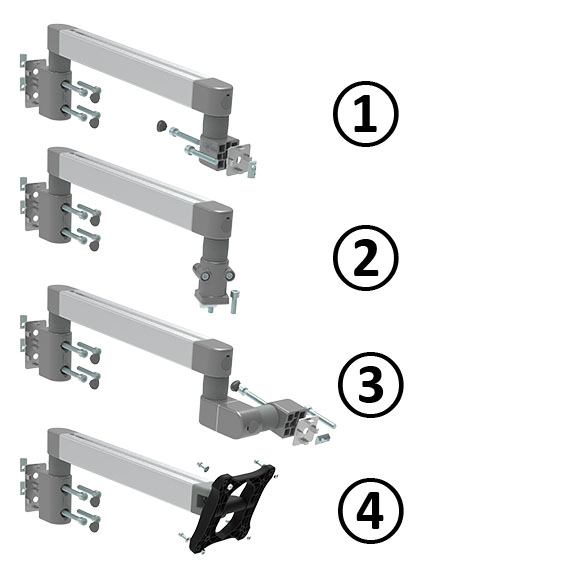

System Arm I40H 370 (Set)
Description:Stable pivot arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Aluminum Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: Steel Monitor mount: Plastic PA, glas fiber reinforcedSurface:Arm: Anodized Housing: Powder coated Screws: Zinc plated Washers: Zinc plated Centering plates: Powder coated T-slot nuts: Zinc platedColor:Arm: Alu color Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu color Monitor mount: BlackSet 1:1 system arm I40H 370 with friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 2:1 system arm I40H 370 with end friction joint 2 cover cap 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 3:1 system arm I40H 370 with double friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 4:1 system arm I40H 370 with monitor mount 2 cover cap 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 2 washer 8-FSt, 2 centering plate, 2 T-slot nut - slot 8 - M8 1 assembly set for monitor: 4 screws DIN EN ISO 4762 (DIN 912) - M4 x 12, 4 washersDelivery Countries:Worldwide

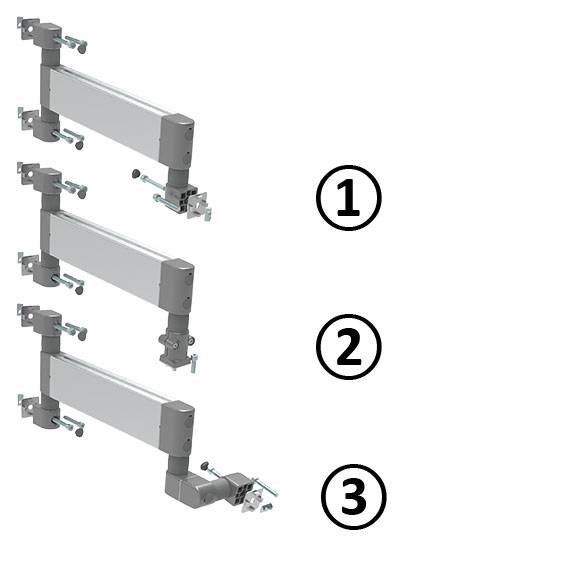

System Arm I80H 370 (Set)
Description:Stable pivot arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Aluminum Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSurface:Arm: Anodized Housing: Powder coated Screws: Zinc plated Washers: Zinc plated Centering plates: Powder coated T-slot nuts: Zinc platedColor:Arm: Alu color Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorSet 1:1 system arm I80H 370 with friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 2:1 system arm I80H 370 with end friction joint 2 cover cap 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 3:1 system arm I80H 370 with double friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Delivery Countries:Worldwide

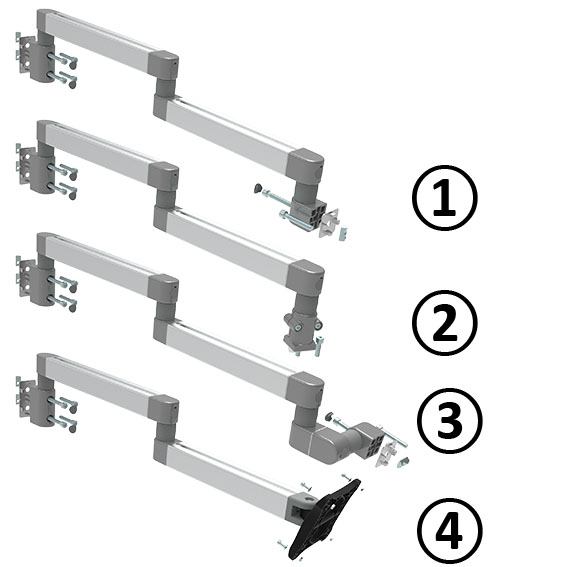

Double System Arm I40L 695 (Set)
Description:Stable double pivot arm with a reach of approximately 695 mm and various connection options; pivotable 360°; pre-assembled System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Aluminum Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: Steel Monitor mount: Plastic PA, glas fiber reinforcedSurface:Arm: Anodized Housing: Powder coated Screws: Zinc plated Washers: Zinc plated Centering plates: Powder coated T-slot nuts: Zinc platedColor:Arm: Alu color Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu color Monitor mount: BlackSet 1:1 double system arm I40L 695 with friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 2:1 double system arm I40L 695 with end friction joint 2 cover cap 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 3:1 double system arm I40L 695 with double friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 4:1 double system arm I40L 695 with monitor mount 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8 1 assembly set for monitor: 4 cylinder head screws M4 x 12, 4 washersDelivery Countries:Worldwide

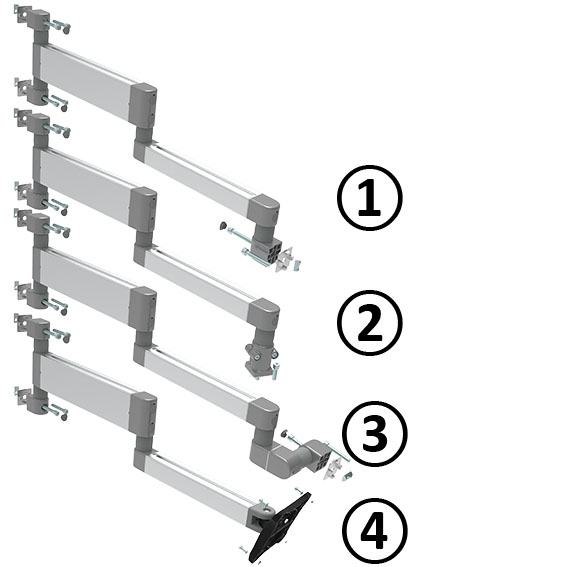

Double System Arm I40H 695 (Set)
Description:Stable double pivot arm with a reach of approximately 695 mm and various connection options; pivotable 360°; pre-assembled System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Aluminum Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: Steel Monitor mount: Plastic PA, glas fiber reinforcedSurface:Arm: Anodized Housing: Powder coated Screws: Zinc plated Washers: Zinc plated Centering plates: Powder coated T-slot nuts: Zinc platedColor:Arm: Alu color Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu color Monitor mount: BlackSet 1:1 double system arm I40H 695 with friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 2:1 double system arm I40H 695 with end friction joint 2 cover cap 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 3:1 double system arm I40H 695 with double friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 4:1 double system arm I40H 695 with monitor mount 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8 1 assembly set for monitor: 4 cylinder head screws M4 x 12, 4 washersDelivery Countries:Worldwide

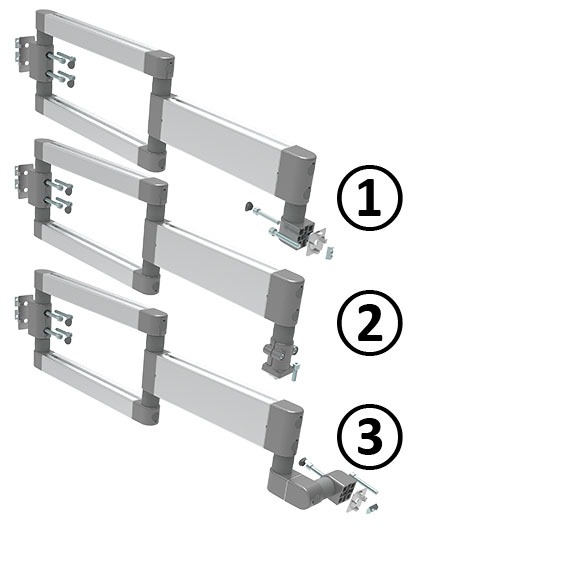

Double System Arm I80H 695 (Set)
Description:Stable double pivot arm with a reach of approximately 695 mm and various connection options; pivotable 360°; pre-assembled System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Aluminum Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSurface:Arm: Anodized Housing: Powder coated Screws: Zinc plated Washers: Zinc plated Centering plates: Powder coated T-slot nuts: Zinc platedColor:Arm: Alu color Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorSet 1:1 double system arm I80H 695 with friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 2:1 double system arm I80H 695 with end friction joint 2 cover cap 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 3:1 double system arm I40H 695 with double friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Delivery Countries:Worldwide
