Angle Element T1 40, 45°

New

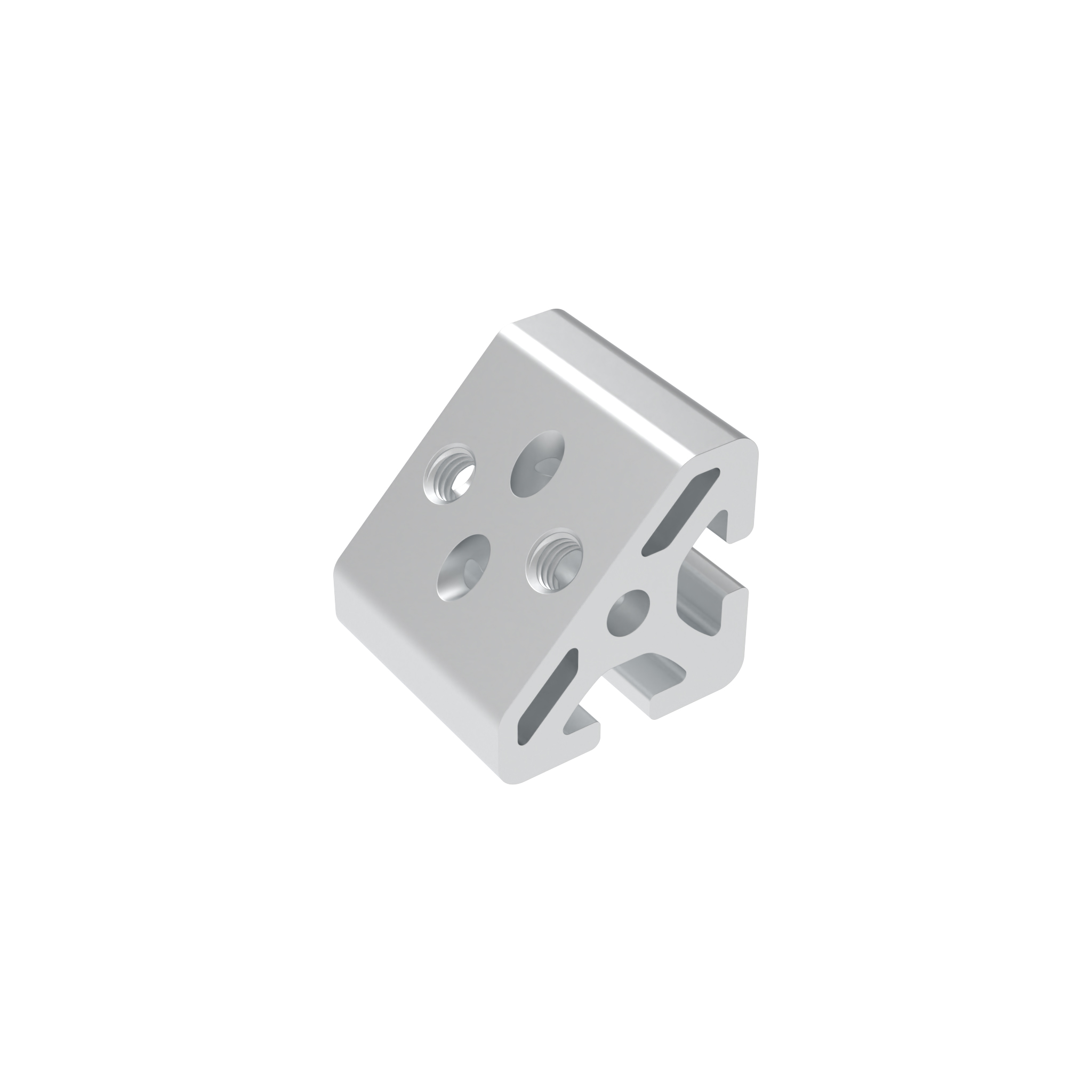

Angle Element T1 40, 45° – product image

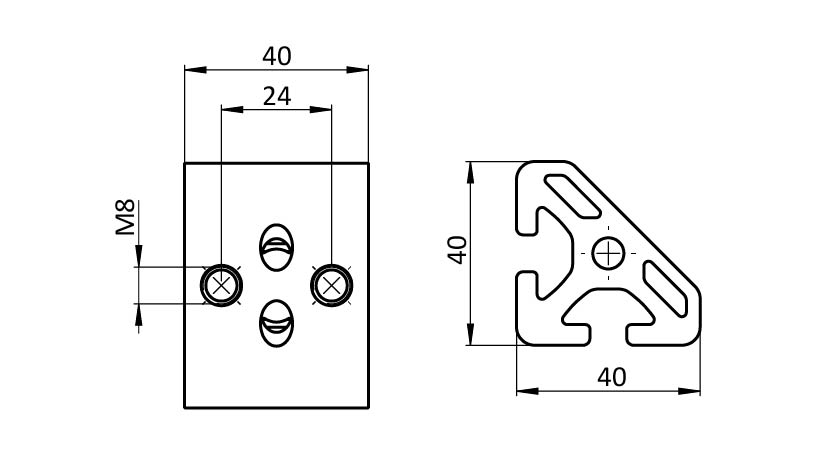

Angle Element T1 40, 45° – technical drawing

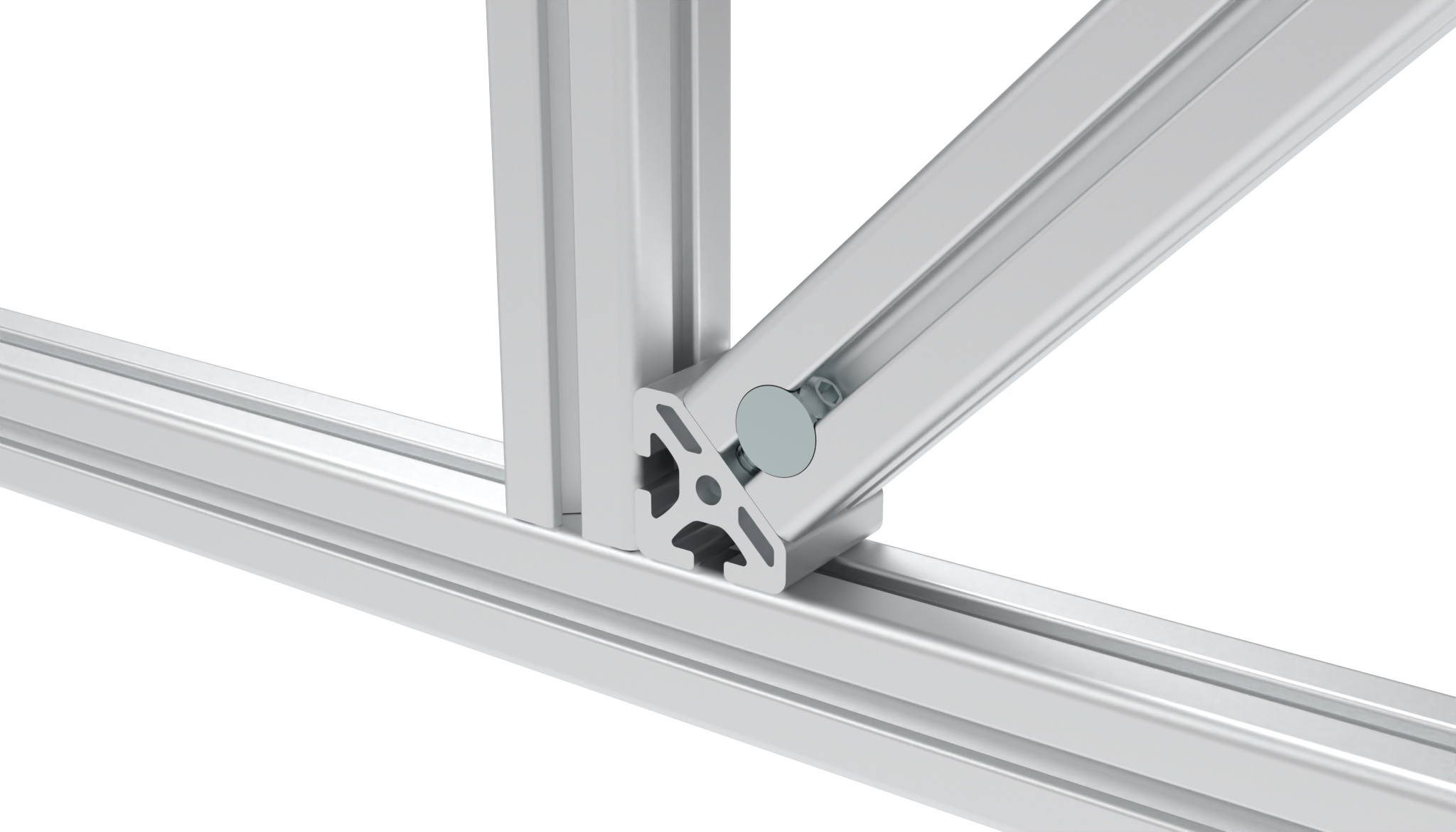

Angle Element T1 40, 45° – application example

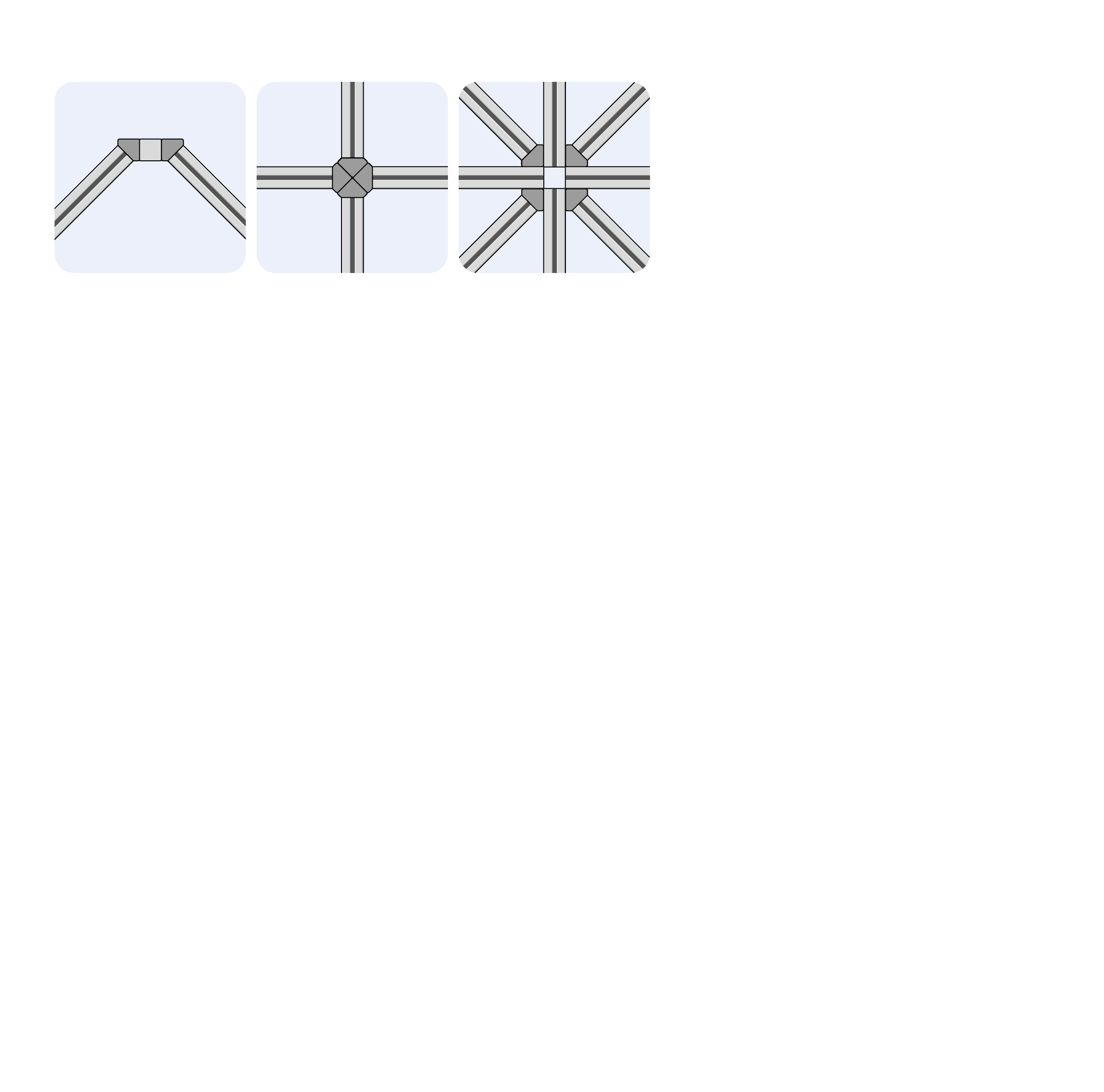

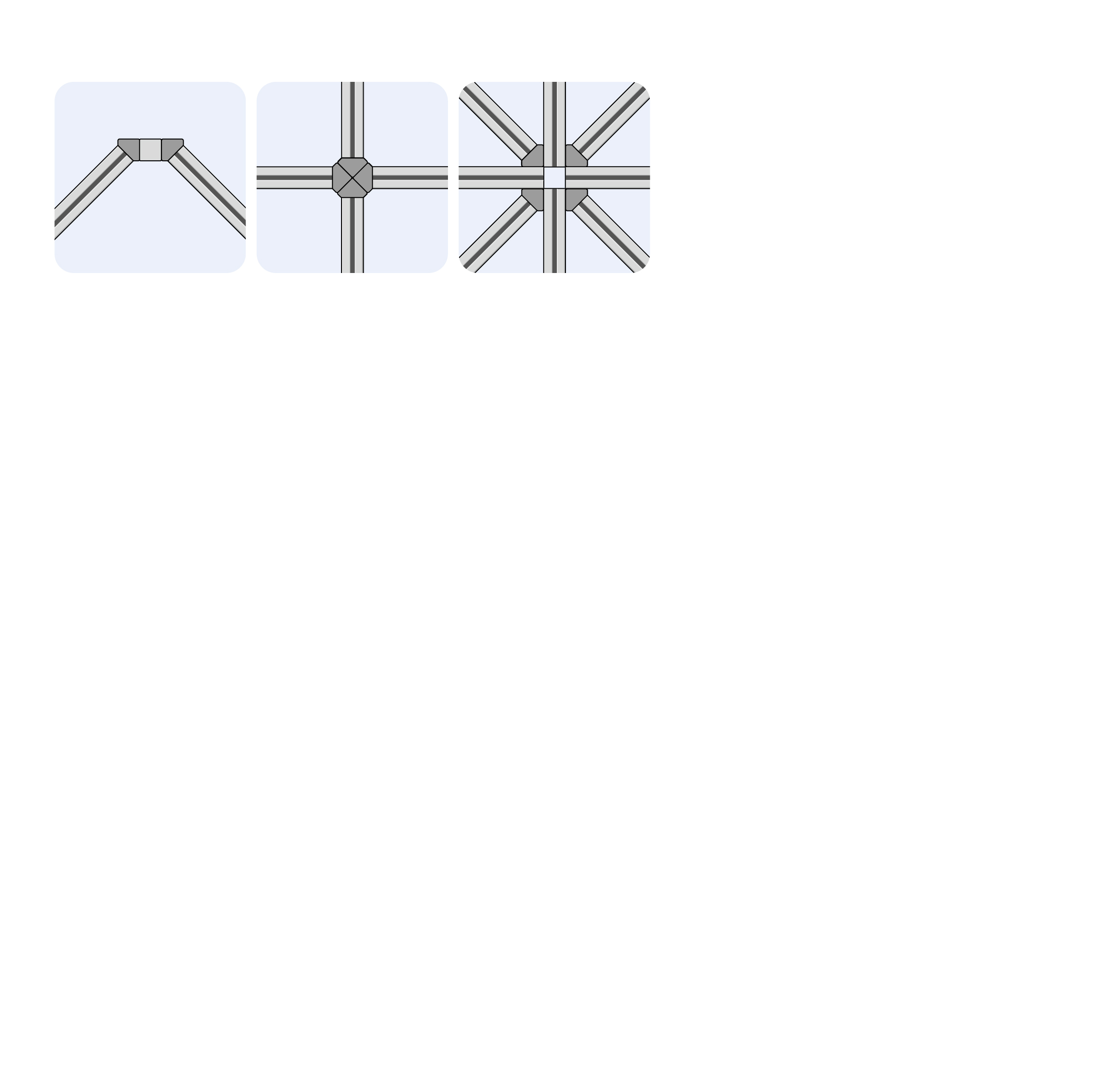

Angle Element T1 40, 45° – assembly graphic

€0.00

Profile

I

Slot N (mm)

8

Part #: 093WS40645N08

Pack Quantity: 1 piece

Description:
To mount a profile as bracing at a 45° angle without miter cut

Material:
Aluminum

Surface:
Anodized

Color:
Alu color

Tip:
Compatible Cover Cap 40 x 40 45° see 091048 (black) / 091048S01 (gray)

Delivery Countries:
Worldwide

Pack Quantity:	1 piece
Model:	Aluminum
Weight (g):	73.2
ERP Number:	169446

Variants

Part #	Profile	Slot N (mm)	CAD
093WS40645N08 New	I	8

Classifications

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 76169990990
Customs Tariff Number Export: 76169990

Certificates

Tags

Profile Type	Profile Type I
Profile Form	T-slot Profiles
