Door Stop with Magnetic Catch (Set)

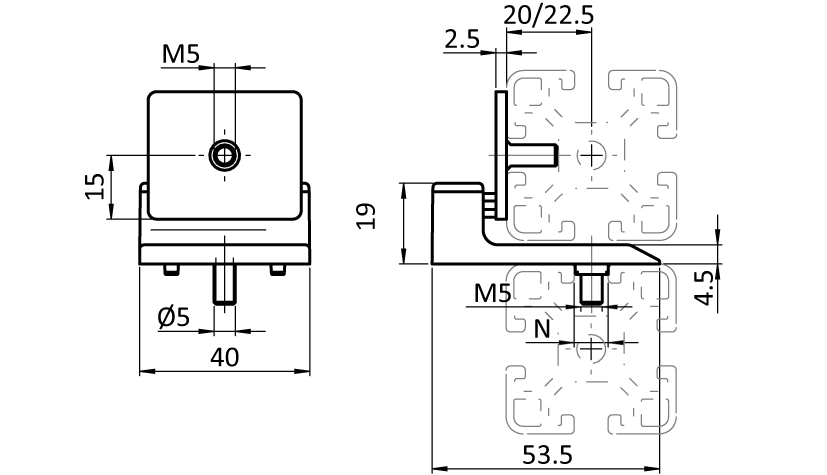

Door Stop with Magnetic Catch (Set) – technical drawing

Door Stop with Magnetic Catch (Set) – application example

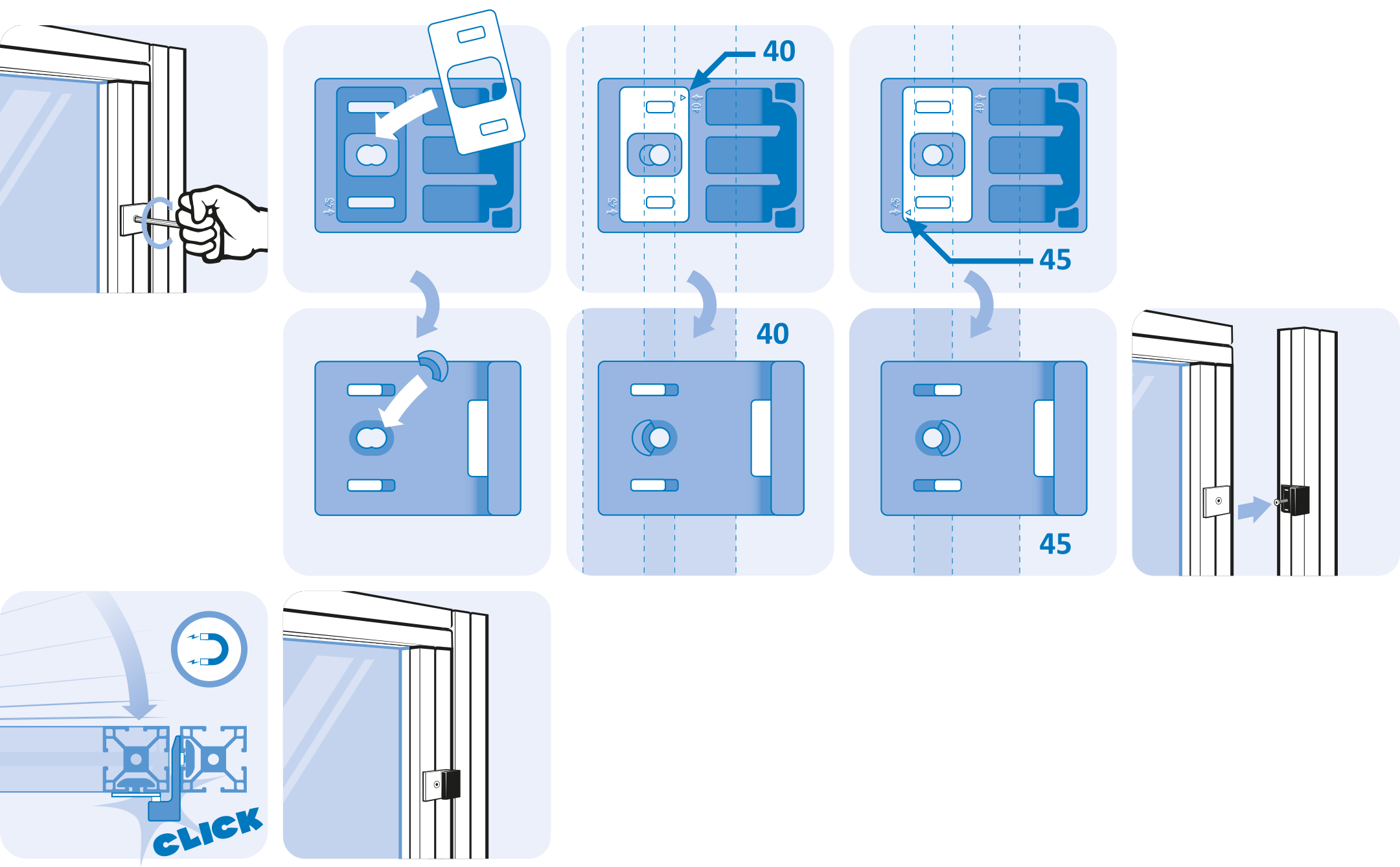

Door Stop with Magnetic Catch (Set) – assembly graphic

€0.00

Slot N (mm)

8 / 10

Locking Force (N)

30

Part #: 093111

Pack Quantity: 10 pieces

Description:
Easy to mount stop for doors and flaps

Material:
Door stop: Plastic PA, glass fiber reinforced
Magnet: Neodym
Counter Plate: Steel
Locating pin: Zinc die-cast
Screws: Steel
Fixation element: Plastic PA, glass fiber reinforced

Surface:
Magnet: Plain
Counter Plate: Zinc plated
Locating pins: Plain
Screws: Zinc plated

Color:
Door stop: Black
Fixation element: Black

Set:
1 Door stop
1 Counter Plate
1 Locating pin
2 Screws DIN EN ISO 10642 (DIN 7991) - M5 x 14,
1 Fixation element

Specials:
Other colors on request

Delivery Countries:
Worldwide
