Bridge Handle 122

Product information "Bridge Handle 122"

Color:
Black

Delivery Countries:
Worldwide

Description:

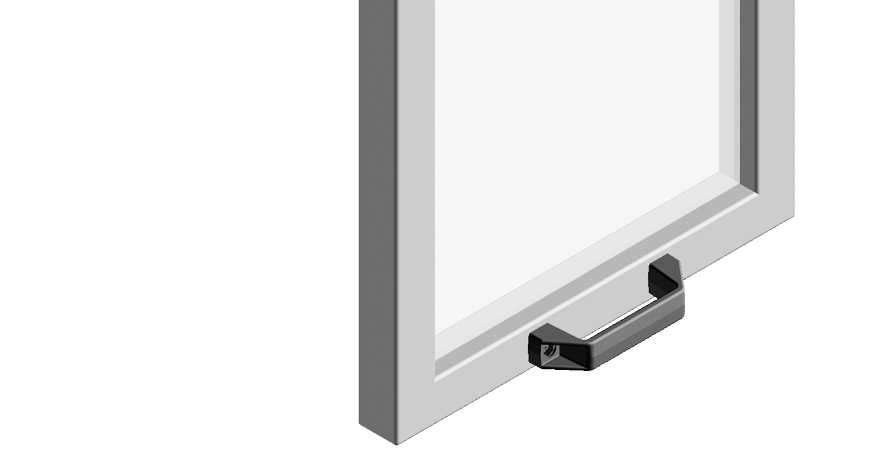

To mount on doors, flaps and aluminum profiles

Material:
Plastic PA, glass fiber reinforced

Specials:
Other colors on request

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23010103
(ECLASS 7.0): 23010103
(ECLASS 8.0): 23010103
(ECLASS 9.0): 23010103
(ECLASS 10.0): 23010103
(ECLASS 11.0): 23010103
(ECLASS 12.0): 23010103
(ECLASS 13.0): 23010103
Fastening: From the front, using socket head screws; from the back using inserted hexagon nuts or hexagon cap screws
Model: Plastic PA, 122 mm
Pack Quantity: 10 pieces
Weight (g): 125.0

Variants

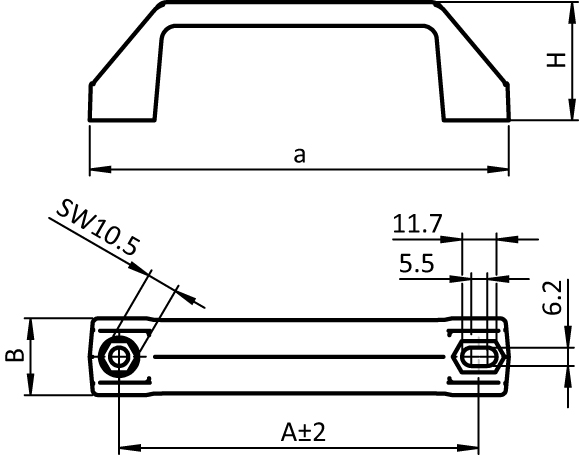

Product ID B (mm) for Nut a (mm) for Screw H (mm) A (mm)
092001 26.0 SW10 (M6) 142.0 M6 40.0 122.0
