Door Stop with EPDM Damper (Set)

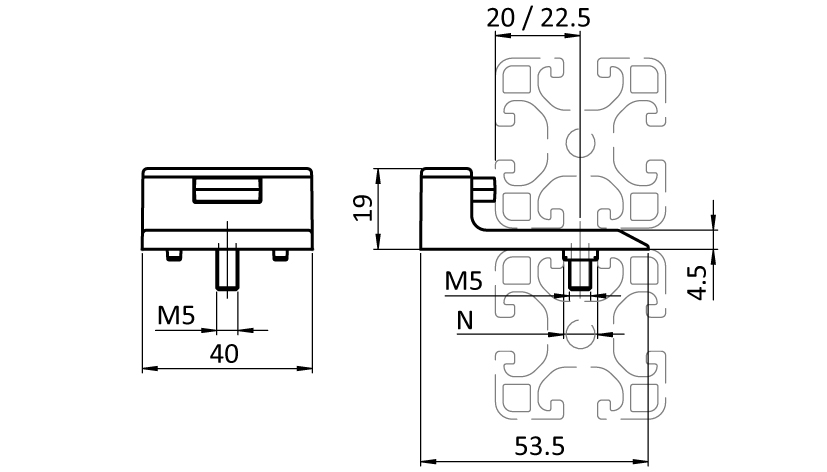

Door Stop with EPDM Damper (Set) – technical drawing

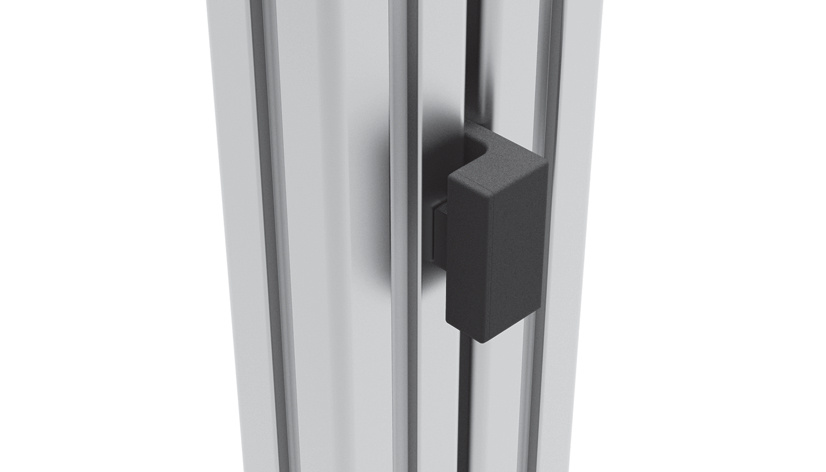

Door Stop with EPDM Damper (Set) – application example

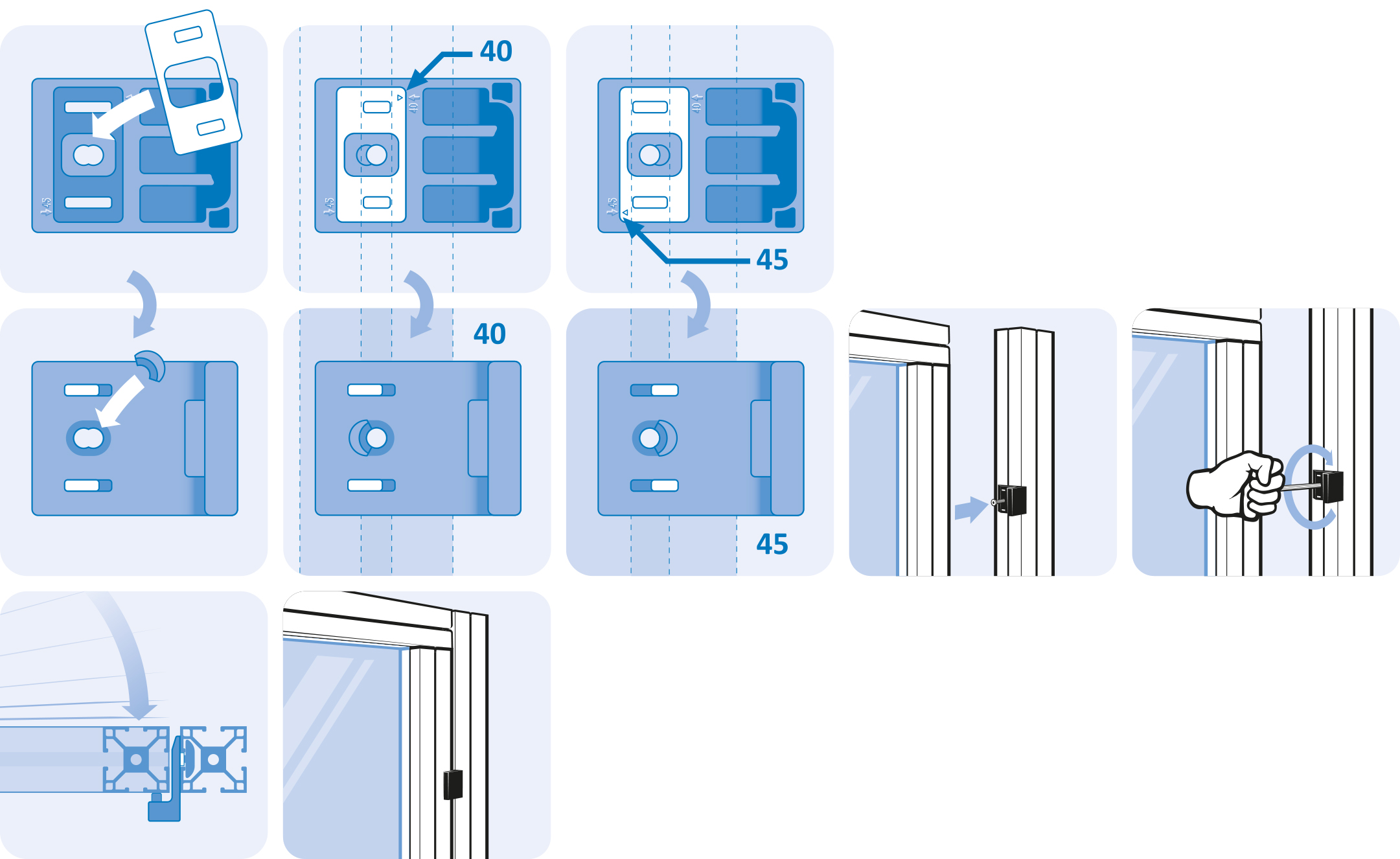

Door Stop with EPDM Damper (Set) – assembly graphic

€0.00

Slot N (mm)

8 / 10

Part #: 093110

Pack Quantity: 10 pieces

Description:
Easy to mount stop for doors and flaps

Material:
Door stop: Plastic PA, glass fiber reinforced
Damper: EPDM, ≈ 70 Shore A
Locating pin: Zinc die-cast
Screw: Steel
Fixation element: Plastic PA, glass fiber reinforced

Surface:
Locating pins: Plain
Screw: Zinc plated

Color:
Door stop: Black
Damper: Black
Fixation element: Black

Set:
1 Door stop with EPDM Damper
1 Locating pin
1 Screw DIN EN ISO 10642 (DIN 7991) - M5 x 14,
1 Fixation element

Specials:
Other colors on request

Delivery Countries:
Worldwide
