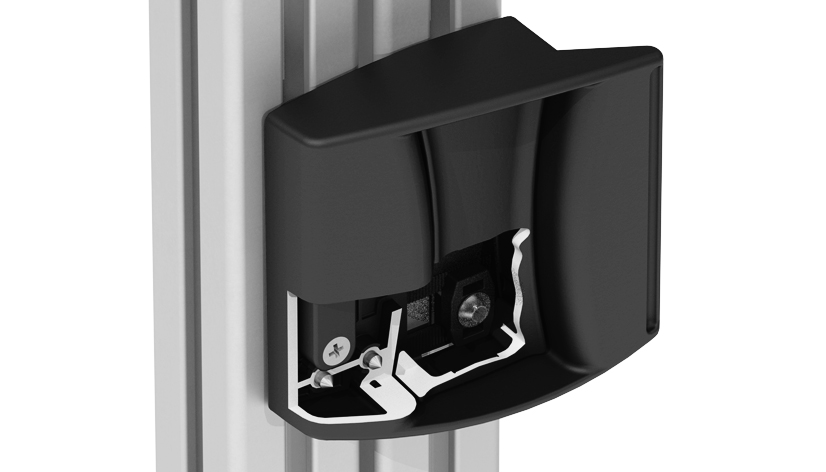

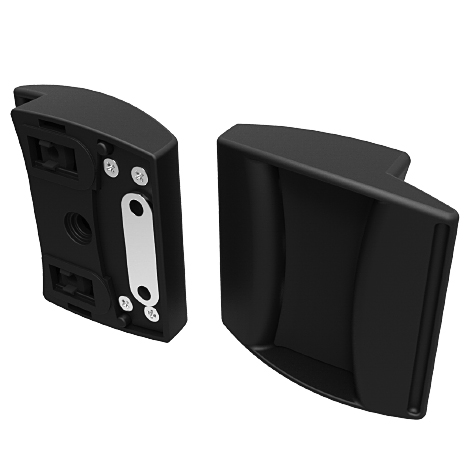

Magnetic Catch Handle COMPACT

Product information "Magnetic Catch Handle COMPACT"

Color:
Catch handle: Black
Buffer: Black

Delivery Countries:
Worldwide

Description:
Quick fastener for doors; adjustable

Material:
Catch handle: Plastic PA, glass fiber reinforced
Buffer: TPE, ≈ 90 Shore A
Magnet: Neodymium
Spring: Stainless steel
Counter plate: Steel

Specials:
Other colors on request

Surface:
Spring: Plain
Counter plate: Zinc plated
(ECLASS 6.0): 23250102
(ECLASS 7.0): 23250103
(ECLASS 8.0): 23250103
(ECLASS 9.0): 23250103
(ECLASS 10.0): 23250103
(ECLASS 11.0): 23250103
(ECLASS 12.0): 23250103
(ECLASS 13.0): 23250103

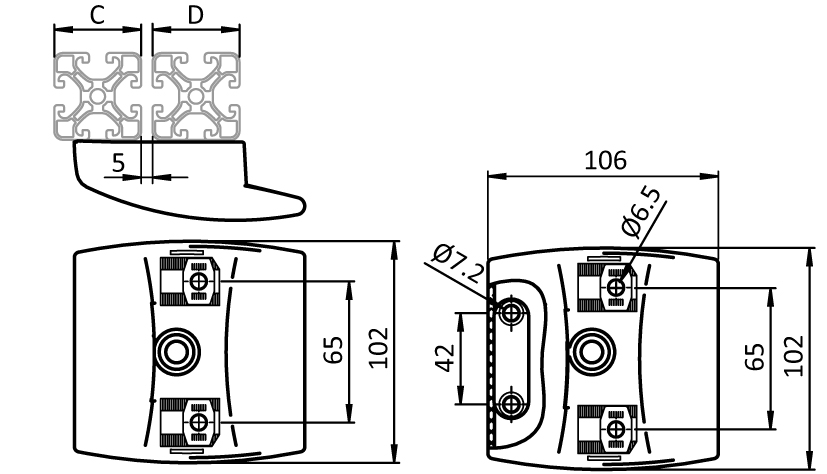

C (D) (mm): 30 (38 - 1.5", 40, 45, 50, 60); 40 (38 - 1.5", 40, 45, 50, 60); 45 (38 - 1.5", 40, 45, 50); 50 (38 - 1.5", 40, 45, 50); 60 (30, 38 - 1.5", 40)
Customs Tariff Number Export: 39269097
Fastening: Catch handle: From the front with using cylinder or button head screws M6 Counter plate: From the front with countersunk M5
Model: Plastic PA
Pack Quantity: 10 pieces
Weight (g): 168.0
Zolltarifnummer: 39269097900
pA Number: 134963

Variants

Product ID Locking Force
0957601 25 N

CAD Downloads

Certificates
