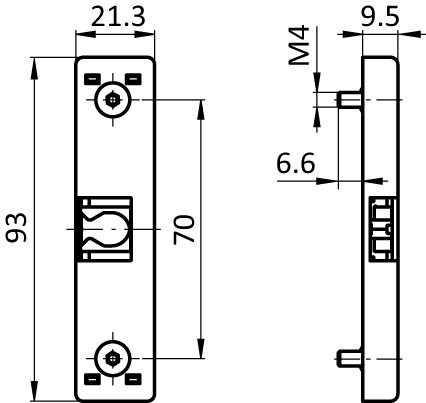

Door Latch (Set)

Product information "Door Latch (Set)"

Color:
Black

Counter Screw:
(not included in delivery) 1 cylinder head screw ISO 4762 / DIN EN ISO 4762 (DIN 912) - M6 - thread lengh depending on gap distance and slot depth, screw head dives competely into the door latch

Delivery Countries:
Worldwide

Description:

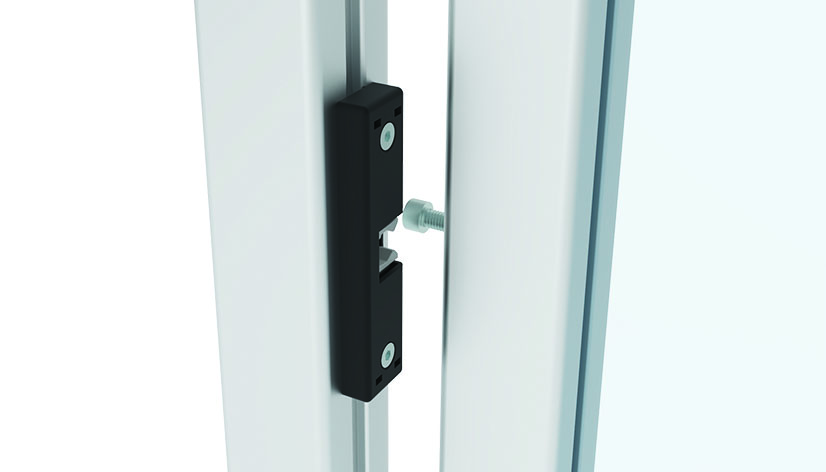

Quick fastener for swing doors, to be mountend in a min. 12 mm gap between door and post

Material:
Door latch: Zinc die-cast
Cover cap: Plastic PA, glass fiber reinforced
2 countersunk screws M4: Steel

Set:
1 door latch,
2 screws DIN 7991 (ISO 10642) - M4 x 16

Specials:
Other materials, other colors on request

Surface:
Door latch: Plain
2 countersunk screws M4: Zinc plated

Zolltarifnummer:
83024110000
(ECLASS 6.0): 23250190
(ECLASS 7.0): 23250190
(ECLASS 8.0): 23250190
(ECLASS 9.0): 23250190
(ECLASS 10.0): 23250190
(ECLASS 11.0): 23250190
(ECLASS 12.0): 23250190
(ECLASS 13.0): 23250190
Model: Zinc die-cast
Pack Quantity: 10 sets
Weight (g): 51.0

Variants

Product ID Locking Force
093039 ≈ 50 N
