Bridge Handle with Cover Cap

Product information "Bridge Handle with Cover Cap"

Color:
Black

Delivery Countries:
Worldwide

Description:

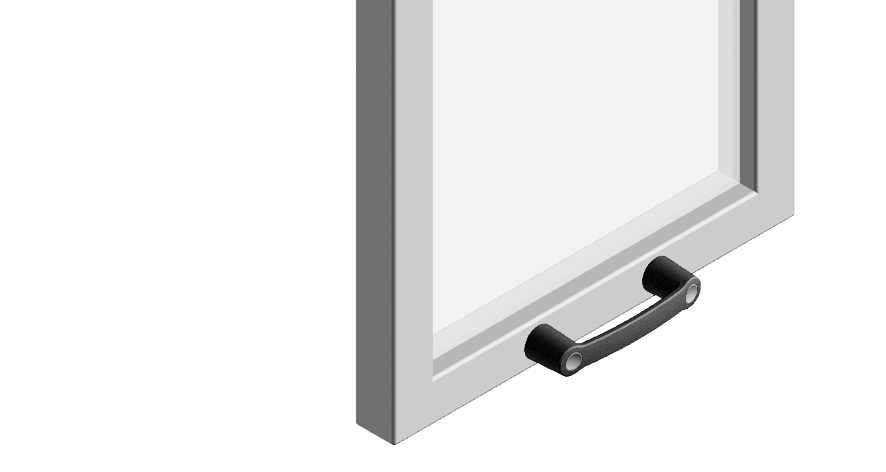

To mount on doors, flaps and aluminum profiles

Material:
Plastic PA, glass fiber reinforced

Specials:
Other colors on request

Tip:
Dimensions in brakets apply when assembled
(ECLASS 6.0): 23010103
(ECLASS 7.0): 23010103
(ECLASS 8.0): 23010103
(ECLASS 9.0): 23010103
(ECLASS 10.0): 23010103
(ECLASS 11.0): 23010103
(ECLASS 12.0): 23010103
(ECLASS 13.0): 23010103
Customs Tariff Number Export: 39269097
Fastening: From the front, using socket head screws
Model: Plastic PA, with plain bore and cover caps
Pack Quantity: 10 pieces
Weight (g): 32.0
Zolltarifnummer: 39269097900
pA Number: 105365

Variants

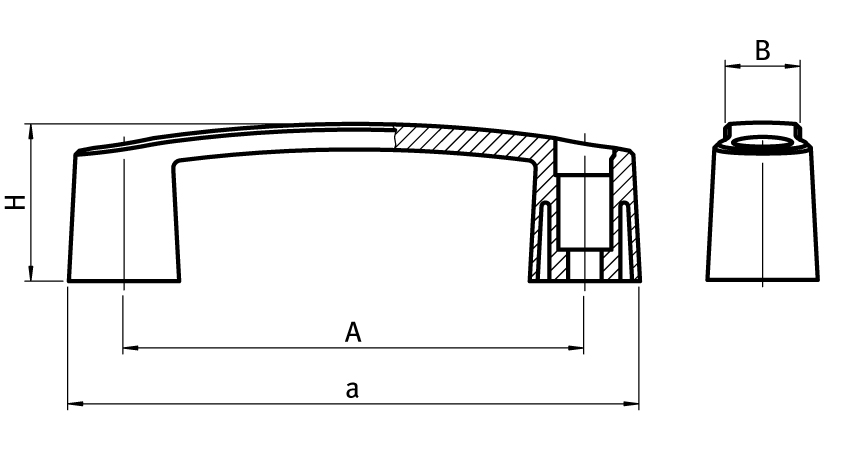

Product ID a (mm) H (mm) for Screw B (mm) A (mm)
12093B65 120.0 35.0 M6 17.0 94.0
12117B85 145.0 40.0 M8 19.0 117.0
12132B85 163.0 45.0 M8 20.0 132.0
12179B85 213.0 50.0 M8 22.0 179.0
