Magnetic Catch 30 (Set)

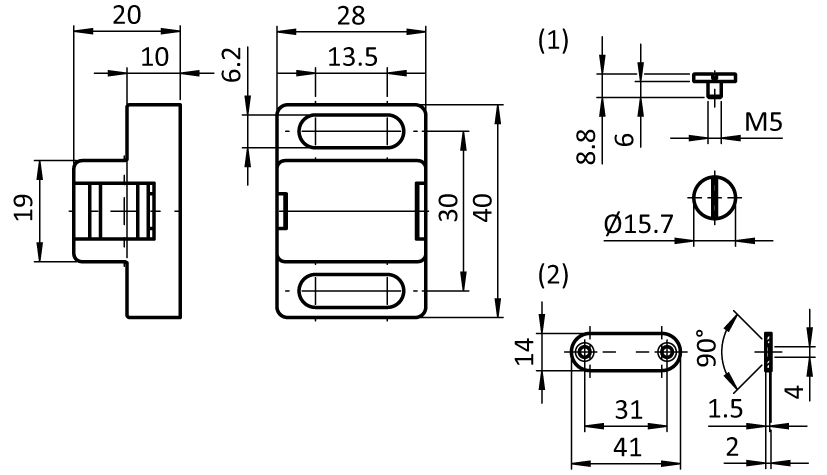

Magnetic Catch 30 (Set) – technical drawing

Magnetic Catch 20 (Set) – application example

Magnetic Catch 20 (Set) – assembly graphic

€0.00

Color

Black

Gray ≈ RAL 7042

Set

Set (1)

Set (2)

Locking Force

Approx. 20 N front / 10 N back

Part #: 093044

Pack Quantity: 10 pieces

Description:
A quick locking device for doors, adaptable to the thickness of the panel units

Material:
Magnetic catch: Plastic PA, glass fiber reinforced
Assembly set: Steel

Surface:
Assembly set: Zinc plated

Color:
Magnetic catch: Black, gray

Fastening:
Magnetic catch: using M6 screws
Counter plate: using M4 countersunk screws

Set 1:
1 magnetic catch 30,
1 flat head screw DIN 921 - M5 x 6

Set 2:
1 magnetic catch 30,
1 flat head screw DIN 921 - M5 x 6,
1 counter plate 14 x 41 x 2 mm

Specials:
ESD electrostatical discharging, other sizes, other colors on request

Delivery Countries:
Worldwide

Pack Quantity:	10 pieces
Model:	Plastic PA
Weight (g):	39.0
ERP Number:	127651

Variants

Part #	Color	Set	Locking Force
093044	Black	Set (2)	Approx. 20 N front / 10 N back
093044S01	Gray ≈ RAL 7042	Set (2)	Approx. 20 N front / 10 N back
093040	Black	Set (1)	Approx. 20 N front / 10 N back
093040S09	Gray ≈ RAL 7042	Set (1)	Approx. 20 N front / 10 N back
