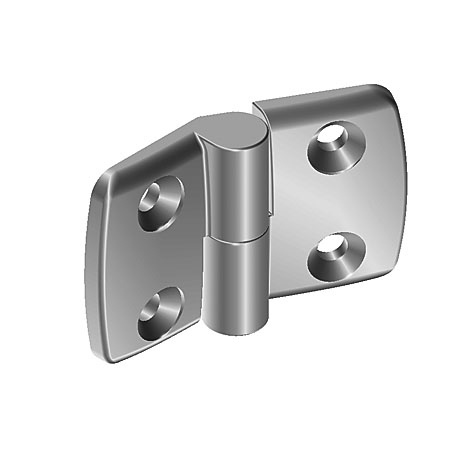

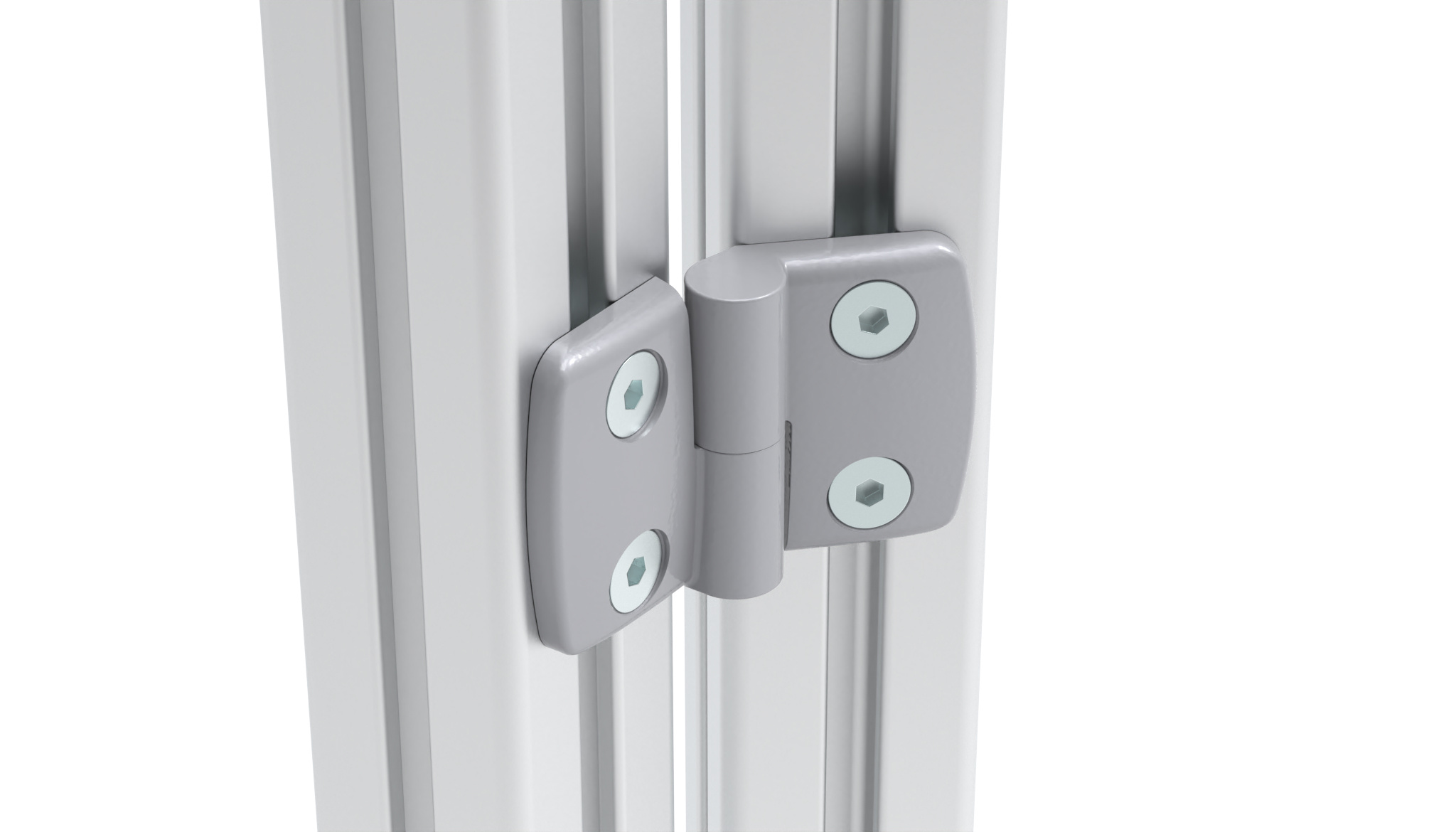

Aluminum Die-cast Combi Hinge 35, Detachable, Alu Color

Product information "Aluminum Die-cast Combi Hinge 35, Detachable, Alu Color"

Color:
Wing: Alu color

Delivery Countries:
Worldwide

Description:

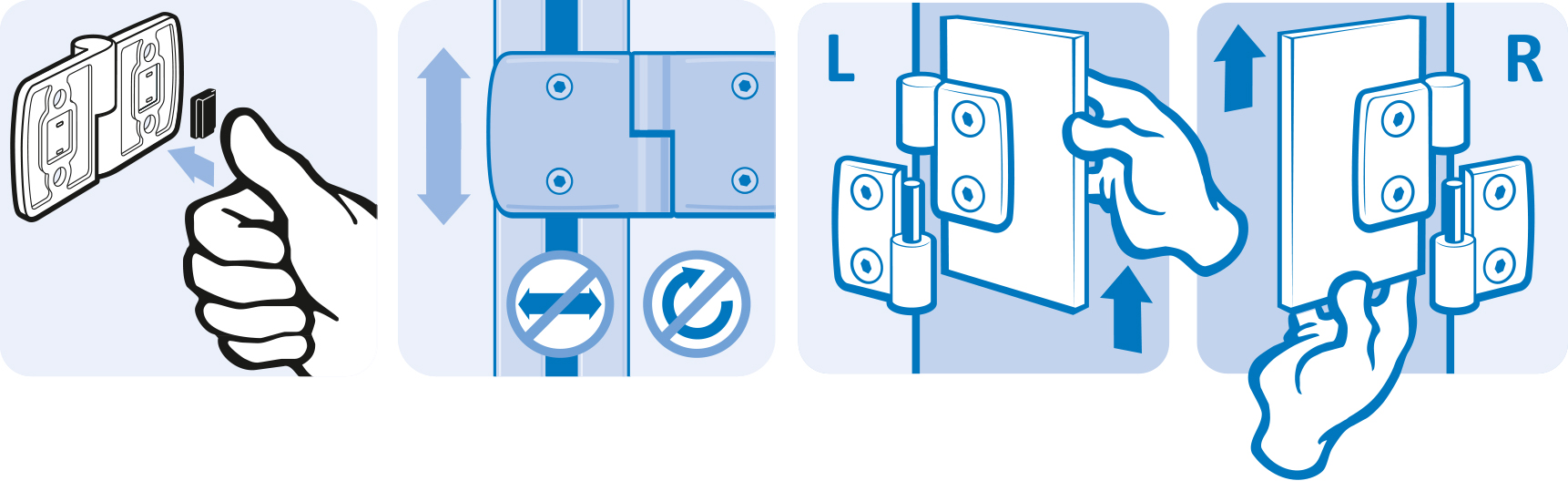

To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pin

Material:
Wings: Die-cast aluminum
Pin: Stainless steel
Bearings: PTFE

Surface:
Wings: Powder coated
Pin: Plain

Tip:
Compatible Central Bolts see 095AN05

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Fastening: From the front, using M6 countersunk screws
Model: Detachable
Pack Quantity: 10 pieces
Weight (g): 72.0

Variants

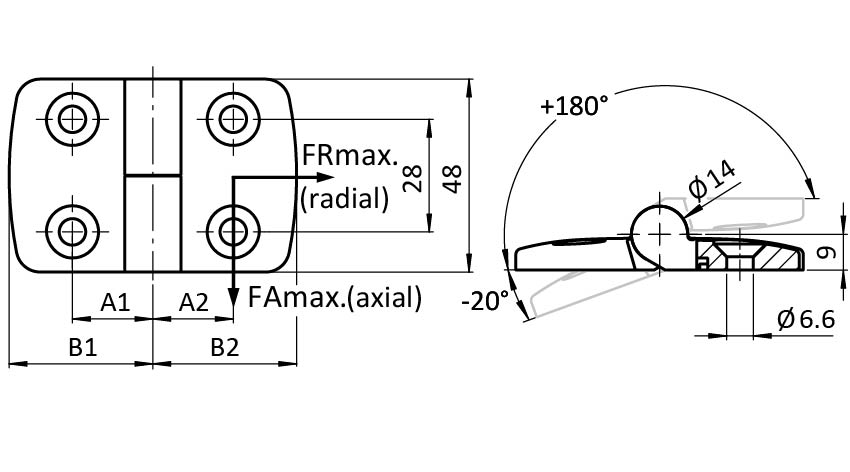

Product ID A1 (mm) Version FAmax (N) B1 (mm) B2 (mm) A2 (mm) Combination FRmax (N)
095A3525L 20.0 L: Left 250 36.0 26.0 15.0 35 / 25 410
095A3525R 15.0 R: Right 250 26.0 36.0 20.0 35 / 25 410
095A3530L 20.0 L: Left 280 36.0 29.5 17.5 35 / 30 450
095A3530R 17.5 R: Right 280 29.5 36.0 20.0 35 / 30 450
095A3535L 20.0 L: Left 250 36.0 36.0 20.0 35 / 35
095A3535R 20.0 R: Right 250 36.0 36.0 20.0 35 / 35
095A3540L 20.0 L: Left 36.0 38.5 22.5 35 / 40 550
