Aluminum Die-cast Hinges

Die-cast aluminum hinges from FATH combine low weight with high load-bearing capacity - ideal for aluminum profile structures in mechanical engineering. The die-cast aluminum components offer impressive dimensional accuracy and good corrosion resistance. For applications where aluminum die casting is the better choice than zinc die casting.

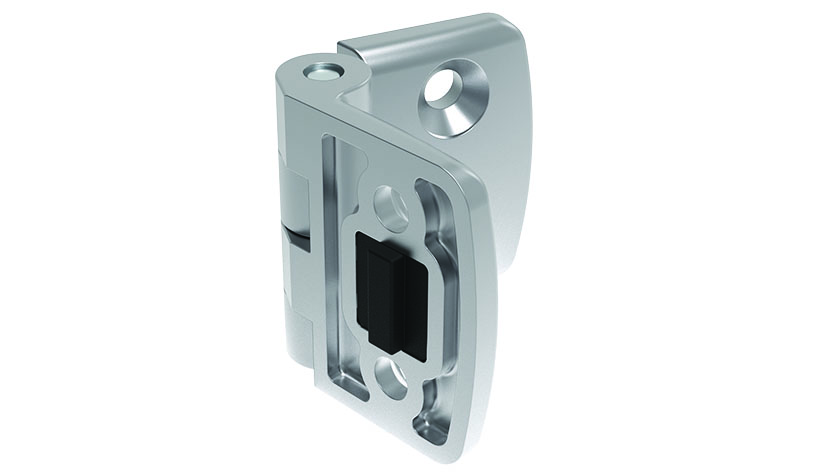

Combi Hinges

Combi Hinges
Aluminum Die-cast Hinges 45

Aluminum Die-cast Hinges 45
Heavy-duty Hinges, Aluminum Die-cast

Heavy-duty Hinges, Aluminum Die-cast

Filter products

Aluminum Die-Cast Combi Hinge 20 MINI, Non-detachable, Alu color – product image

Aluminum Die-Cast Combi Hinge 20 MINI, Non-detachable, Alu color

Version: Non-detachable Combination: 20 / 20 FAmax (N): 215 FRmax (N): 275

Description:To hinge panels or aluminum profilesMaterial:Wings: Aluminum die-cast Pin: Stainless steelSurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M4 countersunk screwsDelivery Countries:Worldwide

€0.00
Aluminum Die-cast Combi Hinge 25, Detachable, Alu Color – product image of all versions

Aluminum Die-cast Combi Hinge 25, Detachable, Alu Color

Version: L: Left B1 (mm): 26.0 B2 (mm): 26.0 Combination: 25 / 25 FAmax (N): 250 FRmax (N): 410 A1 (mm): 15.0 A2 (mm): 15.0

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsTip:Compatible Central Bolts see 095AN05Delivery Countries:Worldwide

€0.00
Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color – product image of all versions

Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color

Version: Non-detachable B1 (mm): 26.0 B2 (mm): 26.0 Combination: 25 / 25 FAmax (N): 215 FRmax (N): 275 A1 (mm): 15.0 A2 (mm): 15.0

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsTip:Compatible Central Bolts see 095AN05Delivery Countries:Worldwide

€0.00
Aluminum Die-cast Combi Hinge 30, Detachable, Alu Color – product image of all versions

Aluminum Die-cast Combi Hinge 30, Detachable, Alu Color

Version: L: Left B1 (mm): 29.5 B2 (mm): 29.5 Combination: 30 / 30 FAmax (N): 280 FRmax (N): 450 A1 (mm): 17.5 A2 (mm): 17.5

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsTip:Compatible Central Bolts see 095AN05Delivery Countries:Worldwide

€0.00
Aluminum Die-cast Combi Hinge 30, Non-detachable, Alu Color – product image of all versions

Aluminum Die-cast Combi Hinge 30, Non-detachable, Alu Color

Version: Non-detachable B1 (mm): 29.5 B2 (mm): 29.5 Combination: 30 / 30 FAmax (N): 225 FRmax (N): 325 A1 (mm): 17.5 A2 (mm): 17.5

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsTip:Compatible Central Bolts see 095AN05Delivery Countries:Worldwide

€0.00
Aluminum Die-cast Combi Hinge 35, Detachable, Alu Color – product image of all versions

Aluminum Die-cast Combi Hinge 35, Detachable, Alu Color

Version: L: Left B1 (mm): 36.0 B2 (mm): 36.0 Combination: 35 / 35 FAmax (N): 250 FRmax (N): 500 A1 (mm): 20.0 A2 (mm): 20.0

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsTip:Compatible Central Bolts see 095AN05Delivery Countries:Worldwide

€0.00
Aluminum Die-cast Combi Hinge 35, Non-detachable, Alu Color – product image of all versions

Aluminum Die-cast Combi Hinge 35, Non-detachable, Alu Color

Version: Non-detachable B1 (mm): 36.0 B2 (mm): 36.0 Combination: 35 / 35 FAmax (N): 225 FRmax (N): 325 A1 (mm): 20.0 A2 (mm): 20.0

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsTip:Compatible Central Bolts see 095AN05Delivery Countries:Worldwide

€0.00
Aluminum Die-cast Combi Hinge 38 - 1.5", Non-detachable, Alu Color – product image

Aluminum Die-cast Combi Hinge 38 - 1.5", Non-detachable, Alu Color

B1 (mm): 38.5 B2 (mm): 38.5 Combination: 38 - 1.5" / 38 - 1.5" FAmax (N): 250 FRmax (N): 400 A1 (mm): 21.5 A2 (mm): 21.5

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Aluminum die-cast Pin: Stainless steelSurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsDelivery Countries:North America

€0.00
Aluminum Die-cast Combi Hinge 40, Detachable, Alu Color – product image of all versions

Aluminum Die-cast Combi Hinge 40, Detachable, Alu Color

Version: L: Left B1 (mm): 38.5 B2 (mm): 38.5 Combination: 40 / 40 FAmax (N): 200 FRmax (N): 550 A1 (mm): 22.5 A2 (mm): 22.5

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsTip:Compatible Central Bolts see 095AN05Delivery Countries:Worldwide

€0.00
Aluminum Die-cast Combi Hinge 40, Non-detachable, Alu Color – product image of all versions

Aluminum Die-cast Combi Hinge 40, Non-detachable, Alu Color

Version: Non-detachable B1 (mm): 38.5 B2 (mm): 38.5 Combination: 40 / 40 FAmax (N): 250 FRmax (N): 400 A1 (mm): 22.5 A2 (mm): 22.5

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsTip:Compatible Central Bolts see 095AN05Delivery Countries:Worldwide

€0.00
Aluminum Die-cast Combi Hinge 45, Detachable, Alu Color – product image of all versions

Aluminum Die-cast Combi Hinge 45, Detachable, Alu Color

Version: L: Left B1 (mm): 43.5 B2 (mm): 43.5 Combination: 45 / 45 FAmax (N): 200 FRmax (N): 550 A1 (mm): 25.0 A2 (mm): 25.0

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsTip:Compatible Central Bolts see 095AN05Delivery Countries:Worldwide

€0.00
Aluminum Die-cast Combi Hinge 45, Non-detachable, Alu Color – product image of all versions

Aluminum Die-cast Combi Hinge 45, Non-detachable, Alu Color

Version: Non-detachable B1 (mm): 43.5 B2 (mm): 43.5 Combination: 45 / 45 FAmax (N): 250 FRmax (N): 400 A1 (mm): 25.0 A2 (mm): 25.0

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsTip:Compatible Central Bolts see 095AN05Delivery Countries:Worldwide

€0.00
Aluminum Die-cast Combi Hinge 50, Detachable, Alu Color – product image of all versions

Aluminum Die-cast Combi Hinge 50, Detachable, Alu Color

Version: L: Left B1 (mm): 48.5 B2 (mm): 48.5 Combination: 50 / 50 FAmax (N): 175 FRmax (N): 550 A1 (mm): 27.5 A2 (mm): 27.5

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsTip:Compatible Central Bolts see 095AN05Delivery Countries:Worldwide

€0.00
Aluminum Die-cast Combi Hinge 50, Non-detachable, Alu Color – product image of all versions

Aluminum Die-cast Combi Hinge 50, Non-detachable, Alu Color

Version: Non-detachable B1 (mm): 48.5 B2 (mm): 48.5 Combination: 50 / 50 FAmax (N): 250 FRmax (N): 400 A1 (mm): 27.5 A2 (mm): 27.5

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsTip:Compatible Central Bolts see 095AN05Delivery Countries:Worldwide

€0.00
Aluminum Die-cast Combi Hinge 60, Detachable, Alu Color – product image of all versions

Aluminum Die-cast Combi Hinge 60, Detachable, Alu Color

Version: L: Left B1 (mm): 57.5 B2 (mm): 57.5 Combination: 60 / 60 FAmax (N): 150 FRmax (N): 575 A1 (mm): 32.5 A2 (mm): 32.5

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsTip:Compatible Central Bolts see 095AN05Delivery Countries:Worldwide

€0.00
Aluminum Die-cast Combi Hinge 60, Non-detachable, Alu Color – product image

Aluminum Die-cast Combi Hinge 60, Non-detachable, Alu Color

Version: Non-detachable B1 (mm): 57.5 B2 (mm): 57.5 Combination: 60 / 60 FAmax (N): 100 FRmax (N): 400 A1 (mm): 32.5 A2 (mm): 32.5

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorFastening:From the front, using M6 countersunk screwsTip:Compatible Central Bolts see 095AN05Delivery Countries:Worldwide

€0.00
Centering Bolt for Aluminum Die-Cast Combi Hinge – product image of all versions

Centering Bolt for Aluminum Die-Cast Combi Hinge

Slot N (mm): 5

Description:For aluminum die-cast combi hinges, each wing with a hole for centering boltsMaterial:Plastic PA, glass fiber reinforcedColor:BlackTip:Compatible Aluminum Die-cast Combi Hinge see 095A2525L et sq.Delivery Countries:Worldwide

€0.00
Aluminum Die-cast Hinge 45 – product image

Aluminum Die-cast Hinge 45

B1 (mm): 40.0 B2 (mm): 40.0 FAmax (N): 200 FRmax (N): 350 A1 (mm): 25.0 A2 (mm): 25.0

Description:To hinge panels or aluminum profilesMaterial:Wings: Aluminum die-cast Pin: Stainless steelSurface:Nickel-platedFastening:From the front, using M6 countersunk screwsSpecials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00

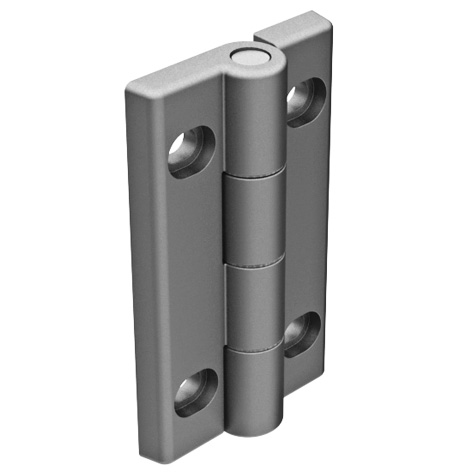

Heavy-duty Hinge – product image of all versions

Heavy-duty Hinge

A (mm): 35.0 B (mm): 58.0 Combination: 30 / 30

Description:For panels and aluminum profiles, with bearing system for boltMaterial:Wing: Aluminum die-cast Bolt: Stainless steel Bearings: PTFESurface:Wing: Laquered Bolt: PlainColor:Wing: Alu colorFastening:From the front, using socket head screws DIN 7984 - M6 or pan-head screws DIN EN ISO 7380 (34805) - M6Delivery Countries:Worldwide

€0.00
