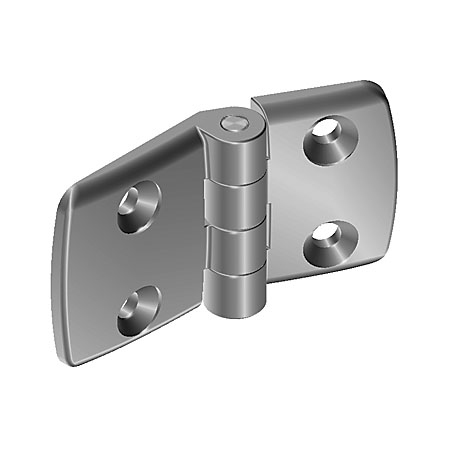

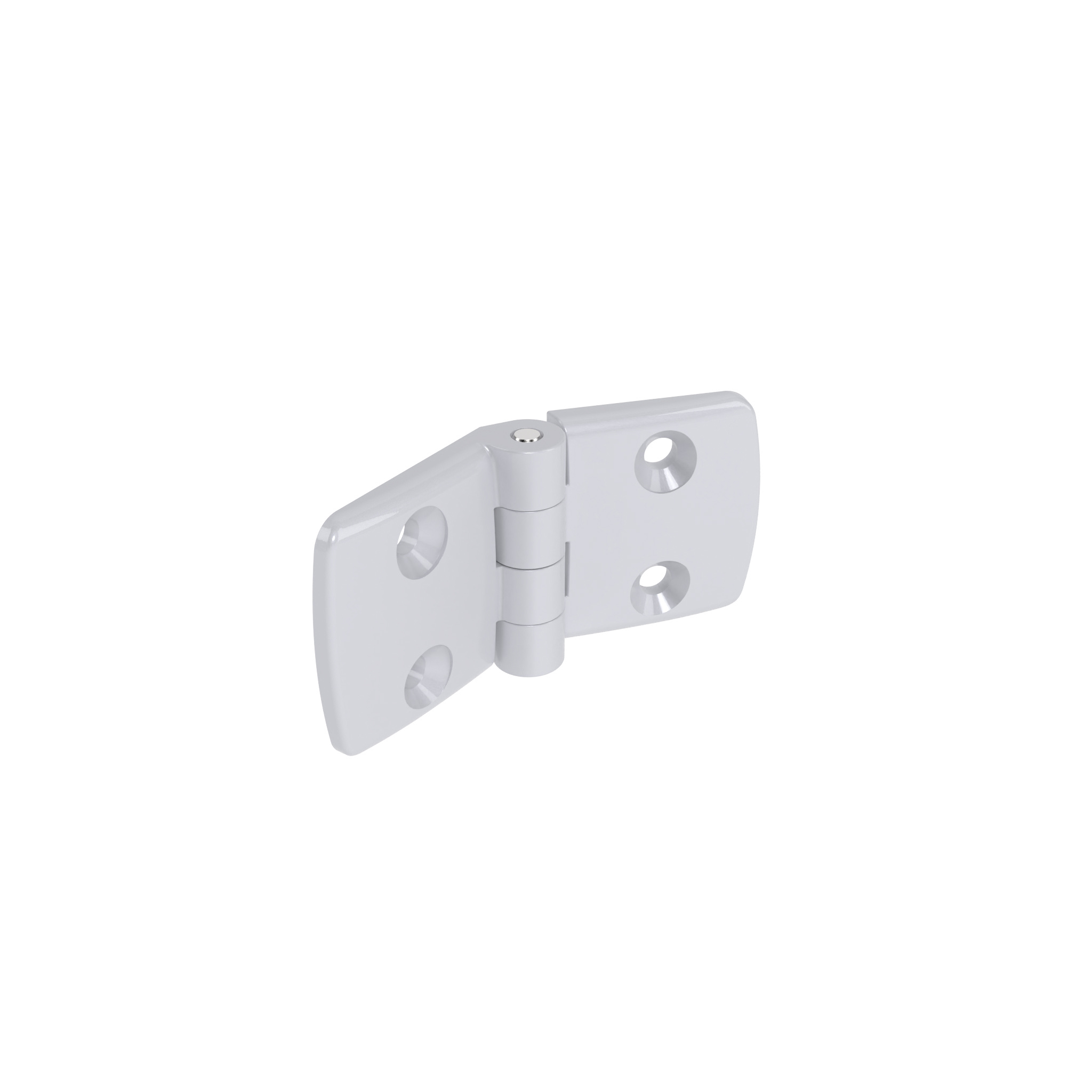

Aluminum Die-cast Combi Hinge 50, Non-detachable, Alu Color

Product information "Aluminum Die-cast Combi Hinge 50, Non-detachable, Alu Color"

Color:
Wing: Alu color

Delivery Countries:
Worldwide

Description:

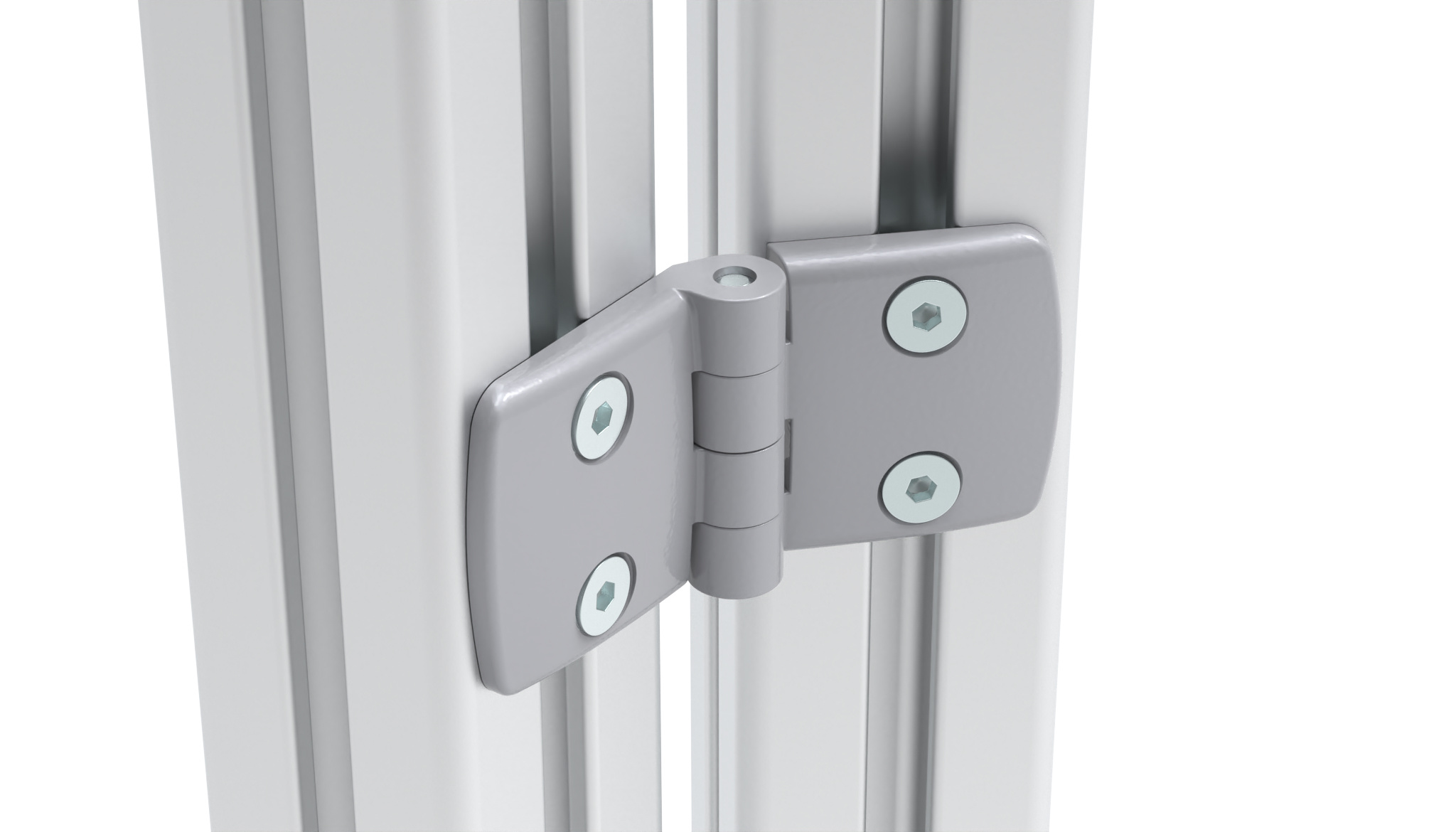

To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pin

Material:
Wings: Die-cast aluminum
Pin: Stainless steel
Bearings: PTFE

Surface:
Wings: Powder coated
Pin: Plain

Tip:

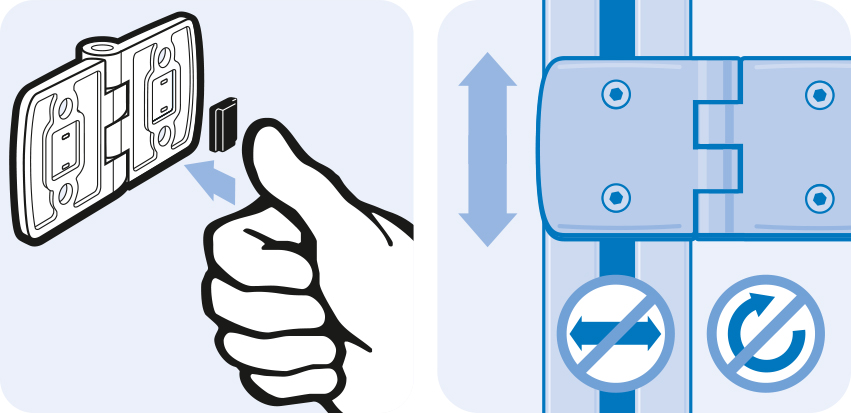

Compatible Central Bolts see 095AN05

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Fastening: From the front, using M6 countersunk screws
Model: Non-detachable
Pack Quantity: 10 pieces
Weight (g): 79.0

Variants

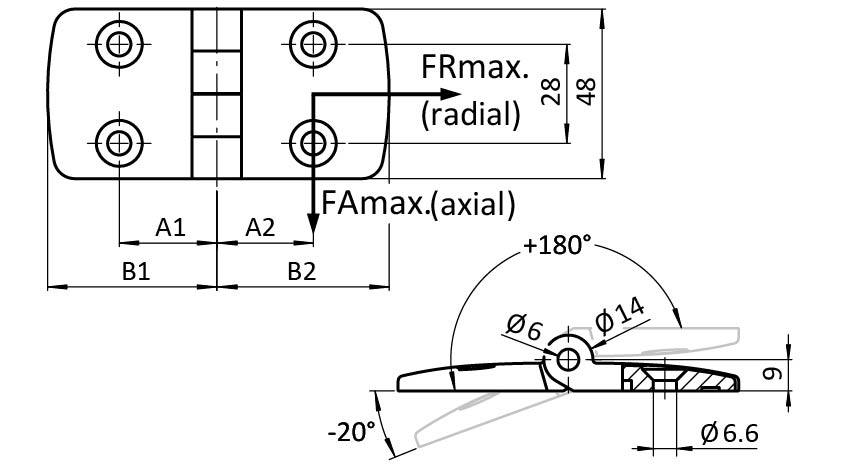

Product ID B1 (mm) A2 (mm) FRmax (N) B2 (mm) Combination A1 (mm) FAmax (N) Version
095A5050F 48.5 27.5 400 48.5 50 / 50 27.5 250 Non-detachable
095A5060F 48.5 32.5 400 57.5 50 / 60 27.5 250 Non-detachable
