Zinc Die-Cast Hinges

Filter products

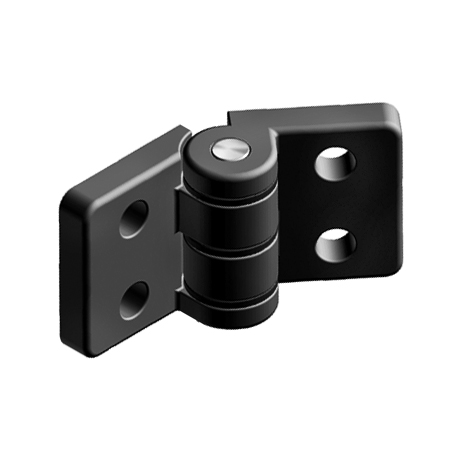

Zinc Die-Cast Hinge – product image of all versions

Zinc Die-Cast Hinge

Slot N (mm): - Combination: 40 / 40 FAmax (N): 650 FRmax (N): 1500 A1 (mm): 22.5 A2 (mm): 22.5

Description:To hinge panels or aluminum profilesMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coatedColor:BlackFastening:From the front, using M8 screwsSpecials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00

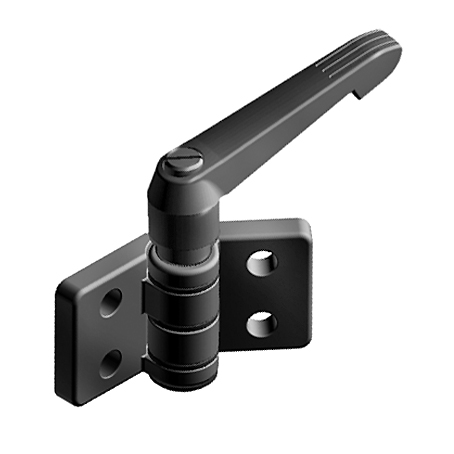

Zinc Die-Cast Hinge with Locking Lever – product image of all versions

Zinc Die-Cast Hinge with Locking Lever

Slot N (mm): - Combination: 40 / 40 FAmax (N): 650 FRmax (N): 1500 A1 (mm): 22.5 A2 (mm): 22.5

Description:To hinge panels or aluminum profiles; can be locked at any positionMaterial:Hinge: Zinc die-cast KIPP locking lever: Plastic PA Mechanism: SteelSurface:Hinge: Powder coated Mechanism: Zinc plated (RoHS conform)Color:Hinge: Black KIPP locking lever: Black Fastening:From the front, using M8 screwsSpecials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00

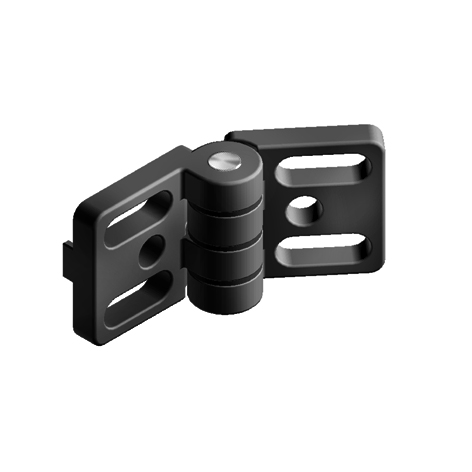

Zinc Die-Cast Hinge 30 EH – product image of all versions

Zinc Die-Cast Hinge 30 EH

Slot N (mm): - FAmax (N): 350 FRmax (N): 1000

Description:To hinge panels or aluminum profilesMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coatedColor:BlackFastening:From the front, using M6 screwsSpecials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00

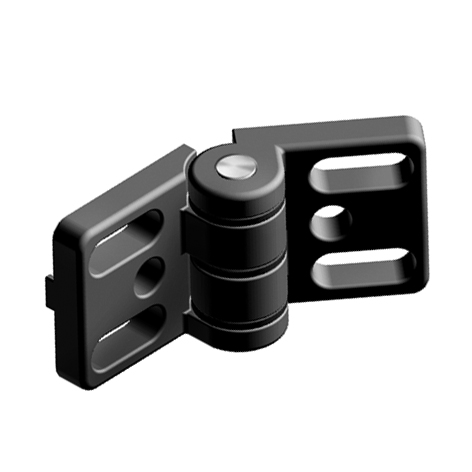

Zinc Die-Cast Hinge 40 EH – product image of all versions

Zinc Die-Cast Hinge 40 EH

Slot N (mm): - FAmax (N): 500 FRmax (N): 1200

Description:To hinge panels or aluminum profilesMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coatedColor:BlackFastening:From the front, using M8 screwsSpecials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00

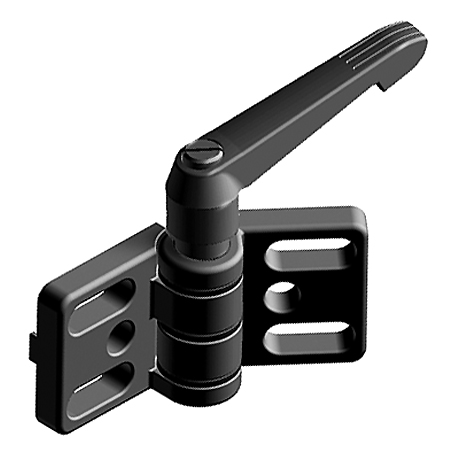

Zinc Die-Cast Hinge 40 EH with Locking Lever – product image of all versions

Zinc Die-Cast Hinge 40 EH with Locking Lever

Slot N (mm): - FAmax (N): 500 FRmax (N): 1200

Description:For panels and aluminum profiles, can be locked in any positionMaterial:Wings: Zinc die-cast KIPP locking lever: Plastic PA, glass fiber reinforced Mechanism: Steel, black zinc plated (RoHS conform)Surface:Powder coatedColor:BlackFastening:From the front, using M8 screwsSpecials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00

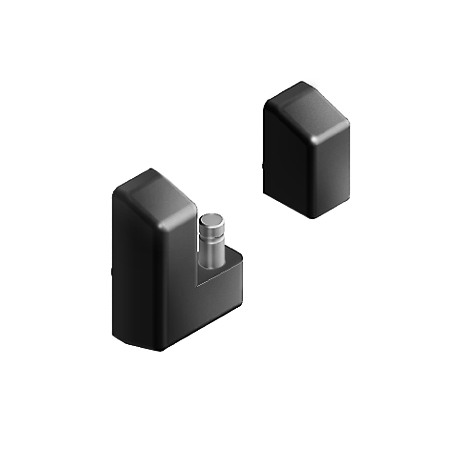

Mini Hinge – product image of all versions

Mini Hinge

Version: Left Hand, Lift off FAmax (N): 100 FRmax (N): 100

Description:Mini hinge for various applications, especially in limited spaceMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:LaqueredColor:BlackFastening:From the back, using M3 screwsDelivery Countries:Worldwide

€0.00
Metal Hinge 40 x 40 – product image

Metal Hinge 40 x 40

FAmax (N): 800 FRmax (N): 1500

Description:Sturdy hinge for right and left hand applicationMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coatedColor:BlackFastening:From the front, using countersunk screwsDelivery Countries:Worldwide

€0.00
Metal Hinge 50 x 50 – product image

Metal Hinge 50 x 50

FAmax (N): 1000 FRmax (N): 1800

Description:Sturdy hinge for right and left hand applicationMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coatedColor:BlackFastening:From the front, using countersunk screwsDelivery Countries:Worldwide

€0.00
Metal Hinge 50 x 63 – product image

Metal Hinge 50 x 63

FAmax (N): 1400 FRmax (N): 2200

Description:Sturdy hinge for right and left hand applicationMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coatedColor:BlackFastening:From the front, using countersunk screwsDelivery Countries:Worldwide

€0.00
Metal Hinge 50 x 76 – product image

Metal Hinge 50 x 76

FAmax (N): 600 FRmax (N): 1800

Description:Sturdy hinge for right and left hand applicationMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coatedColor:BlackFastening:From the front, using countersunk screwsDelivery Countries:Worldwide

€0.00
Metal Hinge 60 x 60 – product image

Metal Hinge 60 x 60

FAmax (N): 1400 FRmax (N): 2200

Description:Sturdy hinge for right and left hand applicationMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coatedColor:BlackFastening:From the front, using countersunk screwsDelivery Countries:Worldwide

€0.00
Metal Hinge 60 x 76 – product image

Metal Hinge 60 x 76

FAmax (N): 1200 FRmax (N): 2200

Description:Sturdy hinge for right and left hand applicationMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coatedColor:BlackFastening:From the front, using countersunk screwsDelivery Countries:Worldwide

€0.00
Metal Hinge 60 x 90 – product image

Metal Hinge 60 x 90

FAmax (N): 800 FRmax (N): 2200

Description:Sturdy hinge for right and left hand applicationMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coatedColor:BlackFastening:From the front, using countersunk screwsDelivery Countries:Worldwide

€0.00
Metal Hinge 60 x 120 – product image

Metal Hinge 60 x 120

FAmax (N): 700 FRmax (N): 2200

Description:Sturdy hinge for right and left hand applicationMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coatedColor:BlackFastening:From the front, using countersunk screwsDelivery Countries:Worldwide

€0.00

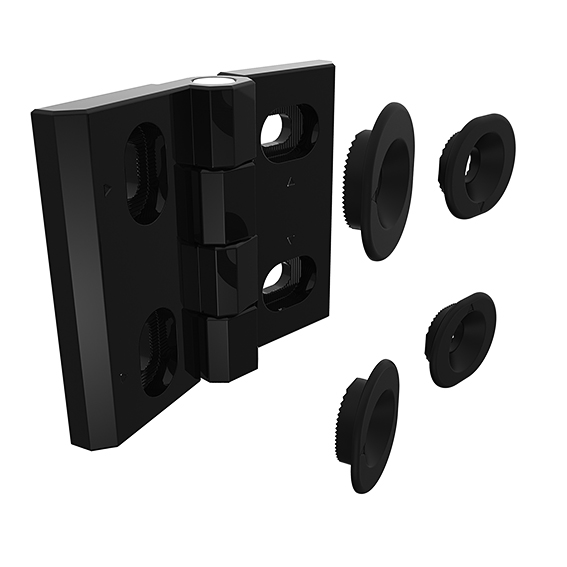

Metal Hinge 2D, Adjustable in Two Directions – product image

Metal Hinge 2D, Adjustable in Two Directions

Version: adjustable in two directions FAmax (N): 1200 FRmax (N): 2200

Description:Sturdy hinge for right and left hand application, adjustableMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coatedColor:BlackFastening:From the front, using M6 countersunk screwsDelivery Countries:Worldwide

€0.00
Metal Hinge 2D, only Adjustable Vertically – product image

Metal Hinge 2D, only Adjustable Vertically

Version: Only adjustable vertically FAmax (N): 1200 FRmax (N): 2200

Description:Sturdy hinge for right and left hand application, adjustableMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coatedColor:BlackFastening:From the front, using M6 countersunk screwsDelivery Countries:Worldwide

€0.00

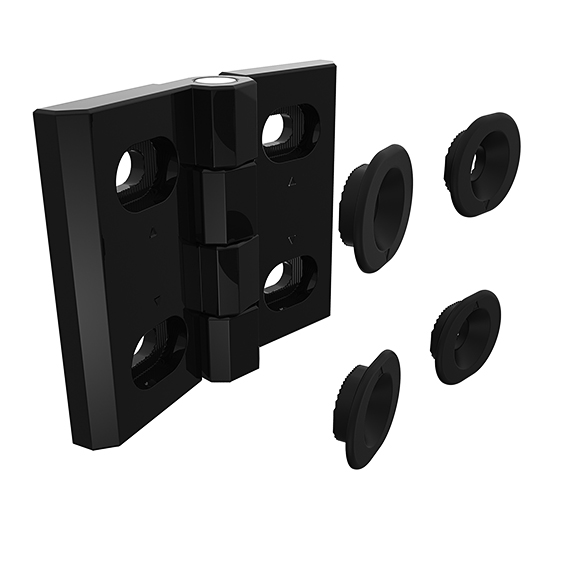

Metal Hinge 2D, only Adjustable Horizontally – product image

Metal Hinge 2D, only Adjustable Horizontally

Version: Only adjustable horizontally FAmax (N): 1200 FRmax (N): 2200

Description:Sturdy hinge for right and left hand application, adjustableMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coatedColor:BlackFastening:From the front, using M6 countersunk screwsDelivery Countries:Worldwide

€0.00
Metal Hinge 40 x 38 with Constant Friction – product image

Metal Hinge 40 x 38 with Constant Friction

FAmax (N): 800 FRmax (N): 1500 Friction Torque* (Nm): 1.8

Description:For panels and aluminum profiles; keeps doors open at any angle; also supports lightweight horizontal doorsMaterial:Wings: Zinc die-cast Pin: Steel, lubricating grease, o-ringSurface:Urethane enamelColor:BlackFastening:Using screws M4Tip:*+/- 20% of the nominal value up to 20.000 cyclesDelivery Countries:Worldwide

€0.00

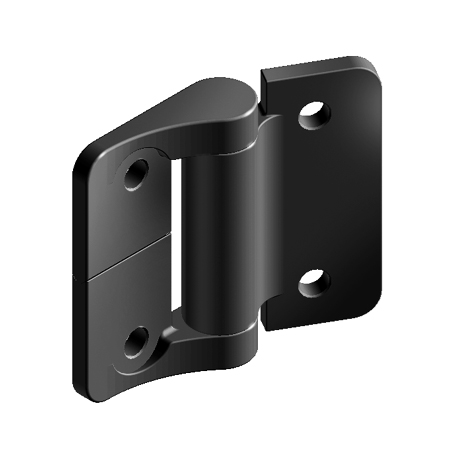

Metal Hinge 58 x 51 with Constant Friction – product image of all versions

Metal Hinge 58 x 51 with Constant Friction

FAmax (N): 800 FRmax (N): 1500 Friction Torque* (Nm): 1.8

Description:For panels and aluminum profiles; keeps doors open at any angle; also supports lightweight horizontal doorsMaterial:Wings: Zinc die-cast Pin: Steel, lubricating grease, o-ringSurface:Urethane enamelColor:BlackFastening:Using M5 screwsTip:*+/- 20% of the nominal value up to 20.000 cyclesDelivery Countries:Worldwide

€0.00
Metal Hinge with Positioning Function – product image

Metal Hinge with Positioning Function

FAmax (N): 1000 FRmax (N): 1800

Description:For panels and aluminum profiles; holds a door open at an angle of 85° or 175° or keeps it securely closed; also supports lightweight doorsMaterial:Wings: Zinc die-cast Axle: Stainless steelSurface:Powder coatedColor:BlackFastening:From the front, using M6 countersunk screwsTip:*+/- 20% of the setting valueDelivery Countries:Worldwide
