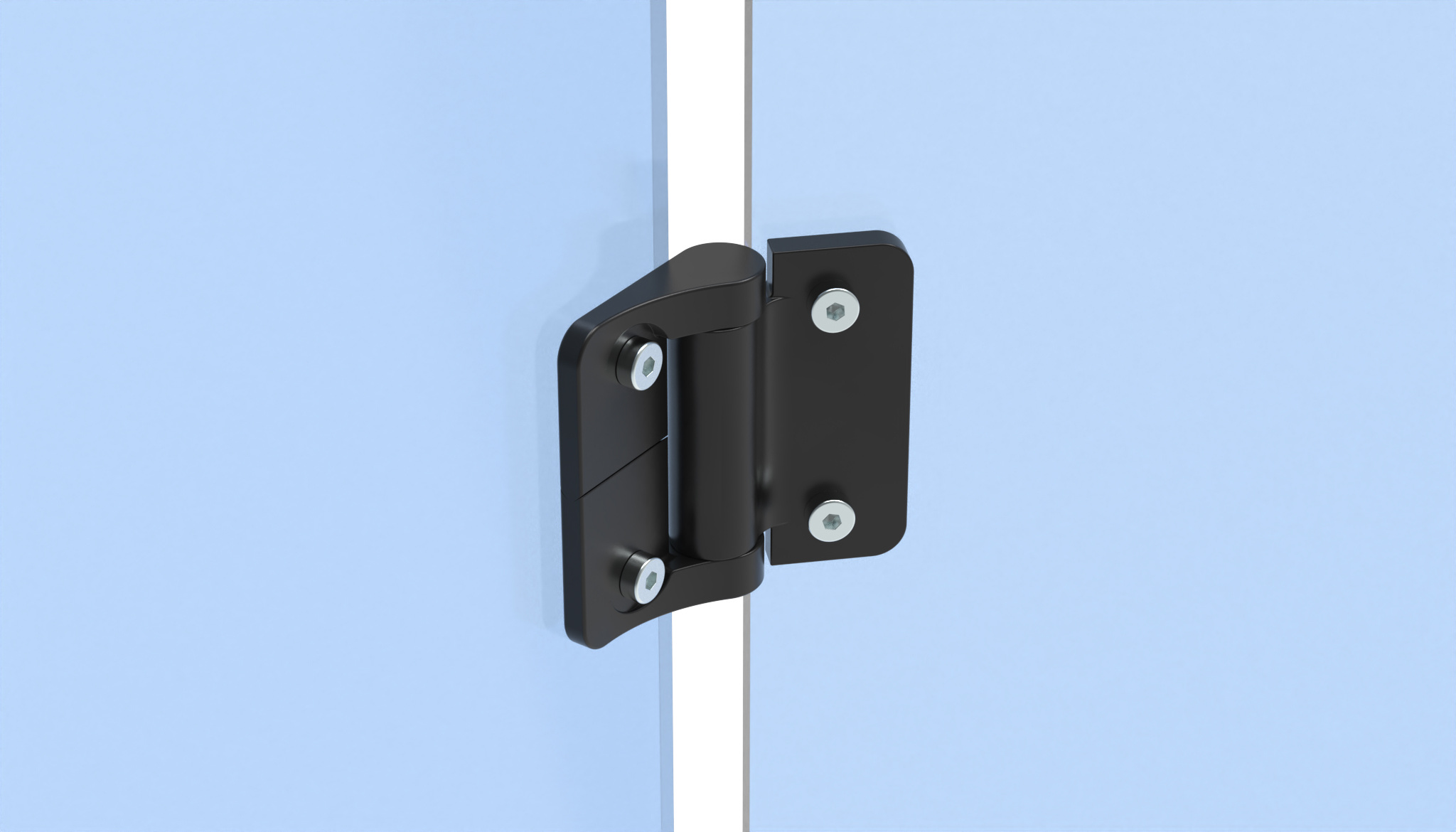

Metal Hinge 58 x 51 with Constant Friction

Product information "Metal Hinge 58 x 51 with Constant Friction"

Color:
Black

Delivery Countries:
Worldwide

Description:
For panels and aluminum profiles; keeps doors open at any angle; also supports lightweight horizontal doors

Material:
Wings: Zinc die-cast
Pin: Steel, lubricating grease, o-ring

Surface:
Urethane enamel

Tip:
* +/- 20% of the nominal value up to 20.000 cycles

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Fastening: Using M5 screws
Model: Non-detachable
Pack Quantity: 10 pieces
Weight (g): 84.0

Variants

Product ID FRmax (N) Friction Torque* (Nm)
095031 1500 1.8
095032 1500 2.3
095033 1500 3.4
