Metal Hinge 60 x 76

Product information "Metal Hinge 60 x 76"

Color:
Black

Delivery Countries:
Worldwide

Description:

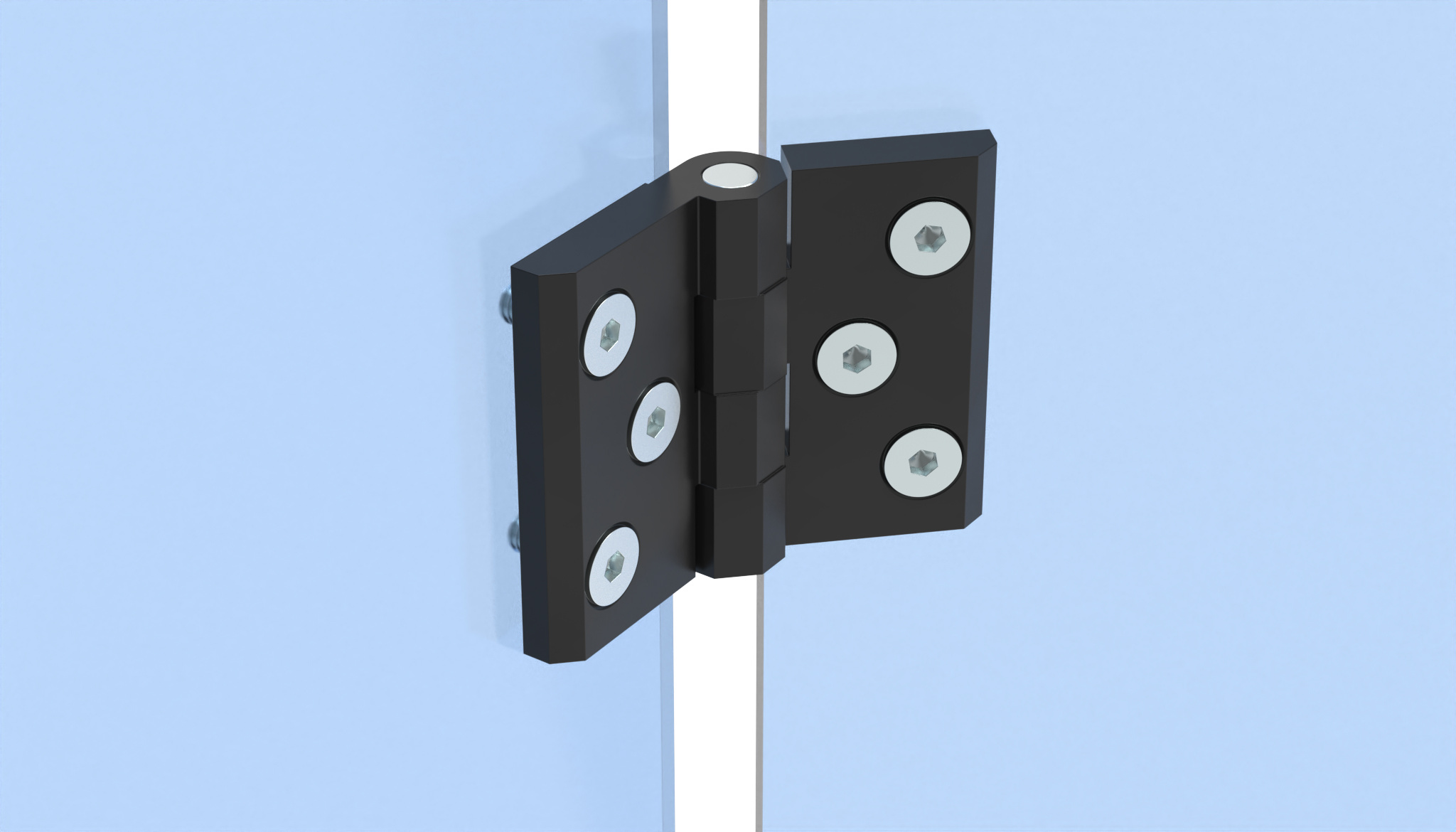

Sturdy hinge for right and left hand application

Material:
Wings: Zinc die-cast
Axle: Stainless steel

Surface:
Powder coated
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Customs Tariff Number Export: 83021000
Fastening: From the front, using countersunk screws
Model: Zinc die-cast, non-detachable
Pack Quantity: 10 pieces
Weight (g): 197.0
Zolltarifnummer: 83021000900
pA Number: 101497

Variants

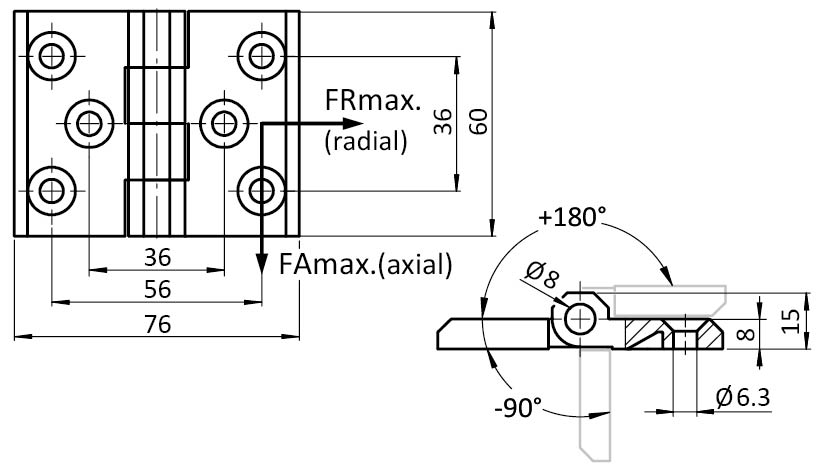

Product ID FAmax (N) FRmax (N)
095008 1200 2200

CAD Downloads

Certificates
