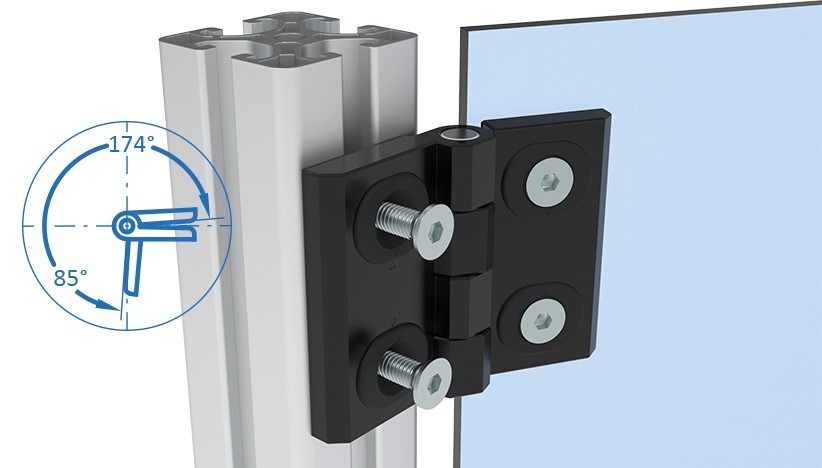

Metal Hinge 2D, only Adjustable Horizontally

Product information "Metal Hinge 2D, only Adjustable Horizontally"

Color:
Black

Delivery Countries:
Worldwide

Description:
Sturdy hinge for right and left hand application, adjustable

Material:
Wings: Zinc die-cast
Axle: Stainless steel

Surface:
Powder coated
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Customs Tariff Number Export: 83021000

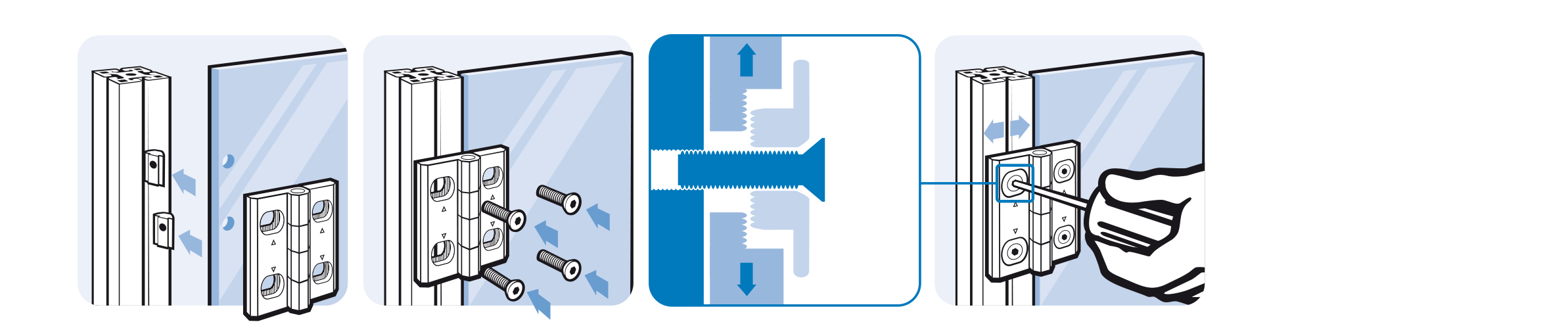

Fastening: From the front, using M6 countersunk screws
Model: Non-detachable
Pack Quantity: 10 pieces
Weight (g): 190.0
Zolltarifnummer: 83021000900
pA Number: 101517

Variants

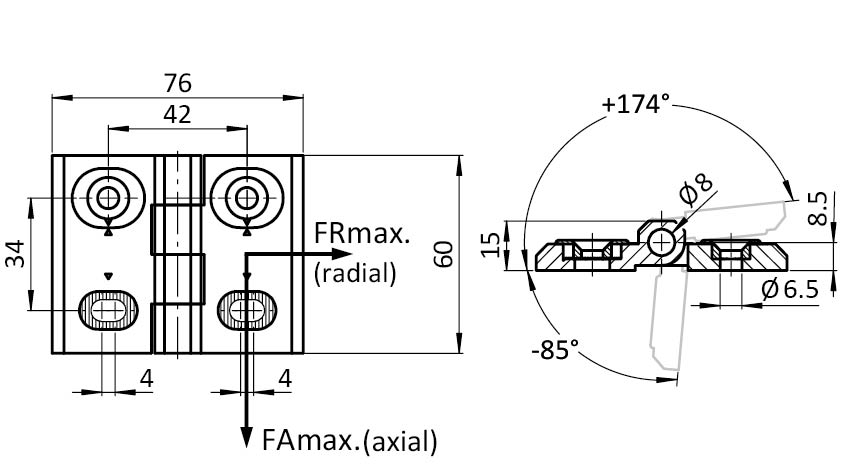

Product ID Version FAmax (N) FRmax (N)
095016 Only adjustable horizontally 1200 2200
