Metal Hinge with Positioning Function

Product information "Metal Hinge with Positioning Function"

Color:
Black

Delivery Countries:
Worldwide

Description:
For panels and aluminum profiles; holds a door open at an angle of 85° or 175° or keeps it securely closed; also supports lightweight doors

Material:
Wings: Zinc die-cast
Axle: Stainless steel

Surface:
Powder coated

Tip:
* +/- 20% of the setting value
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Cogging Torque* (Nm): 1.1
Customs Tariff Number Export: 83021000

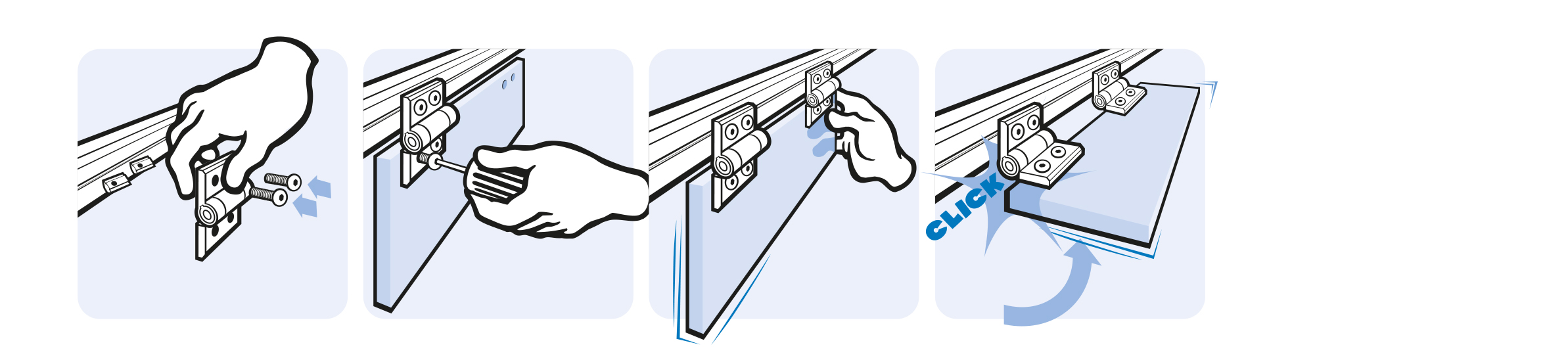

Fastening: From the front, using M6 countersunk screws
Model: Non-detachable
Pack Quantity: 10 pieces
Weight (g): 140.0
Zolltarifnummer: 83021000900
pA Number: 101499

Variants

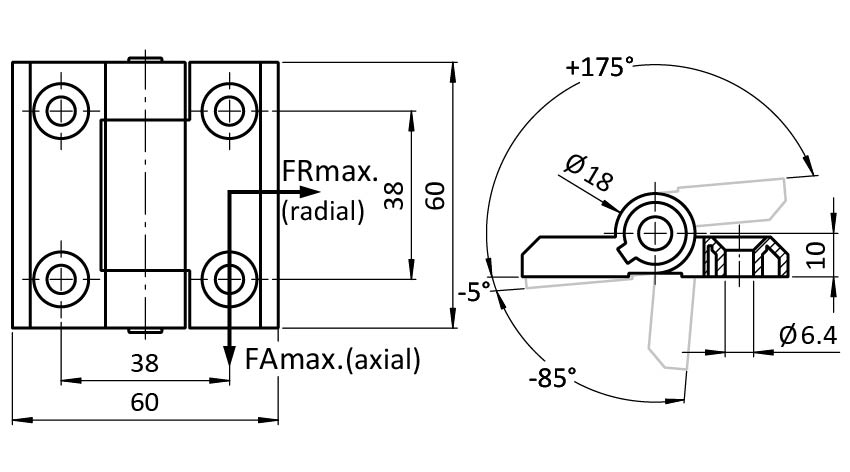

Product ID FRmax (N) FAmax (N)
095009F 1800 1000
