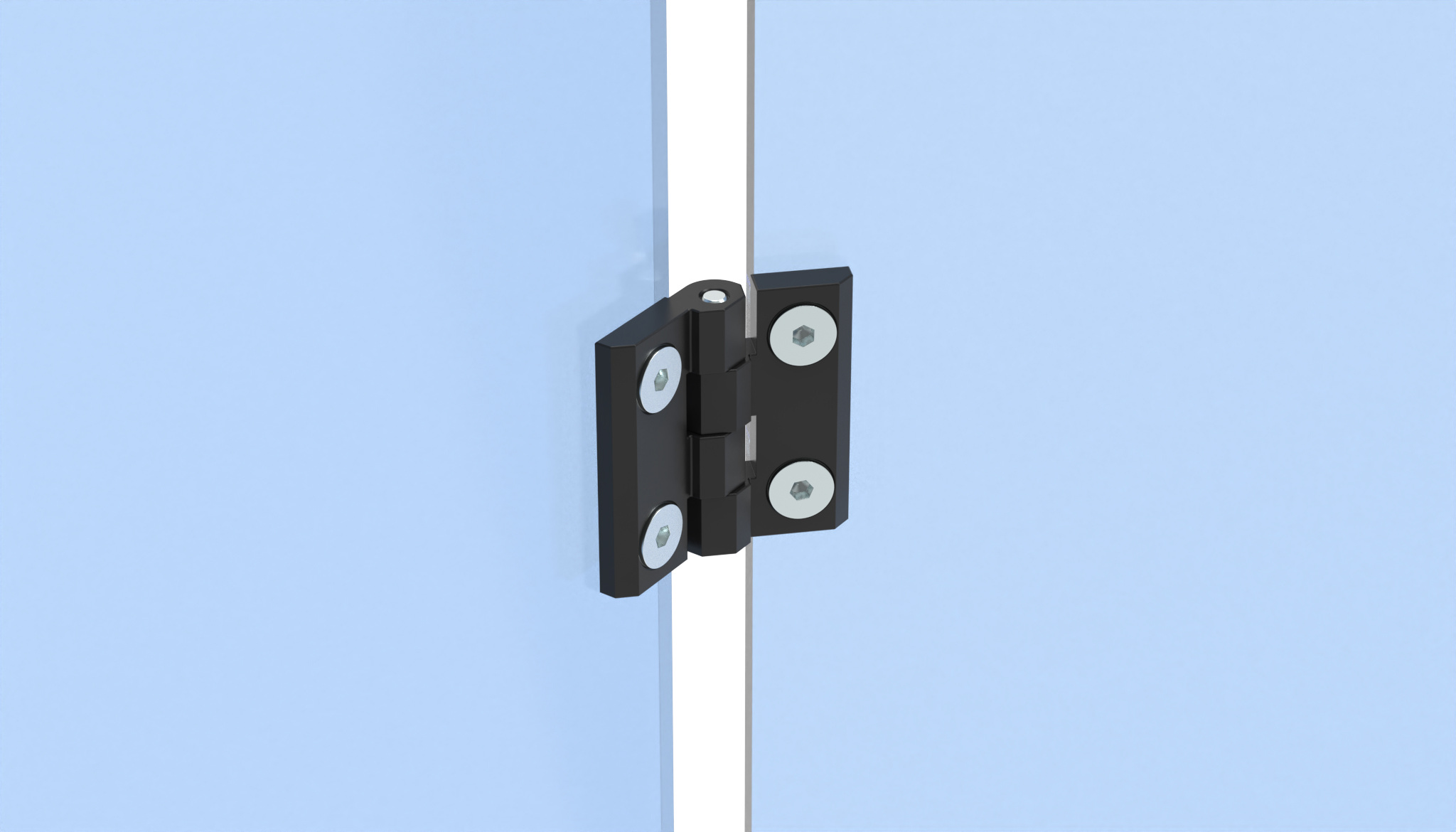

Metal Hinge 40 x 40

Product information "Metal Hinge 40 x 40"

Color:
Black

Delivery Countries:
Worldwide

Description:
Sturdy hinge for right and left hand application

Fastening:
From the front, using countersunk screws

Material:
Wings: Zinc die-cast
Axle: Stainless steel

Surface:
Powder coated
Pack Quantity: 10 pieces
Model: Zinc die-cast, non-detachable
Weight (g): 45.0
ERP Number: 101491

Global keywords / tags:

Profile Type Profile Type B, Profile Type I
Application Area Machinery & Plant Engineering

Variants

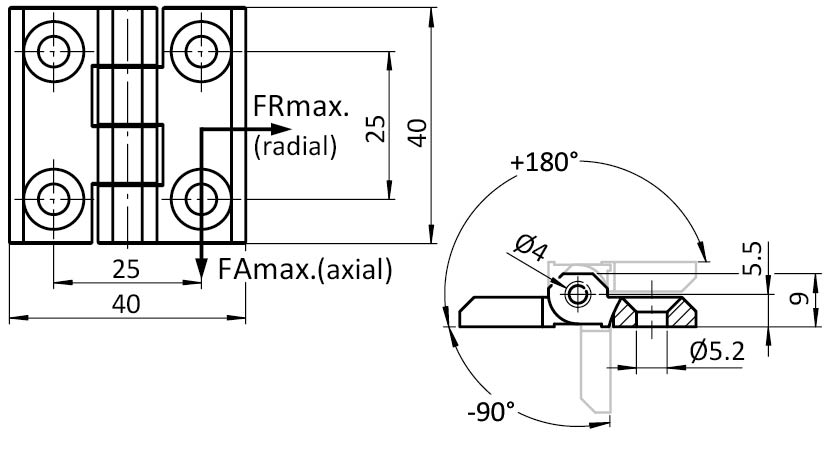

Part # FAmax (N) FRmax (N)
800 1500

CAD Downloads

Classifications

ECLASS 6.0
23219090
ECLASS 7.0
23219090
ECLASS 8.0
23219090
ECLASS 9.0
23219090
ECLASS 10.0
23219090
ECLASS 11.0
23219090
ECLASS 12.0
23219090
ECLASS 13.0
23219090
Zolltarifnummer
83021000900
Customs Tariff Number Export
83021000
