Aluminum Die-cast Hinge 45

Product information "Aluminum Die-cast Hinge 45"

Delivery Countries:
Worldwide

Description:

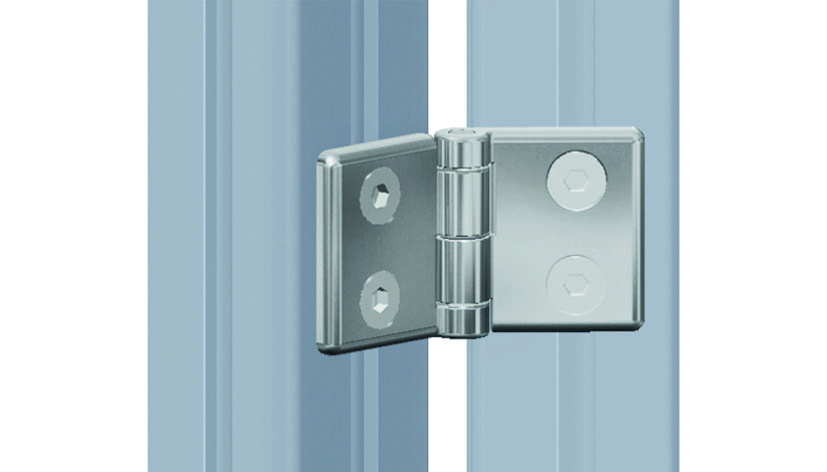

To hinge panels or aluminum profiles

Material:
Wings: Aluminum die-cast
Pin: Stainless steel

Specials:
Other surfaces, other colors on request

Surface:
Nickel-plated

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Fastening: From the front, using M6 countersunk screws
Model: Non-detachable
Pack Quantity: 10 pieces
Weight (g): 56.0

Variants

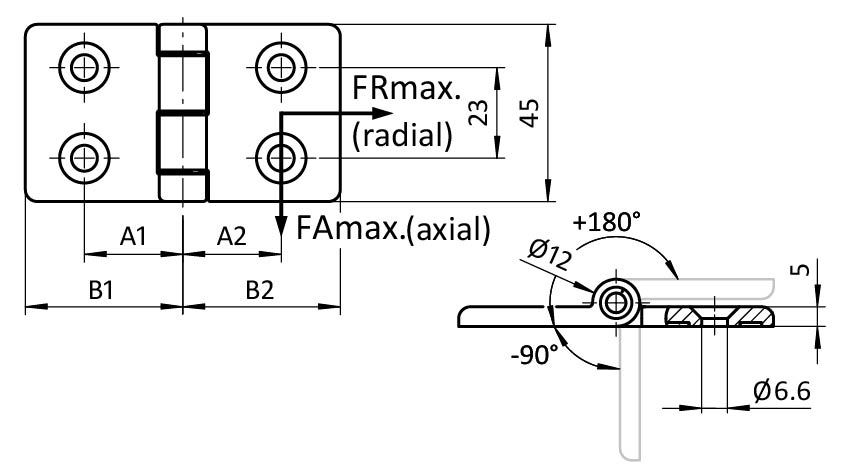

Product ID B2 (mm) B1 (mm) FRmax (N) A1 (mm) A2 (mm)
095047 40.0 40.0 350 25.0 25.0
