Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color

Skip image gallery

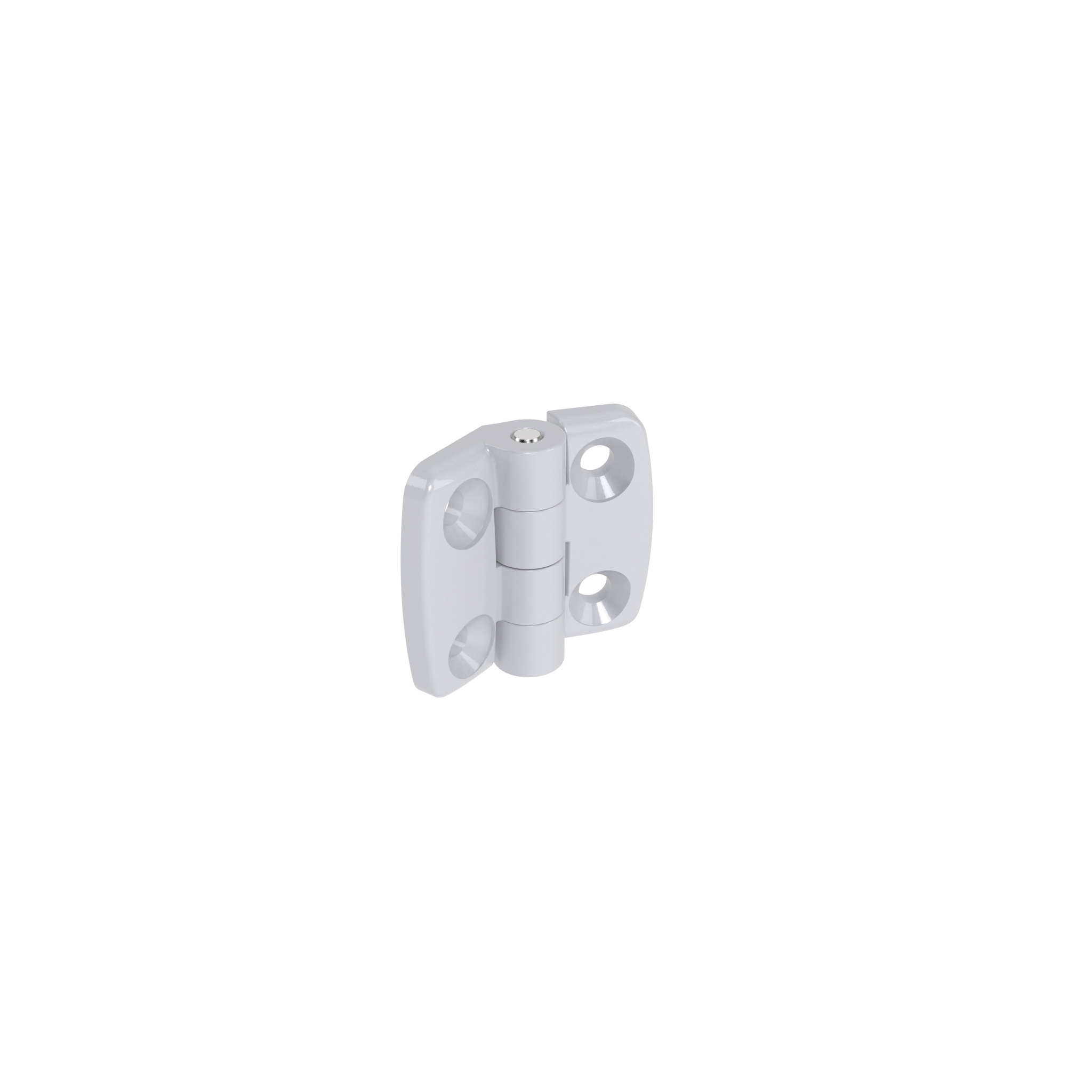

Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color 095A2525F – product image
Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color – product image of all versions

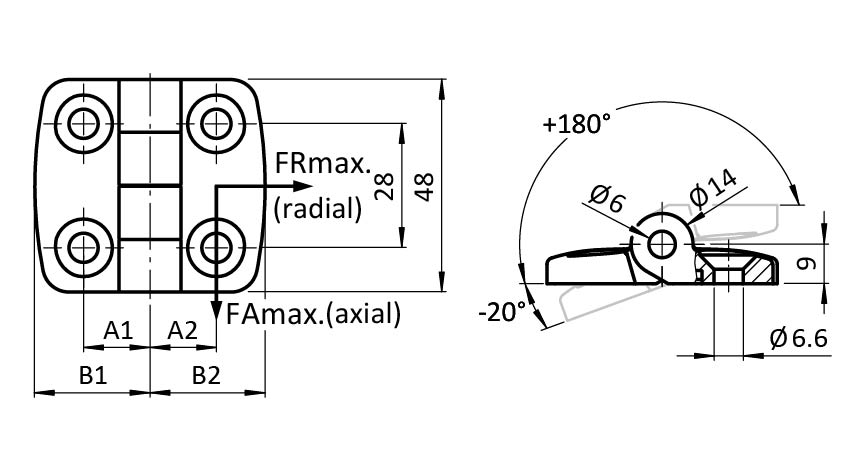

Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color – technical drawing
Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color – application example

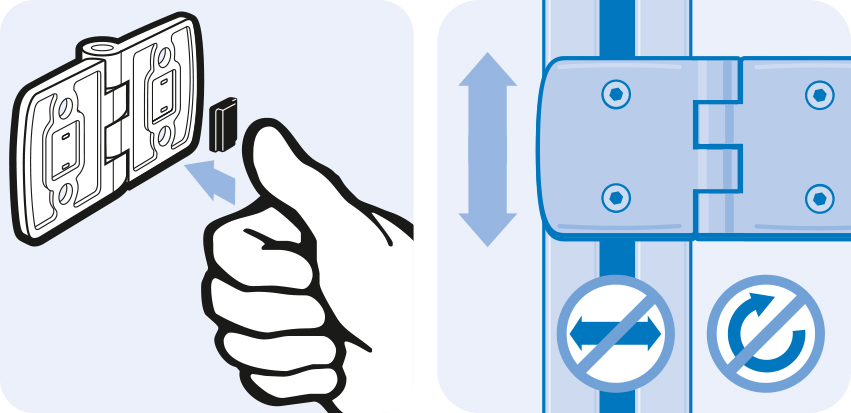

Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color – assembly graphic
Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color 095A2525F – product image
Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color – product image of all versions
Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color – technical drawing
Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color – application example
Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color – assembly graphic

€0.00

Version
B1 (mm)
B2 (mm)
Combination
FAmax (N)
FRmax (N)
A1 (mm)
A2 (mm)
Part #: 095A2525F
Pack Quantity: 10 pieces

Product information "Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color"

Color:
Wing: Alu color

Delivery Countries:
Worldwide

Description:
To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pin

Fastening:
From the front, using M6 countersunk screws

Material:
Wings: Die-cast aluminum
Pin: Stainless steel
Bearings: PTFE

Surface:
Wings: Powder coated
Pin: Plain

Tip:
Compatible Central Bolts see 095AN05
Pack Quantity: 10 pieces
Model: Non-detachable
Weight (g): 57.0
ERP Number: 134140

Variants

Part # Version B1 (mm) B2 (mm) Combination FAmax (N) FRmax (N) A1 (mm) A2 (mm) CAD
095A2525F
Non-detachable 26.0 26.0 25 / 25 215 275 15.0 15.0
095A2530F
Non-detachable 26.0 29.5 25 / 30 225 325 15.0 17.5
095A2535F
Non-detachable 26.0 36.0 25 / 35 225 325 15.0 20.0
095A2540F
Non-detachable 26.0 38.5 25 / 40 250 400 15.0 22.5
095A2545F
Non-detachable 26.0 43.5 25 / 45 250 400 15.0 25.0
095A2560F
Non-detachable 26.0 57.5 25 / 60 100 400 15.0 32.5

CAD Downloads

Product Portraits

Combi Hinges

Combi Hinges

FATH Combi hinges, made from plastics, stainless steel, and die-cast aluminum, form a visually homogeneous family within which you can freely combine all the different hinge leaves 25, 30, 35, 40, 45, 50 and 60, to your application.

To Product Portrait

Classifications

ECLASS 6.0
23219090
ECLASS 7.0
23219090
ECLASS 8.0
23219090
ECLASS 9.0
23219090
ECLASS 10.0
23219090
ECLASS 11.0
23219090
ECLASS 12.0
23219090
ECLASS 13.0
23219090
Zolltarifnummer
83021000900
Customs Tariff Number Export
83021000

Certificates

RoHS Certificate
REACH Certificate
POP Certificate
Conflict Minerals Certificate

Tags

Profile Type Profile Type B, Profile Type I
Product Feature Fractional
Profile Form T-slot Profiles
Application Area Machinery & Plant Engineering
Skip product gallery

Matching accessories

Centering Bolt for Aluminum Die-Cast Combi Hinge – product image of all versions
Centering Bolt for Aluminum Die-Cast Combi Hinge
Slot N (mm): 5

Color:BlackDelivery Countries:WorldwideDescription:For aluminum die-cast combi hinges, each wing with a hole for centering boltsMaterial:Plastic PA, glass fiber reinforcedTip:Compatible Aluminum Die-cast Combi Hinge see 095A2525L et sq.
