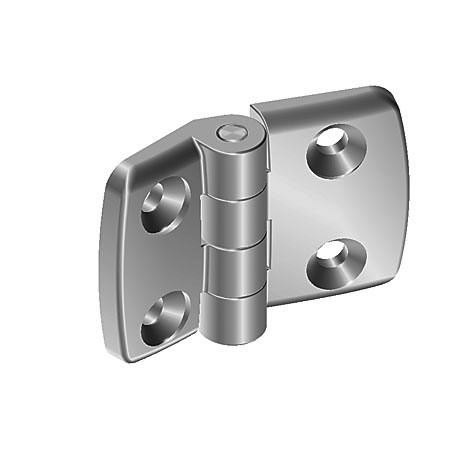

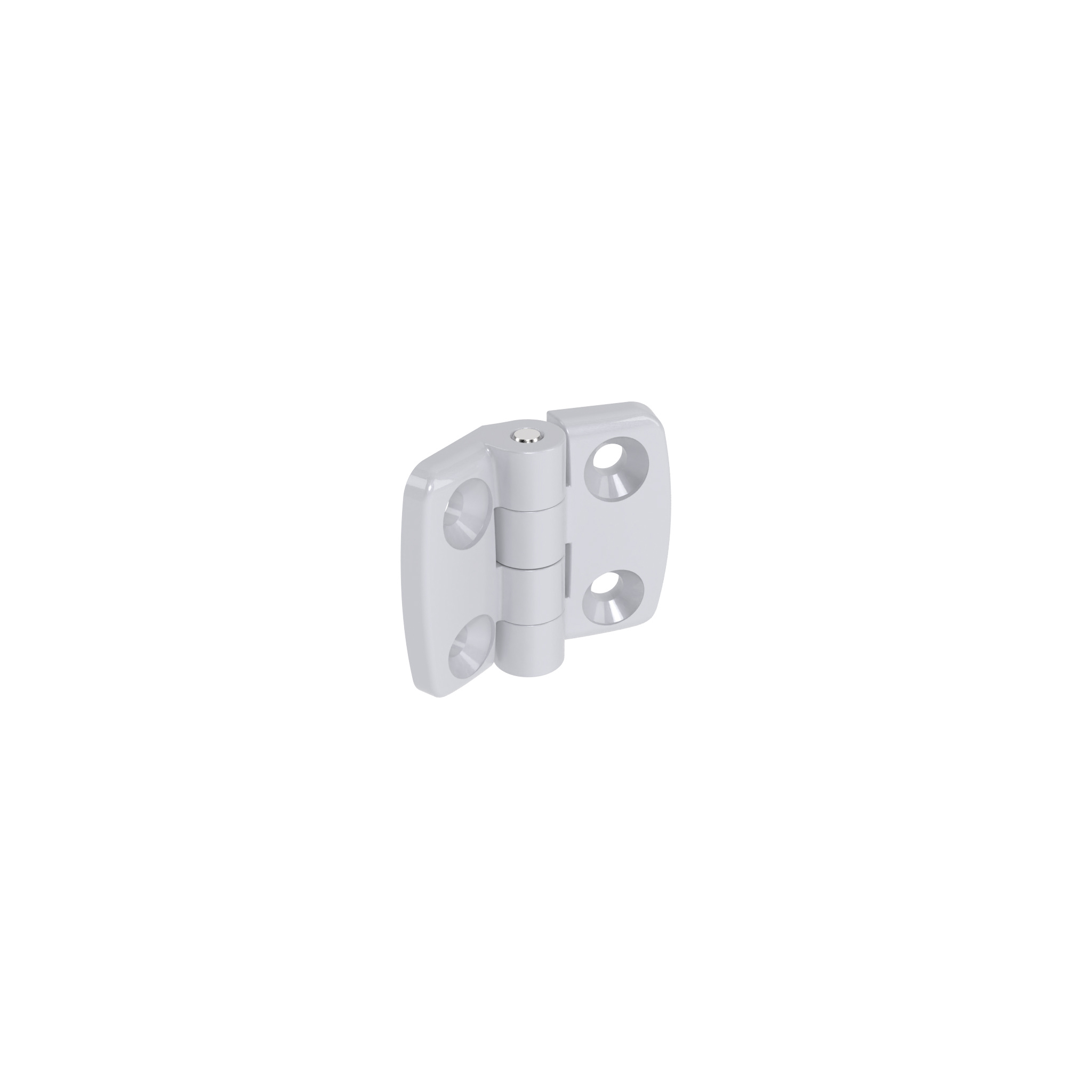

Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color

Product information "Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color"

Color:
Wing: Alu color

Delivery Countries:
Worldwide

Description:
To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pin

Material:
Wings: Die-cast aluminum
Pin: Stainless steel
Bearings: PTFE

Surface:
Wings: Powder coated
Pin: Plain

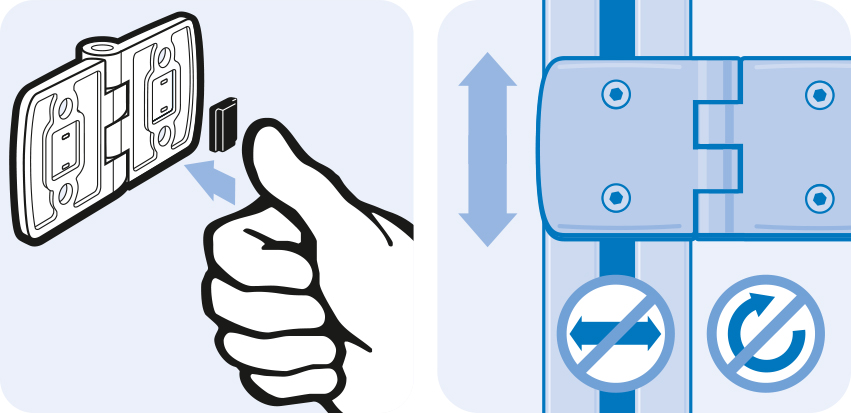

Tip:
Compatible Central Bolts see 095AN05

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090

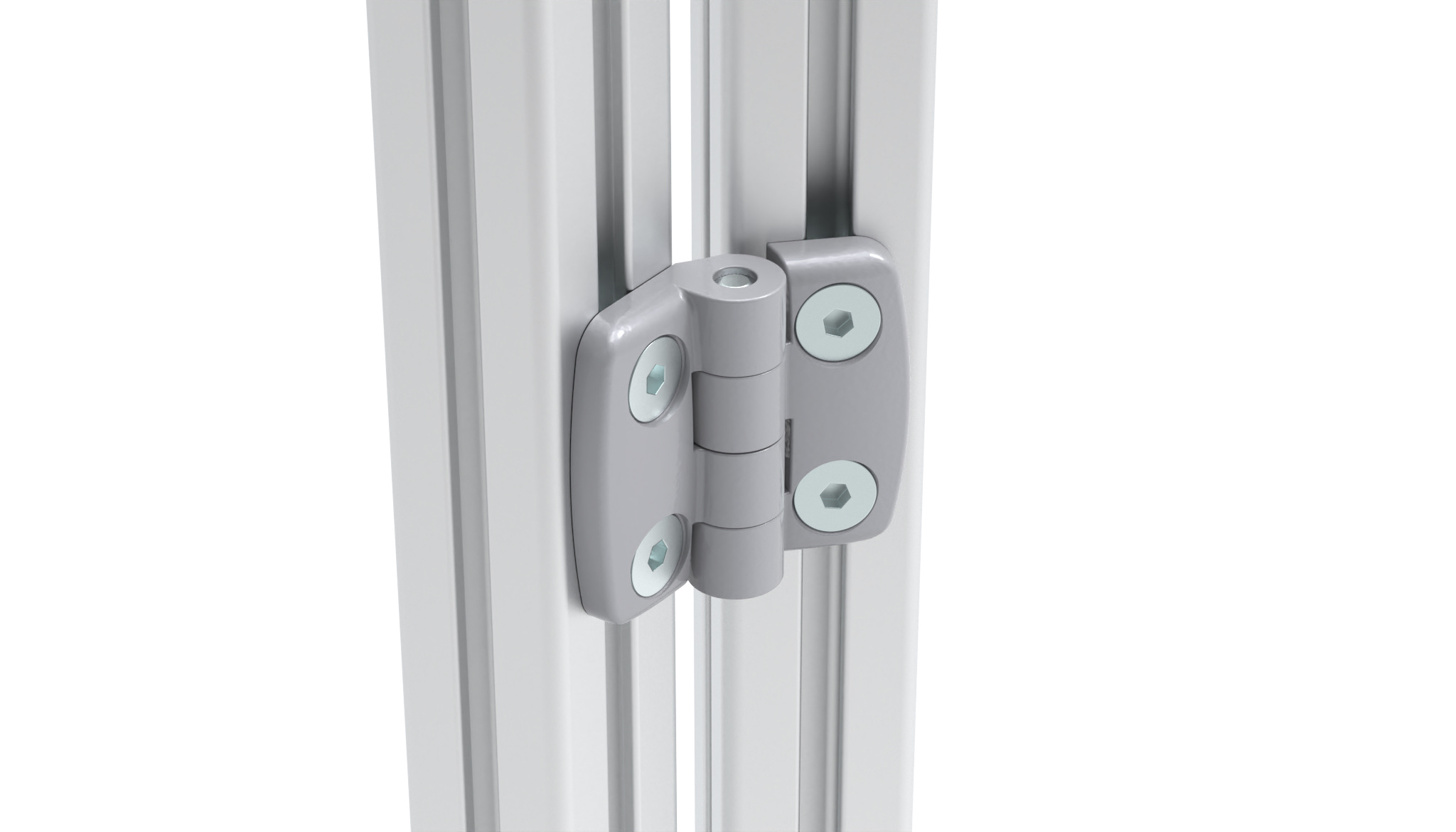

Fastening: From the front, using M6 countersunk screws
Model: Non-detachable
Pack Quantity: 10 pieces
Weight (g): 61.0

Variants

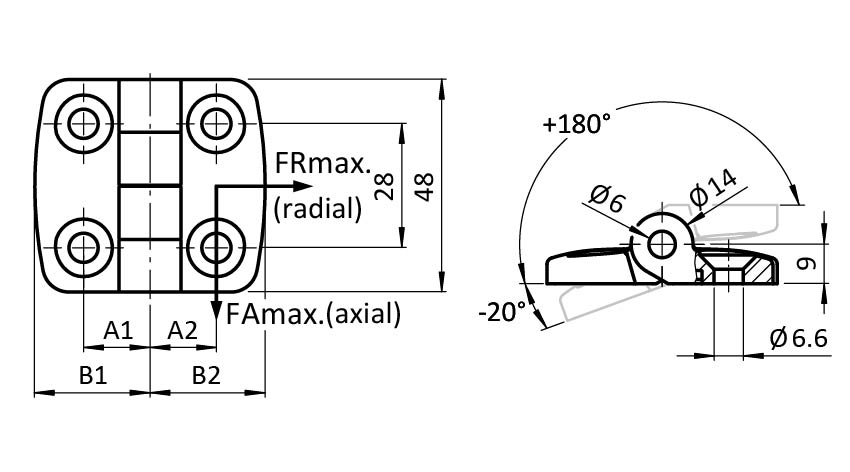

Product ID B1 (mm) Version A1 (mm) FRmax (N) B2 (mm) A2 (mm) FAmax (N) Combination
095A2525F 26.0 Non-detachable 15.0 275 26.0 15.0 25 / 25
095A2530F 26.0 Non-detachable 15.0 325 29.5 17.5 225 25 / 30
095A2535F 26.0 Non-detachable 15.0 325 36.0 20.0 225 25 / 35
095A2540F 26.0 Non-detachable 15.0 400 38.5 22.5 250 25 / 40
095A2545F 26.0 Non-detachable 15.0 400 43.5 25.0 250 25 / 45
095A2560F 26.0 Non-detachable 15.0 400 57.5 32.5 25 / 60
