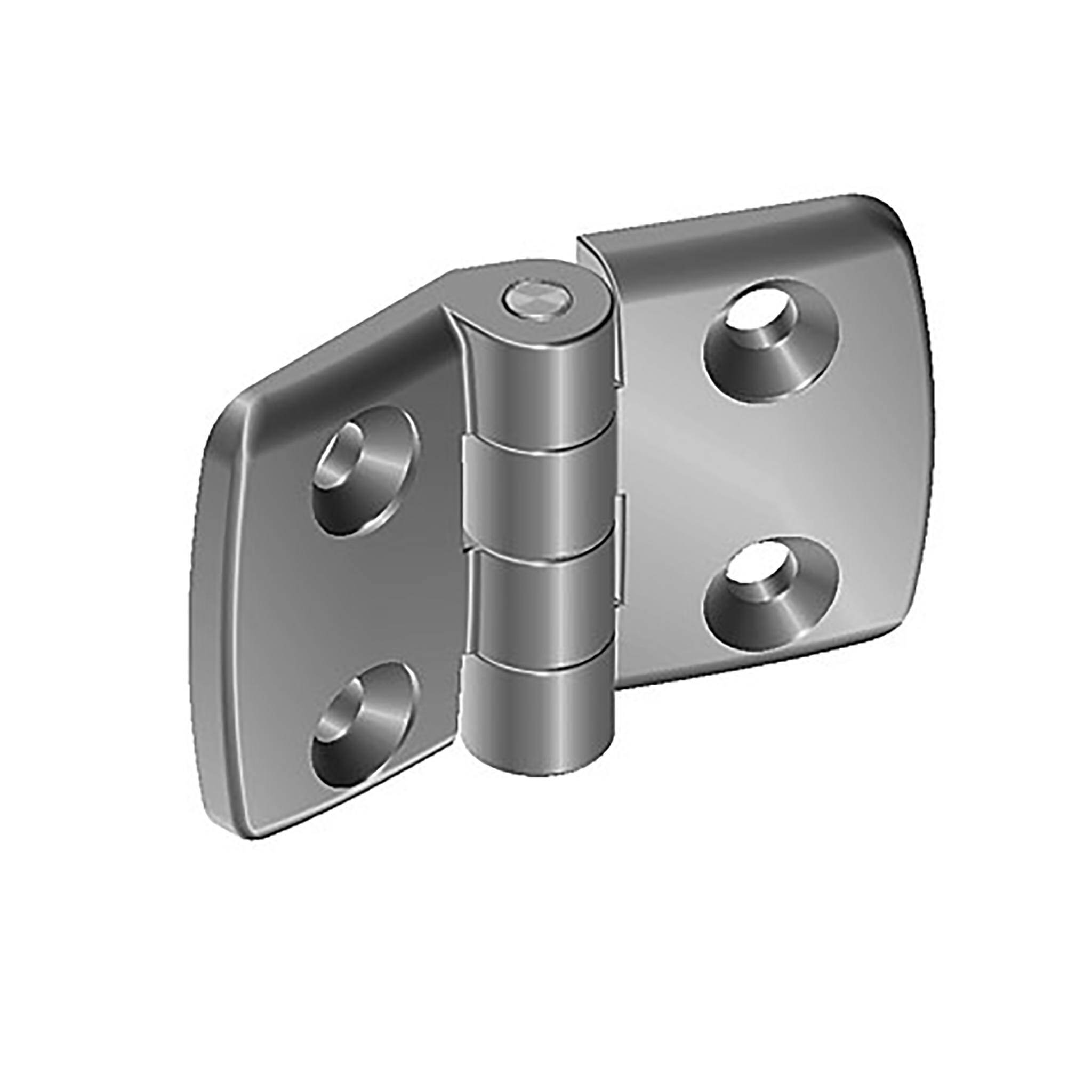

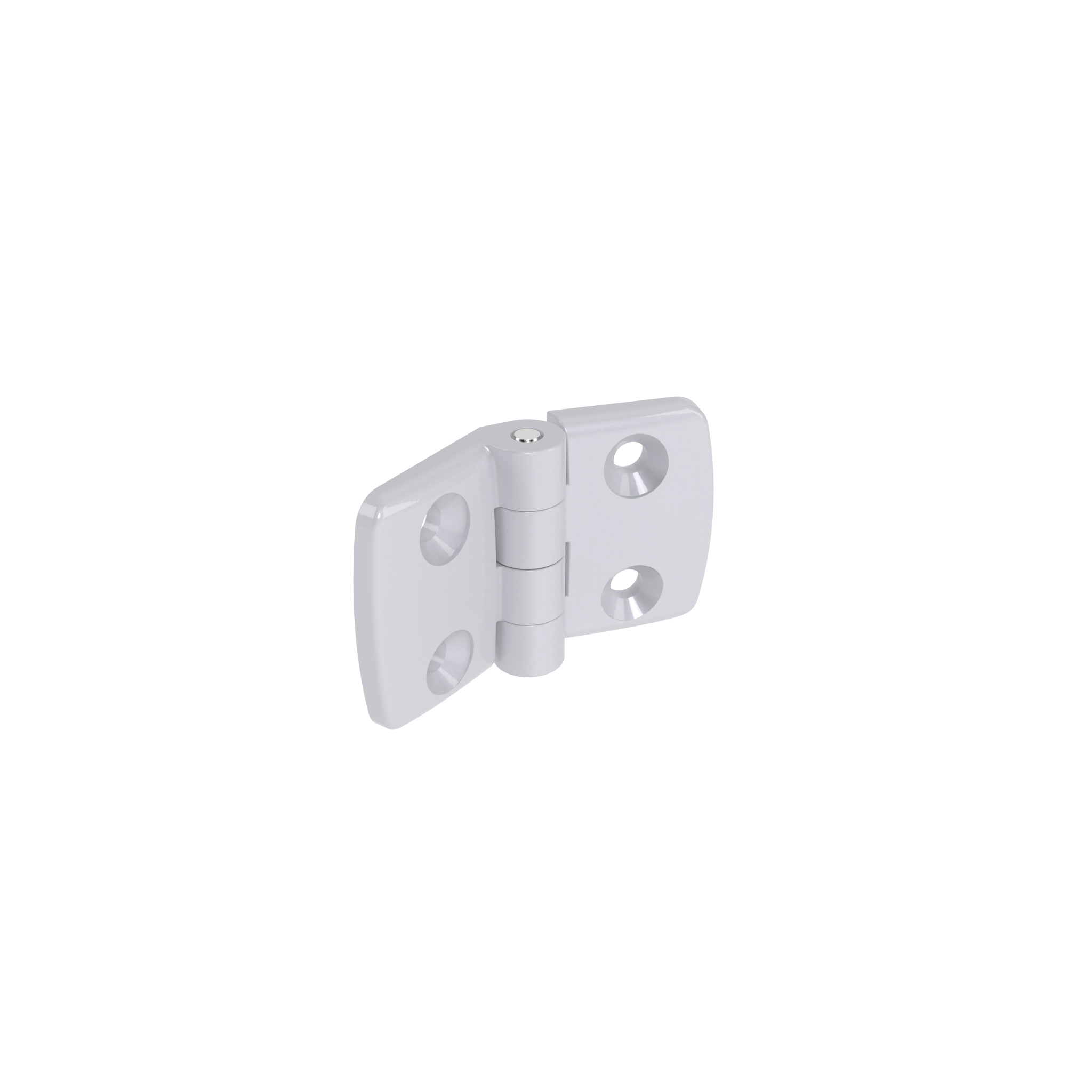

Aluminum Die-cast Combi Hinge 38 - 1.5", Non-detachable, Alu Color

Product information "Aluminum Die-cast Combi Hinge 38 - 1.5", Non-detachable, Alu Color"

Color:
Wing: Alu color

Delivery Countries:
North America

Description:

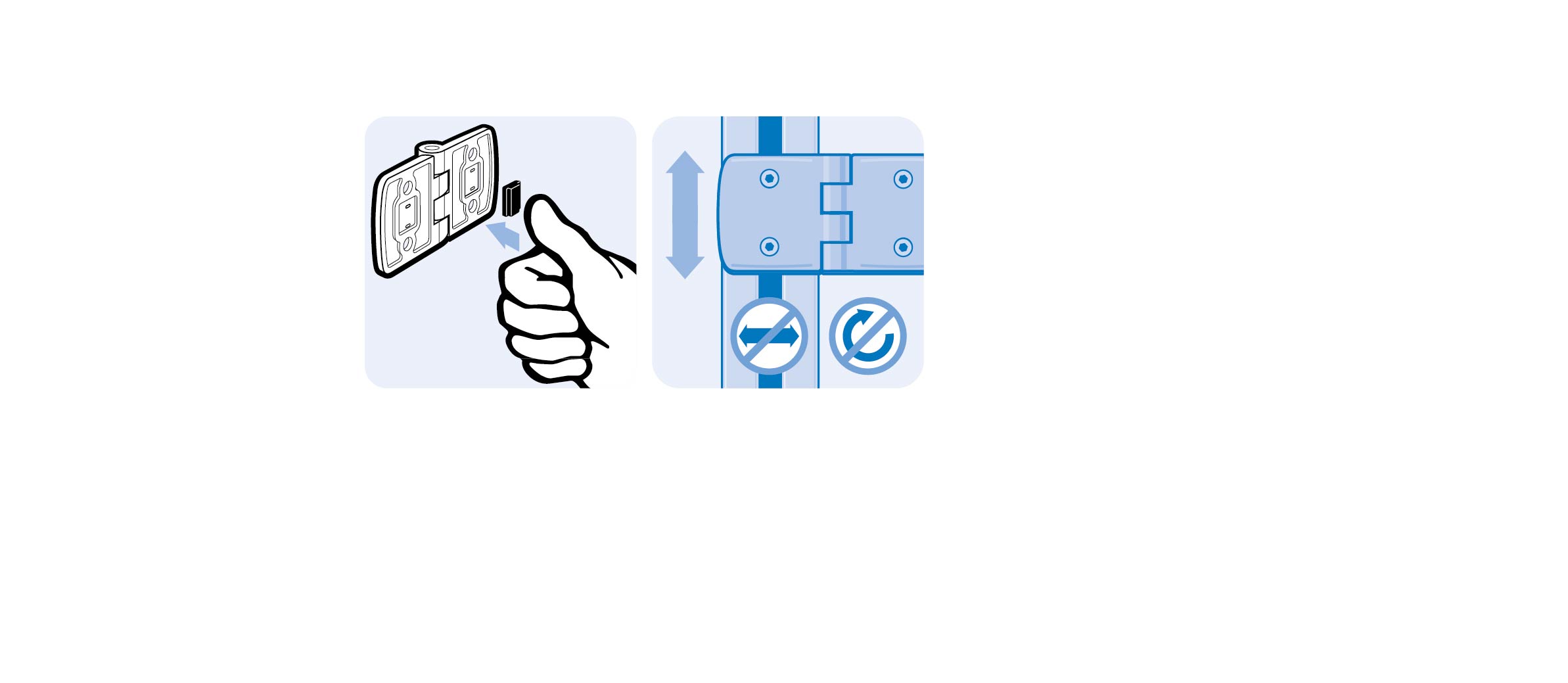

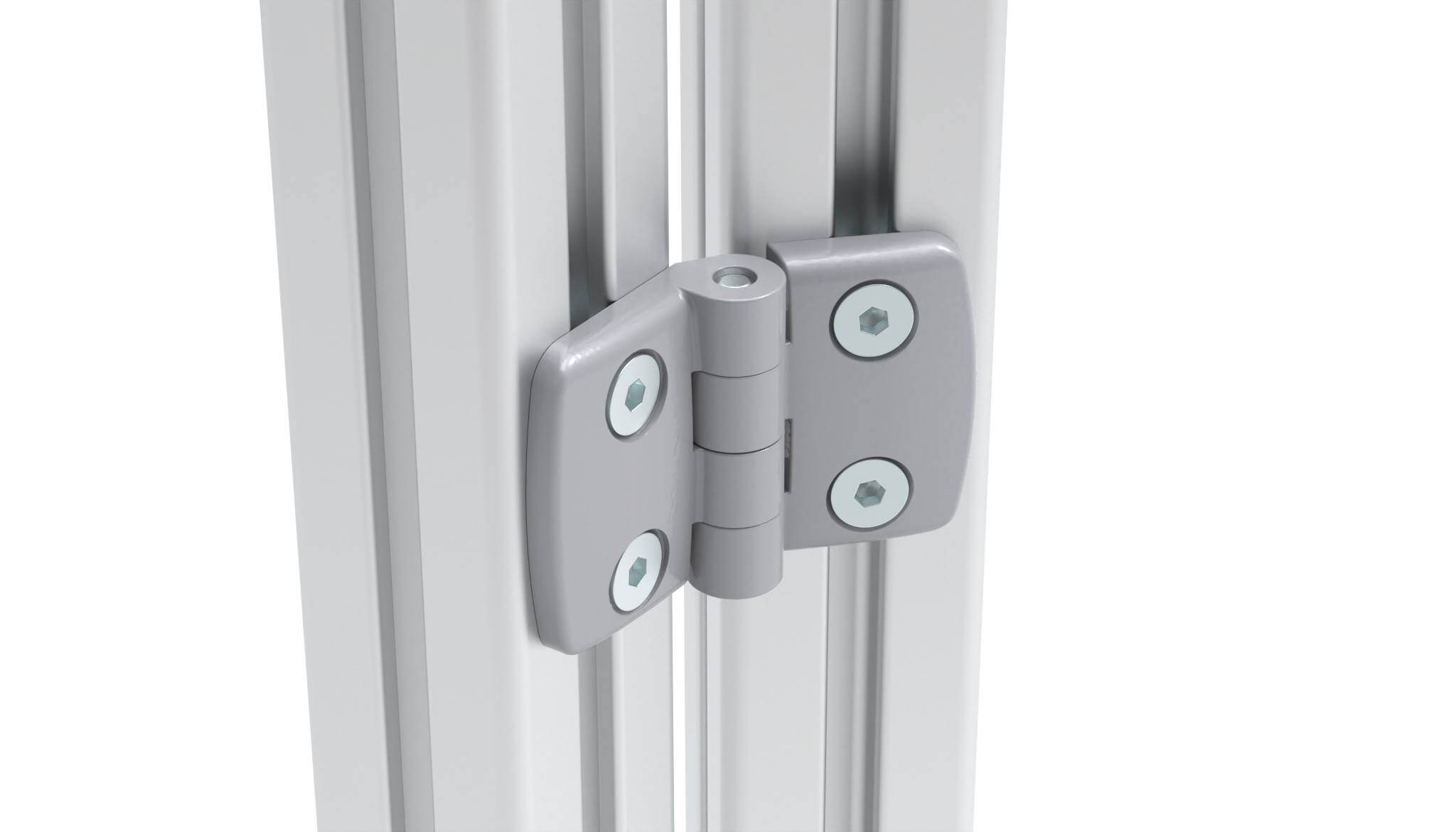

To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pin

Material:
Wings: Aluminum die-cast
Pin: Stainless steel

Surface:
Wings: Powder coated
Pin: Plain

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Fastening: From the front, using M6 countersunk screws
Model: Non-detachable
Pack Quantity: 10 pieces
Weight (g): 68.0

Variants

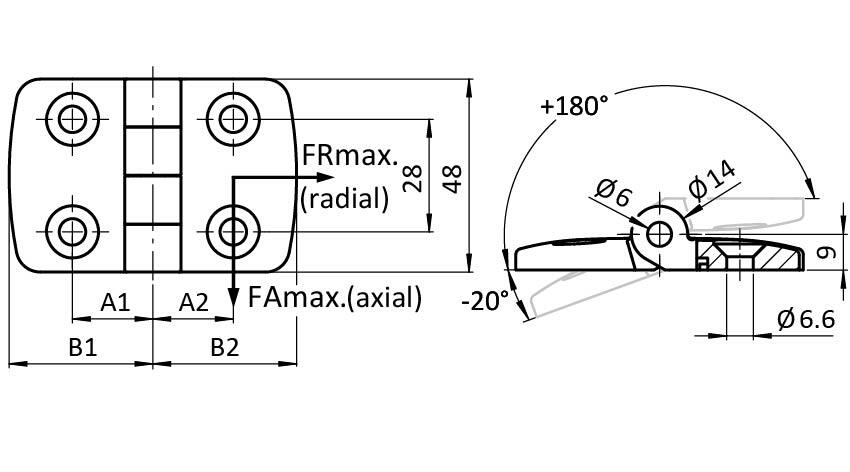

Product ID A2 (mm) Combination A1 (mm) FRmax (N) B1 (mm) B2 (mm) FAmax (N)
095A3838F 21.5 38 - 1.5" / 38 - 1.5" 21.5 400 38.5 38.5 250
