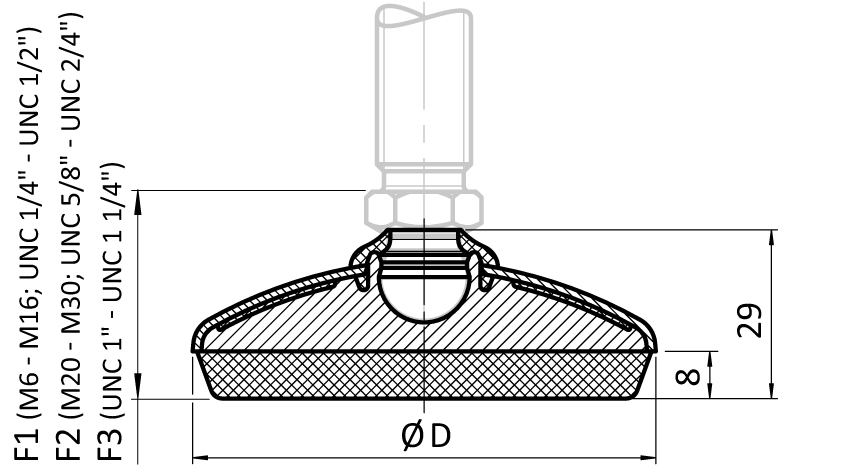

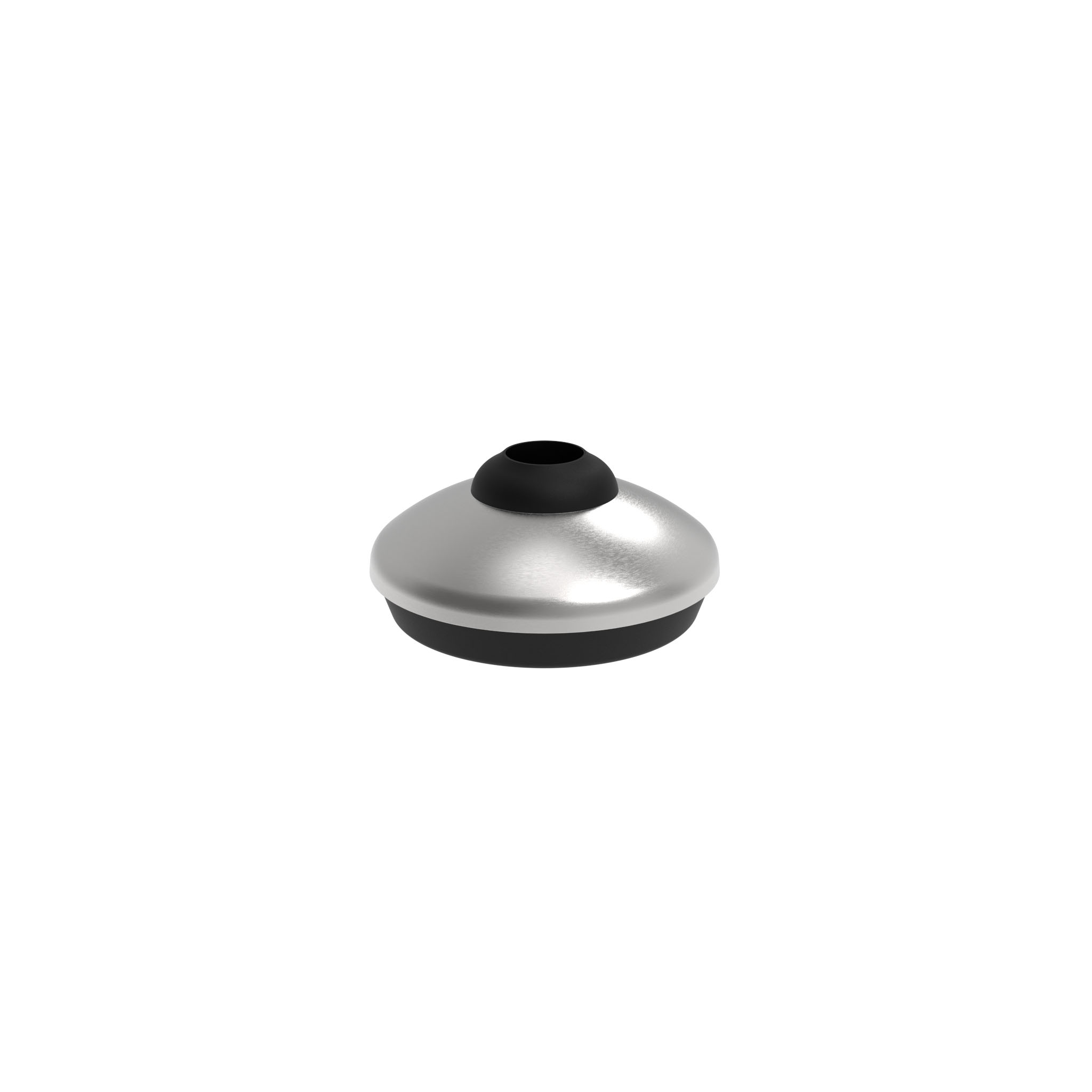

Base for Sealed Swivel Feet, Ball Joint 15
€0.00
Adjustable Pivot foot to equalize uneven floors;
With integrated anti-slip plate;
Including a sealing lip on the bottom that seals up to a slope of 8 degree with a possible max. of 20 degree
Base: Stainless steel SS304
Anti-slip Plate: TPE ≈ 75 Shore A, water and oil resistant (up to 60°C), with antibacterial and antimicrobial protection
Color:
Anti-slip Plate: light gray ≈ RAL 7035
Tip:
Compatible Threaded Rod see 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5E et sq.
Specials:

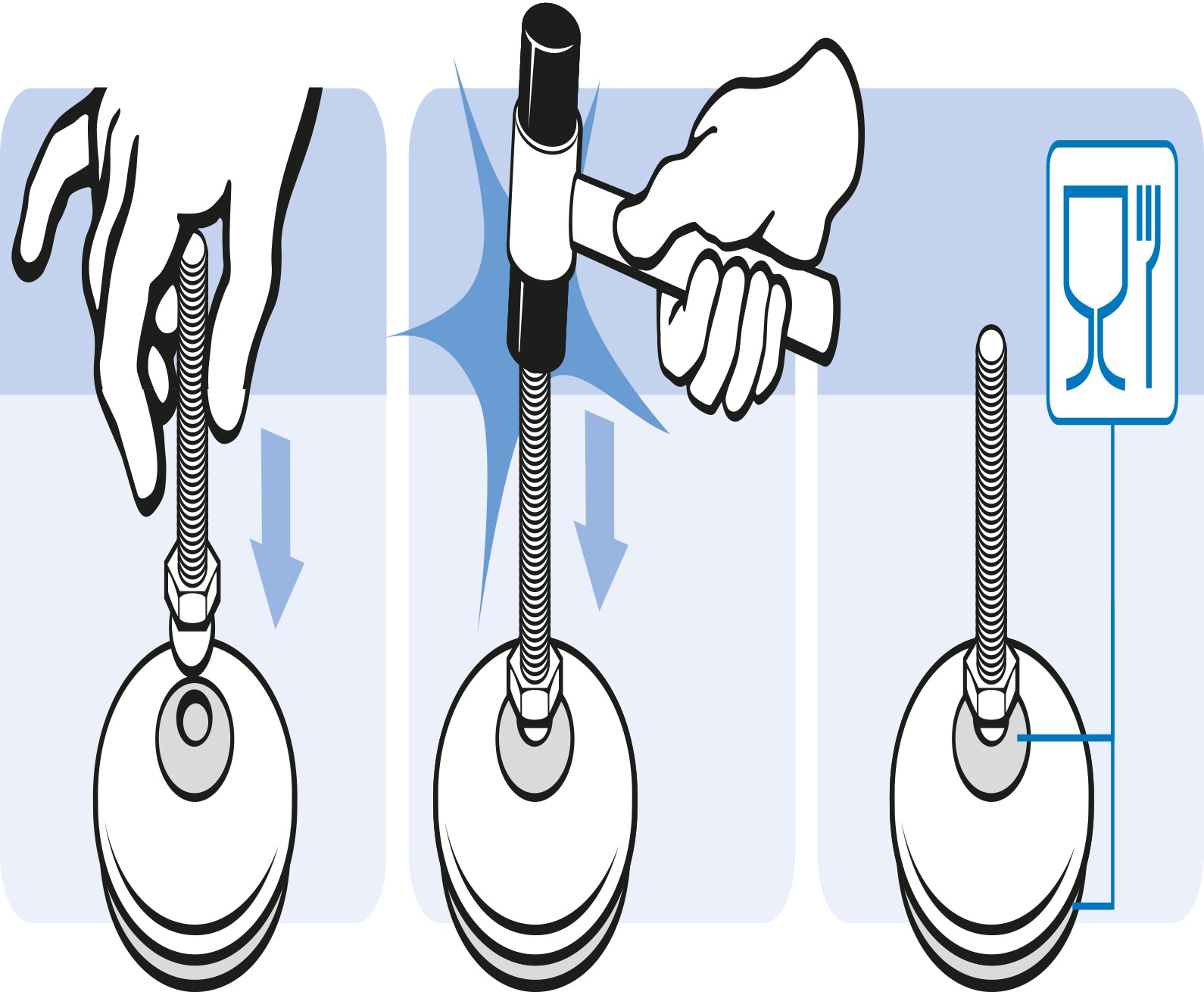

As factory assembled leveling foot on request
Delivery Countries:
Worldwide
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | Stainless steel |
| Weight (g): | 75.0 |
| ERP Number: | 109494 |
Classifications
- ECLASS 6.0
- 90900102
- ECLASS 7.0
- 90900102
- ECLASS 8.0
- 90900102
- ECLASS 9.0
- 90900102
- ECLASS 10.0
- 90900102
- ECLASS 11.0
- 90900102
- ECLASS 12.0
- 90900102
- ECLASS 13.0
- 90900102
- ECLASS 14.0
- 90900102
- ECLASS 15.0
- 90900102
- ECLASS 16.0
- 23010704
- Zolltarifnummer
- 73269098900
- Customs Tariff Number Export
- 73269098
Certificates
Matching accessories
Description:Threaded rod for swiveling leveling feetMaterial:Stainless steel SS304Surface:PlainSpecials:Other lengths and sizes on requestDelivery Countries:Worldwide
Description:Flat jam nuts DIN EN ISO 4035 (DIN 439) for threaded rodsMaterial:Steel / stainless steelSurface:Zinc plated / plainDelivery Countries:Worldwide
