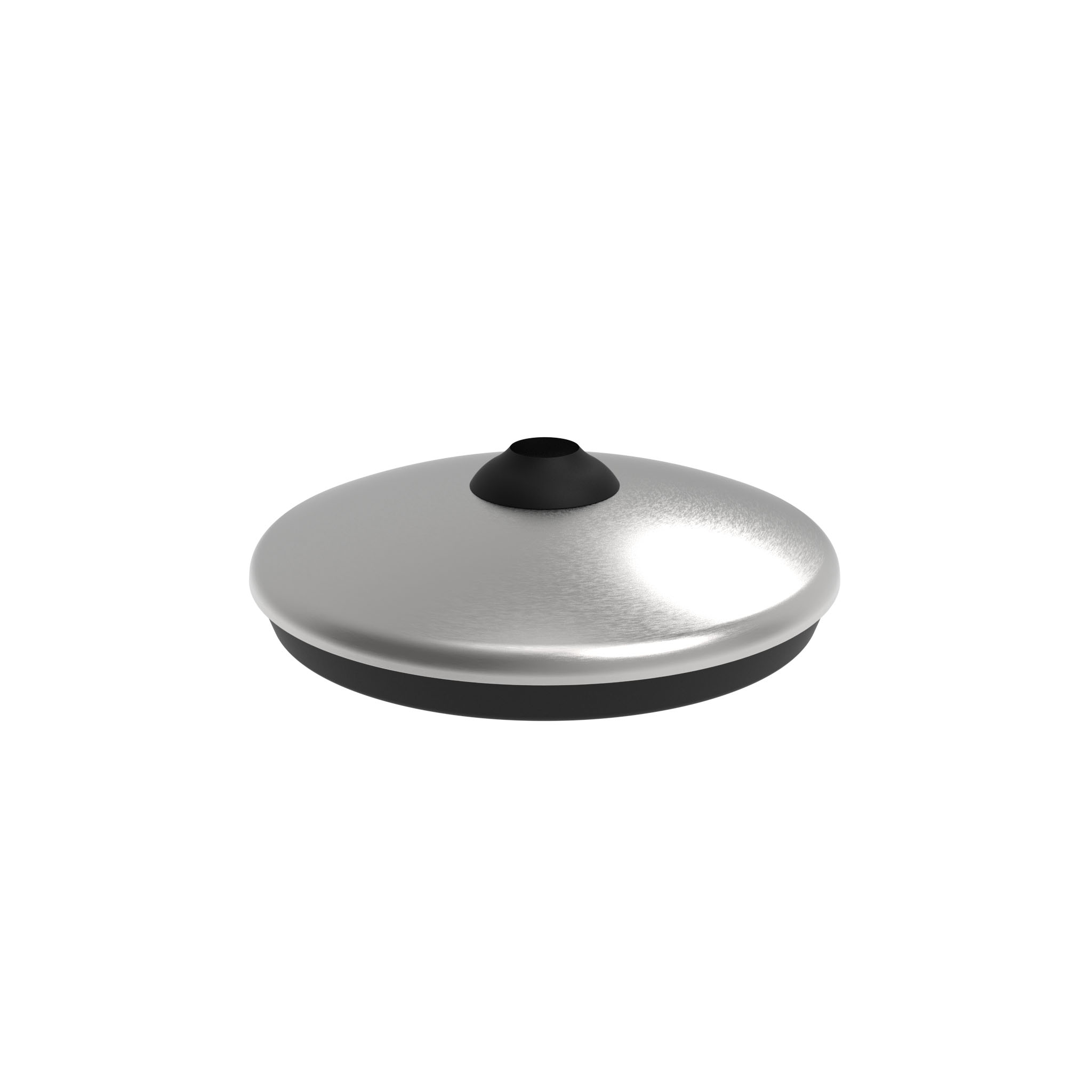

Base for Sealed Swivel Feet, Ball Joint 15

Product information "Base for Sealed Swivel Feet, Ball Joint 15"

Color:
Anti-slip Plate: Light gray ≈ RAL 7035

Delivery Countries:
Worldwide

Description:
Adjustable Pivot foot to equalize uneven floors;
With integrated anti-slip plate;
Including a sealing lip on the bottom that seals up to a slope of 8 degree with a possible max. of 20 degree

Material:
Base: Stainless steel SS304
Anti-slip Plate: Plastic TPE, ≈ 75 Shore A, water and oil resistant (up to 60°C), with antibacterial and antimicrobial protection

Specials:

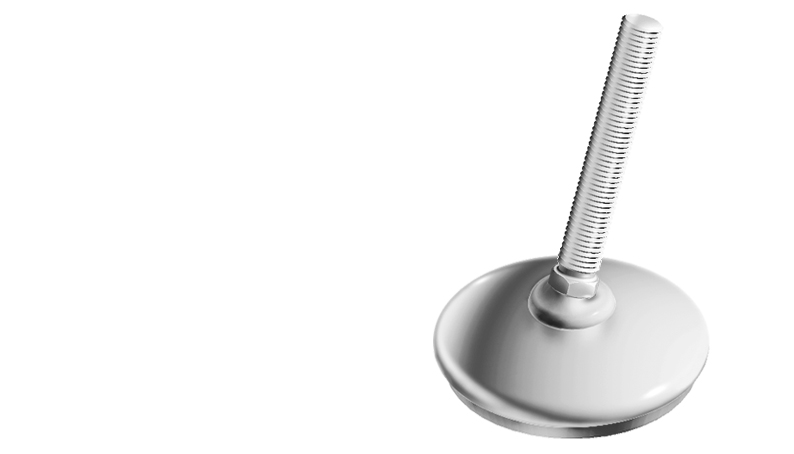

As factory assembled leveling foot on request

Tip:
Compatible Threaded Rod see 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5E et sq.

Zolltarifnummer:
73269098900
Model: Stainless steel
Pack Quantity: 10 pieces
Pack Quantity (1): 1
Weight (g): 220.0

Variants

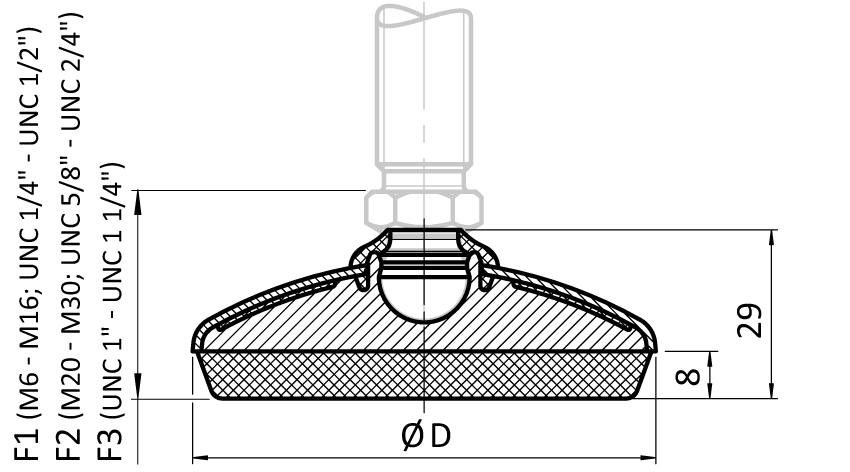

Product ID F2 (mm) F3 (mm) F1 (mm) Fmax (N) Base D (mm)
098DE060EG 38.0 39.0 35.0 6860 60 58.5
098DE080EG 38.0 39.0 35.0 6860 80 78.5
098DE100EG 38.0 39.0 35.0 6860 100 98.5
