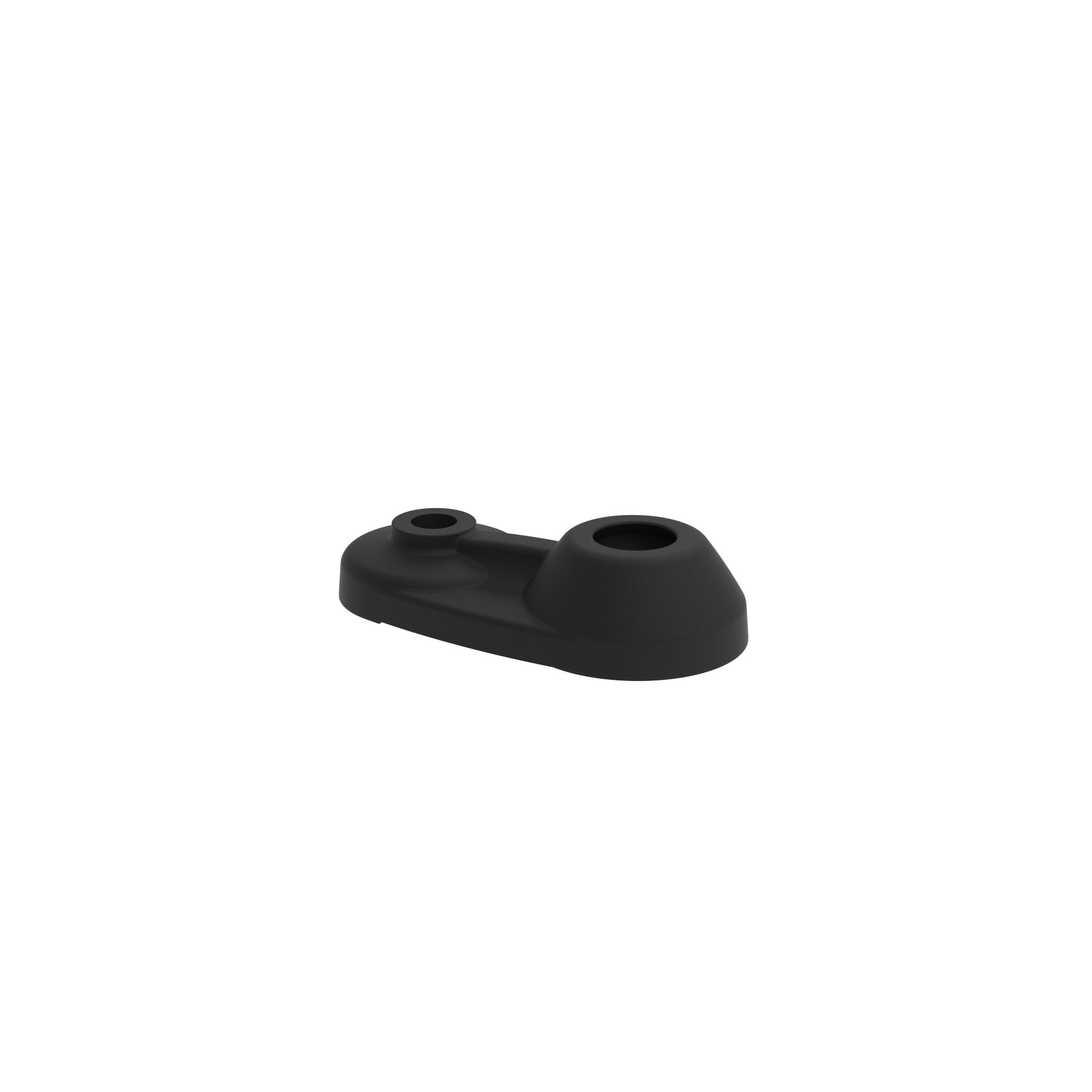

Extended Base 40 PA for Swivel Feet, Ball Joint 15
€0.00
Product information "Extended Base 40 PA for Swivel Feet, Ball Joint 15"
Black
Delivery Countries:
Worldwide
Description:

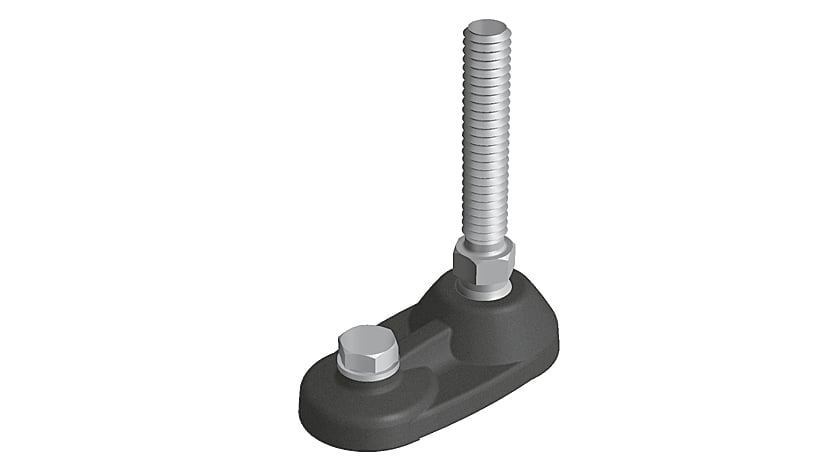

Extended swiveling leveling foot which can be fixed to the floor
Material:
Plastic PA, glass ball reinforced
Specials:
ESD electrostatical discharging, other colors, bolt-on or glued anti-slip plate on request;
As factory assembled leveling foot on request
Tip:
Compatible Threaded Rod see 098DM08025M et sq.,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-Slip Plate see 098DG030
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | Plastic PA |
| Weight (g): | 20.0 |
| ERP Number: | 120839 |
Classifications
- ECLASS 6.0
- 90900102
- ECLASS 7.0
- 90900102
- ECLASS 8.0
- 90900102
- ECLASS 9.0
- 90900102
- ECLASS 10.0
- 90900102
- ECLASS 11.0
- 90900102
- ECLASS 12.0
- 90900102
- ECLASS 13.0
- 90900102
- ECLASS 14.0
- 90900102
- ECLASS 15.0
- 90900102
- ECLASS 16.0
- 23010704
- Zolltarifnummer
- 39269097900
- Customs Tariff Number Export
- 39269097
Certificates
Matching accessories
Delivery Countries:WorldwideDescription:Threaded rod for swiveling leveling feetMaterial:SteelSpecials:Other lengths and sizes on requestSurface:Zinc plated
Delivery Countries:WorldwideDescription:Flat jam nuts DIN EN ISO 4035 (DIN 439) for threaded rodsMaterial:Steel / stainless steelSurface:Zinc plated / plain
Color:BlackDelivery Countries:WorldwideDescription:Prevents movement of leveling feet on slippery surfaces and absorbs some vibrationMaterial:Thermoplastic elastomer, ≈ 70 Shore ASpecials:ESD electrostatical discharging on requestTip:*Also for bases with bolt down holes
