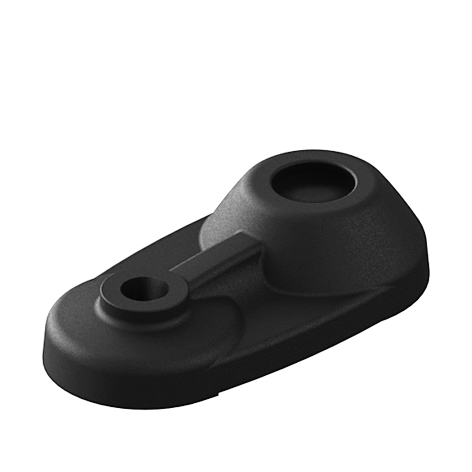

Extended Base 40 PA for Swivel Feet, Ball Joint 15

Product information "Extended Base 40 PA for Swivel Feet, Ball Joint 15"

Color:
Black

Delivery Countries:
Worldwide

Description:

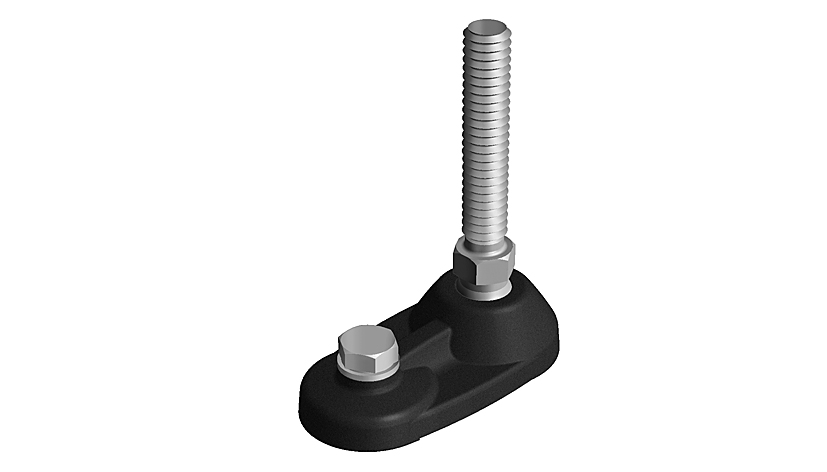

Extended swiveling leveling foot which can be fixed to the floor

Material:
Plastic PA, glass ball reinforced

Specials:
ESD electrostatical discharging, other colors, bolt-on or glued anti-slip plate on request;

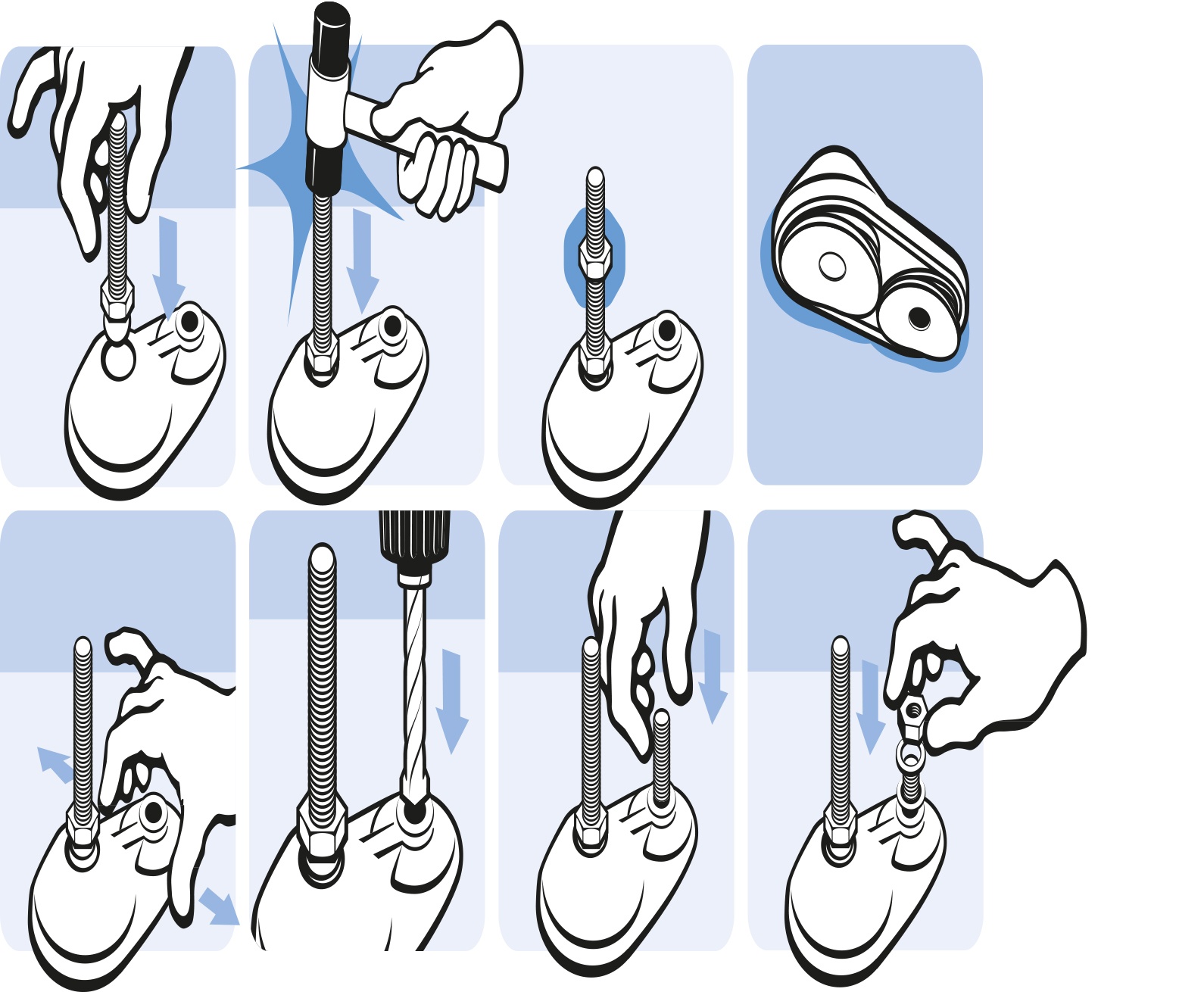

As factory assembled leveling foot on request

Tip:
Compatible Threaded Rod see 098DM08025M et sq.,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-Slip Plate see 098DG030

Zolltarifnummer:
39269097900
Model: Plastic PA
Pack Quantity: 10 pieces
Weight (g): 28.0

Variants

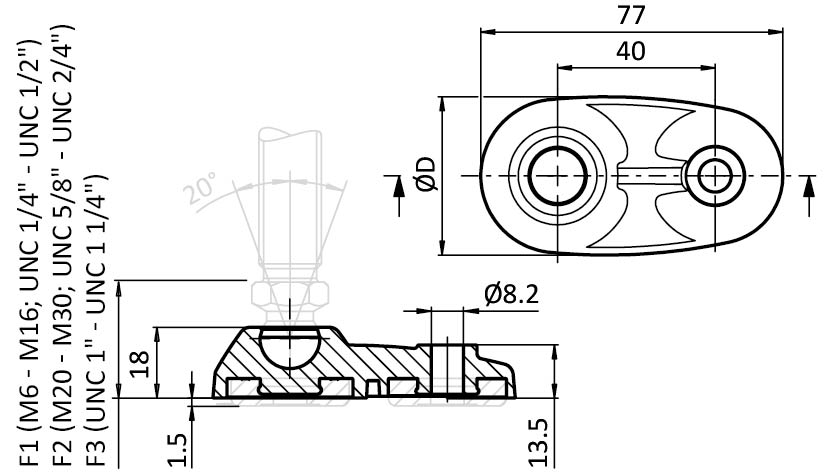

Product ID Base F3 (mm) F2 (mm) D (mm) Version Fmax (N) F1 (mm)
098DA040K 40 33.5 32.5 39 without anti-slip plate 5880 29.5
098DA040KG 40 33.5 32.5 39 with anti-slip plate 5880 29.5
