Extended Pivot Foot, PA / ST - Ball Joint 15
€0.00
Part #:
9DA040K08040M
Product information "Extended Pivot Foot, PA / ST - Ball Joint 15"
Color:
Base: Black
Delivery Countries:
Worldwide
Description:

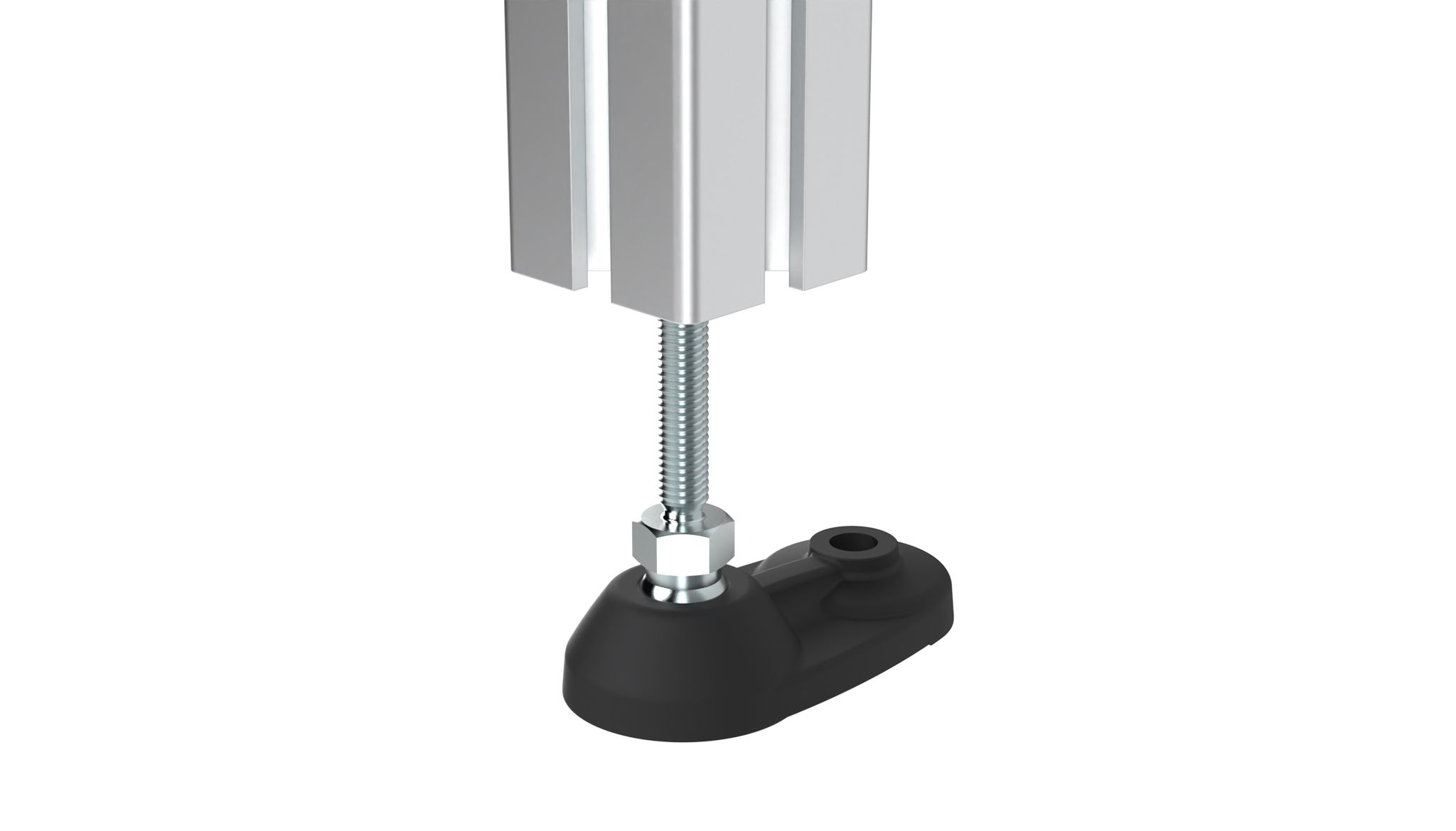

Extended swiveling leveling foot which can be fixed to the floor
Material:
Base: Plastic PA, glass ball reinforced
Threaded rod: Steel
Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Stainless steel, other lengths and other sizes on request
Surface:
Threaded rod: Zinc plated
Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG030 et sq.
Base: Black
Delivery Countries:
Worldwide
Description:
Extended swiveling leveling foot which can be fixed to the floor
Material:
Base: Plastic PA, glass ball reinforced
Threaded rod: Steel
Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Stainless steel, other lengths and other sizes on request
Surface:
Threaded rod: Zinc plated
Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG030 et sq.
| (ECLASS 6.0): | 90900110 |
|---|---|
| (ECLASS 7.0): | 90900109 |
| (ECLASS 8.0): | 90900108 |
| (ECLASS 9.0): | 90900107 |
| (ECLASS 10.0): | 90900106 |
| (ECLASS 11.0): | 90900105 |
| (ECLASS 12.0): | 90900104 |
| (ECLASS 13.0): | 90900103 |
| Ball Joint: | Swiveling range ±20° |
| Customs Tariff Number Export: | 73269098 |
| ECLASS_V14.0: | 90900102 |
| ERP Number: | 137374 |
| GTIN-EAN: | 4066061058257 |
| Model: | Plastic PA / steel |
| Pack Quantity: | 1 piece |
| Weight (g): | 56.0 |
| Zolltarifnummer: | 73269098900 |
