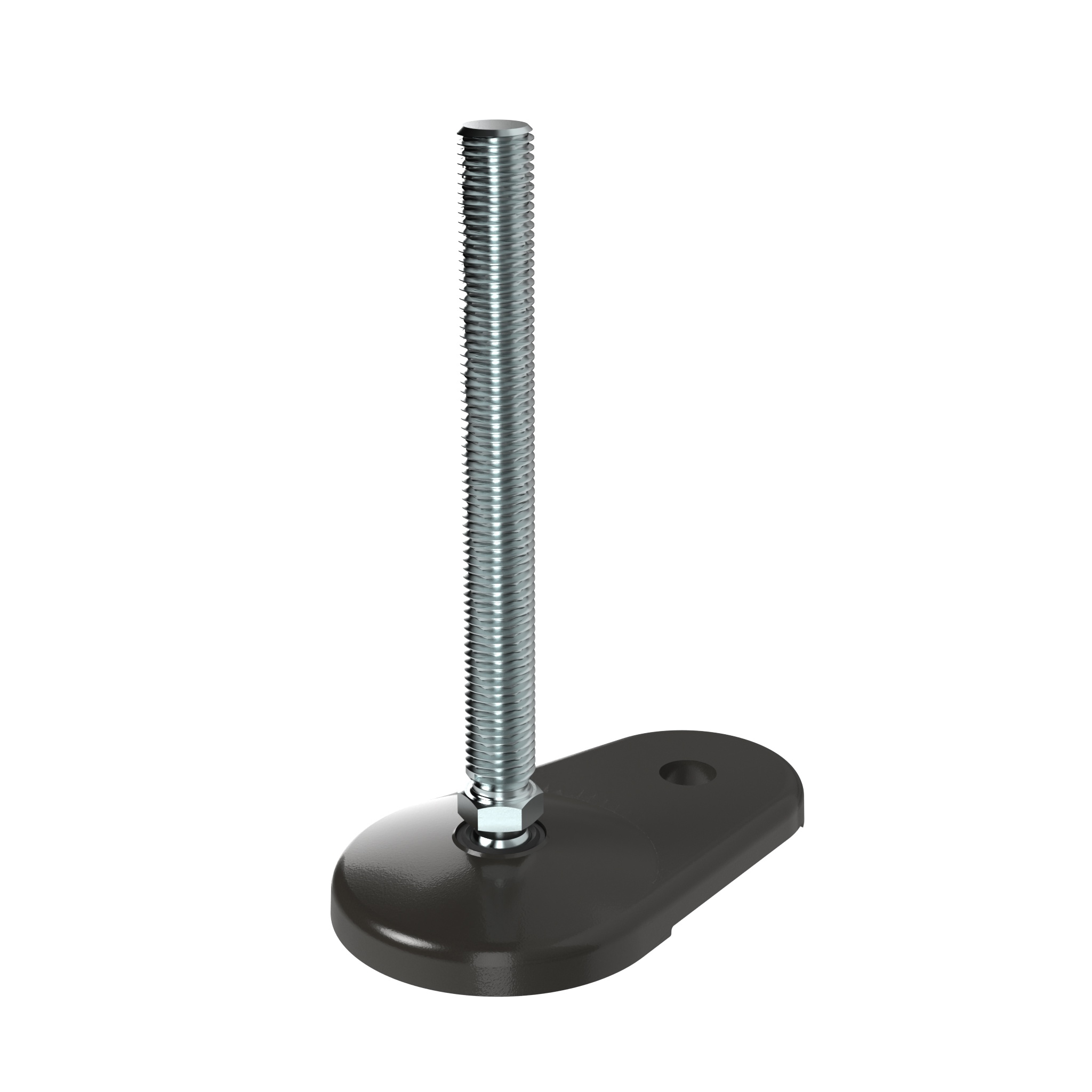

Extended Pivot Foot, ZN / ST - Ball Joint 15

Product information "Extended Pivot Foot, ZN / ST - Ball Joint 15"

Color:
Base: Black

Delivery Countries:
Worldwide

Description:

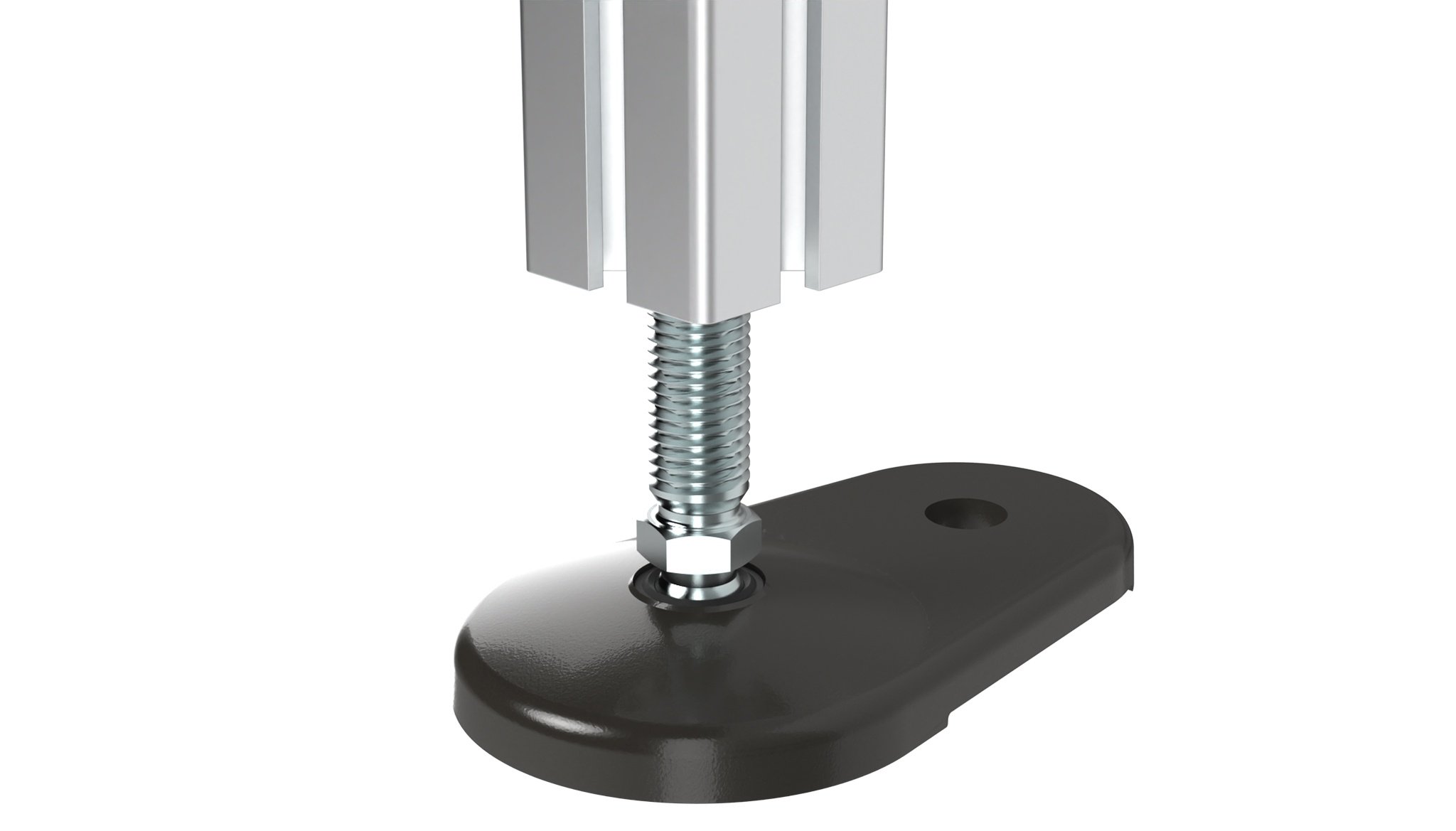

Extended swiveling leveling foot which can be fixed to the floor

Material:
Base: Zinc die-cast
Threaded rod: Steel

Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Stainless steel, other lengths and other sizes on request

Surface:
Base: Powder coated
Threaded rod: Zinc plated

Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG030 et sq.

Zolltarifnummer:
73269098900
Ball Joint: Swiveling range ±20°
Model: Zinc die-cast / steel
Pack Quantity: 1 piece
Weight (g): 621.0

Variants

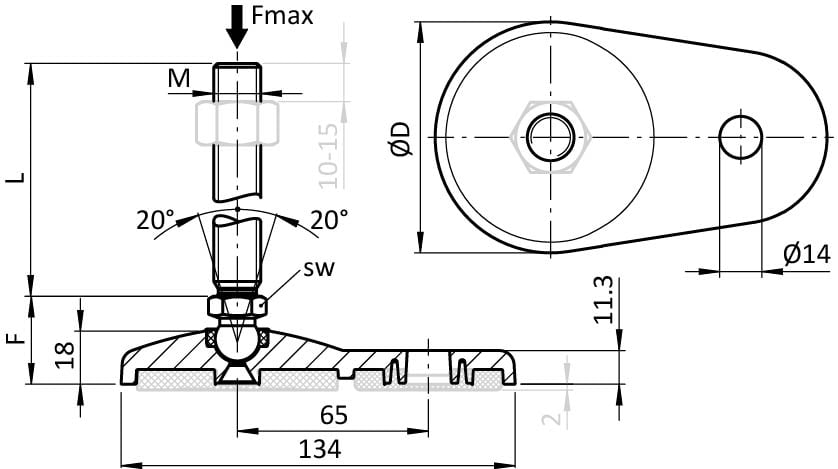

Product ID F (mm) Version SW (mm) D (mm) M x L (mm) Base Fmax (N)
9DA080ZS16150M 29.5 without anti-slip plate 17 79 M16 x 150 80 14200
